Chapter 2: Jumpers and Connectors

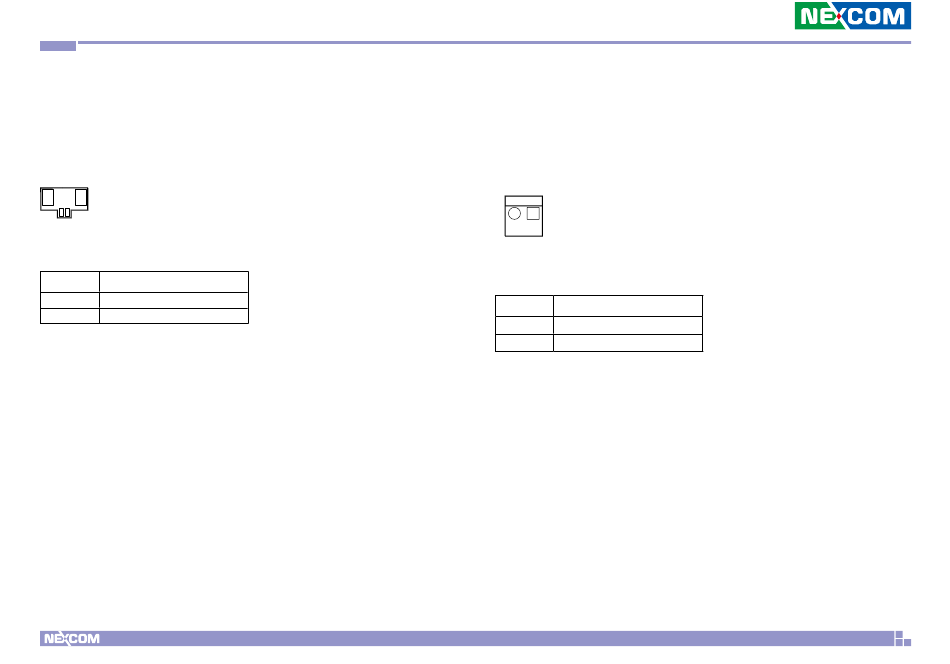

Battery Connector
Connector type: 1x2 2-pin header, 1.25mm pitch
Connector location: BATTERY1
2
1
Pin
Definition
1
BAT
2
GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
DC Power Input
Connector type: 1x2 2-pin header, 3.96mm pitch
Connector location: CON1
2
1
Pin
Definition
1
GND
2
+DC_IN
20
XPPC 16-101 User Manual
