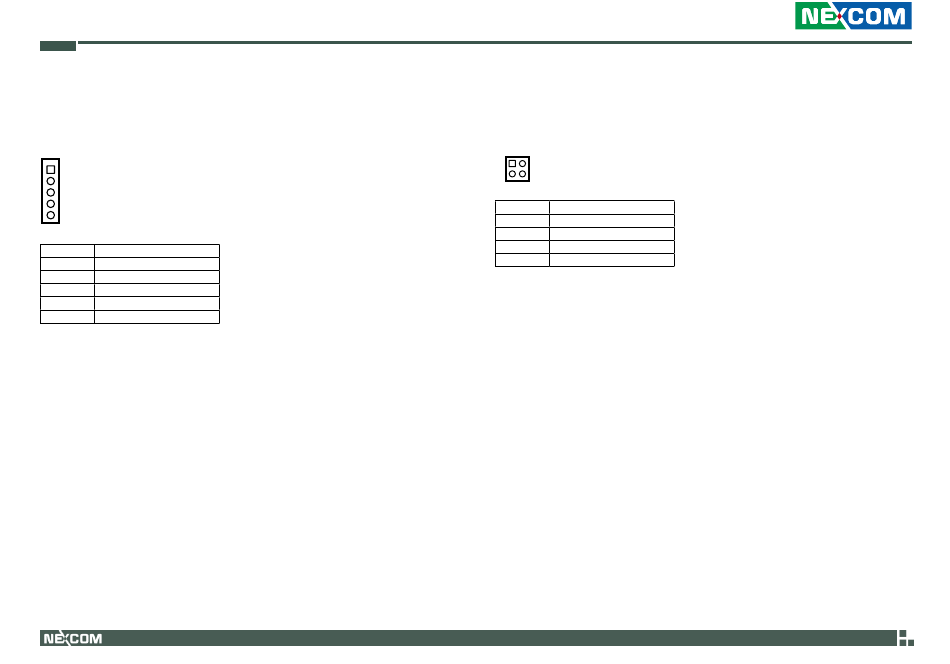

COM4 RI Pin Header

Connector type: 1x5 5-pin header 2.0mm -M-180
Connector location: J9
1
5
Pin Definition
1 VCC5
2 SP4_RI_T
3 +12V
4 SP4_RI_T
5 SP4_R
*Default: 4-5
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.

GPIO LED Connector

Connector type: 2x2 4-pin 2.0mm -M-180
Connector location: JP1
1 2
3 4
Pin Definition
1 GPO_LED0
2 GND
3 GPO_LED1
4 GND
31
