9.3 Mattress support platform
The mattress support platform consists of removable plastic sections.

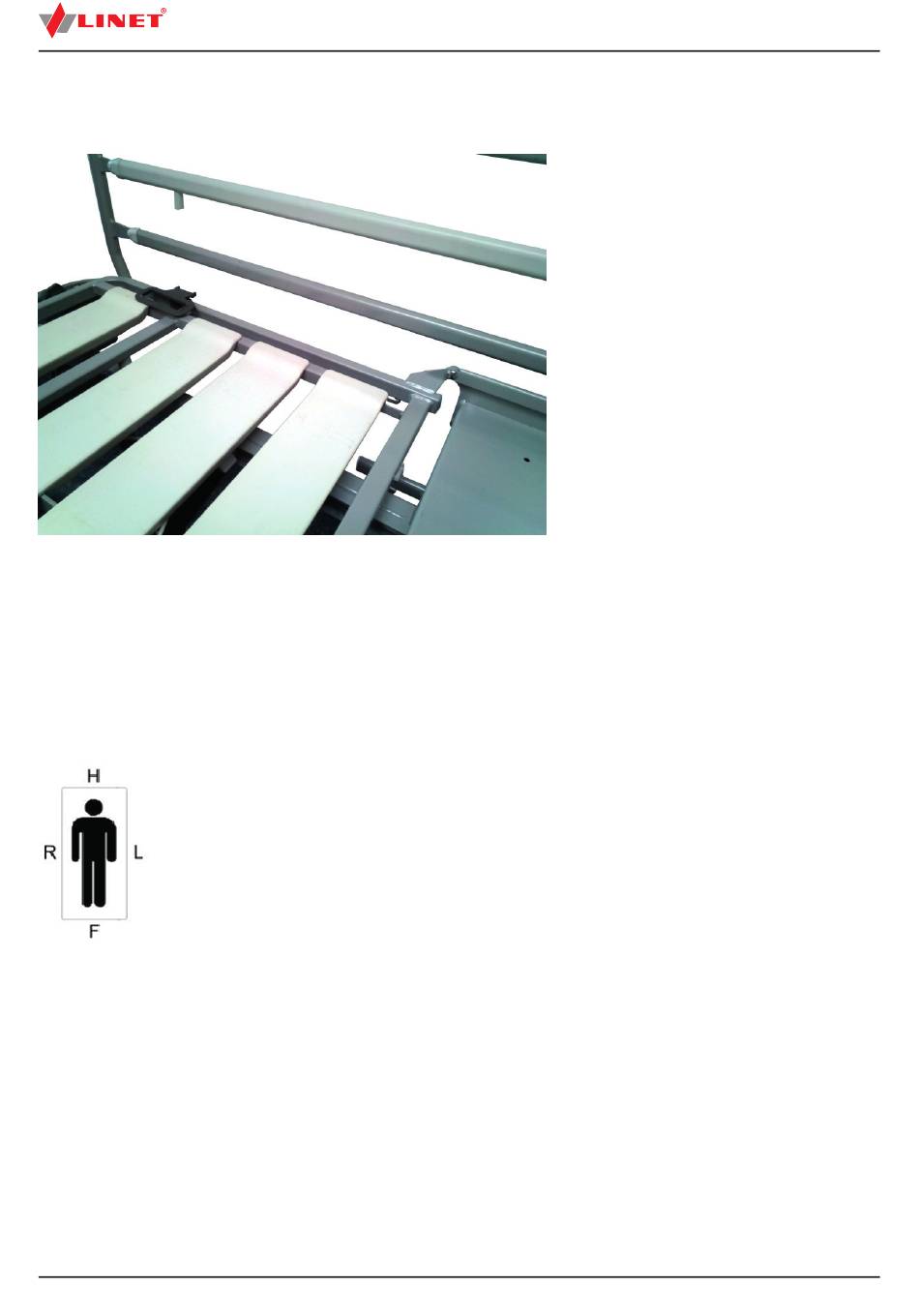

Fig. Mattress support platform
To remove/install sections of the mattress platform:
►
Pull out mattress support platform sections.
►
Install mattress support platform section.
►
The correct fi tting of section is signalized by hearable "click".
►
Ensure that mattress support platform sections are fi tted correctly by trying pull the section up with little manpower.
Fig. Bed sides (H=head,
F=foot, R=right, L=left)
28
D9U001AM2-0101_06
