Sprint 200 With 4-Part Mattress Support Platform - LINET Sprint 200 Instructions For Use And Technical Description

5.2 Sprint 200 WITH 4-PART MATTRESS SUPPORT PLATFORM

18
17
16
15
14

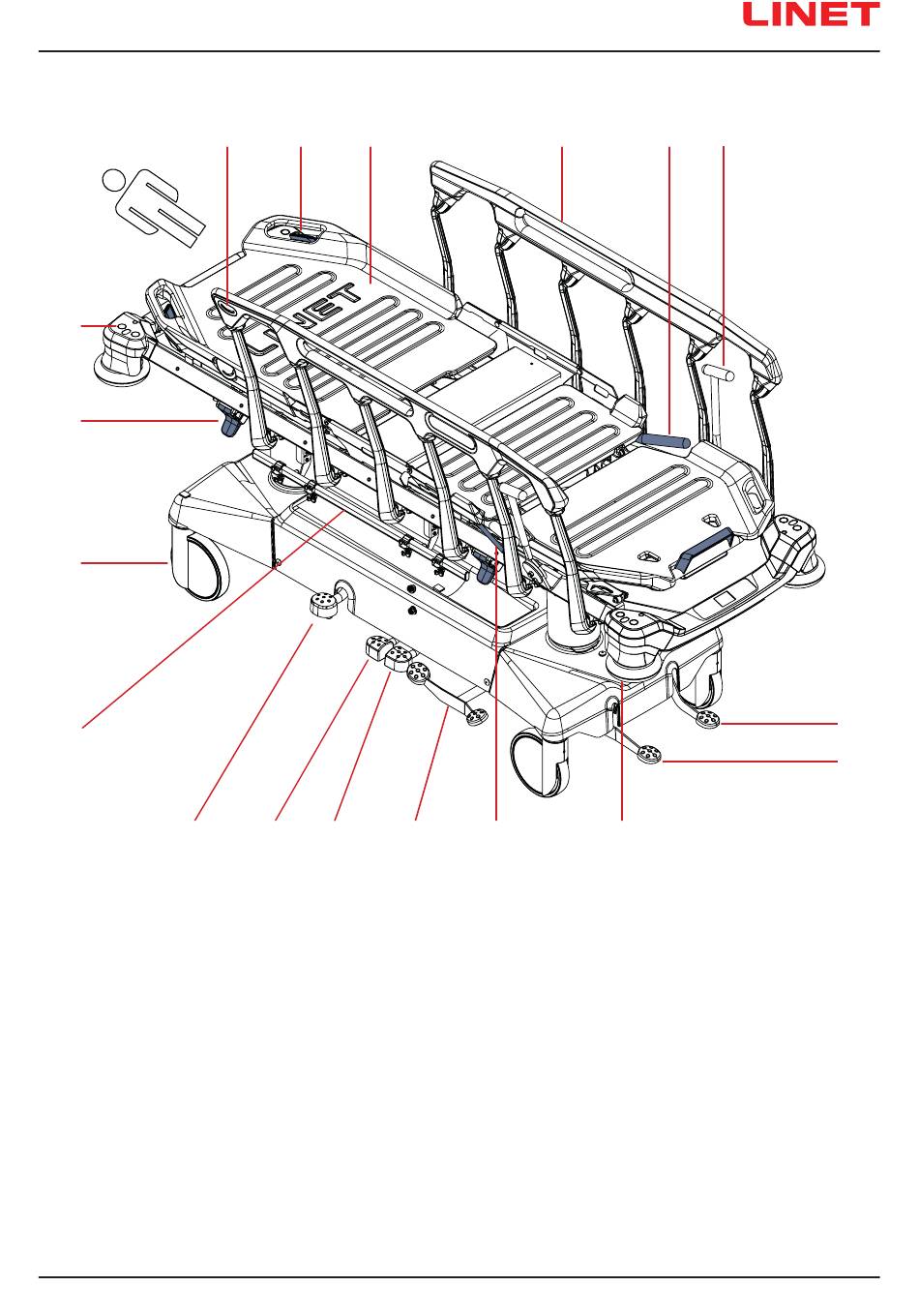

Fig. Stretcher Overview (Sprint 200 with 4-part Mattress Support Platform)
1. Angle Indicator
2. Backrest Release Handle
3. Mattress Support Platform
4. Collapsible Siderail
5. Thighrest Handle
6. Mobi-Lift Handle
7. Drive Pedal
8. Brake Pedal
9. Corner Bumper
10. Thighrest Latch
11. Drive Pedal and Brake Pedal (optional)
12. Foot End Lowering Pedal
13. Head End Lowering Pedal
14. Lifting Pedal
15. Accessory Rail with hooks
16. Castor
17. Siderail Release Lever
18. Bushings for Accessories
D9U001ES2-0101_02
1 2 3
13 12
4
10
11
6
5
9
7
8
21
