15.3 Siderails Extension – Extender®
WARNING!
Risk of injury or collision due to incorrect use!
► The Extender® can be used with single collapsible siderails only. The manufacturer will not be held responsible
for any consequences if the Extender® is used with other types of siderails.
► Movement of the bed must be considered if the Extender® is installed.
► Use of the Extender® in a manner other then stated in the instructions for use is on the responsibility of perso-
nnel. The manufacturer shall not be held liable for incorrect use!
It is recommended the siderail extension – Extender® be used if a mattress higher than the recommended height was placed on
the bed. The Extender® is used to raise the height of the siderails and helps to secure patients safety. The Extender® is designed
for single collapsible siderails only.
It is recommended that the Extender® be used with the following mattresses:
► Passive mattress: higher than 14 cm
► Active mattress: with maximum height 25 cm
■ Virtuoso - bariatric

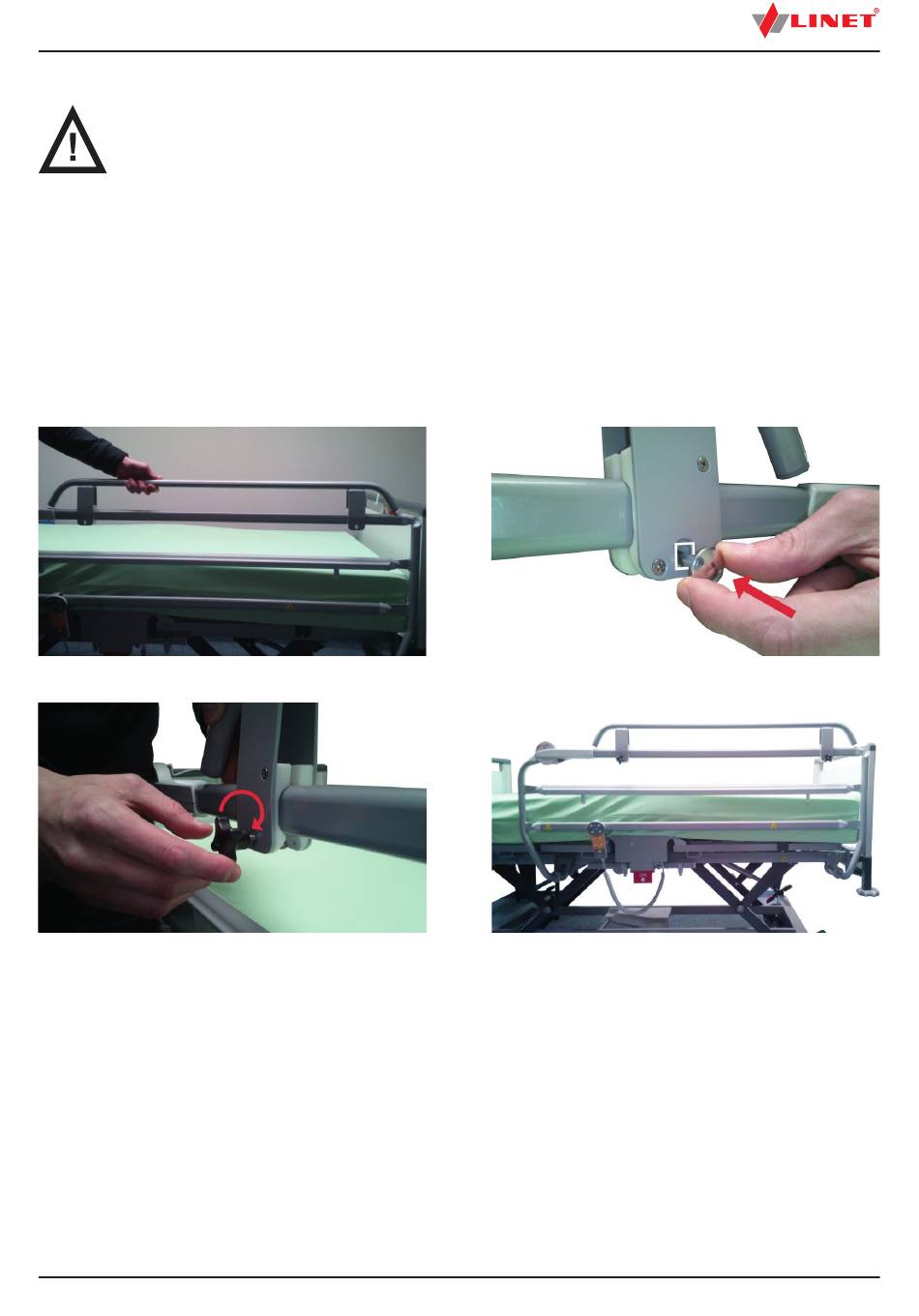

Fig. Installing the Extender® on the siderail
Fig. Securing the Extender®
Install the Extender® as follows:
► Place the Extender® on the upper edge of the siderail. Siderails must be in the upper position.
► Insert the screw from the inside of the bed thru the securing hole in the Extender®. The square hole is pointed into the
mattress support platform.
► Secure the screw with the plastic rosette nut and tighten. The rosette nut is pointed out from the bed.
► Check that the Extender® is secured correctly.
D9U001AM2-0101_06
Fig. Inserting the screw
Fig. Image 3 B with installed Extender®
