9.2.2 Powder coated head board and foot board

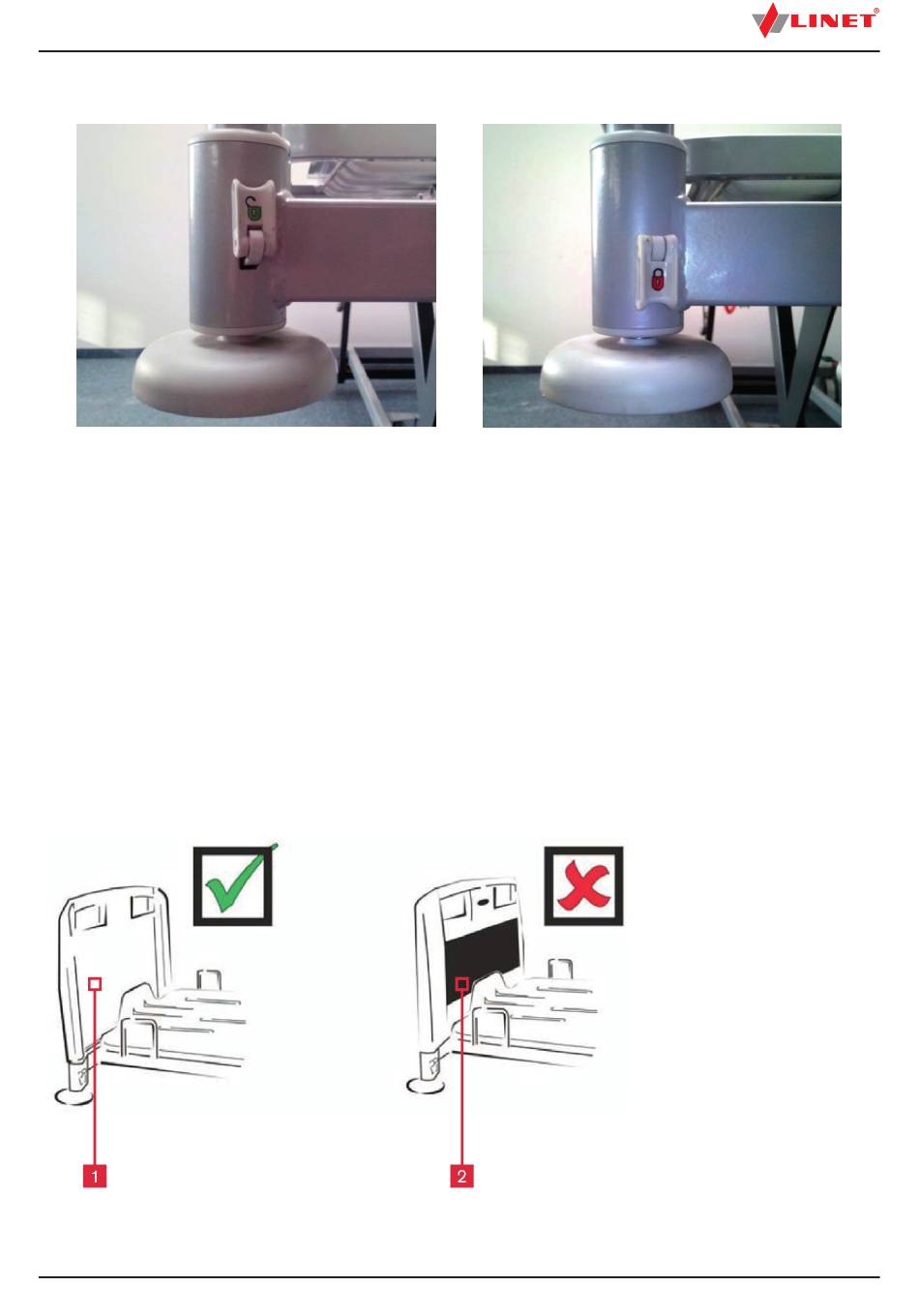

Fig. Unlocked position
1.
Unlocked (the head board or foot board can be removed)
2.
Locked (head board or foot board is locked)
Manipulation with head board and foot board
Insert the head board or foot board as follows:
Unlock safety levers on corner posts (green lock - unlocked, red lock - locked).
Slide head board or foot board into slots on corner posts with coloured panel on the outside.
Lock safety levers on corner posts.
Remove the head board or foot board as follows:
Unlock safety levers on corner posts.
Pull head board or foot board upward.

9.2.3 Correct Orientation of Head Board and Foot Board

Fig. Installing the head board and foot board
NOTE: It is possible to install head board or foot board to the bushings with locked lock.
D9U001AM2-0101_06
Fig. Locked position
1.
Right (coloured
panel outside)
2.
Wrong (coloured
panel inside)
27
