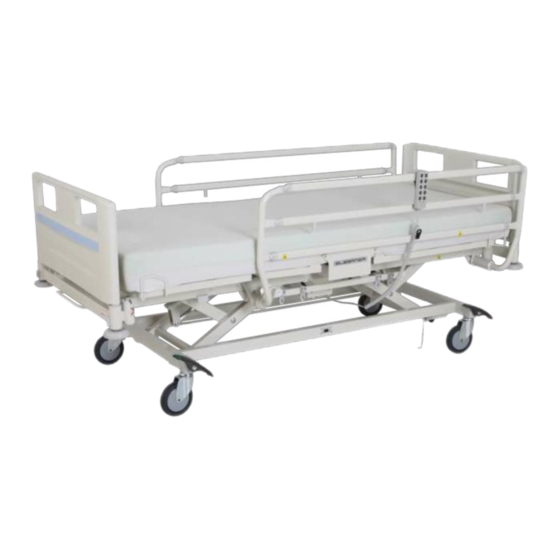

LINET Eleganza 1 LE Service Manual

Hide thumbs Also See for Eleganza 1 LE:
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
Eleganza 1 LE
Date
10/2014
Version
01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eleganza 1 LE and is the answer not in the manual?

Questions and answers

Related Manuals for LINET Eleganza 1 LE

Summary of Contents for LINET Eleganza 1 LE

  • Page 1 SERVICE MANUAL Eleganza 1 LE Date 10/2014 Version...
  • Page 2 Eleganza 1 LE – Service Manual Positionable hospital bed Author: LINET, s. r. o. Related links: www.linet.com Version: 01 Print date: 10/2014 Copyright © LINET, s. r. o., 2014 Translation © LINET, s. r. o., 2014 All right reserved. All trademarks and brands are the property of the appropriate owners. The manufacturer reserves the right to changes in the contents of this manual that relate to the product´s technical regulations.

  • Page 3: Table Of Contents

    4.3 Equipotential bonding connections (with extension of mattress platform, antistatic wheel) .....19 5 Bed setting ........................21 5.1 Service mode ............................21 5.2 Battery charge status ........................21 6 Troubleshooting ......................22 6.1 Troubleshooting table........................22 6.2 Sound signals of the bed........................22 Project ELEGANZA 1 LE 3/22 Date 10/2014 Version...

  • Page 4: Introduction - General Information

    1 Introduction – General Information Product label and technical label – location 1.1.1 Product label description Position of product label Production Date of Model number (serial) number manufacture Order number 1.1.2 Technical label description Project ELEGANZA 1 LE 4/22 Date 10/2014 Version...
  • Page 5 Only use a mattress recommended by the manufacturer Read instructions before use Warning TUV mark Weight of the bed Do not put any objects here CE Mark Warning against crushing or trapping Project ELEGANZA 1 LE 5/22 Date 10/2014 Version...
  • Page 6 Collapsing sinle collapsible siderail Collapsing split plastic siderail 1. Forward movement Central castor control 2. Unrestricted movement 3. Braked 1. Brake Individual braking procedure 2. Unbrake Project ELEGANZA 1 LE 6/22 Date 10/2014 Version...

  • Page 7: Identification Of Bed Parts

    Identification of bed parts Project ELEGANZA 1 LE 7/22 Date 10/2014 Version...

  • Page 8: List Of Tools And Equipment Needed For Servicing The Bed

    Screwdriver set Engineer‘s wrench set Hex key bits set Torx bits set Hex key set Knife Set of pincers Torgue wrench Hammer, nylon hammer Tape measure Crimping pincers for RJ connectors Multimeter Project ELEGANZA 1 LE 8/22 Date 10/2014 Version...

  • Page 9: Technical Data

    Siderail Height over Mattress Platform (without Mattress) with split plastic side rail (head/foot) 38 cm with single collapsible siderail 38,5 cm with full lenght side rail 38,5 cm Weight /basic equipment/ 135 kg Project ELEGANZA 1 LE 9/22 Date 10/2014 Version...

  • Page 10: Electrical Data

    T1.6A L 250 V Version 230 V T3.15A L 250 V Version 100 V – 127 V NOTE Upon request, LINET can deliver critical care beds with electrical specifications that comply with ® regional standards (custom voltage, different mains plugs).

  • Page 11: Components

    Electrical components 3.1.1.1 Linear actuators (Lifting drives) 1) MCZ 2 400/175 6kN/3kN IP66 2 pcs 2) Deformation rivet 10x50 COC DIN674 (Zn) 4 pcs 3) Starlock 10 deep (Steel, Cr, varnish) 4 pcs Project ELEGANZA 1 LE 11/22 Date 10/2014 Version...
  • Page 12 3) DEWERT motor insert (PP) 1 pcs 4) Deformation rivet 10x40 COC DIN 674 (Zn) 3 pcs 5) Starlock 10 deep (Steel, Cr, varnish) 4 pcs 6) Backrest motor cog (S235JRG2 – 11 373) 1 pcs Project ELEGANZA 1 LE 12/22 Date 10/2014 Version...
  • Page 13 5) Connecting screw, M5x16 IMB DIN912 (Steel/Zinc) 3 pcs 6) Self-locking nut, M5 DIN985 (Zinc) 3 pcs 7) Tapping screw M6x10 VALCOC Torx 30 DIN7500-C (Zinc) 2 pcs 8) Distance washer, 5,3 DIN125A (Steel/Zinc) 3 pcs Project ELEGANZA 1 LE 13/22 Date 10/2014 Version...

  • Page 14: Mechanical Parts

    3.1.2 Mechanical parts 3.1.1.4 Castors and antistatic castor 1) Castor – 2477PJP125 P30-11 3 pcs 2) Antistatic castor – 2470XSP125 P30-11 1 pcs NOTE: Use castors in position 1 for beds without antistatic castor. Project ELEGANZA 1 LE 14/22 Date 10/2014 Version...
  • Page 15 19) Self-stick label – Red lock (Transparent self-stick foil) 2 pcs 20) Self-stick label – Removable forehead (PVC transparent, JAC SERILUX 70100, pr.: 90 µm) 1 pcs 25) Bushing of bar (PA 6+15%GF) 2 pcs Project ELEGANZA 1 LE 15/22 Date 10/2014 Version...

  • Page 16: Electrical Devices - Component Connections

    4 Electrical devices – component connections Complete wiring diagram Project ELEGANZA 1 LE 16/22 Date 10/2014 Version...

  • Page 17: Equipotential Bonding Connections (Without Extension Of Mattress Platform, No Antistatic Wheel)

    Equipotential bonding connections (without extension of mattress platform, no antistatic wheel) Project ELEGANZA 1 LE 17/22 Date 10/2014 Version...
  • Page 18 11) Connection screw M6x16 VAL imbus DIN 7984 (Steel, Zinc) 1 pcs 12) Toothed washer 6.4/11.0/0.7 DIN 6797A (Steel, Zinc) – Galvanized 3 pcs 13) Hexagonal nut, selflocking M 6 DIN 985 (Steel, Zinc) 1 pcs Project ELEGANZA 1 LE 18/22 Date 10/2014 Version...

  • Page 19: Equipotential Bonding Connections (With Extension Of Mattress Platform, Antistatic Wheel)

    Equipotential bonding connections (with extension of mattress platform, antistatic wheel) Project ELEGANZA 1 LE 19/22 Date 10/2014 Version...
  • Page 20 11) Tapping screw;M6 L12 DIN 7984|VAL imbus (Fe,Zinc) 1 pcs 13) Hexagonal nut selflocking M 6 DIN 985 (Fe,Zinc) 1 pcs 14) Cable CYA cable shoe 5/5 length 170 mm 1 pcs Project ELEGANZA 1 LE 20/22 Date 10/2014 Version...

  • Page 21: Bed Setting

    Battery is fully charged. Bed is not connected to the mains Illuminated Acoustic tone Battery is almost discharged. Connect bed to the mains. Battery is discharged. Connect bed to the mains. Not illuminated Project ELEGANZA 1 LE 21/22 Date 10/2014 Version...

  • Page 22: Troubleshooting

    Position head or foot board correctly. Defective mechanism Notify service department. Sound signals of the bed Battery is almost discharged – the signal sounds after each press of the handset. Project ELEGANZA 1 LE 22/22 Date 10/2014 Version...
