LINET AVE2 Instructions For Use And Technical Description

Birthing bed
Hide thumbs Also See for AVE2:
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions for Use
and Technical Description
AVE2

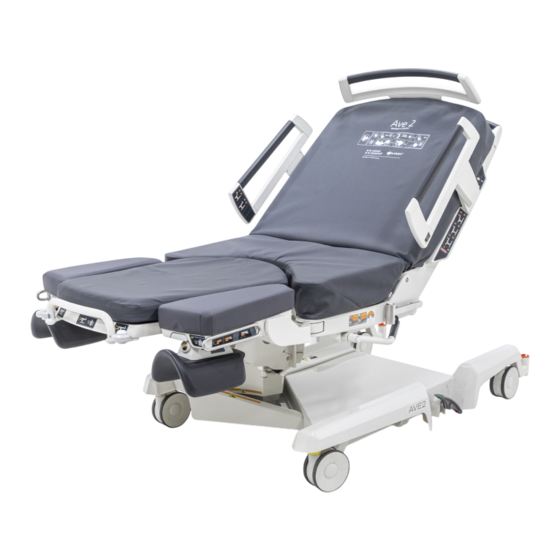

Birthing bed
D9U001PPB-0101
Version: 01
Date of publication: 2024-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVE2 and is the answer not in the manual?

Questions and answers

jennifer
July 16, 2025

the bed is working on one side but a beeping noise starts happening

0

Related Manuals for LINET AVE2

Summary of Contents for LINET AVE2

  • Page 1 Instructions for Use and Technical Description AVE2 Birthing bed D9U001PPB-0101 Version: 01 Date of publication: 2024-01...
  • Page 2 274 01 Slaný Tel.: +420 312 576 111 Fax: +420 312 522 668 E-mail: info@linet.cz http://www.linet.com Service department: service@linetgroup.com Authorized Representative in Great Britain: LINET UK Ltd 11 Brunel Way Segensworth East Fareham Hampshire PO15 5TX United Kingdom Authorized Representative in Switzerland:...
  • Page 3 AVE2 Birthing bed Author: L I N E T spol. s r.o. Related links: www.linet.com D9U001PPB-0101 Version: 01 Date of publication: 2024-01 Copyright © L I N E T spol. s r.o., 2024 Translation © L I N E T spol. s r.o., 2024 All rights reserved All trademarks and brands are the property of the appropriate owners.

  • Page 4: Table Of Contents

    Table of content Operating the bed ......... 42 Introduction ........... 6 Side rails .......... 42 Symbols and Definitions ......7 9.1.1 Description of the control panel for Symbols on the package ....7 the woman in childbirth ....43 Symbols on the birthing bed ....8 9.1.2 Adjustment of the handle in inactive Symbols on the leatherette...
  • Page 5 10.12 Tray on the swinging holder ..... 70 10.13 Nurse call ......... 71 10.14 Front bumper fitted on the leg rest (R/L) ..........72 10.15 Head rest ......... 72 10.16 Bowl ..........72 10.17 Instrument tray ......... 73 10.18 Protractor of the seat part, Protractor of the back part ....

  • Page 6: Introduction

    Please keep these instructions near the bed throughout its operation. Every person operating the birthing bed AVE2 must read and understand the contents of these instructions. 6/106...

  • Page 7: Symbols And Definitions

    1 Symbols and Definitions WARNING: DANGEROUS ELECTRIC VOLTAGE WARNING: CAUTION THIS SYMBOL INTRODUCES ANY INFORMATION THAT MAY HELP YOU AVOID OPERATIVE PROBLEMS Symbols on the package PACKAGING MATERIAL: “KEEP DRY” PACKAGING MATERIAL: “FRAGILE!“ PACKAGING MATERIAL: “THIS SIDE UP” TEMPERATURE LIMITATION TRANSPORTATION MARKING: „RELATIVE AIR HUMIDITY“.

  • Page 8: Symbols On The Birthing Bed

    Symbols on the birthing bed EU LEGISLATION COMPLIANT PRODUCT UK CONFORMITY ASSESSED (UKCA) MARKING (PRODUCT NORMATIVELY HARMONIZED FOR GREAT BRITAIN ECONOMIC AREA) AUTHORIZED REPRESENTATIVE IN GREAT BRITAIN AUTHORIZED REPRESENTATIVE IN SWITZERLAND SERIAL NUMBER TYPE NUMBER EXPLANATION MEDICAL DEVICE (COMPATIBLE WITH MEDICAL DEVICE REGULATION) UNIQUE DEVICE IDENTIFIER EAC MARKING MARKING OF INTERMITTENT OPERATION, I.E.
  • Page 9 SAFE WORKING LOAD MAXIMUM PATIENT WEIGHT OVERALL PRODUCT WEIGHT BATTERY MARKING MANUFACTURER DATE OF PRODUCTION FOLLOW THE INSTRUCTIONS MANUAL SAFETY ISOLATING TRANSFORMER MEDICAL DEVICE INTERNAL USE THERMAL PROTECTION OF THE TRANSFORMER EQUIPOTENTIALITY MARKING ACCORDING TO THE DIRECTIVE EC 2002/96/ EC (DIRECTIVE ON DISPOSAL OF OLD ELECTRIC AND ELECTRONIC APPLIANCES) SYMBOL FOR: “DO NOT DISPOSE OF THE PRODUCT INTO COMMUNAL WASTE.
  • Page 10 CARDIOPULMONARY RESUSCITATION (CPR) SAFE WORKING LOAD OF FOOT SECTION WARNING: NO SITTING ON LEG REST SAFE WORKING LOAD OF LEG REST PULL THE LOCKING LEVER AND REMOVE THE HEADBOARD FROM THE BED. WARNING: CAUTION WARNING: RISK OF LEG INJURIES WARNING: TRIPPING HAZARD WARNING: DO NOT PLACE OBJECTS ON THIS AREA...
  • Page 11 D9U001PPB-0101 11/106...

  • Page 12: Symbols On The Leatherette Upholstery

    Symbols on the leatherette upholstery THE UPHOLSTERY MEETS THE REQUIREMENTS ON RESISTANCE TO IGNITION ACCORDING TO BS 7176 IN THE MEDIUM HAZARD CATEGORY. THE UPHOLSTERY MEETS THE REQUIREMENTS OF BS EN 1021-1, BS EN 1021-2, BS 5852 – RESISTANCE TO IGNITION SOURCES 5 Symbols on the DUOCOAT mattress set READ THE INSTRUCTIONS BEFORE USE MANUAL WASHING, MANUAL MAINTENANCE...

  • Page 13: Symbols On The Terry Cloth Sheet

    REFERENCE NUMBER (PRODUCT TYPE DEPENDING ON THE CONFIGURATION) DATE OF MANUFACTURE MANUFACTURER BATCH NUMBER THE UPHOLSTERY MEETS THE REQUIREMENTS ON RESISTANCE TO IGNITION ACCORDING TO BS 7176 IN THE MEDIUM HAZARD CATEGORY. THE UPHOLSTERY MEETS THE REQUIREMENTS OF BS EN 1021-1, BS EN 1021-2, BS 5852 – RESISTANCE TO IGNITION SOURCES 5 Symbols on the terry cloth sheet TERRY CLOTH SHEET...

  • Page 14: Production Label With Udi

    Production label with UDI The serial label contains information about Address of Manufacturer, Manufacturing Date (Year- Month-Day), Product Reference Number, Product Serial Number, Global Trade Item Number (GTIN), Unique Device Identification (UDI), symbols, weight specifications and electrical specifications. Please address any potential queries to the authorized representative or directly to the Manufactur- er L I N E T spol.

  • Page 15: Acoustic Signalisation

    Acoustic signalisation SOUND MEANING One short acoustic signal when pressing Key lock activated a button The underfoot part is neither in the 'parked' nor Intermittent acoustic signal when pressing the in the 'active' position Trendelenburg button The battery charge is lower than 1/3 of its Intermittent acoustic signal when pressing the capacity positioning button...

  • Page 16: Un-Packing Manual

    2 Un-packing manual Inspection of the consignment after delivery Do not unpack and/or accept the consignment if the package has any visual damage! If so, issue a complaint. Personal qualification The persons authorised for installation and putting into operation of the product, i.e. those trained by L I N E T spol.
  • Page 17 SEQUENCE OF INSTRUCTIONS Step 1 • Cut the pockets with the user guide to the bed open carefully and take them out. Then remove the box Step 2 • Cut the plastic bag open carefully; ideally around the bottom edge of the pallet and remove the polythene from the chair including the bottom of the box Step 3...
  • Page 18 Step 4 • Remove the other container from the pallet, so that the upper part is free Step 5 • Unscrew the medical chair (if it is included in the package). It is recommended to put the bed to a higher position. Step 6 •...
  • Page 19 Step 7 • Remove plastic plug from the locking element Step 8 • Remove the rest of the packaging material off the bed Step 9 • Make sure that all wheels are facing forward alongside the longer part of the pallet and lock the wheels to move in a straight line D9U001PPB-0101 19/106...
  • Page 20 Step 10 • Cut all plastic tapes that hold the basic frame onto the palette Step 11 • Put two polystyrene ramps to the edge of the pallet Step 12 • Carefully push the bed so that it gets from the anchoring wedges to the pallet and then move it down using the ramps 20/106...
  • Page 21 BACK-UP BATTERY CONNECTING With regard to the possibility of unwanted switching on of AVE2 upon packaging, transport and un- packing, the battery is normally disconnected from the equipment. The following pictures show how to connect the battery Step 1 • Remove the undercarriage cover Step 2 •...
  • Page 22 Step 4 • Put the undercarriage cover back in place 22/106 D9U001PPB-0101...

  • Page 23: General Safety

    3 General safety WARNING! Birthing Bed is not primarily intended for newborns. For this case there is a special cot which comes as a separate medical device. It is assumed that the position of the baby during breast-feeding is under the constant control of the mother and thus any uncontrollable movement of a newborn on the bed is improbable.
  • Page 24 Additional Instructions for correct use: ► Leave the bed in the low position when the patient is unattended. This can reduce the possibility of patient falls and the severity of any resultant injuries. ► Make sure to fix and set the accessories properly (tightening of handles etc.) ►...

  • Page 25: Mechanical Safety

    Mechanical safety WARNING! No objects that may collide with the bed (furniture, stands etc.) may be located near it (20 cm minimum). Special caution must be taken when operating moving parts of the bed. Damage of the bed or patient injury may occur as result of the bed parts colliding with other objects! WARNING! The bed is not designed for mothers over 240 kg (527 lb).

  • Page 26: Overview Of Basic Parts

    4 Overview of basic parts 1. Back section 10. Side control panel 2. Seat section 11. Control light for power supply 3. Foot section 12. Holder for infusion stand 4. Castor, directional 1x 13. Hand grips 5. Castor with brake 3x 14.

  • Page 27: Overview Of Basic Versions

    Overview of basic versions PPB-AX Basic type Overview of colour versions Substituted by the letter “X”. Purple Blue Green Yellow Orange Safety Standards and specifications Referenced standards are listed in the Declaration of Conformity. The manufacturer has implemented certified quality management system in accordance with the following standards: ►...

  • Page 28: Function

    When using the delivery bed as part of the medical system, certain elements (medical devices) may interact. Before this application it is necessary to follow recommendations provided in the user manual of the delivery bed AVE2. General instructions The birthing bed may only be operated where the conditions of valid standards for el. distribution in medical facilities are met.

  • Page 29: Intended Use

    6 Intended use Birthing bed is designed to be used by mothers-to-be for vaginal delivery. The birthing bed is de- signed to enable different birthing positions in all delivery birthing stages including postpartum pe- riod. User population ► Pregnant women during ambulant and stationary pregnancy check-ups and/or in all labor stages and her companions.

  • Page 30: Technical Specification

    7 Technical Specification Identification of Applied Parts The attached parts on the product are classified as Type B - they provide basic protection of the patient and comply with the applicable requirements of ČSN EN 60601-1 ed. 2:2007, by which they meet the requirements on classification of Type B attached parts.

  • Page 31: Technical Parameters

    Technical parameters Total length of the lying area 2 122 mm (83.54 inch) (including the foot section) Minimum length in the default setting 1 570 mm (61.81inch) (without the foot section) Full width with the side rails in active position 980 mm (38.58 inch) Full width with the side rails in parked position 960 mm (37.79 inch)

  • Page 32: Electrical Parameters

    Permitted back section load (125 mm from the edge) 150 kg (330 lb) Permitted foot section load (125 mm from the edge) 150 kg (330 lb) Permitted leg rest load 70 kg (154 lb) Permitted load of side rail 75 kg (165 lb) vertical press Permitted load of supporting bar 70 kg (154 lb) Weight of mattress...

  • Page 33: Technical Specifications Of The Duocoat Mattress Set

    Technical specifications of the DUOCOAT mattress set All technical data are nominal data and are subject to design and manufacturing tolerances. Foam material polyurethane foam polyurethane and memory foam Cover material Base 100% polyester 100% polyester Coating 100% polyurethane 100% polyurethane Water column height >200 cm >200 cm...

  • Page 34: Electromagnetic Compatibility

    Mobile RF communication device (including end use devices like antenna cables and external antenna) should not be used closer than 30 cm (12 inches) from any part of this bed AVE2, including cables specified by manufacturer. Otherwise this could lead to deterioration of functionality of this bed.

  • Page 35: Manufacturer Instructions - Electromagnetic Susceptibility

    7.6.2 Manufacturer instructions – electromagnetic susceptibility IMMUNITY TESTS COMPLIANCE LEVEL Electrostatic discharge (ESD) ± 8 kV for contact discharge IEC 61000-4-2 ± 15 kV for contact discharge Radiated RF 3 V/m IEC 61000-4-3 80 MHz – 2,7 GHz 80 % AM at 1 kHz Proximity fields from RF wireless see TABLE 1 on page 36 communications equipment...
  • Page 36 TABLE 1 – IMMUNITY to RF wireless communications equipment TEST IMMUNITY FREQUENCY BAND SERVICE MODULATION TEST LEVEL (MHz) (MHz) (V/m) Pulse modulation 380 - 390 TETRA 400 18 Hz FM ± 5 kHz GMRS 460, FRS 430 - 470 deviation 1 kHz sine LTE band Pulse modulation...

  • Page 37: Setting The Product

    8 Setting the product ► Check all delivered items after unpacking ► Install the equipment and accessories ► Install front panel (in case of beds with dismountable front panels) ► Always install the bed on even floors ► When installing the bed, avoid collision with power supply cable or excessive tensioning of the cable ►...

  • Page 38: Transport, Braking

    Transport, braking The birthing bed also allows for the transport of a patient. This is, however, subject to the following conditions: WARNING! The birthing bed allows for the transport of a patient by pushing forward using the handle on the back section. Before transporting the patient, disconnect and store the power supply cables and equipotential and other connections properly, to prevent their tearing off.
  • Page 39 WARNING! During transport, pay attention to the leg rests, side rails, foot section and hand grips to prevent hitting doors and other objects. Otherwise you can cause injury to persons or damage to the device. WARNING! Observe the following security hints when transporting the bed: ►...

  • Page 40: Transport

    Transport DANGEROUS ELECTRIC VOLTAGE! Before transport, disconnect power supply cables, equipotential and other connection lines, thus avoiding their pulling out. DANGEROUS ELECTRIC VOLTAGE! The power cable must be fixed to the bed at the selected point using plastic hook! Never wind up the cable on the bed/its parts, e.g. side handles, front section, handrails and other items! ...
  • Page 41 Suitable floor: ► Floor tiles ► Hard linoleum ► Cast floor Unsuitable floor: ► Too soft, not sealed or defective flooring ► Soft wood floor ► Soft and porous artificial stone floors ► Carpets with lining ► Soft linoleum ► When transporting the bed at a distance, check the castor control is active (main control lever) ►...

  • Page 42: Operating The Bed

    9 Operating the bed WARNING! The birthing bed is not designed for permanent operation – motors can only be loaded up to the values defined on the label, i.e. 2 minutes of operation followed by 18 minutes of stand by. Excess workload of the device may result in automatic stop.

  • Page 43: Description Of The Control Panel For The Woman In Childbirth

    9.1.1 Description of the control panel for the woman in childbirth Lowering / lifting of back section Height adjustmentí 9.1.2 Adjustment of the handle in inactive position ► To initiate lowering, push the trigger in the marked direction with one hand, then lower the rail to the lowest position possible.

  • Page 44: Side Control Panel

    Side control panel WARNING! Side control panel is located on both sides of AVE2 birthing bed. The panel can be operated by trained personnel only Holding the button initiates Nurse Call setting the bed to anti-shock position Stopping bed movement...

  • Page 45: Manual Setting Of The Cpr

    Manual setting of the CPR WARNING! The CPR controller is marked with red information labels on both sides of the back section. The labels are marked with CPR text WARNING! During movement, the back support must be loaded (e.g. with the patient's weight) NOTE Before first use of the bed, we recommend performing the movement of the back rest of the bed multiple times using the CPR function.

  • Page 46: Electric Setting Of Trendelenburg

    Electric setting of Trendelenburg WARNING! The controller is marked with orange on both sides of the back section WARNING! If the bed stops during the positioning movement and the control box generates a sound signal, the foot section has not been fixed properly For positioning of the back section: ►...

  • Page 47: Setting Of The Foot Section

    Setting of the foot section WARNING! The load capacity of foot section is 150 kg maximum (330 lb) WARNING! The load capacity of foot section and leg rests together is 170 kg maximum (374 lb) WARNING! Do not overload the footrest due to the unsecured position. It is necessary to always secure the part in the end positions (parking, active)! WARNING! Foot section positioning (sliding in/out, lifting/lowering, inclination) always...

  • Page 48: Folding/Unfolding

    9.5.1 Folding/unfolding WARNING! Before folding, always make sure the foot section is in the lowest position and back section is not in Trendelenburg position WARNING! In case of putting aside the upholstery of the foot section from the bed, it must be placed on its wide laying surface on flat surface such as ground or bed.

  • Page 49: Lifting/Lowering

    9.5.2 Lifting/lowering The surface of the completely pulled out foot section may be lifted up to the level of the seat. All listed positions of the foot section do not limit motoric setting of the birthing bed. Before loading the foot section, its correct locking should be checked by short moves to the sides.

  • Page 50: Tilting Up/Down

    9.5.3 Tilting up/down ► Pull the control lever with the right hand ► Then push the foot section downwards ► You can lock the foot section in any position by releasing the control leve ► Uninterrupted push downwards results in low horizontal position of the foot section 50/106 D9U001PPB-0101...

  • Page 51: Adjusting The Leg Rests

    Adjusting the leg rests WARNING! The load capacity of one leg rest is 70 kg maximum (154 lb) WARNING! The load capacity of foot section and leg rests together is 170 kg maximum (374 lb) WARNING! Always brake the footrests plates before transport! This means to set up the lowest height level and turn them in a way that their edges do not overlap the edges of the footrests WARNING!

  • Page 52: Gynaecological Position

    9.6.1 Gynaecological position For positioning: ► Pull „Turning the leg rest sideways“ control lever ► and with same hand pull the leg rest in the desired position ► Then pull the „Tilting of the leg rest“control lever as on the picture below 52/106 D9U001PPB-0101...
  • Page 53 ► and with same hand pull the leg rest in the desired position Then adjust the leg rest tray: ► With one hand pull the „Folding/unfolding of the leg rest tray“control lever as on the picture below (1) ► Then with same hand pull the tray to the desired position (2) ►...

  • Page 54: Foot Rest Position

    9.6.2 Foot rest position The leg rests can be adjusted in the Foot rest position. For positioning: ► Pull „Turning the leg rest sideways“ control lever ► and with same hand pull the leg rest in the desired position ► Then pull the „Tilting of the leg rest“control lever 54/106...
  • Page 55 ► and with same hand pull the leg rest in the desired position D9U001PPB-0101 55/106...

  • Page 56: Maximum Bed Surface Position

    9.6.3 Maximum bed surface position The leg rests can be positioned horizontally along the sides of the foot section. Due to this function, one laying surface can be achieved together with the seat and back sections. For positioning ► Pull „Turning the leg rest sideways“...

  • Page 57: Turning The Leg Rests Sideways

    9.6.4 Turning the leg rests sideways The leg rests can be turned sideways better access to a birth mother. For turning the leg rest sideways: ► Pull the control lever ► Then pull the leg rest to the desired position ►...

  • Page 58: Leg Rest Tray Ajdustment

    9.6.5 Leg rest tray ajdustment WARNING! Make sure that the footrest cups are handled correctly. Improper use of the footrests will damage the footrest upholstery Leg rest tray can be individually turned sideways according to the physical proportions of the birth mother. To do so, the leg rest must be in "Gynaecological position".

  • Page 59: Leg Rest Tray Height Adjustment

    9.6.6 Leg rest tray height adjustment Leg rest tray can be indi- vidually adjusted according to the physical proportions of the birth mother. To do so, the leg rest must be in "Gynaecological posi- tion". ► Then with one hand pull the control lever ►...

  • Page 60: Leg Straps

    9.6.7 Leg straps Fixing straps for legs are integral part of each foot rest to enable better support of flaccid mus- cles of the mother-to-be during the stages of birth ► Loosen the strap (1) ► Place the mother’s-to-be calf comfortably in the bowl of the foot rest (2) ►...

  • Page 61: Backup Battery

    Backup Battery DANGEROUS ELECTRIC VOLTAGE! The batteries may be only replaced by the appropriate service personnel! DANGEROUS ELECTRIC VOLTAGE! The battery is intended solely for emergency power supply during power failures. DANGEROUS ELECTRIC VOLTAGE! In case that the insufficiently trained personnel will perform the replacement of battery, the danger situation may occur or the functionality of medical device may be reduced.

  • Page 62: Grab Handles, Detachable (R/L)

    The birthing bed includes fully charged battery. The battery is automatically charged from the control unit and does not require special maintenance. Indication of battery charging mode ► Battery charging mode is indicated by a green indicator LED on side control panel Battery status indicator ►...

  • Page 63: Grab Handles, Non-Detachable, Foldable (R/L)

    Grab handles, non-detachable, foldable (R/L) WARNING! When simultaneously using hand grips and setting the leg rests to the Foot rest position, collision may occur! Hence, it is necessary to pay attention to avoid injury of the personnel and/or the mother in labor when adjusting the leg rests. The optional grab handles (at extra costs) are designed as the non-detachable ones.

  • Page 64: Equipotential Coupling

    9.11 Equipotential coupling The delivery bed is fitted with a coupling for synchronizing the potential with other electrical medical equipment. The coupling is located behind the bed under the lying surface of the bed. The bed is interconnected to the other device by means of a cable (not supplied with the bed) that is connected easily by its end to the coupling 9.12 Replaceable leatherette upholstery / mattress set DUOCOAT WARNING!

  • Page 65: Leatherette Upholstery

    9.12.1 Leatherette upholstery The upholstery of the bed surface and the upholstery of the foot section can be removed from the birthing bed, but the upholstery of the leg rests cannot. The bed laying consists of the bed uphol- stery, the foot section upholstery and the leg rest upholstery. 9.12.2 DUOCOAT mattress set WARNING! The top cover of the mattress is made of elastic material.

  • Page 66: Accessories

    10 Accessories 10.1 Cable hand controller WARNING! For safety reasons it is restricted to pass the hand controller cable under the birthing bed to reach the other side! The operator may use the hand controller buttons to set the height position of the seat and back sec- Power supply indicator tion inclination.

  • Page 67: Supporting Bar

    10.2 Supporting bar WARNING! Maximum weight load of the supporting bar is 70 kg in all direction (154 lb) Supporting bar is vertically locked up, it may be ejected from the holder in the upward direction! ► After having pulled out the cross-bar, it is necessary to drag both arresting elements to unlock them 10.3 Undercarriage light ►...

  • Page 68: Infusion Stand, Stainless Steel, Telescopic

    10.4 Infusion stand, stainless steel, telescopic WARNING! Max. load-carrying capacity of one hook 2 kg! Infusion stand is only used to hold infusion. It is restricted to use it for manipulation with birthing bed. It is also necessary to be cautious when manipulating with the bed in order to avoid the collision be- tween the infusion stand holder or possibly the infusion stand and the other objects situated close to it.

  • Page 69: Doctor's Chair (Ergonomic)

    10.7 Doctor's chair (ergonomic) 10.8 Doctor’s chair 10.9 Front bumper on foot section WARNING! Maximum weight capacity is 70 Kg (154 lb) Accessories can be attached to the holder and it serves as foot section protection as well. The set contains two side bumpers.

  • Page 70: Upper Mattress (For 100 Mm Cushioning)

    10.10 Upper mattress (for 100 mm cushioning) The accessory is primarily used after post-partum; it increases the comfort of the resting mother. 10.11 Upper mattress (for 130 mm cushioning) The accessory is primarily used after post-partum; it increases the comfort of the resting mother. 10.12 Tray on the swinging holder WARNING! Tray may only be manipulated when the lying section of the foot rest section is...

  • Page 71: Nurse Call

    10.13 Nurse call WARNING! The control elements of the nurse call function cannot be deactivated! WARNING! If the power supply of the bed is disconnected, the Call nurse function can work for about 1 or 2 months (if the bed positioning is not used). The nurse call button is located on the inner side of the side handle control panel (on the side of the la-...

  • Page 72: Front Bumper Fitted On The Leg Rest (R/L)

    10.14 Front bumper fitted on the leg rest (R/L) WARNING! Always park the leg holder trays before transport! Adjust the lowest position and move so that they do not overlap the contour of the leg rest Intended for hanging the accessories and, at the same time, leg rest protection.

  • Page 73: Instrument Tray

    10.17 Instrument tray This flat, stainless-steel tray is in most cases used for tools necessary in post-delivery su- tures. The tray can be parked below the seat section and, where required, you can place this tray onto existing and deeper trays (4,5l and 8l). 10.18 Protractor of the seat part, Protractor of the back part WARNING! The protractor is only for information!
  • Page 74 WARNING! When positioning the delivery bed downwards, there is a risk of collision between the empty bracket and the oxygen bottle bracket with the foot / legs of the operating personnel. Risk of deterioration of the bed or injury to the patient, staff or a third party! WARNING! Do not step on the plastic frame cover when handling the bed with an oxygen...

  • Page 75: Patient Card

    10.20 Patient card WARNING! Condition of the order including the front bumper of the leg rest WARNING! Snap only to the front bumper on the leg rest! WARNING! If the patient's card is hung in other places, such as the bed side or the headboard, there is a risk of instability.
  • Page 76 WARNING! It is absolutely forbidden to see staff moving away from the baby plate when the new-born is lying there! WARNING! The Baby plate can only be used by staff trained for this! WARNING! When mounting the baby plate on the bracket and after hearing the click, check by pulling towards you that the baby plate is correctly insured! The safety lever must be in the down position (safety position) WARNING!
  • Page 77 The baby plate is used to drop the new-born for a short period of time. The umbilical cord is cut when the new-born is placed on the baby plate and then placed on the breast of his mother, or on another table to perform some necessary procedures.

  • Page 78: Usb Cell-Phone Recharger

    10.22 USB cell-phone recharger WARNING! Risk of injury due to improper use! ► Make sure that the accessories attached to the USB connector are intact. The user of the bed is responsible for meeting this requirement WARNING! Risk of injury due to pinched power cord! ►...

  • Page 79: Cleaning And Disinfection

    11 Cleaning and disinfection All L I N E T spol. s r.o. products are designed for many years of service under the conditions of correct use. Please use your bed and its accessories carefully. Please follow these instructions for use and recommended operation and maintenance instructions. Avoid negligent handling.
  • Page 80 According to the principles of good hygienic practice, the cleaning and disinfection of the delivery room, its equipment and all the medical devices used, must be made directly and promptly after the delivery (birth) in order to prepare the equipment for a new delivery. These principles apply also to the cleaning and disinfection of the delivery bed.

  • Page 81: Cleaning The Birthing Bed

    11.1 Cleaning the birthing bed WARNING! Risk of injury due to accidental chair movement! ► Always disable the function buttons when cleaning between the undercarriage and mattress support platform WARNING! Risk of property damage caused by improper cleaning/disinfection! ► Check if used cleaning agents and disinfectants are compatible with materials that the product consists of! For information see the following table: BED COMPONENTS THAT...
  • Page 82 BED COMPONENTS THAT MATERIALS USED (SURFACES OF ARE INTENDED TO BE CLEANED THE MENTIONED BED COMPONENTS) Baby plate Akrylonitrilbutadienstyren (ABS), galvanized steel, stainless steel Eurolaths Stainless steel Bed cleaning procedure: ► Supporting area including the head pillow starting from the head section toward the lower section ►...
  • Page 83 ► Lift the right chassis plastic cover and clean dirty areas ► After lifting the left cover, you can lift the right plastic cover as well and clean the chassis. Make sure not to interfere with the electronics. After cleaning, first fit the right cover, then the left cover.
  • Page 84 ► Collecting tray (can be cleaned thermally, as stainless steel) ► Castors and brake pedals 84/106 D9U001PPB-0101...

  • Page 85: Recommended Disinfection (Disinfectants For Wiping)

    11.1.1 Recommended disinfection (disinfectants for wiping) WARNING! Do not use disinfectants with active substance: alcohol over 30%, active chlorine, iodine, aldehydes RTU- Ready-to-use non-diluted products - spray or foam Active substance How to use Example of disinfectant Amine, Alcohol up to 30% Spray and wipe Incidin foam Hydrogen Peroxide...

  • Page 86: Cleaning The Leatherette Upholstery

    11.2 Cleaning the leatherette upholstery WARNING! Risk of property damage caused by improper cleaning/disinfection! ► Always wipe and dry the leatherette upholstery before putting it back into service, even if the cleaner instructions say that this is not required. ► Put the upholstery on dry bed areas only! Parts of the leather upholstery Recommended Cleaning Agents (General cleaning) that need to be cleaned...
  • Page 87 General guidance: ► Do not use any strong acids or alkalines, (optimum pH range 6 – 8. Do not exceed pH of 9). Some hard surface cleaners have pH values outside this range, these are not suitable for use on coated textiles. ►...

  • Page 88: Recommended Manual Cleaning And Disinfection Of The Top Cover

    NOTE Continued use of high concentration, chlorine-based disinfectants may significantly reduce the performance and the working life of a coated material. Type of Cleaning Parts to be cleaned Routine Cleaning and Disinfection • Exposed mattress parts Full Cleaning and Disinfection •...

  • Page 89: Recommended Cleaning Of The Top Cover In An Industrial Laundry

    11.3.2 Recommended cleaning of the top cover in an industrial laundry WARNING! ► The mattress cannot be used if there are no fixing pins on it. ► Do not bleach the mattress cover! ► Observe the recommended setting of the industrial washing machine. ►...
  • Page 90 Step 3. Carefully unzip the seat section cover. Step 4. Turn the back section of the mattress to the seat section. Step 5. Carefully unzip the back section cover. 90/106 D9U001PPB-0101...
  • Page 91 Step 6. Turn the foot section with the plastic pins upwards. Step 7. Unscrew the four plastic pins on the foot section and remove them, including the plastic washers. Step 8. Carefully unzip the zipper of the top cover of the foot section. D9U001PPB-0101 91/106...
  • Page 92 Step 9. Carefully remove the seat core from the mattress cover. Pull the mattress cover over the screws while pulling out the core. Inspect the core for damage or contamination. Step 10. Carefully remove the back core from the mattress cover. Inspect the core for damage or contamination.
  • Page 93 Step 12. The removed cover is washed according to the instructions for the industrial laundry. Pull the cleaned mattress cover and the footrest cover over again according to the instructions, from Step 11 - to Step 1 RECOMMENDED SETTING OF THE INDUSTRIAL WASHING MACHINE WARNING! ►...

  • Page 94: Recommended Chemical Concentrations For Disinfection The Top Cover

    LEGENDA Normal movement: 12 s rotation and 3 s rest phase The basic washing temperature refers to the temperature at which the heating is switched off The bath level is measured from the bottom of the tank after 1 min. of washing machine operation and 30 s of the rest phase A tolerance of 20 s is allowed for the rest phases No movement during heating until it reaches the set temperature -5 °...

  • Page 95: Recommended Chemical Concentrations For Disinfection The Inner Covers

    Active Concentra- Post pH range Dwell time Recommendations for use substance tion application Hydrogen 5 - 9 <5 mins Rinse well Acceptable for use peroxide and dry Must be fully rinsed. Highly acidic or alkaline peroxides should be avoided as they will damage the coating. Quaternary 3 - 15 % 7 - 10...

  • Page 96: Covering The Birthing Bed For Use

    11.4 Covering the birthing bed for use WARNING! The delivery bed must be protected against excessive dirt by a fabric covering! 11.4.1 How to properly coat bed with hospital bedding One of the options is using a covering from the operating room, the size of which corresponds to that of the relevant delivery bed section, or with a fabric coating used for standard beds.

  • Page 97: How To Properly Coat Bed With Disposable Bed Sheets

    11.4.2 How to properly coat bed with Disposable bed sheets Special-shape disposable coating materials, designed specifically for AVE2 birthing bed, can also be used: ► Swing out the back section of the mattress and put the coating on it ► Then return the back section to its place ►...

  • Page 98: How To Properly Coat Bed With Terrycloth

    11.4.3 How to properly coat bed with terrycloth You can also use special-shape terrycloth set directly onto AVE2 birthing bed: ► Swing out the seat section of the mattress and put the coating on it ► Return the seat section to its place and lift the back section ►...

  • Page 99: Maintenance

    12 Maintenance WARNING! From practical testing results, the technical lifetime of the product is 15 years. Lifetime of the battery is limited and must be replaced. ► Batteries (these are provided with the warranty of 6 months) ► Gas springs need to be replaced every 12 years ►...

  • Page 100: Service And Repairs

    12.2 Service and repairs WARNING! All service revisions, safety and technical inspections or service interventions must be executed only by a technician trained by L I N E T spol. s r.o. company. ► Diagrams, lists of product parts, descriptions or other information intended to help the service personnel with the repair of product parts, repairable by the service personnel only as implied by the manufacturer, are available upon demand at the manufacturer.

  • Page 101: Environmental Protection And Liquidation Of The Product

    13 Environmental protection and liquidation of the product Company L I N E T spol. s r.o. is aware of the important role that the protection of the environ- ment plays for future generations. Therefore, it focuses closely on the development, innovation and production of such technologies and materials that preserve the environment.

  • Page 102: List Of Available Equipment

    14 List of available equipment N (BASIC VERSIONS) PPB-AX Birthing bed AVE2: Standard leg rests + leg straps (pair) Backup battery Sliding foot section including the upholstery Seamless mattress Manual CPR Infusion stand holder on both sides of the bed...
  • Page 103 N (MATTRESS THICKNESS): PPB-014-X 100 mm PPB-080-X 130 mm PPB-083-X 100 mm with a zipper PPB-081-X 130 mm with a zipper A (COLOR): Violet F4340-50621 Blue F4340_07459 Green F4340-20157 Yellow F4340_07477 Orange F4340_20127 Own choice of leatherette F4340_00002 F4340_07422 F4340_07432 F4340_07436 F4340_07445 F4340_07476...
  • Page 104 A (COLOR): F4340-50619 F4340-50620 F4340-50622 F4340-50623 Pink F4340-20149 N (UPHOLSTERY): PPB-006.07-X PPB-006.07 Upholstery of the footrest PPB-007.03-X PPB-007.03 Upholstery of the right leg holder PPB-008.03-X PPB-008.03 Upholstery of the left leg holder N (NURSE CALL) PPB-046 Nurse Call PPB-047 NO Nurse Call N (FOOTREST) PPB-076 Set of leg rests (US)
  • Page 105 N (PACKAGING) PPB-093 Foil N (OPERATIONAL MANUALS) 84660 PPB-072-CZ 84664 PPB-072-DE 84666 PPB-072-EN 84668 PPB-072-ES 84670 PPB-072-FR 84672 PPB-072-IT 84678 PPB-072-SWE 87892 PPB-073-US 87795 PPB-072-NL 87894 PPB-073-CAN N (OPTIONAL) PPB-069 Front holder of accessories GKB-076.X Doctor´s chair - ergonomic PPA-36 Telescopic infusion stand ZK-05.X Doctor´s chair...
  • Page 106 N (OVERLAYS) COMFORT Non-sterile non-permeable supporting area cover COMFORT Non-sterile non-permeable foot section cover COMFORT Non-sterile permeable leg rest cover N (SELECTION OF CASTORS) PPB-478 Standard castors (150 mm) PPB-479 Castors with longer pin (150 mm) 106/106 D9U001PPB-0101...
