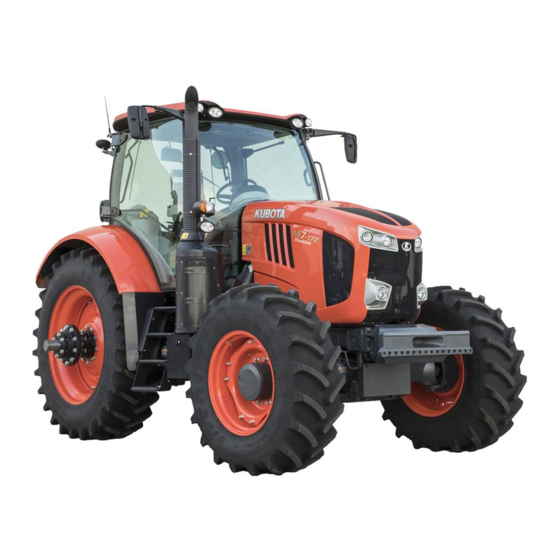

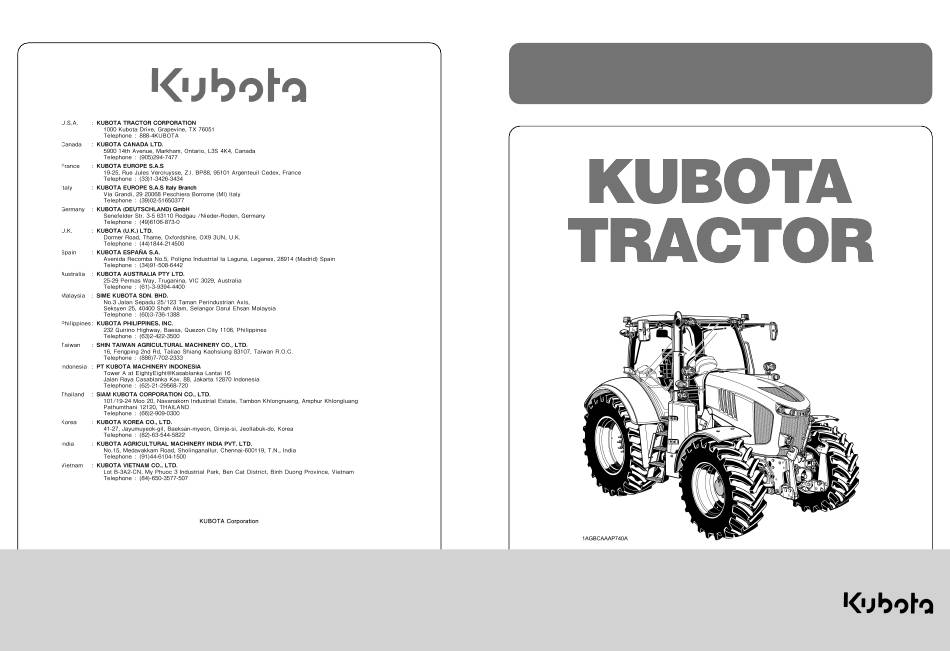

Page 1 OPERATOR'S MANUAL MODELS M7132·M7152·M7172 · · English (Europe) AW . H . 2 - 2 . - . AK Code No. 3J080-5210-2 READ AND SAVE THIS MANUAL © KUBOTA Corporation 2017...
Page 2 American Society for Testing and determined by facing Materials, USA in the direction of forward travel Since its inception in 1890, KUBOTA Corporation has grown to Continuously Variable Transmission ROPS Roll-Over Protective Structures rank as one of the major firms in Japan.
Page 3 UNIVERSAL SYMBOLS UNIVERSAL SYMBOLS As a guide to the operation of your tractor, various universal symbols have been utilized on the instruments and controls. The symbols are shown below with an indication of their meaning. B General Engine-Over Speed Safety Alert Symbol Engine-RPM Memory A Master System Warning Engine-RPM Adjuster...
Page 4 UNIVERSAL SYMBOLS 4-Wheel Drive-Automatic Front Suspension-Automatic Headland Management System Front Suspension-Down Cruise Control Front Suspension-Up Limp Home Front Suspension-Lock B PTO-related Escape PTO-Off (Disengaged) Operator Presence Control PTO-On (Engaged) Auto-Transmission PTO-540 rpm Auto-Transmission-Sensitivity PTO-540E rpm Auto-Transmission-Road Control PTO-1000 rpm Auto-Transmission-Field Control PTO-1000E rpm Transmission Oil Filter PTO-Front...
Page 5 UNIVERSAL SYMBOLS Lift Arm-Height Remote Cylinder-Retract Remote Cylinder-Extend Remote Cylinder-Float Remote Cylinder-Lock Remote Cylinder-Lock B Electric-related Battery Charging Condition Master Lighting Switch Headlight-Low Beam Headlight-High Beam Head Light-Flashing Work Light Position Lamps Direction indicator Direction indicator-Trailer Hazard Warning Lights Audible Warning Device Beacon Light Windscreen Wiper Windscreen Wiper-Intermittent...
Page 6 FOREWORD You are now the proud owner of a KUBOTA Tractor. This tractor is a product of KUBOTA quality engineering and manufacturing. It is made of fine materials and under a rigid quality control system. It will give you long, satisfactory service. To obtain the best use of your tractor, please read this manual carefully.
Page 7: Table Of Contents
4.3.3 Time and date settings screen....................83 4.3.4 ISOBUS settings screen ......................83 4.3.5 License confirmation screen ...................... 84 5. Setting the 3-point hitch ..........................85 6. Setting the remote control valve ........................ 87 6.1 Detailed settings of remote control valve ................... 89 M7132, M7152, M7172...
Page 8 3. Operating procedure for auto regeneration mode ................... 124 3.1 PM warning level and required procedures..................125 4. Operating procedure for regeneration inhibit mode ................. 126 4.1 PM warning level and required procedures..................127 5. Operating procedure for parked regeneration ..................128 M7132, M7152, M7172...
Page 9 1.2 Light switch (with repeat headlight type) ..................149 2. Direction indicator switch and hazard light switch ................... 150 2.1 Horn button ............................150 3. Work light switch............................150 4. Beacon light switch ..........................151 BRAKE CONTROLS ............................151 1. Foot brake ............................... 151 M7132, M7152, M7172...
Page 10 4. Setting the continuously variable transmission (CVT) sensitivity ............175 5. Setting the continuously variable transmission (CVT) response ............. 176 6. Cruise control ............................176 6.1 Setting the cruise control........................176 6.2 Clearing the cruise control ....................... 177 M7132, M7152, M7172...
Page 11 THE 3-POINT HITCH SETUP........................... 201 1. Adjusting lateral float ..........................201 2. Selecting the top link mounting holes ...................... 201 3. Drawbar ..............................202 4. Remote hitch up switch and down switch ....................202 5. Lifting rod ..............................202 M7132, M7152, M7172...
Page 12 2.5 Joystick for remote control valve and loader (loader model)............225 2.6 Controls for the remote control valves on the rear fender (if equipped) ........... 226 3. Common operation for all models......................226 3.1 Connecting cylinder and hydraulic motor ..................226 M7132, M7152, M7172...
Page 13 4.2 Cooling or dehumidifying-heating..................... 243 4.3 Defrosting or demisting ........................244 REAR DEMISTER WITH TIMER (IF EQUIPPED) .................... 244 ACCESSORIES ..............................245 1. Trailer electrical power socket ......................... 245 2. ISOBUS socket (Premium and Premium KVT model only) ..............246 M7132, M7152, M7172...
Page 14 2. Checking wheel bolt torque ........................265 3. Checking tie-rod dust cover ........................266 4. Checking air brake for trailer (if equipped) ....................266 EVERY 100 HOURS ............................266 1. Cleaning air cleaner primary element ...................... 266 M7132, M7152, M7172...
Page 15 2. Replacing transmission oil filter ....................... 287 3. Changing rear axle case oil ........................288 4. Changing front differential case oil ......................288 5. Changing front axle gear case oil ......................289 6. Adjusting engine valve clearance ......................289 M7132, M7152, M7172...
Page 16 5. Replacing head lamp ..........................298 6. Lubricating points for door and window ....................298 7. Adding washer liquid ..........................298 8. Checking amount of refrigerant (gas) ...................... 298 9. Washing the tractor..........................299 STORAGE..........................301 TRACTOR STORAGE ............................301 M7132, M7152, M7172...
Page 17 REMOVING THE TRACTOR FROM STORAGE....................301 TROUBLESHOOTING ......................302 ELECTRIC CONTROLLER TROUBLE SHOOTING..................302 OPTIONS ..........................309 OPTIONS ................................309 APPENDICES ..........................310 MAXIMUM MASSES............................310 1. Maximum permissible load of the tyre ..................... 310 2. Trailer load capacity..........................312 INDEX............................317 M7132, M7152, M7172...
Page 18 M7132, M7152, M7172...
Page 19: Safe Operation
• Never wear loose, torn, or bulky clothing around 2. CAB and ROPS tractor. It may catch on moving parts or controls, • KUBOTA recommends the use of a CAB or roll- leading to the risk of an accident. over protective structures (ROPS) and seat belt in Use additional safety items, such as a hard hat, almost all applications.
Page 20 • Do not operate or idle the engine in a non- trailed vehicle unless the parking brake is applied. ventilated area. Carbon monoxide gas is colourless, • Never utilise the headband management system, if odourless, and deadly. anyone is in the work area of the tractor. M7132, M7152, M7172...
Page 21 They may fall off and be run over or interfere with your control of the machine. • Never allow children to operate the machine even under adult supervision. • Never allow children to play on the machine or on the implement. M7132, M7152, M7172...
Page 22 Lock the 3-point hitch in the raised stopped will not prevent tractor from rolling. position. For travelling with the ride control on, • Make sure that the tractor has come to a complete however, keep the 3-point hitch unlocked. stop before dismounting. M7132, M7152, M7172...
Page 23 Keep all sparks and flames away rods, or lower links. from the battery and fuel tank. The battery presents • To avoid injury from separation: an explosive hazard, because it gives off hydrogen and oxygen especially when recharging. M7132, M7152, M7172...
Page 24 • Disconnect the battery's ground cable and stop the to repair fuel lines, sensors, or any other engine to avoid the possibility of the machine components between the high-pressure fuel pump runaway due to 4WD braking system during testing, M7132, M7152, M7172...
Page 25 Kubota auto steering is not suitable for applications on materials. narrow dikes or steep hillsides, when danger of tractor • Keep the tractor away from people, animals or roll-over exists.
Page 26 This danger zone is shown in the following illustration. At any sign of danger the operator should deactivate the steering system immediately. The operator can reactivate the steering system once the danger zone is clear. M7132, M7152, M7172...
Page 27 The pictorial safety labels affixed are intended to alert persons to potential hazards. The hazard is identified by a pictorial in the safety alert triangle or by the safety alert symbol alone. An adjacent pictorial provides instructions and information on how to avoid the hazard. M7132, M7152, M7172...
Page 28 SAFE OPERATION M7132, M7152, M7172...
Page 29 SAFE OPERATION M7132, M7152, M7172...
Page 30 SAFE OPERATION M7132, M7152, M7172...
Page 31 SAFE OPERATION M7132, M7152, M7172...
Page 32 SAFE OPERATION M7132, M7152, M7172...
Page 33 SAFE OPERATION M7132, M7152, M7172...
Page 34 • Clean pictorial safety labels with soap and water, dry with a soft cloth. • Replace damaged or missing pictorial safety labels with new labels from your local KUBOTA Dealer. • If a component with pictorial safety label(s) affixed is replaced with new part, make sure new label(s) is (are) attached in the same location(s) as the replaced component.
Page 35: Servicing Of Tractor
However, when in need of parts or major service, be sure to see your KUBOTA Dealer. For service, contact the KUBOTA Dealership from which you purchased your tractor or your local KUBOTA Dealer.
Page 36: Warranty
(2) Selective catalytic reduction (SCR) muffler serial number (1) Front axle identification plate WARRANTY This tractor is warranted under the KUBOTA Limited Express Warranty, a copy of which may be obtained from your selling dealer. No warranty shall, however, apply if the tractor has not...
Page 37: Specifications
460/85R38, 520/70R38, 520/85R38, 580/70R38, 650/65R38 Type Power shift Travelling Main gear shift 6-speed power shift Transmis- system sion Range gear shift 5-speed synchronized (GST) No. of speeds F30/R15 (F54/R27 with optional creep) Clutch Multiple wet disc, electronic-hydraulic operated (Continued) M7132, M7152, M7172...
Page 38 1" 3/8 Front PTO PTO shaft splines (option) 1000 PTO engine 1930 The level of protection against hazardous sub- Category 2 stance CAB (door dB (A) closed) Noise at the operator’s CAB (door dB (A) opened) (Continued) M7132, M7152, M7172...
Page 39 According to EN 15695-1:2009 Measured according to Delegated Regulation (EU) No 1322/2014, article 16, annex XIII Measured according to Delegated Regulation (EU) No 2015/96, article 9, annex III Measured according to Delegated Regulation (EU) No. 1322/2014, article 17, annex XIV M7132, M7152, M7172...
Page 40: Travelling Speeds
1.00 1.09 1.17 1.51 1.17 1.51 1.38 2.11 1.38 2.11 1.63 1.63 1.93 1.93 2.27 2.27 1.68 1.83 1.68 1.83 1.97 2.55 1.97 2.55 2.33 3.55 2.33 3.55 2.75 2.75 3.25 3.25 3.82 3.82 11.4 11.4 (Continued) M7132, M7152, M7172...
Page 41 Maximum speed 40 km/h model: 0.5 to 40 km/h Maximum speed 50 km/h model: 0.5 to 50 km/h NOTE : • KVT transmission provides infinite ground speeds to maximum 40 km/h or 50 km/h in the forward and 30 km/h in the reverse mode. M7132, M7152, M7172...
Page 42: Implement Limitations
The tractor has been thoroughly tested for proper performance with implements sold or approved by KUBOTA. Use with implements which are not sold or approved by KUBOTA and which exceed the maximum specifications listed in the following table, or which are otherwise unfit for use with the tractor may result in malfunctions or failures of the tractor, damage to other property and injury to the operator or others.
Page 43: Trailer Load Capacity
Inertia braked 16000 16000 16000 16000 15000 6000 Trailer loading mass weight max. ca- Towable mass pacity (kg) W3 when fitted with hydraulic or 32500 32500 32500 21500 15000 6000 pneumatic brak- (*1) No vertical load is authorised. M7132, M7152, M7172...
Page 44 3500 3500 3500 ble mass Inertia braked 16000 16000 16000 16000 16000 16000 Trailer loading mass weight max. ca- Towable mass pacity (kg) W3 when fitted with hydraulic or 32500 32500 32500 32500 32500 32500 pneumatic brak- M7132, M7152, M7172...
Page 45 26300 25000/32500 25000/32500 32500 32500 24000 pneumatic brak- (*1) The value for the towable mass of a trailer when fitted with hydraulic or pneumatic braking depends on the pull-out position of the coupling M7132, M7152, M7172...
Page 46 Inertia braked 16000 16000 16000 16000 15000 6000 Trailer loading mass weight max. ca- Towable mass pacity (kg) W3 when fitted with hydraulic or 32500 32500 32500 21500 15000 6000 pneumatic brak- (*1) No vertical load is authorised. M7132, M7152, M7172...
Page 47 3500 3500 3500 ble mass Inertia braked 16000 16000 16000 16000 16000 16000 Trailer loading mass weight max. ca- Towable mass pacity (kg) W3 when fitted with hydraulic or 32500 32500 32500 32500 32500 32500 pneumatic brak- M7132, M7152, M7172...
Page 48 26300 25000/32500 25000/32500 32500 32500 24000 pneumatic brak- (*1) The value for the towable mass of a trailer when fitted with hydraulic or pneumatic braking depends on the pull-out position of the coupling M7132, M7152, M7172...
Page 49 For further information and graphics of the different coupling types please refer to chapter APPENDICES-TRAILER LOAD CAPACITY (*1) The value for the towable mass of a trailer when fitted with hydraulic or pneumatic braking depends on the pull-out position of the coupling M7132, M7152, M7172...
Page 50 For further information and graphics of the different coupling types please refer to chapter APPENDICES-TRAILER LOAD CAPACITY (*1) The value for the towable mass of a trailer when fitted with hydraulic or pneumatic braking depends on the pull-out position of the coupling M7132, M7152, M7172...
Page 51 For further information and graphics of the different coupling types please refer to chapter APPENDICES-TRAILER LOAD CAPACITY (*1) The value for the towable mass of a trailer when fitted with hydraulic or pneumatic braking depends on the pull-out position of the coupling M7132, M7152, M7172...
Page 52 For further information and graphics of the different coupling types please refer to chapter APPENDICES-TRAILER LOAD CAPACITY (*1) The value for the towable mass of a trailer when fitted with hydraulic or pneumatic braking depends on the pull-out position of the coupling M7132, M7152, M7172...
Page 53 IMPLEMENT LIMITATIONS Type: A (hitch made by SCHARMÜLLER) Drawbar High-hitch Piton fix Drawbar with K80 ball Drawbar with piton fix Type: B (hitch made by DROMONE) Drawbar Towing hook M7132, M7152, M7172...
Page 54: Front Loader
Number of pieces Tightening Size-length M20-60 M20-70 568.8 431.5 431.5 torque N·m (58.0) (44.0) (44.0) Strength division 10.9 (kgf·m) Number of pieces Tightening torque 568.8 431.5 N·m (kgf·m) (58.0) (44.0) DANGER To avoid personal injury or death: M7132, M7152, M7172...
Page 55 IMPLEMENT LIMITATIONS • Special attention should be made when lifting the load, keep the bucket correctly positioned to prevent spillages. NOTE : • Not all risks are listed. Refer to front loader operator’s manual. M7132, M7152, M7172...
Page 56: Instrument Panel And Controls
(5) Horn button .................. 150 (14) Key switch..................138 (6) Shuttle lever................. 157 (15) Parked regeneration switch ............128 (7) Light switch .................. 148 (16) Foot throttle.................. 156 … ....................149 (17) Brake pedals................151 (8) DPF inhibit switch ................ 126 M7132, M7152, M7172...
Page 57: Instrument Panel
(8) Front work light switch ..............150 … ....................179 (9) Beacon light switch ..............151 (4) Liquid crystal display..............60 (10) Rear work light switch..............150 (5) Pneumatic pressure gauge (if equipped)........181 (11) Display switch ................62 M7132, M7152, M7172...
Page 58: Foot And Hand Controls
(12) Lift arm top limit adjustment dial ..........217 (26) Electrical power socket ..............246 (13) 3-point hitch lowering speed adjustment dial....... 218 (27) Operator’s seat ................143 (14) Lift arm ride control switch ............220 (28) Auto hitch release lever (if equipped) .......... 208 M7132, M7152, M7172...
Page 59 (13) 3-point hitch lock button............... 215 (6) Rear PTO clutch control switch............ 193 (14) Engine RPM memory button............139 (7) Depth control dial................. 216 (15) Engine RPM memory adjustment button ........139 (8) Hand throttle ................156 M7132, M7152, M7172...
Page 60 (9) Creep gear shift lever (if equipped) ..........158 (20) Signal socket ................247 (10) PTO operation mode selection lever ........... 194 (21) Operator’s seat ................143 (11) PTO speed selection lever............194 (22) Auto hitch release lever (if equipped) .......... 208 M7132, M7152, M7172...
Page 61 (27) Selection button for remote control valve and loader (loader mode (12) Engine RPM memory button............139 only) ..................... 225 (13) Differential lock button ..............161 (28) Joystick lock button (loader mode only)........225 (14) 4WD button.................. 159 (29) Limp home switch ................ 170 M7132, M7152, M7172...
Page 62 (8) K-monitor ..................74 (18) Signal socket ................247 (9) PTO operation mode selection lever ........... 194 (19) Operator’s seat ................143 (10) PTO speed selection lever............194 (20) Auto hitch release lever (if equipped) .......... 208 M7132, M7152, M7172...
Page 63 (29) Selection button for remote control valve and loader (loader mode (13) Differential lock button ..............161 only) ..................... 225 (14) 4WD button.................. 159 (30) Joystick lock button (loader mode only)........225 (15) Remote control valve lock button..........224 M7132, M7152, M7172...
Page 64 (4) Dual-line pneumatic trailer brake (if equipped) ......154 (11) Dual-line hydraulic trailer brake (if equipped) ......153 (5) Single-line hydraulic trailer brake (if equipped)......154 (12) Hydraulic drain port..............221 (6) ISOBUS socket (if equipped)............246 M7132, M7152, M7172...
Page 65: Intellipanel Control
The K-monitor equipped with an LCD touch panel comes in two sizes: 7-inch and 12-inch types. Carefully check the specifications at hand to handle the K-monitor correctly. (1) K-monitor (7-inch type) (2) K-monitor Pro (12-inch type) - option M7132, M7152, M7172...
Page 66: Liquid Crystal Display (Lcd)
Displays the position of the range gear shift that was selected with the ez-command centre. (B) Displays [1], [2], [3], [4], [5] or [6] (reverse: [1], [2] or [3]) Displays the position of the range gear shift selected with the ez-command centre. (Continued) M7132, M7152, M7172...
Page 67 Service inspect indicator is displayed when the time for an engine oil change has come. Engine low temperature regulation indicator Transmission low temperature regulation indicator Gear shifting warning indicator Engine over speed warning indicator ® DEF/AdBlue warning indicator Trouble display A trouble-spot-pinpointing error code and the related control unit are displayed. M7132, M7152, M7172...
Page 68: Lcd Initial Setting
The hour continues to change if the [ENT] switch is held down. c. To put the clock back, select with the [Select] switch and then press the [ENT] switch. The hour continues to change if the [ENT] switch is held down. M7132, M7152, M7172...
Page 69: Setting The Clock Display On/Off
2. Press the [SET UP/00] switch to make the setting 1.3 Setting the working range of implement mode screen appear. 1. Press the [Select] switch to choose “Working range of implement”. Then press the [ENT] switch, and M7132, M7152, M7172...
Page 70: Setting The Automatic Gear Shift (Field Mode)
(1) [SET UP/00] switch (2) [Select] switch (3) [ENT] switch (4) [ESC] switch 3. Select “Auto shift (field mode)” with the [Select] switch and then press the [ENT] switch. The auto shift (field mode) setting screen shows up. M7132, M7152, M7172...
Page 71 [ENT] switch to determine the “Main gear shift of maximum travelling speed”. 8. Select [SET] with the [Select] switch and then press the [ENT] switch. The setting is made and the setting mode screen appears again. M7132, M7152, M7172...
Page 72: Basic Information Monitor And Performance Monitor
Clock Elapsed time (hour meter) • Displays the trip measured from the previous resetting. • With the [Trip] displayed and selected, hold down [SET UP/ Trip A 00] switch. The setting goes back to [0.0]. Trip B M7132, M7152, M7172...
Page 73 [SET UP/00] switch. The setting goes back to [0.0]. Average work area • Preset the implement width. If not preset correctly, incorrect da- fuel consumption ta will be displayed. (See Initial setting on page 116.) (Continued) M7132, M7152, M7172...
Page 74 • A bar extending farther to the right shows increased PM. PM build-up graph • Only Premium KVT model. Cruise control for- ward speed setting Cruise control re- verse speed setting 3-point hitch posi- tion (Continued) M7132, M7152, M7172...
Page 75 With the “Average slip rate” displayed and selected, hold down [SET UP/00] switch. The setting goes back to [0.0]. Average slip rate Travel speed with radar (if equipped) • Used to delete the information displayed. Blank The screen numbers vary with the specifications of tractors. M7132, M7152, M7172...
Page 76: Modifying The Information Displayed On The Basic Information Monitor
3.2 Modifying the information to display on the performance monitor 1. Stop the tractor and apply the parking brake. The display cannot be changed while driving. Trying to make a change while driving will activate the warning buzzer. M7132, M7152, M7172...
Page 77: Measuring Distance
2. Turn on the key switch. 3. Press the [Select] switch to choose “Performance monitor (1)” or “Performance monitor (2)” (it is highlighted). Then press the [ENT] switch. Now the performance monitor select screen shows up. (1) Distance measuring icon M7132, M7152, M7172...
Page 78 Also, after stopping distance measurement, the measured value can be reset to zero by holding down the [SET UP/00] switch while distance measurement icon on the performance monitor in the meter panel is selected. M7132, M7152, M7172...
Page 79: Indicators
(14) Trailer indicator 1 ................. 150 (32) Air cleaner indicator ..............179 (15) Front PTO indicator..............198 NOTE : • The water separator indicator (31) and air cleaner indicator (32) are displayed on the LCD when the trouble occurs. M7132, M7152, M7172...
Page 80: Indicator Colour
Once any setting has been made, it can also be redisplayed immediately using the function buttons. When the implement-related ISOBUS connector and the optional live view camera are connected, this panel serves as their monitor screen. M7132, M7152, M7172...
Page 81: Names Of Parts And Their Handling (K-Monitor)
1. Press the main menu select switch, and various types of information get displayed. 2. Referring to the following list, select your required type of information. If the sub-menu display switch (10) is selected, the sub-menu icons get displayed on the left of the screen. M7132, M7152, M7172...
Page 82 1. With an ISOBUS-compatible implement in motion, press this switch to stop the implement in case of emergency. Emergency stop methods vary according to the type of implement. For details, check with the instruction manual of the implement in question. M7132, M7152, M7172...
Page 83: Names Of Parts And Their Handling (K-Monitor Pro)
1. Going to the main display screen: Touch the main menu icon you want to display, and touch the main display screen. 2. Going to the sub-display screen: Touch the main menu icon you want to display, and touch the sub-display screen. M7132, M7152, M7172...
Page 84 With an ISOBUS-compatible implement in motion, press this switch to stop the implement in case of emergency. Emergency stop methods vary according to the type of implement. For details, check with the instruction manual of the implement in question. M7132, M7152, M7172...
Page 85: Basic Procedures
Familiarise yourself with the basic procedures, such as changing the settings, as follows: • Changing the screen settings on page 80 • [F] buttons on page 81 • Function of the “Home” button on page 81 • Function of the [ESC] button on page 81 M7132, M7152, M7172...
Page 86: Changing The Screen Settings
(A) Orange selected frame turns yellow-green 4. Use the selection dial and button. c. Turn the selection dial and button clockwise or anti-clockwise to change the setting. M7132, M7152, M7172...
Page 87: F] Buttons
1. Press this button, and the previous screen press an [F] button and the allocated setting screen reappears. This works in the same way as with the appears. “Previous screen resume” switch. You can modify and check the settings quickly. M7132, M7152, M7172...
Page 88: System Basic Settings
Daytime mode screen brightness Slide the graph farther to the right to increase the brightness. Night time mode screen brightness Slide the graph farther to the right to increase the brightness. (1) Sub-menu scroll switch (2) Gear mark icon M7132, M7152, M7172...
Page 89: System Settings (2) Screen
Decimal marker setting Do not change the setting of this screen. The choice is between [,] (comma) and [.] (period). For details, consult your local KUBOTA Dealer. Live view camera display switching Live view camera display can be chosen from the following settings: •...
Page 90: License Confirmation Screen
™ INTELLIPANEL CONTROL K-MONITOR MAIN MENU (PREMIUM AND PREMIUM KVT MODEL ONLY) 4.3.5 License confirmation screen Setting is required when options are attached. For details, consult your local KUBOTA Dealer. M7132, M7152, M7172...
Page 91: Setting The 3-Point Hitch
Extend the graph farther to the right (raise the percentage) to increase the lowering speed. Switching the automatic draft control Touch the left half of the auto draft mode switch (8), and the automatic draft control gets activated. A touch on the right half deactivates it. M7132, M7152, M7172...
Page 92 Used together with the optional radar device, the tractor can be constantly kept under the best control. This helps to improve your productivity. For details, contact your local KUBOTA Dealer. 3-Point hitch status indicator (2) The control status of the 3-point hitch is displayed all the time with the following indicators:...
Page 93: Setting The Remote Control Valve
(4) Float (5) Lock Modifying the settings 1. If you want to modify any of the settings, touch the “graph” of the relevant valve. In so doing, the “detailed settings of remote control valve” screen shows up. M7132, M7152, M7172...
Page 94 2. Touch the left half of the collective remote control valve lock switch, and all the remote control valves are collectively locked and the implement cannot be raised and lowered. A touch on the right half unlocks all the valves. In locked status, the collective remote control valve lock indicator also lights up. M7132, M7152, M7172...
Page 95: Detailed Settings Of Remote Control Valve
After this stage, the timer can be set only with the switch or lever. • If during an action the switch or lever is moved in the reverse direction, the timer setting is cancelled. M7132, M7152, M7172...
Page 96: Setting The Driveability
3. Touch the left half of the auto 4WD switch (10), and the automatic 4WD, listed below, gets activated. The indicator (4) lights up and stays on. 4. Turn off the switch (10), and the 2WD is abled and the indicator (4) goes off. M7132, M7152, M7172...
Page 97 4. Using the manual control switch at the operator’s seat, the manual mode may be enabled. In the manual mode, the suspension cylinder’s extension status can be checked on the level meter (13). (See FRONT SUSPENSION (IF EQUIPPED) on page 188.) M7132, M7152, M7172...
Page 98: Setting The Pto
Lower the percentage to lower the height at which turning stops. Displaying the PTO rpm 1. With the PTO switch at ON (engage), the front PTO rpm (2) as well as the rear PTO rpm (4) are displayed. M7132, M7152, M7172...
Page 99: Setting The Engine And Power Shift Transmission (Premium Model Only)
• Setting the auto shift sensitivity on page 96 Further, the engine rev-limiter, engine rpm memory and other settings may be also set, as follows: • Setting the engine rev-limit on page 97 • Setting the engine rpm memory on page 97 M7132, M7152, M7172...
Page 100: Setting The Travelling Speed Gear In The Road Mode
3. Setting the maximum main gear shift: Using the high-speed setting switch, preset the desired travelling speed (the high-speed slider moves to the set position). M7132, M7152, M7172...
Page 101 (1) Selected travelling speed (4) High-speed setting switch gear shift (5) High-speed slider (2) Previous screen resume (6) Low-speed slider switch (7) Main gear shift range (3) Low-speed setting switch M7132, M7152, M7172...
Page 102: Setting The Auto Shift Sensitivity
Retract the graph leftward with the “Mi- Shifted to the rev-up/slow-down levels by Light-duty nus (-)” switch. skipping the travelling speed range. • Extend the graph rightward with the “Plus Rev-up or slowed down close to the current Heavy-duty (+)” switch. travelling speed. M7132, M7152, M7172...
Page 103: Setting The Engine Rev-Limit
2. With the “Plus (+)” or “Minus (-)” switch, finely adjust the rpm memory setting. Every time the switch is pressed, the speed varies in 10-rpm increments or decrements. 3. The engine rpm memory control (B) can also be preset in the same procedure. M7132, M7152, M7172...
Page 104: Setting The Engine And Cvt (Premium Kvt Model Only)
(5) Engine rpm memory (A) switch ward) (15) Engine rev-limiter control (6) Engine rpm memory (B) switch (11) Cruise control low-range set speed (re- (16) CVT response control (7) CVT low-range maximum speed verse) (17) CVT sensitivity control M7132, M7152, M7172...
Page 105: Modifying The Cvt Sensitivity Setting
(See Setting continuously variable transmission (CVT) sensitivity on page 175.) 10.2 Modifying the CVT response setting 1. Touch the CVT response control and the setting screen shows up. M7132, M7152, M7172...
Page 106: Modifying The Cvt Low-Range Maximum Speed Setting
2. With the “Plus (+)” or “Minus (-)” switch, finely adjust speed settings can be found in a different section. the rpm memory setting. (See Cruise control on page 176.) Every time the switch is pressed, the speed varies in 10-rpm increments or decrements. M7132, M7152, M7172...
Page 107: Setting The Headland Management System
• HEADLAND MANAGEMENT SYSTEM on page 11.1 Preparations for recording the program The program consists of 2 different types of operation, Field in and Field out, as listed in the following table. M7132, M7152, M7172...
Page 108: Recording The Program Through Actual Tractor Operation
11.3 Pre-program lead time and pre- tractor operation program travel distance 1. Make sure the headland management system lock The pre-program lead time and pre-program travel indicator (5) is off. distance refer to the standby time and travel distance M7132, M7152, M7172...
Page 109: Saving The Program
The program code display indicator (3) lights up interlocked with the select switch (2). 3. Touch the program title display area (4) to display the input keypad. (1) Input keypad (2) Confirm switch (3) Cancel switch M7132, M7152, M7172...
Page 110: Loading The Program
7. The “Save sequence. Are you sure?” message (4) Program load switch appears. • If the confirm switch (1) is touched, the program will be saved. • If the cancel switch (2) is touched, the program saving will be cancelled. M7132, M7152, M7172...
Page 111: Deleting The Program
(1) Confirm switch (2) Cancel switch 11.6 Deleting the program 1. Make sure the headland management system lock indicator (8) is off. 2. Using the program select switch (2), choose the program code to delete. M7132, M7152, M7172...
Page 112: Modifying The Program (Switching)
The “Change settings. Are you sure?” message 2. Using the program select switch (2), choose the appears. program code to modify. If the confirm switch (1) is touched, the program will be modified and the previous screen will show up again. M7132, M7152, M7172...
Page 113 10. Go back to step 3. Using the scroll switch (5 or 6) to select the differential lock subcategory icon (10) first and then touch the edit switch (4). 11. The editing screen shows up. Now change the differential lock program to the PTO program. M7132, M7152, M7172...
Page 114: Headland Management System Program List
(1) Rear hitch upper limit adjustment (2) Rear hitch bottom limit adjustment (3) Ride control ON/OFF Differential lock Switch differential lock off. Differential lock Differential lock Switch differential lock on. Auto differential Switch auto differential lock off. lock OFF (Continued) M7132, M7152, M7172...
Page 115 Set engine speed to recorded hand throttle speed. Hand throttle mode Hand throttle mode ON (1) Time setting for reaching a preset engine rpm. (2) Setting of target engine rpm. Engine rpm mem- Engine rpm mem- Switch engine rpm memory off. ory OFF (Continued) M7132, M7152, M7172...
Page 116 Switch transmission mode to road mode. Road mode Power shift (Pre- mium model) (1) Road mode gear range adjustment Switch transmission mode to field mode. Field mode (1) Field mode gear range adjustment Manual mode Switch operation mode to manual mode. (Continued) M7132, M7152, M7172...
Page 117 Low speed range (1) CVT sensitivity setting (2) CVT response setting (3) Maximum travelling speed Set travel speed. Target travel speed (1) Setting of target travel speed Remote control valve Blocked (neutral) The 1st segment valve is block. (Continued) M7132, M7152, M7172...
Page 118 (1) Flow rate (retract) (2) Flow timer (3) Priority flow status The 1st segment valve is floating. Float (1) Flow timer Front PTO OFF Switch front PTO off. Front PTO Front PTO ON Switch front PTO on. M7132, M7152, M7172...
Page 119: Operating Conditions
5. Touch the working range of implement icon (5) to enter the working range of the implement, using the displayed ten-key pad. If the working range of the implement is not correctly entered, accurate data will not be recorded. 6. Touch the edit switch (9) to switch to the edit screen. M7132, M7152, M7172...
Page 120: Selecting And Registering Recorded Data Items
Resettable (ml) Trip-fuel consumption L (gal) Resettable Trip-fuel consumption per Resettable hour (gal/h) L/ha Trip-area fuel consumption Resettable (gal/a) (1) Scroll switch (2) Return to the previous screen Trip-area ha (a) Resettable (3) Factory setting switch (Continued) M7132, M7152, M7172...
Page 121: Setting The Operating Conditions And Beginning Recording
Resettable • When you select external signal input ON, data will per hour (a/h) be counted only during external signal input. Resettable For details, consult your local KUBOTA Dealer. (engine running, Remote control valve Trip-idle time tractor not Touch the switch to switch the indicator among moving, “Remote control valve”...
Page 122: K-Monitor Sub-Menu (Premium And Premium Kvt Models Only)
(1) View camera 2. Calculator Make use of the calculator as necessary. (1) Floppy mark 3. Initial setting Details regarding the settings can be found in a different section. (See System basic settings on page 82.) M7132, M7152, M7172...
Page 123: Importing Procedure
Further, note that when importing, the data within the K-monitor will be overwritten by the USB memory stick data selected in the previous step. However, the top limit setting value of the lift arm top limit cannot be imported. M7132, M7152, M7172...
Page 124: Failure Messages
™ INTELLIPANEL CONTROL K-MONITOR SUB-MENU (PREMIUM AND PREMIUM KVT MODELS ONLY) 6. Failure messages 1. Touch the wrench icon displayed in the sub-menu to check the information on current failures. (1) Wrench icon (1) Message scroll switches M7132, M7152, M7172...
Page 125: Pre-Operation Check
(See Checking the items reaching the maintenance interval on page 119.) When engine oil, the most significant of all these, reaches its replacement time, the service inspect indicator will automatically appear on the LCD. M7132, M7152, M7172...
Page 126 3. The 10 maintenance items are displayed on the Immediately inspect the relevant part or replace it LCD unit. with a new one. The hours shown at the far right of each item indicate the duration of use after the immediately previous maintenance. M7132, M7152, M7172...
Page 127: Resetting The Maintenance Hour
(2) [Select] switch (3) [ENT] switch 2. Press the [ENT] switch, and the reset screen shown below appears. Using the [Select] switch, choose [YES]. Then press the [ENT] switch, and the displayed hours will be back to zero. M7132, M7152, M7172...
Page 128: Operating The Engine
• During regeneration, white exhaust gases may the following handling matters. be visible. Do not allow regeneration in a non ventilated garage or confined area. Fuel • During regeneration, do not leave the tractor. Be sure to use ultra low sulphur fuel (S15). M7132, M7152, M7172...
Page 129: Dpf Regeneration Process
(See Operating procedure for auto regeneration mode on page 124.) Regeneration inhibit mode After starting the engine, if the “DPF inhibit switch” is pressed to turn on the switch lamp, the “Regeneration inhibit” mode will be activated. M7132, M7152, M7172...
Page 130: Operating Procedure For Auto Regeneration Mode
• The engine rpm increase indicator is used as a guide to satisfy the regeneration conditions. If the engine load is too heavy, the engine rpm increase indicator may continue to flash, even though regeneration system conditions are satisfied and regeneration may begin automatically. (See Tips on diesel particulate filter (DPF) regeneration on page 129.) M7132, M7152, M7172...
Page 131: Pm Warning Level And Required Procedures
Immediately move the tractor to a safe place, Engine output: 50% stantly “ON”. park it there and turn the engine “OFF”. Contact your local KUBOTA Dealer. • At this level, do not continue to operate the tractor; otherwise, damage will result to the DPF and engine.
Page 132: Operating Procedure For Regeneration Inhibit Mode
3. When the parked regeneration indicator starts flashing: A specific amount of PM has accumulated in the DPF muffler. Move the tractor to a safe place and activate the DPF muffler. (See Operating procedure for parked regeneration on page 128.) M7132, M7152, M7172...
Page 133: Pm Warning Level And Required Procedures
The engine warning indicator remains con- Immediately move the tractor to a safe place, stantly “ON”. park it there and turn the engine “OFF”. Contact your local KUBOTA Dealer. • At this level, do not continue to operate the tractor; otherwise, damage may re- sult to the DPF and engine.
Page 134: Operating Procedure For Parked Regeneration
• If the parked regeneration cycle is interrupted, the engine rpm is fixed at the idling level for about 30 seconds. For this period, keep the hand throttle lever and foot throttle pedal at the idle position. Do not move them. They will function again in 30 seconds. M7132, M7152, M7172...
Page 135: Tips On Diesel Particulate Filter (Dpf) Regeneration
) contained in exhaust gases are reduced by • On the North American market, the high-grade ammonia and decomposed into nitrogen and water reducing agent called urea aqueous vapour. solution is sold in the name of diesel exhaust M7132, M7152, M7172...
Page 136: Warning Indication And Countermeasures
® (3) DEF/AdBlue system warning indicator 3.1 SCR system inducement display on the (1) SCR system icon (2) Engine output level ® (3) Time limit to next level or remaining DEF/AdBlue (4) Performance monitor (error code) M7132, M7152, M7172...
Page 137: Scr System Inducement Display And Measures
The engine output is limited to idle status (limited engine output: [Lv.2]). ® When DEF/AdBlue has been refilled or a poor-quality solution replaced by a genuine product, the low-level warning indicator and icons go off. The engine output limitation will also be cleared. M7132, M7152, M7172...
Page 138 1. Basically, warning and/or inducement reduction cancel when the fault location is repaired. 2. However, if it detects any fault within 40 hours of the restoration, it soon returns to the previous failure and the timer restarts counting down. M7132, M7152, M7172...
Page 139 3. The 40 hours warning record will be reset if any fault has not been detected over 40 hours from the repair. If a fault is detected after the 40 hours warning record reset, then the new countdown will be stated. M7132, M7152, M7172...
Page 140: Storing And Handling Def/Adblue
• By keeping the battery switch at “OFF”, section. there will be a smaller risk of battery fire (See ENGINE START SECURITY FUNCTION on caused by wrong cabling. page 182.) M7132, M7152, M7172...
Page 141: Starting The Engine In Cold Weather
The indicator lighting condition will vary depending operations will drain the battery and stop the tractor. on the specification. • For Standard, Premium models: – If the cooling water temperature is 0 ℃ (32 ℉) or below, the engine low temperature M7132, M7152, M7172...
Page 142: Def/Adblue ® Freeze Warning
• If removing the key does not stop the – If the cooling water temperature is 0 ℃ (32 ℉) engine, consult your local KUBOTA Dealer. below transmission • After turning the key switch to “OFF” and temperature is also -7 ℃...
Page 143: Transmission Low Temperature (Premium Kvt Model Only)
Start the disabled tractor. (1) Transmission low temperature regulation indicator (2) Message (for example: [TCU FMI 18 SPN 524193]) NOTE : • If the cooling water temperature is 0 ℃ (32 ℉) or below and the transmission oil temperature is M7132, M7152, M7172...
Page 144: Engine Operation
This can prevent machine trouble caused by incorrect operation. Setting the speed (Standard model) The setting can be made both when the engine is running and when it is stopped. M7132, M7152, M7172...
Page 145: Rpm Dual Memory Setting
Setting the speed (Premium and Premium KVT single touch by pressing the (A) or (B) rpm memory models) Maximum engine speed can be preset on the K- monitor. (See Setting the engine and CVT (Premium KVT model only) on page 98.) M7132, M7152, M7172...
Page 146 1000 rpm, allowing turning at low speed. Work (1) Engine rpm memory (A/B) indicator (2) Engine rpm memory switch (A) After turning, press the button (A) again to resume a (3) Engine rpm memory switch (B) speed of 2000 rpm. M7132, M7152, M7172...
Page 147: Setting The Speeds (Standard Model)
(foot throttle). 3. Return the hand throttle to the lowest speed position. (1) Engine rpm memory button (A) (2) Engine rpm memory button (B) (3) Engine rpm memory adjustment button (up) (4) Engine rpm memory adjustment button (down) M7132, M7152, M7172...
Page 148 Take an example in which the engine rev- limiter is 1230 rpm and the memory speed is 2000 rpm. The engine speed will rise only up to 1230 rpm. M7132, M7152, M7172...
Page 149: Operating The Tractor
For more details, read the maintenance section of this manual. (See MAINTENANCE on page 249.) BOARDING AND LEAVING THE TRACTOR • Never try to get on or off a moving tractor or jump off the tractor to exit. M7132, M7152, M7172...
Page 150 The seat can be adjusted in its adjustable range. M7132, M7152, M7172...
Page 151: Operator Presence Control (Opc) System
To avoid personal injury or death: • Always use the seat belt when a ROPS or CAB (1) Swivel adjust lever is installed. Adjust the seat belt for proper fit and connect the buckle. This seat belt is auto-locking retractable type. M7132, M7152, M7172...
Page 152: Passenger Seat (If Equipped)
(such as rain and fog) or 1. The operator is supposed to move the tractor onto in the late afternoon. a flat surface and to apply the parking brake for a complete stop. M7132, M7152, M7172...
Page 153: Steering Adjustment
3. Rewind the seat belt back into its case. NOTE : • The passenger seat can be used only when permitted by your local laws. Consult your local KUBOTA Dealer for further details. • The passenger seat conforms to the EC regulations. 5. Steering adjustment...
Page 154: Remote Control Mirror (If Equipped)
2. In accordance with the switch positions, the lights in (1) Adjustment knob the following table light up. (2) Upper right mirror adjustment position (3) Upper left mirror adjustment position (4) Lower right mirror adjustment position (5) Lower left mirror adjustment position M7132, M7152, M7172...
Page 155: Light Switch (With Repeat Headlight Type)
1. Turn the key to the “ON” position. 2. In accordance with combinations of the switches 1 and 2, the lights in the following table light up. M7132, M7152, M7172...
Page 156: Direction Indicator Switch And Hazard Light Switch
When you operate the direction indicator switch with the trailer power connector connected, the trailer Press each work light switch again to turn off the light indicator in the instrumental panel also starts flashing and indicator. along with the direction indicator. M7132, M7152, M7172...
Page 157: Beacon Light Switch
Turn on the key switch and press the beacon light interlock the right and left pedals as illustrated switch. The beacon light and the switch’s indicator light below. Press the beacon light switch, and turn off the light and the indicator. M7132, M7152, M7172...
Page 158: 4Wd Braking System (4Wd Model)
2. Parking brake IMPORTANT : 1. Before getting off the tractor, pull the parking/ • Do not attempt to put the tractor in motion secondary brake lever up to park. before the parking brake warning indicator light turns off. M7132, M7152, M7172...
Page 159: When Towing A Dual-Line Trailer Brake Type Trailer
IMPORTANT : • Make sure to only connect and use a trailer with hydraulic dual-line trailer brakes. (1) Dual-line pneumatic trailer brake (2) Dual-line hydraulic trailer brake (3) Single-line hydraulic trailer brake (4) Single-line label (5) Dual-line label M7132, M7152, M7172...
Page 160: Single-Line Hydraulic Trailer Brake
(1) Pneumatic pressure gauge (2) Trailer brake warning indicator (1) Connector (A), yellow (dual-line brake) (2) Connector (B), red (dual-line brake) Dual-line trailer brake: Connect the air hoses securely to the connectors (A) and (B) of the tractor. M7132, M7152, M7172...
Page 161: Trailer Brake Warning Indicator
• Before testing, make sure there are no people – The trailer brake warning indicator is not lit. or obstacles behind the tractor and trailer 1. Stop the tractor on slope, apply the parking brake and release the foot brake. M7132, M7152, M7172...
Page 162: Travel Controls
OPERATING THE TRACTOR TRAVEL CONTROLS reprogramming. Consult your local KUBOTA Dealer for this service. NOTE : • If the clutch is operated in a partially engaged conditions, the warning buzzer will sound (for 1 second) and a warning code will be displayed to protect the clutch.
Page 163: Shuttle Lever
(F), (R), or (N) positions, the shuttle lever will always return to its original position (see the Hold down the shuttle enable button and press the previous figure). shuttle button to switch forward and reverse travel. M7132, M7152, M7172...
Page 164: Shuttle Neutral Button
– When starting to operate the tractor, be sure to release the parking brake. Misuse of the brakes may cause damage to the transmission and is therefore not acceptable to KUBOTA for coverage under the warranty. M7132, M7152, M7172...
Page 165: Wd And Auto 4Wd Switch
For Standard model: • Front-blade operation 1. Press the top half of the 4WD switch, and the • Earth-moving AUTO 4WD mode is selected and the indicator on • Entering and leaving a field the instrument panel lights up. M7132, M7152, M7172...
Page 166: 4Wd Indicator
• When working on hard soil where a rotary tiller might push the tractor forward. • For increased braking at reduced speed. IMPORTANT : • Tyres will wear quickly if the front-wheel drive is engaged on paved roads. M7132, M7152, M7172...
Page 167: Differential Lock
3. Return the differential lock switch to a central position, and the differential lock mode turns off and the indicator goes off. M7132, M7152, M7172...
Page 168: Differential Lock Indicator
• If the differential lock cannot be released, step (1) Ez-command centre (5) Shuttle neutral button lightly on the brake pedals alternately. (2) Shuttle enable button (6) Transmission mode select (3) Range gear shift button switch (4) Auto shift button (7) Auto shift sensitivity dial M7132, M7152, M7172...
Page 169: Switching The Operation Modes
Does not switch to auto shift mode Before switching the modes, get the engine started first B-1 or B-2 or B-3 Switches to auto shift mode and then set the shuttle lever to the neutral position. Does not switch to auto shift mode M7132, M7152, M7172...
Page 170: Travelling Speeds
1st → 2nd → 3rd → 4th → 5th → 6th Lower Higher Range speed speed gear range range shift A → B → C → D → E (A) “Auto shift-FIELD MODE” M7132, M7152, M7172...
Page 171: Setting The Main Gear Shift Range In The Field Mode (Standard Model)
1st → 2nd → 3rd → 4th → 5th → 6th Lower Higher Range speed speed gear range range shift A → B → C → D → E 2. The automatic gear shifting will be within the preset travelling speed range. M7132, M7152, M7172...
Page 172: Setting The Travelling Speed Range In The Road Mode (Premium Model)
Details regarding relevant settings can be found in a different section. Lower Higher (See Setting engine power shift Range speed speed gear transmission (Premium model only) on page 93.) range range shift A → B → C → D → E M7132, M7152, M7172...
Page 173: Setting The Range Gear Shift In The Field Mode (Premium Model)
Pull this lever backward, and this shift comes down. Before setting the range gear shift in the field mode, bring the tractor to a complete stop. The selected range gear shift stage can be checked with the LCD indicator on the instrument panel. M7132, M7152, M7172...
Page 174: Operating The Main Gear Shift
It should be noted that the number of gear shifts varies with the modes: • With field mode selected: Shifting is possible only among the 6 gears in forward, and 3 gears in reverse speed of the main gear shift. • With road mode selected: M7132, M7152, M7172...
Page 175: Example Of Operation On Combined Auto Shift And Manual Mode
Returning to the auto shift mode run 1. If the current travelling speed range in the manual mode is within the auto shift mode preset travelling speed range (9th through 12th), press the auto shift button, and the auto shift mode is resumed. M7132, M7152, M7172...
Page 176: Limp Home Switch
• If you step on the clutch pedal immediately after 1. Press the (F) or (R) switch to enter limp home shifting the range gear shift up or down, the mode. M7132, M7152, M7172...
Page 177: Continuously Variable Transmission (Cvt) Control
• Park it in a safe place and immediately contact lever to neutral. your local KUBOTA Dealer. • If you press the (F) or (R) switch by mistake, The continuously variable transmission (CVT) is a fully turn the key switch off to leave limp home computerized stepless type.
Page 178: Main Shift
“low speed” modes switch alternately. Set the desired travelling speed while confirming its Depending on this selection, the “travelling enable digital display. upper limit speed”, shown with the LCD indicator on the instrument panel, is also switched. M7132, M7152, M7172...
Page 179: Operation Of The Automatic Mode
When you release the brake pedal, the tractor starts running. (X) Operating times of ez-command centre (Y) Travelling speed (km/h) (A) Low-range speed of the factory setting (15 km/h / 9 mph) (B) Modified low-range speed (10 km/h / 6 mph) M7132, M7152, M7172...
Page 180: Operation Of The Manual Engine Speed Setting Mode
2. Even if the load is increased or decreased, a constant PTO shaft rpm is kept up. 3. Needless to say, towed implements without any PTO shaft rotation may also be used in this mode. M7132, M7152, M7172...
Page 181: Setting The Continuously Variable Transmission (Cvt) Sensitivity
(with the hand throttle not in idle) Fluctuation range of engine Suitable for heavy-duty PTO work in rotation against load fluctua- which PTO rotation should remain con- Suitable for light-duty PTO work tion can be adjusted stant M7132, M7152, M7172...
Page 182: Setting The Continuously Variable Transmission (Cvt) Response
The cruise control can be pre-set in 4 different conditions for high range speed and low range speed as well as for forward and reverse respectively. The respective pre-set speed value is memorised when the M7132, M7152, M7172...
Page 183: Clearing The Cruise Control
• Park it in a safe place and immediately contact as which speed is not memorized, the tractor your local KUBOTA Dealer. will stay at creep speed (approximately 0.5 • If you press the (F) or (R) switch by mistake, km/h / 0.3 mph).
Page 184: Stopping The Tractor
A to B (or press the shuttle neutral or from B to A fails. The range button) and then attempt the gear does not shift and then it shift gears again. returns to the original position. M7132, M7152, M7172...
Page 185: Easy Checker
™ (1) Easy Checker If the trouble is not corrected by restarting the Engine warning tractor, consult your local KUBOTA Dealer. This indicator serves the following 2 functions. If the warning indicator lights up, pinpoint the cause and System abnormality take proper measures.
Page 186: Fuel Gauge
266.) If this should happen during operation, stop the Hydraulic suction oil filter engine and consult your local KUBOTA Dealer. If the hydraulic suction oil filter (Suction side or Return side) is clogged, the indicator on the Easy Trailer brake pressure ™...
Page 187: Def/Adblue ® Gauge
If the pneumatic pressure has dropped too low, the trailer brake warning indicator on the instrument panel lights up and stays on. Do not run the tractor until the air tank is charged with air and the pneumatic pressure gauge is extended to the right. M7132, M7152, M7172...
Page 188: Tachometer
OPERATING THE TRACTOR CHECK DURING DRIVING 8. Tachometer password number, consult your local KUBOTA Dealer. The tachometer indicates the engine speed on the dial. • After releasing engine security password number, for 10 minutes this function is cancelled and you can restart the engine without needing to enter the password number even when key switch is “OFF”.
Page 189 Briefly press the [ENT] switch and enter [3] in the ones digit field. When the wrong password number is entered incorrectly 10 times in a row 3. Briefly press the [Select] switch, select [OK] and briefly press the [ENT] switch to set the password number. M7132, M7152, M7172...
Page 190: Setting "On" And "Off " The Engine Start Security Function ("Off" By Default)
2. Press the [SET UP/00] switch, and choose Security screen. 3. Press [Select] switch to select “Security” and then press the [ENT] switch. 5. Enter the 3-digit password number on the password number input screen. (See Entering the password number on page 182.) M7132, M7152, M7172...
Page 191: Headland Management System
(8) Implement “DOWN” 8. When you enter the same number twice, the change complete screen will be displayed. When you press the [ENT] switch, the screen returns to the theft prevention selection status on the “various setting” screen M7132, M7152, M7172...
Page 192: Programming The Headland Management System
By selecting 2 types of programs that are frequently used within a loaded program and loading to the program codes ( , , ', '), the programs can be executed simply by touching the field out button or field in button. M7132, M7152, M7172...
Page 193 • Work can also be started, pressing the “Field in” button as the first step. Field in and out buttons When the indicators of both buttons are on, press either of the buttons to activate the headland management system. M7132, M7152, M7172...
Page 194: Front Suspension (If Equipped)
The operator can quickly adjust The front suspension system works to absorb shocks the suspension system to changing conditions with a and vibrations that can be caused by field surface touch of the switches. (1) Suspension cylinder M7132, M7152, M7172...
Page 195: Front Suspension Modes
(1) Front suspension manual (A) “DOWN” switch (D) “UP” switch (B) “UP” For Premium, Premium KVT models: 1. On the K-monitor screen, select the auto or block mode. Details regarding the setting procedure can be found in a different section. M7132, M7152, M7172...
Page 196: How To Read The Suspension Indicator
If the travelling speed is 2 km/h (1 mph) or higher, it 1. Trailer operation will switch to automatic mode. When towing a trailer with dual-line trailer brakes (hydraulic or pneumatic), brakes are applied to both M7132, M7152, M7172...
Page 197: Chock Block
• Always reverse when going up a steep slope. Driving forward could cause the tractor to tip over backward. Stay off hills and slopes too (1) Chock block (2) Chain steep for safe operation. (3) Lock knob M7132, M7152, M7172...
Page 198: Transporting The Tractor Safely
• Tow the tractor using its bolt coupling (1) located at front bumper or front 3-point hitch. • Never tow faster than 10 km/h (6.2 mph). (1) Bolt coupling M7132, M7152, M7172...
Page 199: Pto
1.1 PTO clutch indicator The PTO clutch indicator turns on while PTO clutch is engaged. (1) Rear PTO clutch control (A) “ON” switch (B) “OFF” (1) Rear PTO clutch indicator (1) Rear PTO clutch control (A) “ON” switch (B) “OFF” M7132, M7152, M7172...
Page 200: Pto Rpm Display
3. Press the “OFF” switch, and the PTO stops turning. While the rear PTO is turning, the rear PTO indicator on the instrument panel stays on. (1) External switch for rear PTO “ON” (2) External switch for rear PTO “OFF” M7132, M7152, M7172...
Page 201: Rpm Pto Shaft (If Equipped)
Before connecting or disconnecting a drive shaft to • For maximum PTO shaft speeds of various PTO shaft, be sure engine is “OFF”. implements, see the implement operator’s manual. 4. 1000 rpm PTO shaft (if equipped) WARNING To avoid personal injury or death: M7132, M7152, M7172...
Page 202 REAR PTO OPERATION (1) PTO shaft cover (2) PTO shaft cap IMPORTANT : • The universal joint of the PTO drive shaft is technically limited in its moving angle. Refer to the PTO drive shaft instructions for proper use. M7132, M7152, M7172...
Page 203: Auto Pto Operation (Premium, Premium Kvt Models)
(9) Height to turn off the PTO in raising the implement (4) Rear PTO rpm (10) Current lift arm height (5) Height to turn on the PTO in lowering the implement (11) Auto PTO indicator (6) Auto PTO switch M7132, M7152, M7172...
Page 204: Front Pto Operation (If Equipped)
Otherwise, the clutch cannot be engaged. 1.1 PTO clutch indicator The PTO clutch indicator turns on while PTO clutch control switch is in “ON” (engage) position. (1) Front PTO clutch control (A) “ON” switch (B) “OFF” (1) PTO clutch indicator M7132, M7152, M7172...
Page 205: Pto Rpm Display
Keep the front PTO shaft cover in place at all times. Put back the PTO shaft cap when the PTO is not in use. Before connecting or disconnecting a drive shaft to PTO shaft, be sure engine is “OFF”. M7132, M7152, M7172...
Page 206: 3-Point Hitch And Drawbar
(4) Lower link (5) Lifting rod (right) (6) Drawbar (if equipped) (7) High-hitch (if equipped) Type: A (hitch made by SCHARMÜLLER) Type: B (hitch made by DROMONE) (1) Drawbar (if equipped) (1) Drawbar (if equipped) (2) High-hitch (if equipped) M7132, M7152, M7172...
Page 207: The 3-Point Hitch Setup
(See Hydraulic control unit use reference chart on page 229.) 1. To allow the implement to follow ground contour, attach the rectangular washers and pin heads in vertical position. 2. To hold the implement, reset the rectangular washers and pin heads in horizontal position. M7132, M7152, M7172...
Page 208: Drawbar
“DOWN” switch and the 3-point hitch comes down. Movement of the 3-point hitch stops when the switch is (1) Lifting rod (A) “GROOVE” released. (2) Adjusting handle (1) “UP” switch (1) Adjusting handle (A) “LOCK POSITION” (2) “DOWN” switch (B) “UNLOCK POSITION” M7132, M7152, M7172...
Page 209: Top Link
As well, the lower link width will change when the lynch pin mounting hole position is changed. (1) Automatic stabiliser (2) Lock cover (3) Chain M7132, M7152, M7172...
Page 210: Quick Hitch (Hook Type)
(2) Ball-joint (for lower hitch pin) 9. Quick hitch (hook type) WARNING To avoid personal injury or death: Confirm the below when installing the implement: • Make sure the hook of the quick hitch is securely locked. M7132, M7152, M7172...
Page 211: Adjusting Lower Link Width
4. Lower the top link hook onto the upper implement The lock bolt can be applied so that the “LATCH” does ball-joint and press down until the latch is engaged. not accidentally open and the implement does not fall If necessary, adjust the top link length. M7132, M7152, M7172...
Page 212: Type A (Hitch Made By Scharmüller)
The high-hitch may get in the way when connecting the PTO shaft. In such case, either set the high-hitch to its uppermost position or remove it. (1) Drawbar (2) Locating pin (1) Automatic clevis (2) K80 ball with grab handle M7132, M7152, M7172...
Page 213: Adjusting The High-Hitch Level
(1) Lock handle automatic retraction of the security pin. M7132, M7152, M7172...
Page 214: High-Hitch With Ball Trailer Coupling
(1) Lift arm top limit adjustment (A) “HIGH” (4) Lynch pin control (B) “UP” (2) Depth control dial 2. Pull the auto hitch release lever to unlock the latch hooks and the latch bar from each other. M7132, M7152, M7172...
Page 215 1. Operate the relevant remote control valve lever or switch to extend the hitch. 2. Remove the pivot pin and change the towing hook or the drawbar. (1) Remote control valve lever (2) Remote control valve switch M7132, M7152, M7172...
Page 216: Front 3-Point Hitch (If Equipped)
When an implement is attached at the tractor front and terrain. another one at the tractor back, the working efficiency can be dramatically improved. (1) Front 3-point hitch control (A) “RAISE” lever (B) “LOWER” (C) “NEUTRAL” (D) “FLOAT” M7132, M7152, M7172...
Page 217: Switching Of The Hydraulic Valve
(1) Selector valve lever 1 (A) “SINGLE-ACTING” (2) Selector valve lever 2 (B) “DOUBLE-ACTING” (C) “LOCK” NOTE : • For the selector valve lever 1, pull out its turning part outward and turn the lever. M7132, M7152, M7172...
Page 218: Top Link
3-POINT HITCH AND DRAWBAR FRONT 3-POINT HITCH (IF EQUIPPED) 4. Top link When the top link is not used, fix it with the top link pin. (1) Top link (2) Top link pin M7132, M7152, M7172...
Page 219: Hydraulic Unit
(3) Depth control dial (4) Lift arm top limit adjustment dial adjusted properly. Unless corrected, the unit (5) 3-point hitch lowering speed adjustment dial will be damaged. Contact your KUBOTA Dealer (6) Draft ratio adjustment dial for adjustments. (7) Ride control switch...
Page 220: Terminology (Premium, Premium Kvt Models)
(10) Ride control switch (16) Draft sensitivity control (5) 3-point hitch status indicator (11) Auto draft mode switch (17) 3-point hitch lowering speed control (6) Ride control indicator (12) Wheel slip control switch (18) Lift arm height control M7132, M7152, M7172...
Page 221: Point Hitch Lock Button
Touch the right half of the auto draft mode switch, and the auto draft mode is cancelled. (1) 3-point hitch lock button (A) “PUSH” M7132, M7152, M7172...
Page 222: Depth Control Adjustment Dial
(C) “UP” implement. Premium, Premium KVT models Standard model (1) Depth control dial (A) “FLOAT” (1) 3-point quick raise and lower switch (B) “DOWN” (2) Depth control dial (C) “UP” M7132, M7152, M7172...
Page 223: Mix Draft Control
3-point hitch. 2. When the setting has reached 100%, the top limit control is turned off. Details regarding the setting procedure can be found in a different section. (See Setting the 3-point hitch on page 85.) M7132, M7152, M7172...
Page 224: Point Hitch Lowering Speed Adjustment
1. Press the “RAISE” switch, the 3-point lifting and (1) 3-point hitch lowering speed “FAST” lowering indicator lights up and the implement goes adjustment dial “SLOW” M7132, M7152, M7172...
Page 225: Point Hitch's Position Lock
2. Turn the depth control dial to the same level as the lift arm height. NOTE : • When the position lock is released with the 3-P. quick raise or lower switches, the 3-point hitch goes up or down. (1) 3-point lifting and lowering indicator M7132, M7152, M7172...
Page 226: Ride Control
IMPORTANT : • Before letting a large amount of oil into the hydraulic cylinder, hydraulic motor or other implements, consult your local KUBOTA Dealer to confirm the possible oil quantity and additional oil quantity taken from the tractor and other requirements.
Page 227: Hydraulic Drain Port
• Before letting a large amount of oil into the Factory installed valve types are as follows: hydraulic cylinder, hydraulic motor or other implements, consult your local KUBOTA Dealer 3 valve model to confirm the possible oil quantity and additional oil quantity taken from the tractor and other requirements.
Page 228: Flow Control Valve
(A), and then turn it gradually anticlockwise until a required flow rate is reached. IMPORTANT : • When there is no need to adjust the flow rate, turn the flow control knob all the way anticlockwise and keep it in this position. M7132, M7152, M7172...
Page 229: Operation Of Premium And Premium Kvt Models
(11) Remote valve for switch 4 (4) Remote control valve switch 4 (Loader type) (12) Remote valve for switch 5 (5) Remote control valve switch 5 (8) Remote valve for switch 1 (13) Remote valve for switch 6 M7132, M7152, M7172...
Page 230: Remote Control Valve Lock Button
Oil is preferentially fed from the hydraulic pump to a figure shows that the 3rd segment is being locked. specified remote control valve. Once the priority flow is ensured, the priority flow status indicator (2) lights up. M7132, M7152, M7172...
Page 231: Remote Control Valve Switch
(D) “DETENT” combinations illustrated. Use of remote valves 3 to 6 • If the front loader valve is not installed, the Each switch can be set at 5 positions. loader mode indicator (4) and remote control M7132, M7152, M7172...
Page 232: Controls For The Remote Control Valves On The Rear Fender (If Equipped)
3. Common operation for all models have built in load check valves to prevent leaks. 3.1 Connecting cylinder and hydraulic motor Connecting single-acting cylinder 1. Connect the hose to the lower coupler of the valve. M7132, M7152, M7172...
Page 233: Remote Control Valve Coupler
2. Clean the couplers. retract (B) position to the float (C) position. 3. Relieve pressure by moving the hydraulic control levers with the engine shut off. Pull the hose straight from the hydraulic coupler to release it. M7132, M7152, M7172...
Page 234: Remote Couplers Spillage Collector
4. Clean the oil and dust from the coupler, then replace the dust plugs. NOTE : • Your local KUBOTA Dealer can supply parts for adapting couplers to hydraulic hoses. 3.3 Remote couplers spillage collector With the remote control valve coupler in place, a slight amount of oil leaking from the coupler is recovered.
Page 235: Hydraulic Control Unit Use Reference Chart
NOTE : • With an implement mounted, use the top hole of the top link holder to keep the implement as horizontal as possible, and its bottom hole to keep the implement tilted forward. M7132, M7152, M7172...
Page 236 NOTE : • With an implement mounted, use the top hole of the top link holder to keep the implement as horizontal as possible, and its bottom hole to keep the implement tilted forward. M7132, M7152, M7172...
Page 237: Tyres, Wheels And Ballast
• When retrofitting the tractor with other tire combinations such as those described above or (1) Label with special purpose tires, consult your local KUBOTA Dealer to get information regarding permitted tyre combinations, tire pressure and additional information. Tyre sizes...
Page 238: Safe Replacement Of The Wheel
• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving the tractor 200 m (200 yards) and 10 times of shuttle movement by 5 m (5 yards), and thereafter according to service interval. M7132, M7152, M7172...
Page 239: Adjusting The Front Wheel Turning Stopper Bolt
• Do not work under any hydraulically supported 580/70R38 1920 mm devices. They can settle, suddenly leak or be 650/65R38 1850 mm accidentally lowered. If necessary to work under the tractor or any machine elements for M7132, M7152, M7172...
Page 240: Adjusting Wheels With Bar Type Axle
• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving the tractor 200 m (200 yards) times shuttle movement by 5 m (5 yards), and thereafter according to service interval. (See MAINTENANCE on page 249.) M7132, M7152, M7172...
Page 241: Dual Tyres (If Equipped)
Front end weights can be attached to the bumper. See your implement operator’s manual for required Dual wheels may be used on the rear axles of tractors number of weights or consult your local KUBOTA for the purpose of flotation or soil compaction reduction Dealer about their usage.
Page 242: Rear Wheel Weights (Option)
650/65 Rear wheel weights can be attached to the rear wheel. Tyre sizes See your implement operator's manual for required number of weights or consult your local KUBOTA Slush free at -10 ℃ Dealer about their usage. Solid at -30 ℃...
Page 243: Monolithic Block (If Equipped)
TYRES, WHEELS AND BALLAST 2.3 Monolithic block (if equipped) The monolithic block allows the operator to install a weight at the front or rear 3-point hitch. (1) Monolithic block 2.4 Maximum masses (See APPENDICES on page 310.) M7132, M7152, M7172...
Page 244: Cab Operation
Unlock the door and pull the inner door handle. • Using PPE • Training and education • Keeping used PPP out of the CAB • Removing contaminated shoes or clothing before entering the CAB • Keeping the CAB interior clean • Disposal of filters M7132, M7152, M7172...
Page 245: Rear Window
Raise the front loader, and visually check to see if the tip of an attachment (bucket and fork, for example) is visible in its position or angle from the operator’s seat. (1) Dome light (A) [OFF] (2) Dome light switch (B) “DOOR” (C) [ON] M7132, M7152, M7172...
Page 246: Spot Light
• In the cold season, the wiper blades and the wiper motor may become overloaded, and IMPORTANT : cause damage. To avoid this, be sure to take • Do not activate the wipers when the the above precautions. windows are dry, as they may be scratched. M7132, M7152, M7172...
Page 247: Air Conditioner
The dashboard air vents can be independently adjusted as required. (1) Defroster air vents (2) Dashboard air vents (1) Face area air vents (A) “OPEN” (2) Back area air vents (B) “SHUT” (3) Feet area air vents (C) “TURN” M7132, M7152, M7172...
Page 248: Rear Air Vent
• When heating, do not keep the switch at the “RECIRCULATION” position for a long time. The Set this dial at the desired position to obtain the windscreen easily gets misty. optimum air temperature. Turn the dial in the “WARM” M7132, M7152, M7172...
Page 249: Operation
(3) Feet area air vents (5) Recirculation or fresh air se- lection switch with indicator 5. To blow out warm air also from behind, open the light rear air outlet and adjust the air direction. M7132, M7152, M7172...
Page 250: Defrosting Or Demisting
After about 15 minutes, the demister and the yellow light turn off automatically. To turn the demister off, 3. Set the blower switch and the temperature control press the switch once more. dial to the [4] and max “WARM” (end of clockwise) positions, respectively. M7132, M7152, M7172...
Page 251: Accessories
Always use the demister with the engine Terminal Function running. Direction indicator light (LH) Ground Direction indicator light (RH) Rear light Side marker light Parking light Brake stop light Registration plate light M7132, M7152, M7172...
Page 252: Isobus Socket (Premium And Premium Kvt Model Only)
(1) Electrical power socket (25 A) Loader electrical power socket (1) ISOBUS socket (A) “PUSH” (1) Electric connector for loader control device M7132, M7152, M7172...
Page 253: Isobus Monitor Socket (Premium And Premium Kvt Model Only)
(fertilizer, for example) and others. NOTE : • An electrical consumer with a requirement for NOTE : maximum 120 watts can be connected to the • Implement side default settings are required to cigarette lighter. adjust the dispersal amount etc. M7132, M7152, M7172...
Page 254: Installing The Implement Control Box
1. Turn on the key switch and press the beacon light switch. Then the beacon light and indicator of switch will be activated. 2. Press the switch once more, and turn off the light and the indicator. M7132, M7152, M7172...
Page 255: Maintenance
WABCO cartridge Replace Replace tion side) Turbocharger Check Hydraulic oil filter (return Replace Supply pump Check side) every 3000 Check Power steering oil filter Replace EGR system Clean Radiator hose and clamp Check DPF muffler Clean (Continued) (Continued) M7132, M7152, M7172...
Page 256: Maintenance Items Chart
Washer liquid 1050 ○ Refrigerant (gas) Check 1100 ○ ○ Consult your local KUBOTA Dealer for this service. 1150 ○ Air cleaner should be cleaned more often in dusty conditions than in normal conditions. 1200 ○ ○ ○ ○ Every 1000 hours or every 1 year, whichever comes first.
Page 257 ○ 2900 ○ ○ 2950 ○ 3000 ○ ○ ○ ○ ○ ○ ○ Every 1000 hours ○ or 1 year Every 2000 hours ○ or 2 years Every ○ 1 year Every ○ 2 years (Continued) M7132, M7152, M7172...
Page 258: Lubricants, Fuel And Coolant
Battery terminal A small amount NOTE : • The product name of KUBOTA genuine UDT fluid may be different from that in the operator’s manual depending on countries or territories. Consult your local KUBOTA Dealer for further details. Engine oil •...
Page 259 We recommend the use of KUBOTA UDT or UDT-HD fluid for optimum protection and performance. Consult your local KUBOTA Dealer for further details.
Page 260: Periodic Service
), refrigerant, solvent, filters, rubber, batteries and harmful substances, can harm the environment, people, pets and wildlife. Please dispose properly. See your local recycling centre or KUBOTA Dealer to learn how to recycle or get rid of waste products. HOW TO OPEN THE BONNET...
Page 261: Daily Check
When operating tractors with anti-frost heaters for oil sure that there is no static discharge. separator in cold regions (below the freezing point: To avoid allergic skin reaction: 0 ℃ / 32 ℉), carry out inspection by using the following procedure before starting work: M7132, M7152, M7172...
Page 262: Checking Def/Adblue ® Level And Adding Fluid
2. If the heater is not warm, it is not working. In this warning sign appears on the instrument panel. If this case, contact your local KUBOTA Dealer without warning is ignored and the operation continues, the starting the engine.
Page 263: Checking Pneumatic Brake Pressure (If Equipped)
If any other substance (gasoline, diesel, oil) is ® mistakenly introduced into the DEF/AdBlue tank, do not attempt to start the engine and contact your local KUBOTA Dealer as soon as possible. ® • Check the DEF/AdBlue gauge regularly to avoid emptying its tank.
Page 264: Checking Engine Oil Level
• At times, a small amount of fuel, which is cylinder. used to regenerate the DPF, may get mixed Consult your local KUBOTA Dealer for more with the engine oil and the engine oil may details. increase in volume.
Page 265: Cleaning Grill, Radiator And Cooler
Before checking or cleaning them, wait long enough until they cool down. (1) Cooler and condenser pack (2) Latch (3) Handle Cleaning 1. Check front grill to be sure it is clean from debris. M7132, M7152, M7172...
Page 266: Checking Dpf/Scr Muffler
Check the DPF/SCR muffler and its surroundings for lever. accumulation of anything flammable. NOTE : Otherwise a fire may result. • Make sure the lamp on the instrument panel goes off when the parking/secondary brake lever is unlocked. M7132, M7152, M7172...
Page 267: Checking Gauges, Meter And Easy Checker
With a new machine, be sure to do the following servicing after the first 5, 10, 25 and 50 operating WARNING hours. To avoid personal injury or death: • Do not allow anyone near the tractor while testing. M7132, M7152, M7172...
Page 268: Preparation Before Testing
5. Check to see if the shuttle shift is held in their neutral position. 2. Set the handbrake, stop the engine and lower all implements. 6. If not, consult your local KUBOTA Dealer for this service. 1.2 Testing engine start system 1.4 Testing hydraulic up/down (lock)
Page 269: Testing Remote Hydraulic Control (Premium, Premium Kvt Models)
8. Move the 3-point quick raise and lower switch or the depth control dial, and make sure the implement is raised and lowered. 9. If any trouble occurs, consult your local KUBOTA Dealer for this service. 1.5 Testing remote hydraulic control...
Page 270: Checking Operator Presence Control (Opc) System
10 seconds or so when entering continuous rotation mode. 7. Press the switch again, and make sure the PTO rotation has stopped. 8. If any trouble occurs, consult your local KUBOTA (1) Parking/secondary brake lever Dealer for this service. (2) Front PTO clutch control switch...
Page 271: Testing Operator Presence Control (Opc) System (Standard, Premium Models)
5. If any trouble occurs, consult your local KUBOTA Dealer for this service. 2. Checking wheel bolt torque...
Page 272: Checking Tie-Rod Dust Cover
If dust covers are damaged, consult your local Damaged sealing should be replaced in order to KUBOTA Dealer for this service. avoid air leaks. When not in use, keep the cap tight in position. Check the following parts as well: •...
Page 273: Cleaning Pre-Cleaner Tubes
(1) Grease fitting (front axle support) (1) Pre-cleaner tubes IMPORTANT : • The air cleaner uses a dry element so never apply oil. • Do not run the engine with the filter element removed. M7132, M7152, M7172...
Page 274 (1) Grease fitting (hydraulic lift arm shaft) - both sides (2) Grease fitting (parking brake shaft) - both sides (1) Grease fitting (lifting rod) - LH (2) Grease fitting (lifting rod) - RH (1) Grease fitting (stabiliser) M7132, M7152, M7172...
Page 275: Adjusting Brake Pedal
• To prevent uneven braking, the specification must be within the recommended limit. If found out of the specifications, contact your local KUBOTA Dealer for adjusting the brakes. (1) Grease fitting (front axle support) 3.1 Checking brake pedal free travel...
Page 276: Checking Brake Pedal Stroke
3. Do the same for the left-hand pedal. 4. Adjusting parking/secondary brake lever Consult your local KUBOTA Dealer for this service. (1) Battery 5. Checking battery condition 5.1 Charging the battery DANGER...
Page 277: Directions For Battery Storage
2. The battery self-discharges while it is stored. Recharge it once every 3 months in hot seasons and once every 6 months in cold seasons. M7132, M7152, M7172...
Page 278: Checking Front Pto Oil (If Equipped)
• The fuel tank is made of plastic. Be careful not 1. Remove the filling plug and check to see if the oil to overtighten the bolts. level is up to the plug hole. If low, add oil until it flows out of the filling plug hole. M7132, M7152, M7172...
Page 279: Adjusting Toe-In
• Check the filter using a strong and stable ladder to stand on. Never check it while standing on a tyre or fender. 1. Remove the knob bolts and pull out the filter. M7132, M7152, M7172...
Page 280: Cleaning The Filter
• If the filter is very dirty: Dip the filter in lukewarm water with mild dish washing detergent. Move it up and down as well as left and right to loosen dirt. Rinse the filter with clean water and let it air-dry. M7132, M7152, M7172...
Page 281: Cleaning Water Separator
3. Remove the element and replace it with a new one. Tightening torque of lock 60 to 80 N⋅m / 6.12 to 8.16 kgf⋅m / 4. After cleaning, reassemble the water separator, 44.3 to 59.0 ft⋅lbs keeping out dust and dirt. M7132, M7152, M7172...
Page 282: Cleaning Fuel Solenoid Pump Element
5. Open the fuel shut-off valve. (See Replacing transmission oil filter on page 287.) IMPORTANT : • When assembling the parts, be careful that no dirt or dust contacts them. • Be sure to install the cover securely. M7132, M7152, M7172...
Page 283: Every 500 Hours
22.0 L (1) Engine oil filter IMPORTANT : • To prevent serious damage to the engine, use only a KUBOTA genuine filter. 3. Cleaning pre-fuel filter This job should not be done in the field, but in a clean environment.
Page 284: Replacing Fuel Filter
2. Put a film of clean fuel on the rubber seal of the new filter. 3. Tighten the filter quickly until it contacts the mounting surface. Tighten the filter by hand an additional 1/2 turn only. 4. Bleed the fuel system. (See Bleeding the fuel system on page 294.) M7132, M7152, M7172...
Page 285 4. Tighten the filter quickly until it contacts the • To prevent serious damage to the hydraulic mounting surface. system, use only a KUBOTA genuine filter. Tighten filter by hand an additional 1/2 turn only. NOTE : 5. After the new filter has been replaced, fill the •...
Page 286: Replacing Hydraulic Oil Filter (Return)
7. Replacing power steering oil filter (1) Hydraulic oil filter cover (2) Nut (3) Element (4) O-ring WARNING 4. Mount after cleaning the filter cover. If the o-ring is To avoid personal injury or death: damaged, make sure to replace it. M7132, M7152, M7172...
Page 287: Checking Radiator Hose And Clamp
500 hours of operation. damaged, make sure to replace it. 1. If the hose clamps are loose or water leaks, tighten 5. Fill the transmission oil up to the upper line of the the bands securely. sight glass. M7132, M7152, M7172...
Page 288: Overheating Countermeasures
(See TROUBLESHOOTING on page 302.) Afterwards, restart the engine. 9. Checking fuel line 1. Check to see that all lines and hose clamps are tight and not damaged. (1) Radiator hoses (2) Hose clamps (1) Radiator hoses (2) Hose clamps M7132, M7152, M7172...
Page 289: Checking Intake Air Line
(1) Hose (2) Hose clamps 11. Checking brake hose Consult your local KUBOTA Dealer for this service. 12. Checking differential lock hose 1. Check to see that hoses and hose clamps are tight (1) Fuel lines and not damaged.
Page 290: Checking Power Steering Line
1. Check to see that all lines and hose clamps are tight and not damaged. 2. If hoses and clamps are found to be worn or damaged, replace or repair them at once. (1) Front suspension pressure hoses M7132, M7152, M7172...
Page 291: Checking Air Conditioner Pipe And Hose
2. If hoses and clamps are found to be worn or 3. In applying a new belt, also unlock the self-tension damaged, consult your local KUBOTA Dealer for arm with the same wrench. this service.
Page 292: Every 1000 Hours
4. After running the engine for a few minutes, stop it and wait for 10 minutes. Check the oil level again, add oil to the prescribed level. Power shift model: 85 L Oil capacity CVT model: 80 L (1) Filling plug M7132, M7152, M7172...
Page 293: Replacing Transmission Oil Filter
3. When oil is no longer dripping from the exposed damaged, make sure to replace it. area, remove the element and replace it with a new one. Make sure at this time that the o-ring is mounted on the element mounting part. M7132, M7152, M7172...
Page 294: Changing Rear Axle Case Oil
(if equipped). c. Raise front 3-point hitch equipped). d. Disconnect all remote control valve hoses. e. Stop engine and wait for 10 minutes. 3. Changing rear axle case oil WARNING To avoid personal injury or death: M7132, M7152, M7172...
Page 295: Changing Front Axle Gear Case Oil
(1) Plug 6. Adjusting engine valve clearance (1) Drain plug Consult your local KUBOTA Dealer for this service. EVERY 1000 HOURS OR 1 YEAR Be sure to do the following servicing once every 1000 hours or yearly, whichever comes first.
Page 296 6. Checking and cleaning EGR 2. If hoses and clamps are found worn or damaged, replace or repair them at once. cooler Consult your local KUBOTA Dealer for this service. 7. Checking accumulator (front suspension type) Consult your local KUBOTA Dealer for this service.
Page 297 Always use a 50/50 mix of long-life coolant and clean (2) Radiator cap (B) [MIN] soft water in KUBOTA engines. Consult your local KUBOTA Dealer concerning coolant IMPORTANT : for extreme conditions. • Do not start the engine without any coolant.
Page 298 Refer to SAE J1034 standard, more specifically also to SAE Consult your local KUBOTA Dealer for this service. J814c. 4. Cleaning DPF muffler Freezing point Boiling point...
Page 299 (1) CAB isolation cushion EVERY 2 YEARS 1. Replacing DPF differential pressure sensor hose Consult your local KUBOTA Dealer for this service. 2. Replacing boost sensor hose Consult your local KUBOTA Dealer for this service. (1) Filter cover EVERY 3 YEARS...
Page 300 2. Turn “ON” and “OFF” the key switch repeatedly 10 times or so at the following intervals. This lets the Consult your local KUBOTA Dealer for this service. air out of the fuel line. a. Key switch “ON” time: 30 seconds b.
Page 301 Failure to follow this procedure may result in serious damage to the tractor electrical system. For specific information dealing with electrical problems, read the troubleshooting section of (1) Fuses this manual or contact your local KUBOTA Dealer. (See TROUBLESHOOTING on page 302.) Protected circuit Fuse...
Page 302 Main fuse Armrest unit VCU 2 Main fuse ignition ISOBUS actuator power 3P-socket No. 2 Auto steer valve TECU Work light roof rear VCU1 Beacon light Wiper rear/CAB light GPS antenna Battery main relay Dashboard Radio (Continued) M7132, M7152, M7172...
Page 303 30 A 60 A Glow Fuse Capacity (A) Protected circuit Sedimenter 175 A 20 A ACU comp (with 150 A alternator) Alternator 30 A 225 A 10 A (with 200 A alternator) 15 A 30 Peramanen Protected circuit M7132, M7152, M7172...
Page 304 • In contact with a flame, R134a refrigerant produces a toxic gas. • Do not disconnect any part of the refrigeration circuit of the air conditioning system. Consult your local KUBOTA Dealer for assistance and service. M7132, M7152, M7172...
Page 305 Air conditioner gas contains fluorinated greenhouse gases. Industrial equiva- Quantity (kg) designation lent (ton) HFC-134a 1.43 1430 (Global warning potential: GWP) IMPORTANT : (A) High pressure • Charge only with R134a not R12 refrigerant. (B) Low pressure M7132, M7152, M7172...
Page 306 CAB or the roof part while washing. Please lower the pressure or spread the water flow. It will cause water leakage inside the CAB and cause damage to electrical parts. (1) No high pressure washer M7132, M7152, M7172...
Page 307: Removing The Tractor From Storage
Cover the tractor. 11. Store the tractor indoors in a dry area that is protected from sunlight and excessive heat. If the tractor must be stored outdoors, cover it with a waterproof tarpaulin. M7132, M7152, M7172...
Page 308: Troubleshooting
The abbreviated electric control unit name shows which control unit is in trouble. The error/warning code is identified with a combination of FMI and SPN or P or U code. The meaning of each electric control unit name is listed in the following table. M7132, M7152, M7172...
Page 309 Check the fuse and wiring of ACU. VCU1 520358 Communication error of ACU. If there is no damage, contact your dealer. Check the fuse and wiring of eTCV. VCU1 521586 Communication error of eTCV If there is no damage, contact your dealer. (Continued) M7132, M7152, M7172...
Page 310 Differential lock button malfunc- Differential lock button may be stuck. 522035 tion. If it is stuck, contact your dealer. Loader 3rd/4th function button Loader 3rd/4th function button may be stuck. 522042 malfunction. If it is stuck, contact your dealer. (Continued) M7132, M7152, M7172...
Page 311 Remote valve 6 wiring may be defective; contact VCU2 521009 valve 6. your dealer. Check if the remote control valve switch is stuck. Signal error; remote control valve VCU2 521010 If the message persists after the switch is released, switch. contact your dealer. (Continued) M7132, M7152, M7172...
Page 312 Otherwise, contact your dealer. Check if the front suspension “UP” switch was held Signal error; front suspension VCU2 522083 in on for a long time. “UP” switch. Otherwise, contact your dealer. (Continued) M7132, M7152, M7172...
Page 313 Invalid travelling speed. less. Operational error; invalid travel- Set the travelling speed at 25 km/h (15 mph) or 520196 ling speed. less. Operation error: auto steering 520210 Turn on auto steering switch after engine start. switch. (Continued) M7132, M7152, M7172...
Page 314 PTO switch. PTO switch, set both levers to selected position. Please slightly weaken the depression on the brake eTCV 1067 Brake pedal sensor error pedal during full brake. If the problem persists, con- tact your KUBOTA dealer. M7132, M7152, M7172...
Page 315: Options
Brake Hydraulic trailer brake kit ○ ○ ○ Front hydraulic outlet kit for ○ ○ CCLS Hydraulic Front hydraulic outlet kit for ○ mecha Hydraulic power beyond kit ○ ○ PTO 21 spline kit ○ ○ ○ M7132, M7152, M7172...
Page 316: Appendices
Type DANA 745:5200 Rear axle 8000 Maximum axle Technically per- load (kg) missible maxi- 11500 mum laden mass Tractor payload 4900-4150 Front axle Type DANA 745:45% Rear axle Minimum limit percentages Technically per- missible maxi- 100% mum laden mass M7132, M7152, M7172...
Page 317 A8 and B shown on the sidewall of the tire the Load index for B can be less or equal to the Load index at A8. In that case please check the documents of the tyre manufacturer or contact your local KUBOTA Dealer.
Page 318: Trailer Load Capacity
Scharmüller Type 390519 2000 2000 Clevis type: automatical coupling Φ 38 mm (height adjustable) 2500 2500 remark: The effective permissible vertical load on coupling point must be calculated depending on the tires load on the axle weight. M7132, M7152, M7172...
Page 319 2000 2000 Clevis type: towing pin/ Piton Fix assembled with mounting frame (height adjustable) 2500 2500 remark: The effective permissible vertical load on coupling point must be calculated depending on the tires load on the axle weight. M7132, M7152, M7172...
Page 320 28 mm (height adjusta- ble) remark: The effective permissible vertical load on coupling point must be calculated depending on the tires load on the axle weight. (*1) This coupling type is not approved for the 50 km/h-version! M7132, M7152, M7172...
Page 321 Heavy duty drawbar Piton Fix remark: The effective permissible vertical load on coupling point must be calculated depending on the tires load on the axle weight. (*1) This coupling type is not approved for the 50 km/h-version! M7132, M7152, M7172...
Page 322 Non-standard coupling (*1) hitch device 2500 remark: The effective permissible vertical load on coupling point must be calculated depending on the tires load on the axle weight. (*1) This coupling type is not approved for the 50 km/h-version! M7132, M7152, M7172...
Page 323: Index
266 air cleaner primary element ballast................235 cleaning...............266 ballast (front)............. 235 replacing..............289 ballast (liquid)............236 air cleaner secondary element ballast (monolithic block, if equipped)....... 237 replacing..............289 ballast (rear, for single tyres)........235 air conditioner............241 bar axle torque cooling..............243 tightening.............261 M7132, M7152, M7172...
Page 324 CVT ratio lock button..........177 CAB isolation cushion CVT response checking.............. 293 setting..............176 CAB maintenance............. 238 CVT response setting calculator (K-monitor)..........116 modifying...............99 camera setting (K-monitor Pro)........83 CVT sensitivity chock block setting..............175 attaching..............191 CVT sensitivity setting detaching.............191 modifying...............99 using..............191 M7132, M7152, M7172...
Page 325 292 Easy Checker DEF/AdBlue® injector tip checking.............. 261 checking.............. 289 Easy checker indicators..........179 DEF/AdBlue® line EGR cooler checking.............. 289 checking.............. 290 DEF/AdBlue® pump filter EGR pipe replacing..............292 checking.............. 293 demands on operating and service personnel.... 19 M7132, M7152, M7172...
Page 326 189 setting..............134 front suspension modes and travelling speed...190 engine valve clearance front wheel turning stopper bolt adjusting..............289 adjusting..............233 ESC button function............ 81 front wiper and washer switch........240 exhaust after-treatment devices........122 front-wheel drive usage..........160 M7132, M7152, M7172...
Page 327 ................102 installing.............. 248 headland management system pre-program travel implement limitations...........36 distance...............102 implement working range headland management system preparations setting..............63 creating program..........101 indicator colour............74 M7132, M7152, M7172...
Page 328 K-monitor Pro engine setting (Premium KVT model adjusting width............ 205 only)..............98 lower link width K-monitor Pro ISOBUS settings screen...... 83 adjusting..............203 K-monitor Pro items lubricants..............252 setting..............82 lubricating oil K-monitor Pro license confirmation screen....84 changing..............143 M7132, M7152, M7172...
Page 329 (Standard model) operation modes (power shift transmission control) setting main gear shift range.......165 switching............. 163 setting range gear shift........165 operator presence control (OPC) system....145 power shift transmission manual mode checking.............. 264 operating............. 167 M7132, M7152, M7172...
Page 330 224 PTO shaft cap............ 195,199 remote control valve switch........225 PTO shaft cover..........195,199 remote control valve, detailed setting......224 remote couplers spillage collector......228 remote hitch down switch..........202 remote hitch up switch..........202 M7132, M7152, M7172...
Page 331 191 security setting (engine starting)....... 134 operating on slopes..........15 selective catalytic reduction (SCR) muffler....129 operating on slopes and rough terrain....191 service inspect indicator..........119 operating techniques...........191 service intervals............249 options..............309 M7132, M7152, M7172...
Page 332 (power shift transmission) setting..............94 travelling speed limit (50km/h model)......152 treads................ 232 troubleshooting (electric controller)......302 turbocharger checking.............. 292 tyre size and inflation pressure......... 231 unit system setting (K-monitor Pro)......83 WABCO cartridge replacing..............292 warning indication............. 130 M7132, M7152, M7172...

This manual is also suitable for:

M7152 M7172

Kubota M7132 Operator's Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kubota M7132

Summary of Contents for Kubota M7132
