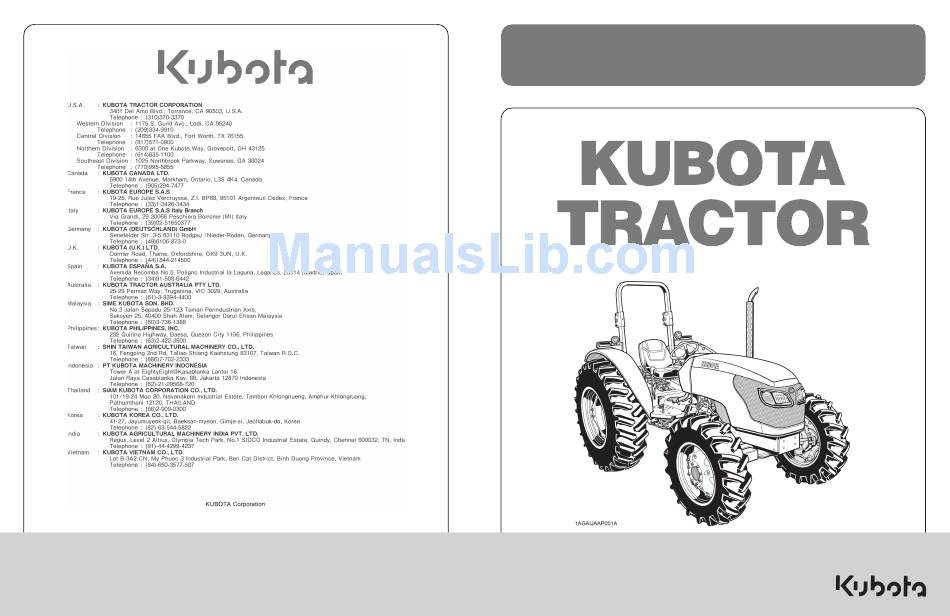

  • Page 1 OPERATOR'S MANUAL MODEL M7040SUHD English (Australia) Code No. 3C363-9971-1 READ AND SAVE THIS MANUAL PRINTED IN JAPAN © KUBOTA Corporation 2011...
  • Page 2 Proper daily inspection, servicing and lubrication keeps your machine in good KUBOTA Corporation is ··· condition. Since its inception in 1890, KUBOTA Corporation has grown to rank as one of the major firms in Japan. To achieve this status, the company has through the years...

  • Page 3: Table Of Contents

    CONTENTS SAFE OPERATION .................... SPECIFICATIONS....................... 1 SPECIFICATION TABLE ..................1 TRAVELING SPEEDS ..................... 3 INSTRUMENT PANEL AND CONTROLS..............4 OPERATING THE TRACTOR ..................6 STARTING ....................... 6 Turn Signal / Hazard Light Switch ..................6 Horn Button........................6 3-POINT HITCH & DRAWBAR..................7 DRAWBAR.......................
  • Page 5 C CAB, ROPS manual before operation. 1. KUBOTA recommends the use of a CAB or Roll Over 5. Never wear loose, torn, or bulky clothing around Protective Structures (ROPS) and seat belt in almost tractor.
  • Page 6 SAFE OPERATION 7. If the tractor is equipped with a foldable ROPS it may 3. Do not start engine by shorting across starter be temporarily folded down only when absolutely terminals or bypassing the safety start switch. necessary for areas with height constraints. Machine may start in gear and move if normal starting (There is no operator protection provided by the ROPS circuitry is bypassed.
  • Page 7 SAFE OPERATION C Driving the tractor on the road C Safety for children 1. Lock the 2 brake pedals together to help assure Tragedy can occur if the operator is not alert to the straight-line stops. Uneven braking at road speeds presence of children.
  • Page 8 SAFE OPERATION 11. Do not ride or stand on the step during operation. Riding or standing there could result in being crushed 4. OPERATING THE PTO under the rear tire due to slippage or the step fracturing or displacing due to unintended loading. 1.
  • Page 9 SAFE OPERATION 3. To avoid injury from separation: 9. To avoid sparks from an accidental short circuit, Do not extend lift rod beyond the groove on the always disconnect the battery's ground cable (-) first threaded rod. and reconnect it last. (1) Groove (1) Battery 10.
  • Page 10 SAFE OPERATION 15. Escaping hydraulic fluid under pressure has sufficient force to penetrate skin, causing serious personal injury. Before disconnecting hydraulic lines, be sure to release all residual pressure. Before applying pressure to the hydraulic system, make sure that all connections are tight and that all lines, pipes, and hoses are free of damage.
  • Page 11 SAFE OPERATION 7. DANGER, WARNING AND CAUTION LABELS...
  • Page 12 SAFE OPERATION...
  • Page 13 SAFE OPERATION...
  • Page 14 2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth. 3. Replace damaged or missing danger, warning and caution labels with new labels from your local KUBOTA Dealer. 4. If a component with danger, warning and caution label(s) affixed is replaced with new part, make sure new label(s) is (are) attached in the same location(s) as the replaced component.

  • Page 15: Safe Operation

    SPECIFICATIONS SPECIFICATIONS SPECIFICATION TABLE M7040SUH Model Model V3307-DI-TE2 Type Direct Injection, liquid cooled 4 cylinder diesel Number of cylinders Total displacement 3331 Bore and stroke 94 x 120 Rated revolution 2600 Low idling revolution 875 to 925 Engine Net power *1 kW (HP) 50.7 (68) PTO power *1...
  • Page 16 SPECIFICATIONS M7040SUH Model Hydraulic control system Position control Pump capacity L / min 43.9 3-point hitch Category 1 and 2 At lifting 1900 Max. points At lower link end with links horizontal lifting Hydraulic 24 in. behind force 1500 unit lifting point 1 standard with detent and self cancelling Remote hydraulic control...

  • Page 17: Traveling Speeds

    SPECIFICATIONS TRAVELING SPEEDS (At rated engine rpm) Model M7040SUH Tire size (Rear) 16.9-30 Shuttle Range gear Main gear km/h shift lever shift lever shift lever 10.5 14.8 20.7 12.9 31.5 19.7 10.7 15.1 21.1 13.2 32.2 20.1 The company reserves the right to change the specifications without notice...

  • Page 18: Instrument Panel And Controls

    (4) Hydraulic-shuttle shift lever ......(5) Clutch pedal ..........(6) Hazard light switch ........6 (7) Hand throttle lever ........(8) Key switch ..........(9) Parking brake lever ........(10) Brake pedal ..........D See operator's manual issued separately for the sister model. [M7040SUHD]...
  • Page 19 INSTRUMENT PANEL AND CONTROLS B Foot and Hand Controls ILLUSTRATED CONTENTS (1) Main gear shift lever ..........(2) Range gear shift lever ..........(3) Differential lock pedal ..........(4) 3-Point hitch lowering speed knob ......(5) Front wheel drive lever ..........(6) Tool box ..............

  • Page 20: Operating The Tractor

    OPERATING THE TRACTOR OPERATING THE TRACTOR STARTING BHorn Button The horn will sound when the key switch is in the "ON" BTurn Signal / Hazard Light Switch position and the horn button pressed. C Turn Signal Light Switch To indicate a right turn, turn the turn signal light switch clockwise.

  • Page 21: 3-Point Hitch & Drawbar

    3-POINT HITCH & DRAWBAR 3-POINT HITCH & DRAWBAR DRAWBAR BSwing Drawbar The drawbar can be used in 3 different ways as illustrated below. Assemble it correctly with locating pins. To avoid personal injury or death: A Never pull from the top link, the rear axle or any point above the drawbar.

  • Page 22: Hydraulic Unit

    HYDRAULIC UNIT HYDRAULIC UNIT REMOTE HYDRAULIC CONTROL SYSTEM BRemote Control Valve Lever The hydraulic auxiliary control valves can be installed up The remote control valve lever directs pressurized oil flow to triple segments. to the implement hydraulic system. [Example: Installing triple segment valve] BRemote Control Valve Double acting valve with detents and self There are 3 types of remote valves available for these...
  • Page 23 HYDRAULIC UNIT Pressure Returning Lever position Lever (1) Z (detent) Z (detent) Port Lever position Lever (2) Z (detent) Port Float Lever position Lever (3) Double-acting Single-acting [E] out Port A Do not hold the lever in the "pull" or "push" position once the remote cylinder has reached the end of the stroke, as this will cause oil to flow through the relief valve.

  • Page 24: Periodic Service

    Refer "TROUBLESHOOTING" section of this manual or your FUSE CAPACITY Protected circuit local KUBOTA Dealer for specific information dealing with electrical problems. Work Light (R) Work Light (L) Alternator, Engine, Glow Plug Meter Panel, OPC Turn Signal Auxiliary Power...

  • Page 25: Options

    OPTIONS OPTIONS Consult your local KUBOTA Dealer for further details. A Double Acting Remote Hydraulic Control Valve with Detents and Self-Cancelling A Double Acting Remote Hydraulic Control Valve with Float Position A Front end weights For front ballast A Rear Wheel Weights...
