ReliaGATE 10-05-34 User Manual Rev 1-0

15 Mechanical specifications

15 M
ECHANICAL SPECIFICATIONS
15.1

ReliaGATE 10-05-34 mechanical dimensions

The ReliaGATE 10-05-34 electronics are housed in an ABS (Color: blue) and Aluminum enclosure, having
the following dimensions: 112 (L) x 68 (W) x 37 (H); mm (antenna SMA connectors not included).

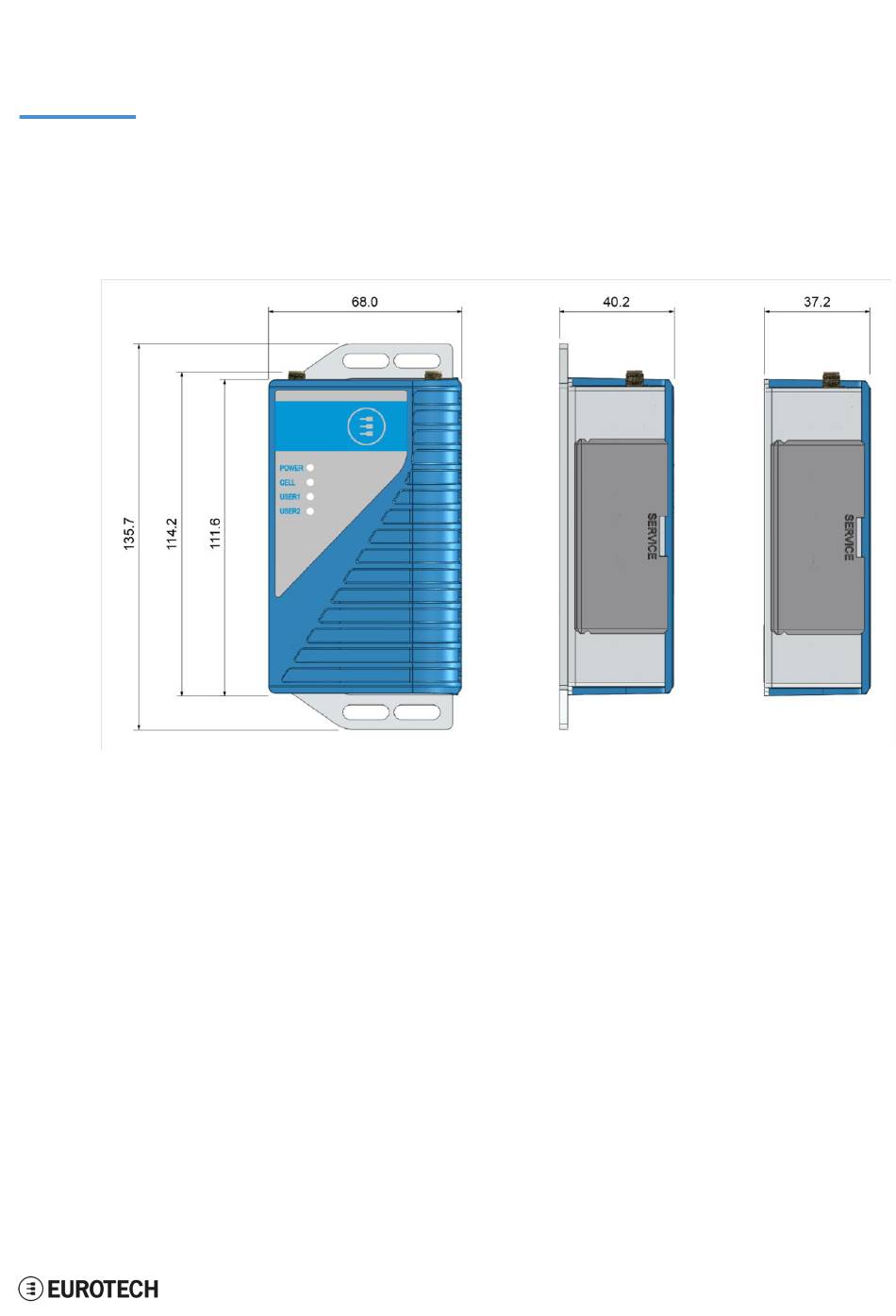

The following figure shows the dimensions of the ReliaGATE 10-05-34. All dimensions are in millimeters.
Figure 15.1 - ReliaGATE 10-05-34: mechanical dimensions
53
/ 62
