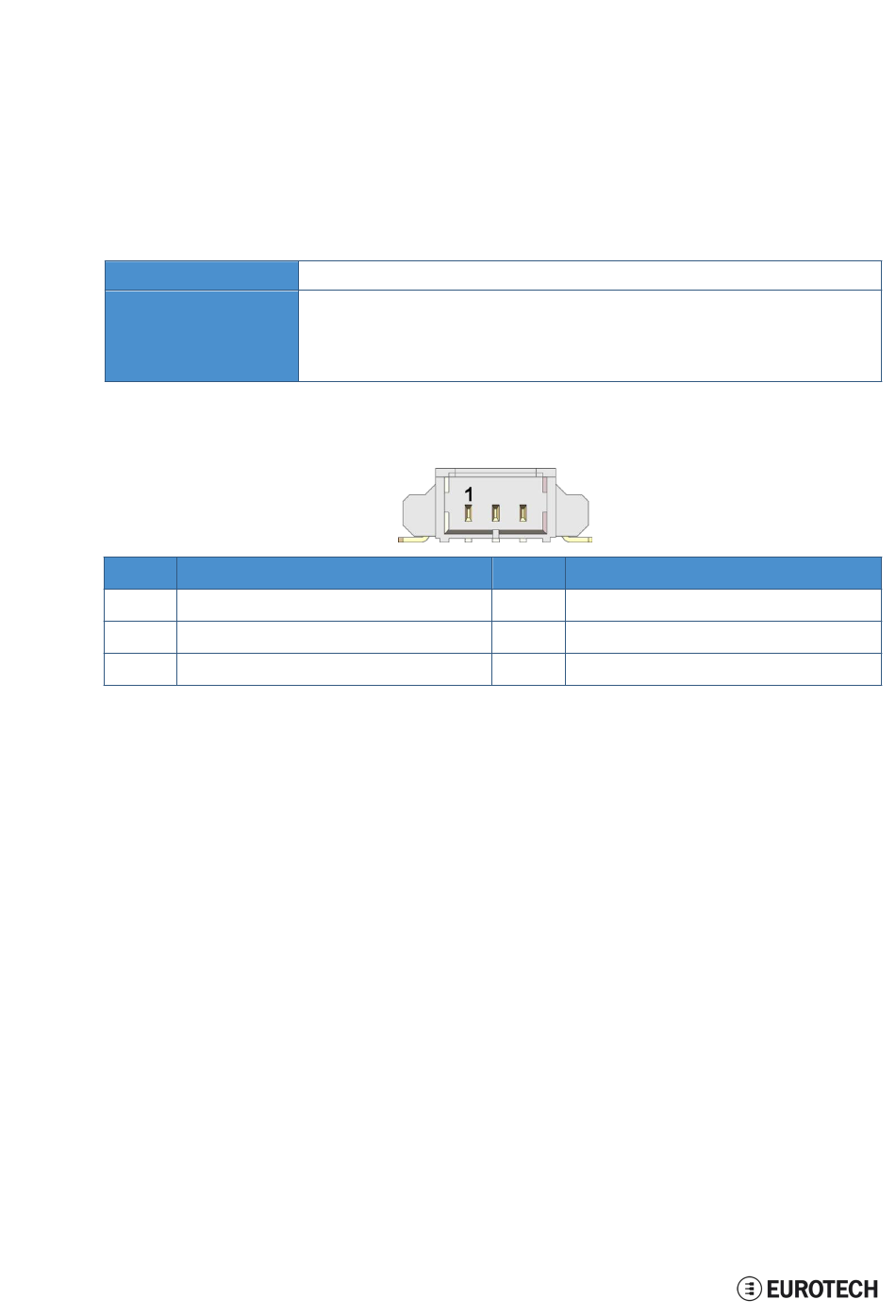

10 Interfaces in detail
10.9
Console port
The ReliaGATE 10-05-34 provides a Console port behind the Service Panel.
It is an RS-232 serial port. You can use it to access the Operating System.
10.9.1
Connector and mating connector specifications
Connector
Mating connector
10.9.2
Connector pinout
Pin#
Name
1
TX
2
RX
3
DGND
36
/ 62
Shrouded header, 3-pin, 1.25 mm pitch
Receptacle Housing, 3-pin, 1.25 mm pitch
Example:
Manufacturer: Molex
l
Part number: 51021-0300
l
ReliaGATE 10-05-34 User Manual Rev 1-0
Type
Description
O
Transmit Data
I
Receive Data
P
Digital Ground
