RODUCT INTERFACES
This section gives you an overview of the interfaces available on the ReliaGATE 10-05-34.
9.1

Front panel interfaces

The interfaces available on the front panel are the following:
Ref# Description
DIP switch selector -
1
2 8-position connector Connector:
9.1.1

DIP switch selector functions

Use the DIP switch selector to:
Insert the RS-485 fail-safe resistors
l
Insert the RS-485 termination resistors
l
Control the Boot sequence
l
Enable the watchdog
l
9.1.2

8-position connector functions

Use the 8-position connector to:
Connect the power input
l
Connect the RS-485 Serial port
l
Connect the RS-232 Serial port
l

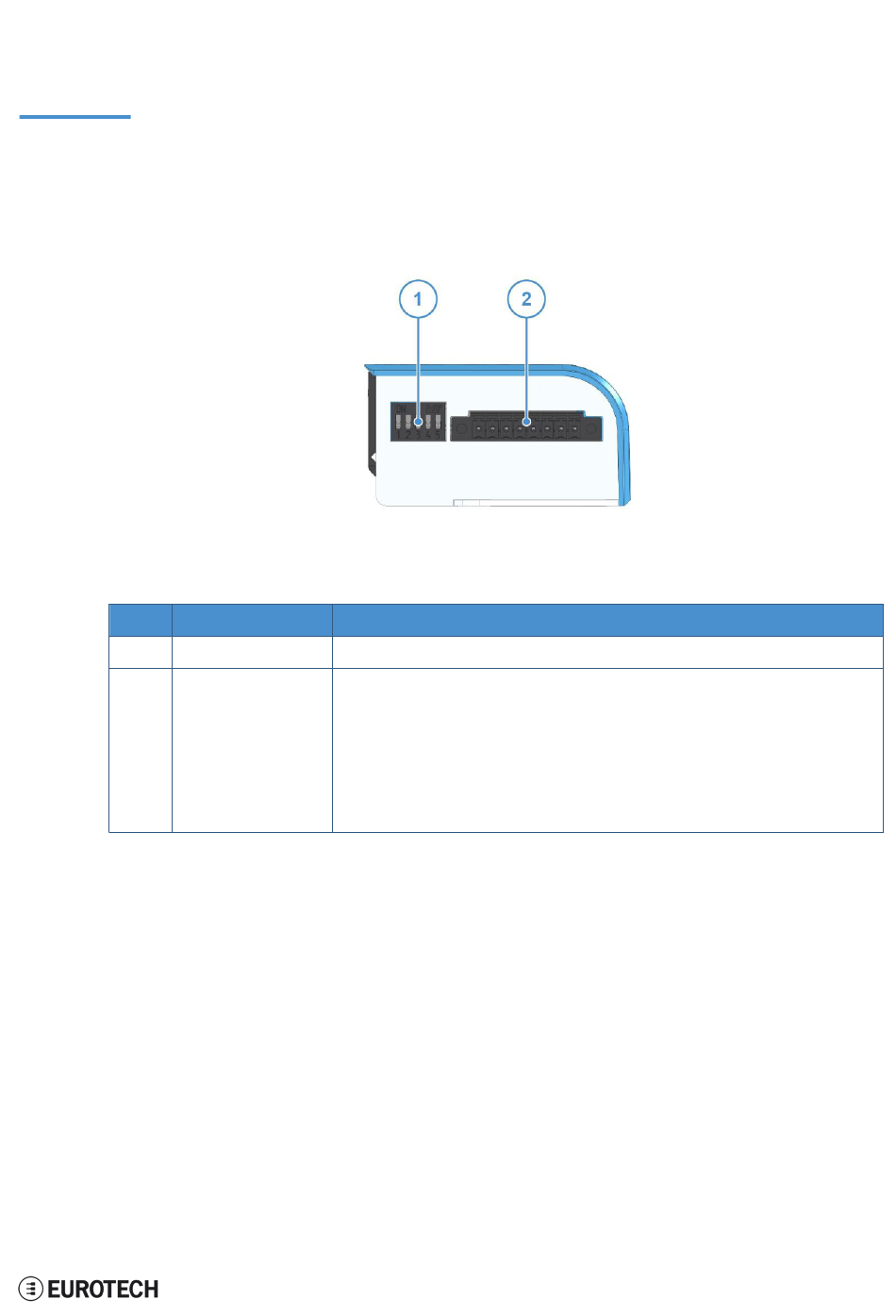

Figure 9.1 - Front panel interfaces layout
Connector / Mating connector information
Base strip, Header;
8-pin, 3.5 mm pitch
Mating connector: Pluggable screw terminal block;
8-pin, 3.5 mm pitch
Table 9.1 - Rear panel interfaces description
Example:
• Shenzhen Connection Electronics Co., Ltd.
• P/N: PLTB1.5-08-BF-3.50-GY
