ReliaGATE 10-05-34 User Manual Rev 1-0
10
I
NTERFACES IN DETAIL
10.1

Power supply

10.1.1

Power supply parameters

Power supply
Power consumption
Peak demand
The power input is protected against: surge, noise, reverse polarity, over-voltage and short circuit.
The power input is also protected with a resettable fuse.
10.1.2

Power supply connector pinout

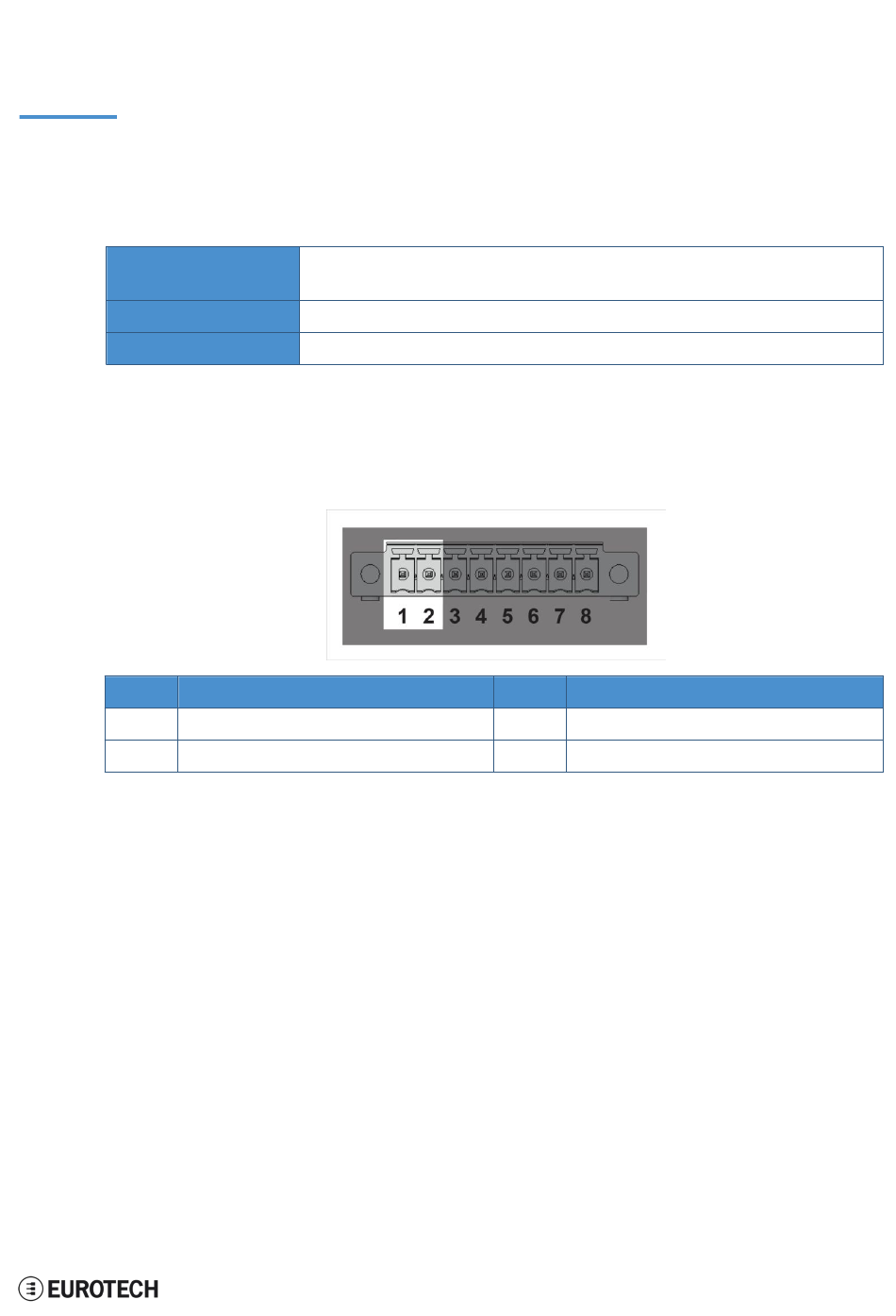

The power supply input is available on the 8-position connector located on the front panel, pins 1 and 2.
Pin#
1
2
10.1.3

How to turn ON the ReliaGATE 10-05-34

To turn the ReliaGATE 10-05-34 ON, supply power to Pins 1 and 2.
The system automatically turns ON and the LED 1 (POWER) turns ON.
10.1.4

How to turn OFF the ReliaGATE 10-05-34

To turn the ReliaGATE 10-05-34 OFF, follow these steps:
1. Login the Administration console and run the shutdown command. The system turns OFF
2. Remove power from pins 1 and 2.
10.1.5

How to manage the ReliaGATE 10-05-34 power consumption

To reduce the power consumption of your ReliaGATE 10-05-x4: turn OFF the radio interfaces and / or set
the CPU in low power consumption mode (sleep mode).
The maximum power consumption at the lowest power state is ≤ 0.4 W.
To wake the ReliaGATE 10-05-34 up from the low power consumption mode, use the Console port.
Nominal: 24 V dc; Range: 9 - 36 V dc with Transient, Surge, Noise, Reverse
Polarity, Overvoltage protection
1.5 W idle
< 15 W
Name
Power IN +
Power IN -
Type
Description
P
Positive power supply input
P
Negative power supply input

10 Interfaces in detail

27
/ 62
