15 Mechanical specifications
15.2

Mounting bracket mechanical dimensions

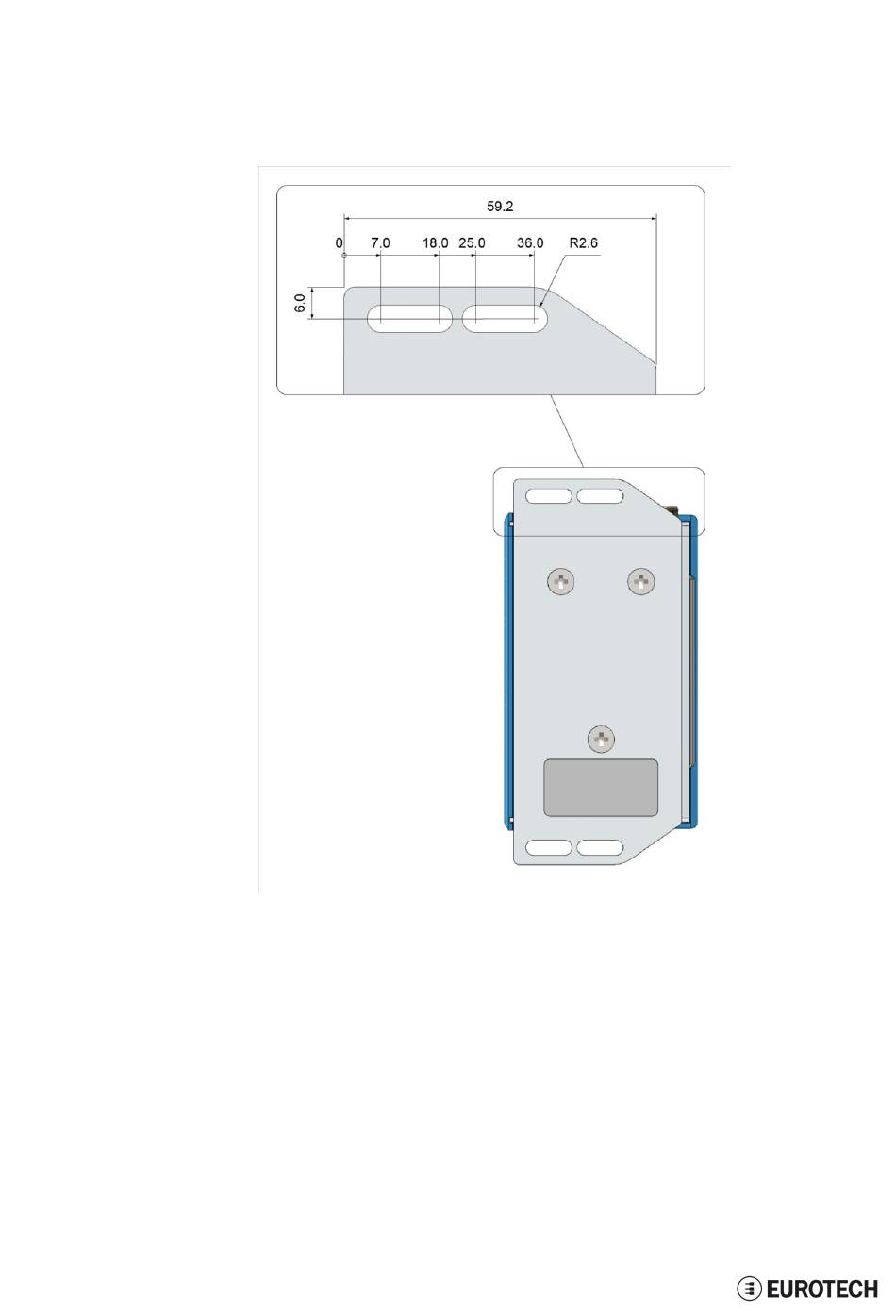

The following figure shows the dimensions of the Mounting bracket. All dimensions are in millimeters.
54
/ 62
Figure 15.2 - Mounting bracket mechanical dimensions
ReliaGATE 10-05-34 User Manual Rev 1-0
