9 Product interfaces
9.2
Rear panel interfaces
The interfaces available on the rear panel are the following:
Description
Ref#
Cellular antenna connector
1
USB 0 host port
2
Ethernet 0 port
3
Wi-Fi/BT antenna connector Connector:
4
24
/ 62

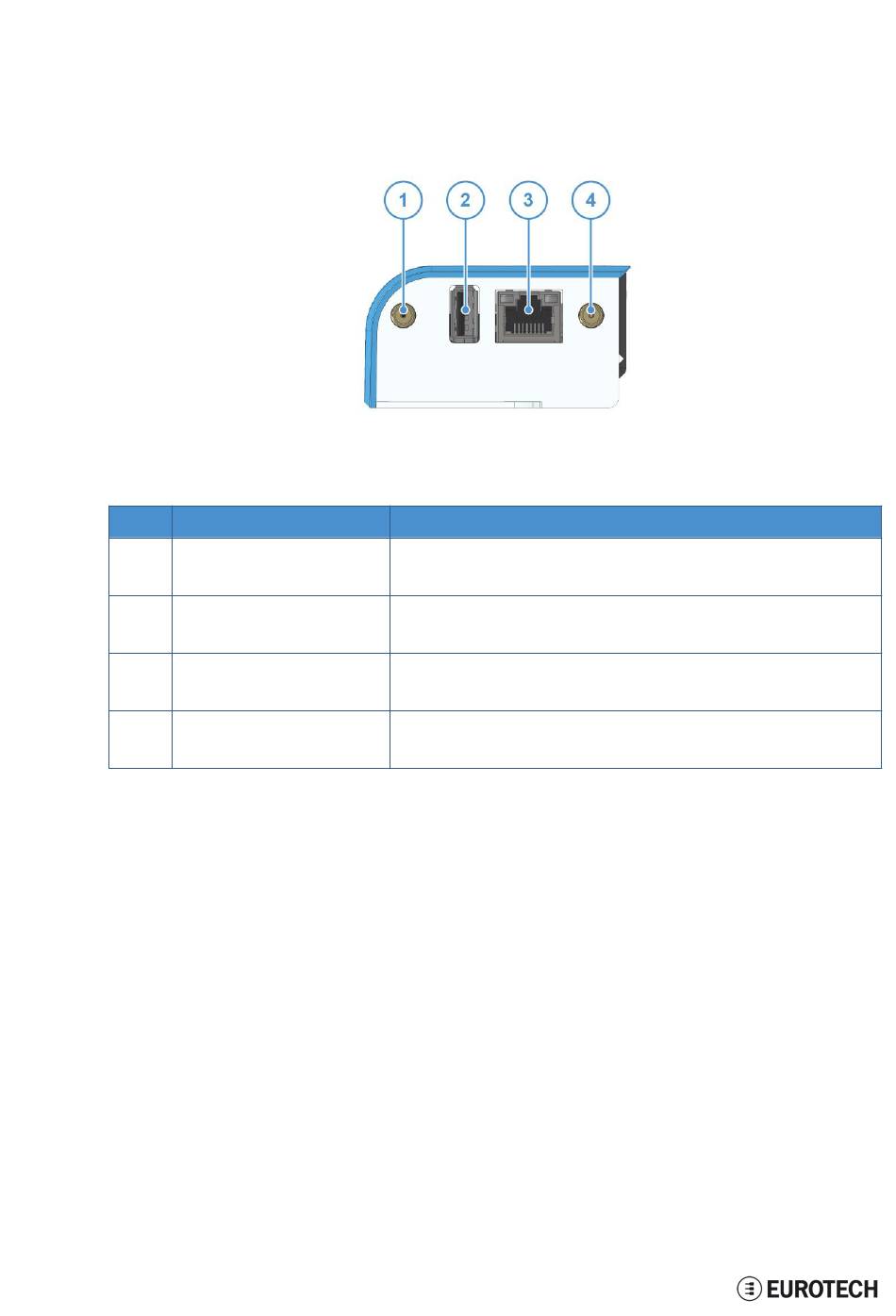

Figure 9.2 - Rear panel interfaces layout
Connector / Mating connector information
Connector:
Mating connector: Male SMA
Connector:
Mating connector: USB Type-A plug
Connector:
Mating connector: Male RJ-45
Mating connector: Male RP-SMA
Table 9.2 - Rear panel interfaces description
ReliaGATE 10-05-34 User Manual Rev 1-0
Female SMA
USB Type-A socket
Female RJ-45
Female RP-SMA
