CAUTION: Airflow In and Airflow Out fans and power supplies cannot be mixed in the
same chassis.

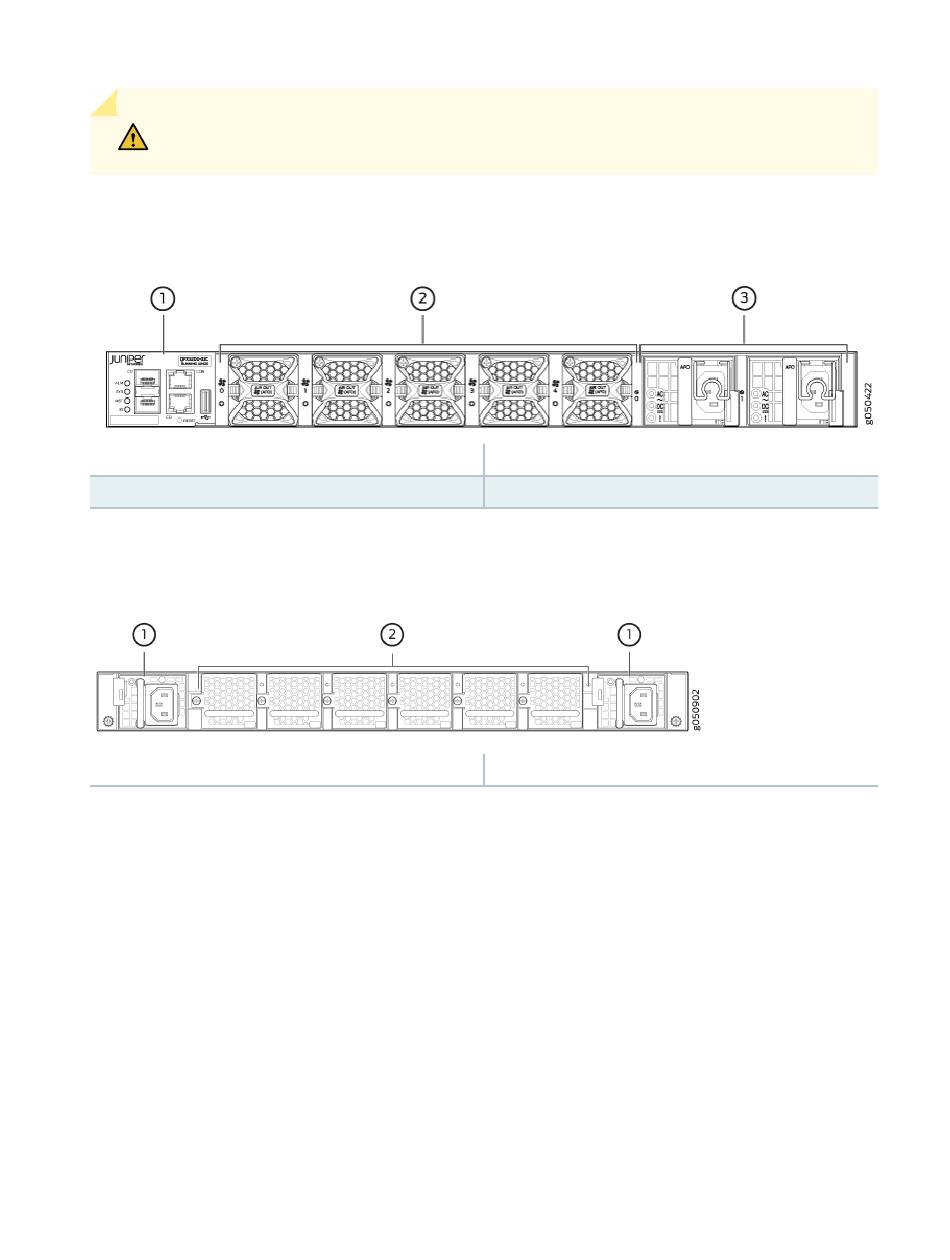

Figure 14: QFX5200-32C and QFX5200-32C-L FRU Panel
1
Management panel
Fan modules
2
Figure 15: QFX5200-48Y FRU Panel
1
Power supplies
Fan Modules
The fan modules in QFX5200 devices are hot-insertable and hot-removable field-replaceable units
(FRUs). These fan modules are designed for one of the two available airflow directions (Airflow In or
Airflow Out). The fan modules are also color-coded for the airflow direction as well. The fan modules are
installed in the fan module slots on the FRU panel.
The QFX5200-32C and QFX5200-32C-L fan modules have five fan modules numbered 0 through 4
when counting from left to right.
The QFX5200-48Y fan modules have six fan modules numbered 0 through 5 when counting from left to
right.
3
Power supplies
2
Fan modules
30
