Page 1 QFX5100 Switch Hardware Guide Published 2023-02-26...
Page 2 The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement ("EULA") posted at https:/ /support.juniper.net/support/eula/.
Page 3: Table Of Contents
EX4600-EM-8F | 34 QFX-EM-4Q | 36 QFX-PFA-4Q | 37 Access Port and Uplink Port LEDs on a QFX5100 Device | 39 QFX5100 Management Panel | 43 Management Panel of a QFX5100 Device | 43 Management Port LEDs on a QFX5100 Device | 47...
Page 4 Cooling System and Airflow in a QFX5100 Device | 66 Fan Module LED on a QFX5100 Device | 74 Clearance Requirements for Airflow and Hardware Maintenance for a QFX5100 Device | 75 Site Planning, Preparation, and Specifications Site Preparation Checklist for a QFX5100 Device | 78...
Page 5 Connect a Device to a Management Console Using an RJ-45 Connector | 120 Connect the QFX5100 in a Virtual Chassis or Virtual Chassis Fabric | 122 Connecting QFX Series and EX Series Switches in a QFX Virtual Chassis | 122...
Page 6 Installing an Expansion Module in a QFX5100 Device | 158 Removing an Expansion Module from a QFX5100 Device | 161 Install and Remove Transceivers and Fiber Optic Cables on QFX5100 Devices | 164 Install a Transceiver | 165 Remove a Transceiver | 167...
Page 7 Locating the Serial Number on a QFX5100 Device or Component | 195 Listing the Chassis and Component Details Using the CLI | 196 Locating the Chassis Serial Number ID Label on a QFX5100 Switch | 196 Locating the Serial Number ID Labels on FRU Components | 198 How to Return a Hardware Component to Juniper Networks, Inc.
Page 8 viii Rack-Mounting and Cabinet-Mounting Warnings | 211 Grounded Equipment Warning | 215 Laser and LED Safety Guidelines and Warnings | 216 Radiation from Open Port Apertures Warning | 219 Maintenance and Operational Safety Guidelines and Warnings | 220 General Electrical Safety Guidelines and Warnings | 226 Action to Take After an Electrical Accident | 227 Prevention of Electrostatic Discharge Damage | 228 AC Power Electrical Safety Guidelines | 229...
Page 9: About This Guide
About This Guide Use this guide to plan, install, perform initial software configuration, perform routine maintenance, and to troubleshoot QFX5100 switches. After completing the installation and basic configuration procedures covered in this guide, refer to the Junos OS documentation for further software configuration.
Page 10: Overview

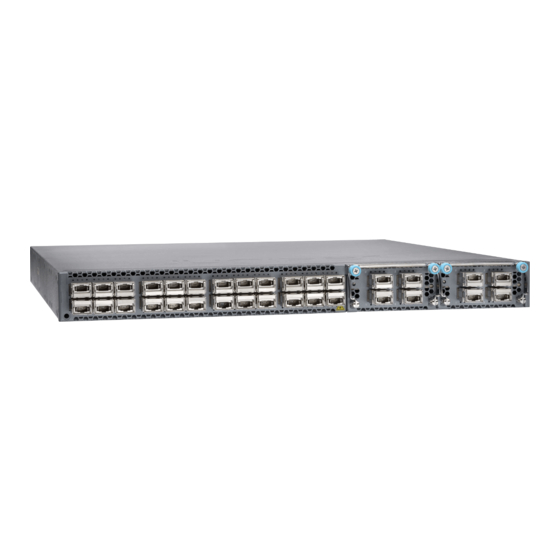

C HAPTER Overview QFX5100 System Overview | 2 QFX5100 Chassis Description and Port Panels | 19 QFX5100 Management Panel | 43 QFX5100 Power System | 53 QFX5100 Cooling System | 65...
Page 11: Qfx5100 System Overview
1.5 Ghz dual-core Intel CPU with 8 GB of memory and 32 GB of solid-state drive (SSD) storage. The QFX5100-24Q-AA switch has a 2.5 GHz 4-core Intel CPU with 32 GB of memory and 128 GB of SSD storage.
Page 12 The QFX5100-48S provides full duplex throughput of 1.44 Tbps. The QFX5100-48S has a 1 U form factor and comes standard with redundant fans and redundant power supplies. The switch can be ordered with either ports-to-FRUs or FRUs-to-ports airflow and with AC or DC power supplies.
Page 13 20 total devices in a spine and leaf topology. Out of the 20 total devices, you can configure a maximum of 4 spine devices. A QFX5100 VCF uses QFX5100 devices as spines or leaf devices. You can also use QFX3500, QFX3600, and EX4300 models as leaf devices in a QFX5100 VCF.
Page 14 The QFX5100-48T provides full duplex throughput of 720 Gbps. The QFX5100-48T has a 1 U form factor and comes standard with redundant fans and redundant power supplies. The switch can be ordered with either ports-to-FRUs or FRUs-to-ports airflow and with AC or DC power supplies.
Page 15 • A leaf device in a QFX5110 VCF. A QFX5110 VCF must have a minimum of two QFX5110-32Q as spine devices. Junos OS Release 17.3R2 or later is required on all VCF devices for QFX5100-48T leaf devices to operate in a QFX5110 VCF.
Page 16 • A primary, backup, or line card in a QFX Virtual Chassis. A QFX Series Virtual Chassis allows you to interconnect up to 10 QFX3500, QFX3600, or QFX5100 switches into one logical device and manage the device as a single chassis in a ring topology.
Page 17 A QFX5100 VCF uses QFX5100 devices as spines or leaf devices. You can also use QFX3500, QFX3600, and EX4300 models as leaf devices in a QFX5100 VCF. Whenever possible, configure the QFX5100-24Q as the spine device in a QFX5100 VCF.
Page 18 0 and 2 can be channelized using port mode. For full details on the different port channelization modes, see "Port Panel of a QFX5100-24Q Device" on page All ports on the QFX5100-24Q and QFX-EM-4Q can be configured as either access ports or uplink ports.
Page 19 This switch provides the hardware support to enable PTP boundary clocks by using the QFX-PFA-4Q module. The QFX5100-24Q-AA also supports GPS in and out signals when QFX-PFA-4Q is installed. The CPU subsystem of this switch includes a 2-port 10-Gigabit Ethernet network interface card (NIC) to provide a high bandwidth path or to alternate traffic path to guest VMs directly from the Packet Forwarding Engine.
Page 20 • A member in a QFX Virtual Chassis. A QFX Series Virtual Chassis allows you to interconnect up to ten QFX3500, QFX3600, or QFX5100 switches into one logical device and manage the device as a single chassis in a ring topology.
Page 21 Junos OS is installed on a QFX5100 switch’s 32-gigabyte (GB) internal solid state flash drive. The same Junos OS code base that runs on QFX5100 switches also runs on all Juniper Networks EX Series switches, M Series, MX Series, and T Series routers.
Page 22: Qfx5100 Device Models
Plan a Virtual Chassis Fabric Deployment | 88 QFX5100 Device Models The QFX5100 switches have 24, 48, or 96 port configurations. The 24 port switches can be expanded to a maximum of 32 QSFP+ ports using expansion modules. All switches are available with either AC or DC power supply and with either airflow-in or airflow-out cooling.
Page 23 (Continued) Table 1: QFX5100 Switch Product Numbers P roduct Numbers Ports Number of Power Numbe Airflow Expansion Supply r of Modules Mgt. Ports QFX5100-24Q-3AFI 24 QSFP+ Air In (FRUs-to- ports) QFX5100-24Q-AFO 24 QSFP+ Air Out (ports- to-FRUs) QFX5100-24Q-3AFO 24 QSFP+...
Page 24 (Continued) Table 1: QFX5100 Switch Product Numbers P roduct Numbers Ports Number of Power Numbe Airflow Expansion Supply r of Modules Mgt. Ports QFX5100-48S-AFO 48 SFP+ and 6 QSFP+ Air Out (ports- transceivers to-FRUs) QFX5100-48S-3AFO 48 SFP+ and 6 QSFP+...
Page 25 (Continued) Table 1: QFX5100 Switch Product Numbers P roduct Numbers Ports Number of Power Numbe Airflow Expansion Supply r of Modules Mgt. Ports QFX5100-48TH-AFI 48 10GBASE-T and 6 Air In (FRUs to QSFP+ transceivers ports) QFX5100-48TH-AFO 48 10GBASE-T and 6...
Page 26: Understanding Hardware Redundancy Of Qfx5100 Device Components And Functionality
CAUTION: Do not connect feed A and feed B to the same power supply input terminal. • Cooling system—The 1 U models of QFX5100 line of switches have five fan modules; the 2 U QFX5100-96S has three fan modules. If a fan module fails and is unable to keep the QFX5100 switch within the desired temperature thresholds, chassis alarms occur and the QFX5100 switch can shut down.
Page 27 See Disconnecting a Fiber- Optic Cable from a QFX Series Device NOTE: If you have a Juniper Care service contract, register any addition, change, or upgrade of hardware components at https:/ /www.juniper.net/customers/support/tools/updateinstallbase/ Failure to do so can result in significant delays if you need replacement parts.
Page 28: Qfx5100 Chassis Description And Port Panels
Access Port and Uplink Port LEDs on a QFX5100 Device | 39 Chassis Physical Specifications for a QFX5100 Device The QFX5100 switch chassis is a rigid sheet-metal structure that houses the hardware components. Table 3 on page 19 summarizes the physical specifications of the QFX5100 chassis.
Page 29: Port Panel Of A Qfx5100-24Q Device
+) ports. Each QSFP+ socket can be configured to support 40 GbE or as a set of 4 independent 10 GbE ports using breakout cables (channelization mode). In standalone mode, any of the 24 ports 0 through 23 can be configured as either uplink or access ports. The QFX5100-24Q device has two module bays...
Page 30 Module adds the switch uplink capacity by 2 for a total of 8 uplinks. To connect a QFX5100-24Q switch as a Node device in a QFabric system, you need: • Four QSFP+ uplink ports on each QFX5100-24Q Node device to connect to the data plane network through the QFX3008-I or QFX5100-24Q Interconnect devices.
Page 31: With Frus Installed
The QFX5100-24Q operates as a Node device in both the QFX3000-G and QFX3000-M QFabric systems. Additionally, the QFX5100-24Q can be configured as an Interconnect Device in QFX3000-M QFabric systems allowing a maximum of 16 Node devices. The QFX5100-24Q may not be mixed with QFX3600-I Interconnect devices in the same QFabric system.
Page 32 Virtual Chassis feature is not applicable to QFX devices in a QFabric. To connect a QFX5100-24Q device as a spine or leaf device in a QFX5100 VCF, you need to cable a set of ports as VCP connections that link each spine device and leaf device. All spine devices have at least one direct VCP connection to each leaf device in the VCF.
Page 33 Figure 12 on page 24 indicate link activity or faults. Figure 12: LEDs on the QSFP+ Uplink Ports Table 4 on page 24 describes the SFP+ access port LEDs. Table 4: Port LEDs on a QFX5100-24Q Switch Color State Description Unlit The port is administratively disabled, there is no power, or there is a fault.
Page 34: Port Panel Of A Qfx5100-24Q-Aa Device
(channelization mode) with 1280 Gbps output. Any of the 24 ports can be configured as either an uplink port or an access port. The expansion module bay of the QFX5100-24Q switch is located on the port panel. In the expansion module bay, you can install a single double-wide expansion module (QFX-PFA-4Q) or two single-wide optional expansion modules (QFX-EM-4Q and EX4600-EM-8F, in any combination).
Page 35: Port Panel Of Qfx5100-48S And Qfx5100-48Sh Devices
"Port Panel of a QFX5100-24Q Device" on page Port Panel of QFX5100-48S and QFX5100-48SH Devices The port panel of the QFX5100-48S and QFX5100-48SH switches supports up to a maximum of 72 logical 10 GbE ports when operating as a standalone switch. Forty-eight physical ports(0 through 47) support 10 Gigabit Ethernet small form-factor pluggable plus (SFP+) transceivers.
Page 36 Interface Support for the QFX5100 Device" on page To connect a QFX5100-48S switch as a member in a QFX Virtual Chassis, you need a pair of dedicated ports and cables that link each member in the Virtual Chassis into a ring topology. Each member in the ring has at least one direct Virtual Chassis port (VCP) connection to a upstream and downstream member.
Page 37: Port Panel Of Qfx5100-48T And Qfx5100-48Th Devices
To connect a QFX5100-48T device as a leaf device in a Virtual Chassis Fabric (VCF), you need a pair of dedicated ports and cables that link each spine device and leaf device in the VCF. All spine devices have...
Page 38 The QFX5100-48T device operates as a standalone switch, a member of a QFX Virtual Chassis, a member of a QFX5110 Virtual Chassis, act as a leaf device in a Juniper Networks Virtual Chassis Fabric (VCF). QFX Virtual Chassis and QFX5100 Virtual Chassis both support up to 10 members. VCF supports 20 total devices, of which 4 QFX5100-24Q devices can be configured as spine devices.
Page 39: Port Panel Of A Qfx5100-96S Device
Virtual Chassis and Virtual Chassis Fabric Support | 32 The port panel of the QFX5100-96S switch consists of 96 small form-factor pluggable plus (SFP+) and 8 quad small-form factor pluggable plus (QSFP+) ports that are normally configured as access ports.
Page 40 — This topic describes: Switch Ports The QFX5100-96S switch ports, (0 through 95) support: • SFP transceivers that can run at either 100 Mbps or 1 Gbps speed • SFP+ transceivers at 10 Gbps speed • SFP to SFP direct attach copper (DAC) cables •...
Page 41 Channelizing Interfaces The port panel of the QFX5100-96S switch supports up to a maximum of 104 logical 10 GbE ports that can be distributed over 96 small form-factor pluggable plus (SFP+) and 8 quad small-form factor pluggable plus (QSFP+) transceivers .
Page 42: Expansion Modules For Qfx5100 Devices
QFX5100-96S and EX4300 as a leaf devices. You may use the QFX5100-96S as a spine in an all QFX5100-96S VCF or in a VCF that has a mixture of QFX5100-96S and EX4300. As of Junos OS release 17.3R1, you can also connect a QFX5100-24Q as a leaf device in a QFX5110 VCF.
Page 43: Ex4600-Em-8F
The QFX5100-24Q and QFX5100-24Q-AA support these expansion modules up to the 104-port limitation: • Two EX4600-EM-8F, which provides a total of 16 additional 10-Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) ports or 8 additional 1-Gigabit SFP ports. When both bays (PIC 1 and PIC 2) are populated with EX4600-EM-8F modules, you must configure the system mode as Flexi- pic.
Page 44 When the expansion module is inserted into the expansion bay, the chassis detects the additional ports, recognizes them as 10GbE ports, and lights the Status LED. The QFX5100-24Q device is configured for the QFX-EM-4Q by default, but any combination of the two modules is supported. Expansion modules can be hot-inserted or hot-removed.
Page 45: Qfx-Em-4Q
QFX-EM-4Q The QFX-EM-4Q, provides 4 additional 40-Gigabit Ethernet QSFP+ ports to one of the bays in the QFX5100-24Q or QFX5100-24Q-AA. Port 0 and port 2 can be used for port channelization by configuring the system mode for 104 port mode.
Page 46: Qfx-Pfa-4Q
The expansion module is online and functioning normally. QFX-PFA-4Q The QFX-PFA-4Q, which features a high-performance field-programmable gate array (FPGA), provides four additional QSFP+ ports to the QFX5100-24Q-AA switch. The QFX-PFA-4Q is a double-wide expansion module. Figure 19 on page 37 shows the ports and LEDs on the expansion module.
Page 47 FPGA configuration in progress or failed. Green FPGA configured successfully. No FPGA alarms. Amber Minor FPGA alarm. Major FPGA alarm. S0 and S1 Application-specific status is off. Green Application-specific status is on. RELATED DOCUMENTATION Install and Remove Expansion Modules in a QFX5100-Device | 157...
Page 48: Access Port And Uplink Port Leds On A Qfx5100 Device
Access Port and Uplink Port LEDs on a QFX5100 Device The Link/Activity and Status LED configuration for QFX5100 switches use bi-colored LEDs. The link LED indicates link activity or a fault. The status LED indicates transceiver presence. See Table 8 on page to locate the position and type of LED for your QFX5100 model.
Page 49 (Continued) Table 8: QFX5100 Access Port and Uplink LED Locations Model Port Type Indicators Location QFX5100-48 10GBASE-T Link T and QFX5100-48 QFX5100-96 SFP+ Link Status Table 9 on page 41 describes how to interpret the SFP+ port LEDs.
Page 50 Table 9: Network Port LEDs on SFP+ Ports on a QFX5100 Switch Color State Description Link/Activity Unlit The port is administratively disabled, there is no power, the link is down, or there is a fault. Green On steadily A link is established, but there is no link activity.
Page 51 SEE ALSO Management Panel of a QFX5100 Device | 43 Install and Remove Transceivers and Fiber Optic Cables on QFX5100 Devices | 164 RELATED DOCUMENTATION Field-Replaceable Units in a QFX5100 Device | 17 Channelizing Interfaces on QFX3500, QFX3600, QFX5100, QFX10002, QFX10008, QFX10016, and...
Page 52: Qfx5100 Management Panel
Chassis Status LEDs on a QFX5100 Device | 49 Management Panel of a QFX5100 Device The management panel of the QFX5100 switch is found on the Field Replaceable Unit (FRU) end of the switch as shown in Figure 20 on page 43...
Page 53 Figure 21: QFX5100-96S, FRU End Figure 22: Management Panel Components on 1 U QFX5100 Status LEDs em0–RJ-45 (1000 Base-T) management — — Ethernet port (C0) Some SKUs have an additional SFP management Ethernet port (second C0) em1–SFP management Ethernet port (C1) RJ-45 console port (CON) ) —...
Page 54 Figure 23: Management Panel Components on the QFX5100-96S Status LEDs em0–RJ-45 (1000 Base-T) management — — Ethernet port (C0) em1–SFP management Ethernet port (C1) RJ-45 console port (C0N) ) — — Cage (socket for either 1 GbE copper SFP or...
Page 55 • Unlit indicates the switch is powered off or halted. • Solid green indicates that Junos OS for QFX Series is loaded on the switch. • Blinking green indicates the switch is: • A participating member in a Virtual Chassis. •...
Page 56: Management Port Leds On A Qfx5100 Device
Management Port LEDs on a QFX5100 Device The management ports (labeled C0 for 10/100/1000 Base-T and C1 for 10/100/1000 Base-T and SFP 1000 Base-X connections) on a QFX5100 switch have two LEDs that indicate link status and link activity (see Figure 24 on page 48).
Page 57 Figure 24: Management Port LEDs on a QFX5100 Switch Status LEDs em0–RJ-45 (10/100/1000 Base-T) — — management Ethernet port (C0) em1–SFP management Ethernet port (C1) RJ-45 console port (CON) — — Cage (socket for either 10/100/1000 Base-T RJ45 SFP or 1GbE fiber SFP)
Page 58: Chassis Status Leds On A Qfx5100 Device
On steadily The port speed is 100 M. Chassis Status LEDs on a QFX5100 Device The QFX5100 switch series has four status LEDs on the FRU side of the chassis, next to the management ports (see Figure 25 on page...
Page 59 Juniper Networks Technical Assistance Center (JTAC). Table 12 on page 50 describes the chassis status LEDs on a QFX5100 switch, their colors and states, and the status they indicate. You can view the colors of the three LEDs remotely through the CLI by issuing the operational mode command show chassis led.
Page 60 (Continued) Table 12: Chassis Status LEDs on a QFX5100 Switch Name Color State Description On steadily A major hardware fault has occurred, such as a temperature alarm or power failure, and the switch has halted. Power off the QFX5100 switch by setting the AC power...
Page 61 (Continued) Table 12: Chassis Status LEDs on a QFX5100 Switch Name Color State Description Green Blinking The switch is participating as: • A member in a QFX Virtual Chassis • A leaf device in a Virtual Chassis Fabric (VCF) •...
Page 62: Qfx5100 Power System
AC Power Supply for a QFX5100 Device | 54 AC Power Specifications for a QFX5100 Device | 57 AC Power Cord Specifications for a QFX5100 Device | 58 AC Power Supply LEDs on a QFX5100 Device | 59 DC Power Supply in a QFX5100 Device | 60...
Page 63: Ac Power Supply For A Qfx5100 Device
The AC power supply in 1 U QFX5100 switches is 650 W; the AC power supply in the 2 U, QFX5100-96S switch, is 850 W. Both power supplies look identical. Be sure to use the correct power...
Page 64 Figure 27: 2 U AC Power Supply in a QFX5100-96S Switch The power supply provides FRU-to-port or port-to-FRU airflow depending on the product SKU you purchase. On legacy switches, or switches with an LCD, this airflow is called back-to-front and front-to- back.
Page 65 Table 13 on page 56 shows the different power supplies and their direction of airflow. Table 13: Airflow Direction in QFX5100 AC Power Supplies QFX5100 Wattage Product Number...
Page 66: Ac Power Specifications For A Qfx5100 Device
AC Power Specifications for a QFX5100 Device Table 14 on page 57 describes the AC power specifications for a QFX5100 device. Table 14: AC Power Specifications for a QFX5100 Device Item AC input voltage AC input line frequency AC input current rating...
Page 67: Ac Power Cord Specifications For A Qfx5100 Device
AC Power Cord Specifications for a QFX5100 Device Detachable AC power cords are shipped with the chassis, if you include them as part of your order. The coupler is type C13 as described by International Electrotechnical Commission (IEC) standard 60320.
Page 68: Ac Power Supply Leds On A Qfx5100 Device
AC Power Supply LEDs on a QFX5100 Device Figure 30 on page 59 shows the location of the LEDs on the power supply. Figure 30: AC Power Supply LEDs on a QFX5100 Switch Table 16 on page 60 describes the LEDs on the AC power supplies.
Page 69: Dc Power Supply In A Qfx5100 Device
The DC power supply in 1 U product SKUs of QFX5100 is 650 W with dual feeds for power resiliency. The DC power supply in the 2 U product SKU, QFX5100-96S, is 850 W with dual feeds for power resiliency.
Page 70 Figure 31: DC Power Supply in QFX5100 Devices Terminal block Ejector lever — — ESD grounding point Handle — — To supply sufficient power for 1 U models, terminate the DC input wiring on a facility DC source that is capable of supplying a minimum of 7 A at –48 VDC.
Page 71 NOTE: The DC power supply in the switch has four terminals labeled V-, V-, V+, and V+ (see Figure 33 on page 62) for connecting DC power source cables labeled positive (+) and negative (–). Figure 33: DC Power Supply Faceplate in QFX5100 Devices Shunt negative input terminals (-48V) ESD grounding point —...
Page 72: Dc Power Specifications For A Qfx5100 Device
DC Power Specifications for a QFX5100 Device Table 17 on page 63 describes the DC power specifications for DC product SKUs of the QFX5100 device. Table 17: DC Power Specifications for a QFX5100 Device Item Product SKUs Specifications DC input voltage QFX5100-24Q •...
Page 73: Dc Power Supply Leds On A Qfx5100 Device
DC Power Supply LEDs on a QFX5100 Device Figure 34 on page 64 shows the location of the LEDs on the DC power supply. Figure 34: DC Power Supply Faceplate on a QFX5100 Switch Input LED Fault LED — —...
Page 74: Qfx5100 Cooling System
Prevention of Electrostatic Discharge Damage | 228 QFX5100 Cooling System IN THIS SECTION Cooling System and Airflow in a QFX5100 Device | 66 Fan Module LED on a QFX5100 Device | 74 Clearance Requirements for Airflow and Hardware Maintenance for a QFX5100 Device | 75...
Page 75: Cooling System And Airflow In A Qfx5100 Device
Both the 1 U and 2 U versions of QFX5100 fan modules have a similar design with different dimensions. The 1 U QFX5100 devices have 5 fan modules numbered 0 through 4 from left to right, where the 2 U, QFX5100-96S device, has 3 fan modules numbered 0 through 2.
Page 76 Figure 35: 1 U Fan Module Used in QFX5100 Switches Figure 36: 2 U Fan Module Used in QFX5100-96S Switches You remove and replace a fan module from the FRU end of the chassis. The switch continues to operate for a limited period of time (30 seconds) during the replacement of the fan module without thermal...
Page 77 AIR OUT . On legacy switches or switches with LCDs, this airflow is also called front-to-back and back-to-front. Table 19 on page 68 lists the available fan module product SKUs and the direction of airflow in them: Table 19: Fan Modules in QFX5100 Switches Fan Module Product SKUs Airflow Diagram Label...
Page 78 In data center deployments, position the switch in such a manner that the AIR IN labels on switch components are next to the cold aisle, and AIR OUT labels on switch components are next to the hot aisle. Figure 37: Air In Airflow Through 1 U QFX5100 Switch Chassis...
Page 79 Figure 38: Air In Airflow Through 2 U QFX5100 Switch Chassis...
Page 80 Figure 39: Air Out Airflow Through 1 U QFX5100 Switch Chassis...
Page 81 Figure 40: Air Out Airflow Through 2 U QFX5100 Switch Chassis Do Not Install Components with Different Airflow or Wattage in the Switch Do not mix power supplies with different airflow. If the power supplies are color-coded, ensure they are either all azure blue for airflow in models or all gold for airflow out models.
Page 82 CAUTION: Do not mix AC and DC power supplies in the same chassis. However if you need to convert a QFX5100 device to have a different airflow, you can change the airflow pattern. To convert an AIR IN product SKU to an AIR OUT product SKU or an AIR OUT product SKU to a AIR IN product SKU, you must replace all of the fans and power supplies at one time to use the new direction.
Page 83: Fan Module Led On A Qfx5100 Device
Field-Replaceable Units in a QFX5100 Device | 17 Prevention of Electrostatic Discharge Damage QFX5100 Device Hardware Overview | 2 Installing a Fan Module in a QFX5100 Device | 149 Removing a Fan Module from a QFX5100 Device | 151 Fan Module LED on a QFX5100 Device Figure 41 on page 74 shows the location of the LED next to the fan module.
Page 84: Clearance Requirements For Airflow And Hardware Maintenance For A Qfx5100 Device
Clearance Requirements for Airflow and Hardware Maintenance for a QFX5100 Device When planning the site for installing a QFX5100 device, you must allow sufficient clearance around the installed chassis (see Figure 42 on page 75).
Page 85 • Leave at least 24 in. (61 cm) both in front of and behind the QFX5100 device. For service personnel to remove and install hardware components, you must leave adequate space at the front and back of the switch.
Page 86: Site Planning, Preparation, And Specifications
C HAPTER Site Planning, Preparation, and Specifications Site Preparation Checklist for a QFX5100 Device | 78 QFX5100 Site Guidelines and Requirements | 80 Plan a Virtual Chassis Fabric Deployment | 88 QFX5100 Network Cable and Transceiver Planning | 92 QFX5100 Cable and Pinout Specifications | 102...
Page 87: Site Preparation Checklist For A Qfx5100 Device
Site Preparation Checklist for a QFX5100 Device The checklist in Table 22 on page 78 summarizes the tasks you need to perform when preparing a site for QFX5100 deviceinstallation. Table 22: Site Preparation Checklist Item or Task For More Information...
Page 88 Item or Task For More Information Performed By Date Verify that your rack or cabinet "Rack Requirements for a QFX5100 meets the minimum requirements Device" on page 84 for the installation of the switch. "Cabinet Requirements for a QFX5100 Device" on page 87 Plan rack or cabinet location, "Clearance Requirements for Airflow...
Page 89: Qfx5100 Site Guidelines And Requirements
Environmental Requirements and Specifications for a QFX5100 Device | 80 General Site Guidelines | 82 Site Electrical Wiring Guidelines | 82 Grounding Cable and Lug Specifications for a QFX5100 Device | 83 Rack Requirements for a QFX5100 Device | 84 Cabinet Requirements for a QFX5100 Device | 87 Environmental Requirements and Specifications for a QFX5100 Device The switch must be installed in a rack or cabinet.
Page 90 NOTE: Install QFX Series devices only in restricted areas, such as dedicated equipment rooms and equipment closets, in accordance with Articles 110-16, 110-17, and 110-18 of the National Electrical Code, ANSI/NFPA 70. SEE ALSO Clearance Requirements for Airflow and Hardware Maintenance for a QFX5100 Device QFX5100 Standalone Installation Overview...
Page 91: General Site Guidelines
General Site Guidelines Efficient device operation requires proper site planning and maintenance. It also requires proper layout of the equipment, rack or cabinet, and wiring closet. To plan and create an acceptable operating environment for your device and prevent environmentally caused equipment failures: •...
Page 92: Grounding Cable And Lug Specifications For A Qfx5100 Device
(EMI) requirements. To ground a QFX5100 device, connect a grounding cable to earth ground and then attach it to the chassis grounding points.
Page 93: Rack Requirements For A Qfx5100 Device
• The grounding lug required is a Panduit LCD10-10A-L or equivalent (not provided).. The grounding lug should accommodates 14–10 AWG (2–5.3 mm²) stranded wire. • The grounding cable that you provide for a QFX5100 device must be 14 AWG (2 mm²), minimum 60° C wire, or as permitted by the local code.
Page 94 • Rack type • Mounting bracket hole spacing • Rack size and strength Table 25 on page 85 provides the rack requirements and specifications for the QFX5100 device. Table 25: Rack Requirements for the QFX5100 Device Rack Requirement Guidelines Rack type (all product Use a four-post rack that provides bracket holes or hole patterns spaced at 1 U (1.75 in.
Page 95 If earthquakes are a possibility in your geographical area, secure the rack to the floor. • Secure the rack to the ceiling brackets as well as wall or floor brackets for maximum stability. SEE ALSO Chassis Physical Specifications for a QFX5100 Device | 19 Rack-Mounting and Cabinet-Mounting Warnings...
Page 96: Cabinet Requirements For A Qfx5100 Device
Mount a QFX5100 Device in a Rack or Cabinet | 114 Cabinet Requirements for a QFX5100 Device You can mount the QFX5100 device in an enclosure or cabinet that contains a four-post 19-in. open Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310-D) rack as defined in published by the Electronics Industry Association.
Page 97: Plan A Virtual Chassis Fabric Deployment
RELATED DOCUMENTATION Rack-Mounting and Cabinet-Mounting Warnings | 211 Clearance Requirements for Airflow and Hardware Maintenance for a QFX5100 Device | 75 Mount a QFX5100 Device in a Rack or Cabinet | 114 Plan a Virtual Chassis Fabric Deployment A Virtual Chassis Fabric (VCF) architecture supports up to 20 interconnected devices that are managed as a logical single device.
Page 98: Item Or Task
Overview for supported configurations. Although the architecture has a powerful auto-provisioning option, which allows you to plug and play the devices, careful planning of the deployment can avoid unexpected results. For example, if you perform any configuration level commands on one of the devices (including assigning IP addresses or host names) you no longer can use auto-provisioning.
Page 99: Verify That Your Rack Or Cabinet
Date QFX5110 AC Power Specifications Calculate the power consumption and requirements. "AC Power Specifications for a QFX5100 Device" on page 57 AC Power Specifications for a QFX3600 or QFX3600-I Device AC Power Specifications for a QFX3500 Device AC Power Supply Specifications for...
Page 100: Plan Rack Or Cabinet Location, Including Required Space Clearances
Airflow and Hardware Maintenance including required space clearances. "Clearance Requirements for Airflow and Hardware Maintenance for a QFX5100 Device" on page 75 Clearance Requirements for Airflow and Hardware Maintenance for a QFX3600 or QFX3600-I Device Clearance Requirements for Airflow and Hardware Maintenance for a...
Page 101: Qfx5100 Network Cable And Transceiver Planning
40-Gigabit Ethernet interface. See for more information. On all QFX5100 product SKUs, the ports are enabled by default and the default config adds the ports to the default VLAN. Downlink ports are product SKU-specific: QFX5100-96S –has 96 small form-factor pluggable plus (SFP+) ports that support SFP and SFP+ •...
Page 102 Figure 43 on page 93 shows the location of SFP+ and QSFP+ ports for the QFX5100-96S, Figure 44 on page 93 shows these ports for the QFX5100-48S device, Figure 45 on page 94 shows the RJ45 and QSFP+ ports for the QFX5100-48T device, and...
Page 103 QSFP+ access or uplink ports (24) — You can find information about the optical transceivers supported on your Juniper device by using the Hardware Compatibility Tool. In addition to transceiver and connection type, the optical and cable characteristics–where applicable–are documented for each transceiver. The Hardware Compatibility...
Page 104: Cable Specifications For Qsfp+ And Qsfp28 Transceivers
The list of supported transceivers for the QFX5100 is located at https:/ /pathfinder.juniper.net/hct/product/#prd=QFX5100. CAUTION: If you face a problem running a Juniper Networks device that uses a third- party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem.
Page 105 (Continued) Table 28: QSFP+ and QSFP28 Optical Module Receptacle Pinouts Fiber Signal Tx3 (Transmit) Unused Unused Unused Unused Rx3 (Receive) Rx2 (Receive) Rx1 (Receive) Rx0 (Receive) Table 29: QSFP+ MPO Fiber-Optic Crossover Cable Pinouts...
Page 106: Understanding Qfx Series Fiber-Optic Cable Signal Loss, Attenuation, And Dispersion
Table 29: QSFP+ MPO Fiber-Optic Crossover Cable Pinouts (Continued) Understanding QFX Series Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion IN THIS SECTION Signal Loss in Multimode and Single-Mode Fiber-Optic Cables | 98 Attenuation and Dispersion in Fiber-Optic Cable | 98 To determine the power budget and power margin needed for fiber-optic connections, you need to understand how signal loss, attenuation, and dispersion affect transmission.
Page 107 Signal Loss in Multimode and Single-Mode Fiber-Optic Cables Multimode fiber is large enough in diameter to allow rays of light to reflect internally (bounce off the walls of the fiber). Interfaces with multimode optics typically use LEDs as light sources. However, LEDs are not coherent light sources.
Page 108: Calculating Power Budget And Power Margin For Fiber-Optic Cables
TIP: You can use the Hardware Compatibility Tool to find information about the pluggable transceivers supported on your Juniper Networks device. To calculate the power budget and power margin, perform the following tasks: How to Calculate Power Budget for Fiber-Optic Cables To ensure that fiber-optic connections have sufficient power for correct operation, you need to calculate the link's power budget, which is the maximum amount of power it can transmit.
Page 109: How To Calculate Power Margin For Fiber-Optic Cables
– P = –15 dBm – (–28 dBm) = 13 dB How to Calculate Power Margin for Fiber-Optic Cables After calculating a link's power budget, you can calculate the power margin (P ), which represents the amount of power available after subtracting attenuation or link loss (LL) from the power budget (P ).
Page 110 In both examples, the calculated power margin is greater than zero, indicating that the link has sufficient power for transmission and does not exceed the maximum receiver input power. RELATED DOCUMENTATION QFX5100 Chassis Description and Port Panels | 19 QFX5100 Power System | 53...
Page 111: Qfx5100 Cable And Pinout Specifications
RJ-45 Management Port Connector Pinout Information | 103 Console Port Connector Pinouts for the QFX Series | 104 Copper Cable Specifications for QFX5100-48T and QFX5100-48TH Switches | 104 USB Port Specifications for the QFX Series | 106 Cable Specifications for Console and Management Connections for the...
Page 112: Rj-45 Management Port Connector Pinout Information
1000BASE-T operation RJ-45 Management Port Connector Pinout Information Table 32 on page 103 provides the pinout information for the RJ-45 connector for the management port on Juniper Networks devices. Table 32: RJ-45 Management Port Connector Pinout Information Signal Description TRP1+...
Page 113: Console Port Connector Pinouts For The Qfx Series
Copper Cable Specifications for QFX5100-48T and QFX5100-48TH Switches The QFX5100-48T and QFX5100-48TH switches have 10GBASE-T interfaces that use various types of copper network cables. To achieve optimal performance, you must use cables that conform to IEEE 802.3-2012 specifications for connections for 10GBASE-T network ports.
Page 114 Table 34: Cable Specification for 10GBASE-T Network Ports Ports on IEEE Cable Shield or Cable Standard Maximum Frequency Additional Switches Standard Unshielded Specification Reach (MHz) Information Twisted Pair (STP/UTP) Class F/ ISO/IEC 328 ft 1–600 CAT 7 11801:2002 (100 m) Class EA/ STP/UTP ANSI/TIA/...
Page 115: Usb Port Specifications For The Qfx Series
QFX5100 Device Hardware Overview | 2 USB Port Specifications for the QFX Series The following Juniper Networks USB flash drives have been tested and are officially supported for the USB port in the QFX Series: • RE-USB-1G-S—1-gigabyte (GB) USB flash drive (except QFX3100 Director device) •...
Page 116 CAUTION: Remove the USB flash drive before upgrading Junos OS or rebooting a QFX Series device. Failure to do so could expose your device to unpredictable behavior. NOTE: Executing the request system snapshot CLI command on a QFX3500 device requires an external USB flash drive with at least 4 GB of free space.
Page 117: Initial Installation And Configuration
Unpack and Mount the QFX5100 Switch | 112 Connect the QFX5100 to External Devices | 119 Connect the QFX5100 in a Virtual Chassis or Virtual Chassis Fabric | 122 Connect the QFX5100 to Power | 132 Configure a QFX5100 Device | 143...
Page 118: Qfx5100 Installation Overview
Configure a QFX5100 Device. • If you are using the QFX5100 device as a Node device in a QFX3000-G QFabric system, see QFX3000-G QFabric System Installation Overview for information about the steps to install and configure your QFX3000-G QFabric system.
Page 119: Virtual Chassis Fabric Installation Overview
(including assigning IP address), the Virtual Chassis Fabric cannot form and the switch must be zeroed. 4. Configure the VCF into mixed mode if it is a QFX5100 VCF and the switch models span different lines of switches.
Page 120: Qfx5100 Installation Safety Guidelines
QFX5100 Installation Safety Guidelines The weight of a 1 U fully loaded QFX5100 switch chassis is approximately 30.8 lb (14 kg); the 2 U product SKU is approximately 32 lbs (14.5 kg). Observe the following guidelines for lifting and moving a QFX5100 switch: CAUTION: If you are installing the QFX5100 switch above 60 in.
Page 121: Unpack And Mount The Qfx5100 Switch
Unpack a QFX5100 Device The QFX5100 switch chassis is a rigid sheet-metal structure that houses the hardware components. A QFX5100 device is shipped in a cardboard carton, secured with foam packing material. The carton also contains an accessory box and quick start instructions.
Page 122 7. Save the shipping carton and packing materials in case you need to move or ship the switch later. Table 35: Inventory of Components Supplied with a QFX5100 Device Component Quantity Chassis with five fan modules and two power supplies. The QFX5100-96S has three fan modules. Rear mounting blades Front mounting brackets Extension brackets...
Page 123: Register Products-Mandatory To Validate Slas
Before You Begin Rack Installation | 114 Four-Post Procedure | 116 You can mount all QFX5100 switches on a four post 19-in. rack or cabinet using the mounting kit provided with the device. For four post rack or cabinet installations, the mounting kit contains two front mounting rails with two matching rear mounting blades.
Page 124 Optional equipment: Grounding cable kit with bracket, lug, and three nuts with integrated washers. WARNING: The 1 U versions of QFX5100 switches must be supported at all four corners. Mounting the chassis using only the front brackets will damage the chassis and can result in serious bodily injury.
Page 125: Four-Post Procedure
QFX5100 switch above 60 in. (152.4 cm) from the floor, you can remove the power supplies and fan modules to minimize the weight before attempting to install the switch. CAUTION: If you are mounting multiple switches on a rack, mount the switch in the lowest position of the rack first.
Page 126 Figure 50: Attaching Mounting Rails to the QFX5100-96S 4. Attach the mounting rail to the switch using the mounting screws (and cage nuts and washers if your rack requires them). Tighten the screws. 5. Repeats steps 4 and 5 on the opposite side of the switch.
Page 127 Figure 52: Slide Mounting Rail onto the QFX5100-96S Rear Mounting Blade 8. Continue to support the switch while sliding the rear mounting-blades into the channel of the side mounting-rails and securing the blades to the rack. Use the four mounting screws (and cage nuts and washers if your rack requires them) to attach each blade to the rack.
Page 128: Connect The Qfx5100 To External Devices
Connect the QFX5100 to External Devices IN THIS SECTION Connect a Device to a Network for Out-of-Band Management | 119 Connect a Device to a Management Console Using an RJ-45 Connector | 120 Connect a Device to a Network for Out-of-Band Management Ensure that you have an Ethernet cable that has an RJ-45 connector at either end.
Page 129: Connect A Device To A Management Console Using An Rj-45 Connector
Figure 55: Connect a Device to a Network for Out-of-Band Management Connect a Device to a Management Console Using an RJ-45 Connector Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. One such cable and an RJ-45-to-DB-9 serial port adapter are supplied with the device.
Page 130 To connect the device to a management console (see Figure 57 on page 121 Figure 58 on page 121): 1. Connect one end of the Ethernet cable to the console port (labeled CON, CONSOLE, or CON1) on the device. 2. Connect the other end of the Ethernet cable to the console server (see Figure 57 on page 121) or management console (see...
Page 131: Connect The Qfx5100 In A Virtual Chassis Or Virtual Chassis Fabric
Connecting a QFX5100 Device in a Virtual Chassis Fabric. As of Junos Release 17.3R1, you can also connect select models of the QFX5100 in the line card role in a QFX5110 Virtual Chassis. See Connecting QFX5110 and QFX5100 Members in a QFX5110 Virtual Chassis.
Page 132: Before You Start
(VCPs). VCPs connect switches together to form a Virtual Chassis, and are responsible for passing all data and control traffic between member switches in the Virtual Chassis. All non-channelized QSFP+ uplink interfaces on standalone QFX5100 switches can be configured into VCPs. All fixed SFP+ interfaces on QFX5100-96S switches can also be configured into VCPs.
Page 133: Valid Configurations
Valid Configurations Valid configurations are: • All QFX5100 members–in a ring topology this is Virtual Chassis; in a spine and leaf topology this is a Virtual Chassis Fabric (VCF). For a cabling example of spine and leaf, see Connecting a QFX5100 Device in a Virtual Chassis Fabric.
Page 134 Figure 59: QFX3500 Using the 40G Ports as the VCPs...
Page 135: Cabling Qfx3600 Switches In A Qfx Virtual Chassis
Figure 60: QFX3500 Using the 10G Ports as the VCPs Cabling QFX3600 Switches in a QFX Virtual Chassis Figure 61 on page 127 for a diagram of configuring an exclusive QFX3600 Virtual Chassis.
Page 136: Cabling A Mixed Qfx Virtual Chassis
Figure 61: QFX3600 Using the 40G Ports as the VCPs Cabling a Mixed QFX Virtual Chassis A mixed QFX Virtual Chassis is a mixture of QFX5100 , QFX3500, QFX3600, or EX4300 switches except EX4300-48MP and EX4300-48MP-S switches in a ring topology. Always configure a QFX5100 as the primary and backup devices when they are available.
Page 137 Figure 62: QFX3500 and QFX3600 Mixed Using the 40G Ports as the VCPs Figure 63: QFX3500 and QFX3600 Mixed Using Both 40G Ports and 10G Ports as the VCPs...
Page 138 Figure 64: QFX5100 Primary Connecting QFX3600 and QFX3500 Using 40G Ports as VCPs RELATED DOCUMENTATION Understanding QFX Series Virtual Chassis Connecting QFX5110 and QFX5100 Members in a QFX5110 Virtual Chassis Adding a New Switch to an Existing EX4650 or QFX Series Virtual Chassis...
Page 139: Connecting A Qfx5100 Device In A Virtual Chassis Fabric
To understand the different hardware configurations supported, see Hardware Overview You can install a VCF in a single rack, multiple racks, or in wire closets. You construct a QFX5100 VCF by cabling and then configuring SFP+ or QSFP+ interfaces into Virtual Chassis ports (VCPs). All non- channelized QSFP+ uplink interfaces on QFX5100 switches can be configured into VCPs.
Page 140 Figure 66: QFX5100-24Q as Spine and QFX5100-48S as Leaf Devices in a QFX5100 VCF SEE ALSO Virtual Chassis Fabric Hardware Overview Plan a Virtual Chassis Fabric Deployment | 88 Connecting QFX5110 in a QFX5110 Virtual Chassis Fabric...
Page 141: Connect The Qfx5100 To Power
This tested system meets or exceeds all applicable EMC regulatory requirements with the two-hole protective grounding terminal. Before you connect earth ground to the protective earthing terminal of a QFX5100 device, ensure that a licensed electrician has attached an appropriate grounding lug to the grounding cable.
Page 142 • Grounding cable for your QFX5100 device—The grounding cable must be 14 AWG (2 mm²), minimum 90° C wire, or as permitted by the local code. • Grounding lug for your grounding cable—The grounding lug required is a Panduit LCD10-10A-L or equivalent.
Page 143: Connecting Ac Power To A Qfx5100 Device
Figure 68: Connecting a Grounding Cable to the 2 U QFX5100-96S Device 4. Dress the grounding cable and ensure that it does not touch or block access to other device components and that it does not drape where people could trip over it.
Page 144 (see AC Power Supply for a QFX5100 Device). • Install the power supply in the chassis. For instructions on installing a power supply in a QFX5100 device, see Installing a Power Supply in a QFX5100 Device.
Page 145 Figure 69: Connecting an AC Power Cord to an AC Power Supply in a 1 U QFX5100 Device Power cord retainer — Figure 70: Connecting an AC Power Cord to an AC Power Supply in a 2 U QFX5100 Device 6.
Page 146: Connecting Dc Power To A Qfx5100 Device
For instructions on connecting earth ground, see Connecting Earth Ground to a QFX5100 Device. • Install the power supply in the chassis. For instructions on installing a power supply in a QFX5100 device, see Installing a Power Supply in a QFX5100 Device.
Page 147 • Phillips (+) screwdriver, number 2 (not provided) • Multimeter (not provided) The QFX5100 is shipped from the factory with two power supplies. Each power supply is a hot- removable and hot-insertable field-replaceable unit (FRU) when the second power supply is installed and running.
Page 148 a. Slide the tubing over the portion of the cable where it is attached to the lug barrel. Ensure that tubing covers the end of the wire and the barrel of the lug attached to it. b. Shrink the tubing with a heat gun. Ensure that you heat all sides of the tubing evenly so that it shrinks around the cable tightly.
Page 149 Figure 72 on page 141 Figure 73 on page 142 The QFX5100 is designed to operate with a DC power supply that has a single, non-redundant, feed input. For source redundancy, two DC power supplies must be installed in QFX5100; connect source (A) to one power supply and connect source (B) to the second power supply.
Page 150 Figure 72: DC Power Supply Faceplate for a QFX5100 Device Shunt negative input terminals (-48V) ESD grounding point — — Shunt positive input terminals (+RTN) Fault LED — — Terminal block Output LED — — Ejector lever Input LED —...
Page 151 Figure 73: Securing Ring Lugs to the Terminals on the QFX5100 DC Power Supply Replace the terminal block cover. 10. Close the input circuit breaker. NOTE: The switch powers on as soon as power is provided to the power supply. There is no power switch on the device.
Page 152: Configure A Qfx5100 Device
Satellite Network Operational System (SNOS) software. SNOS systems are configured at the aggregation device (AD). This topic covers: Configuring a QFX5100 for Junos OS Before you begin connecting and configuring a QFX5100 switch, set the following parameter values on the console server or PC: • Baud Rate—9600 •...
Page 153 Log in as root. There is no password. If the software booted before you connected to the console port, you might need to press the Enter key for the prompt to appear. login: root Start the CLI. root@% cli Enter configuration mode. root>...
Page 154 10. Enable telnet service. [edit] root@# set system services telnet NOTE: When Telnet is enabled, you cannot log in to a QFX5100 switch through Telnet using root credentials. Root login is allowed only for SSH access. 11. Enable SSH service for root login.
Page 155: Configuring Qfx10000 Switches For Qfx5100-Sh And Qfx5100-Th As Satellite Devices
[edit] user@aggregation-device# set interfaces xe-0/0/1 cascade-port 3. Associate a line card slot ID (also known as a FPC slot ID) with the QFX5100-48SH or QFX5100-48TH. There are many ways to associate a line card with a satellite device. See the Junos OS for the QFX...
Page 156 [edit] user@aggregation-device# commit synchronize 5. (Optional but recommended) Add the satellite device to a satellite software upgrade group that uses the same version of the satellite software that is installed on the QFX5100-48SH or QFX5100-48TH. user@aggregation-device# set chassis satellite-management upgrade-groups group1 satellite all 6.
Page 157: Maintaining Components
Install and Remove QFX5100 Power Supplies | 153 Install and Remove Expansion Modules in a QFX5100-Device | 157 Install and Remove Transceivers and Fiber Optic Cables on QFX5100 Devices | Power Off a QFX5100 Device | 173 Remove a QFX5100 Device | 175...
Page 158: Install And Remove Qfx5100 Fan Modules
Removing a Fan Module from a QFX5100 Device | 151 Installing a Fan Module in a QFX5100 Device Before you install a fan module in a QFX5100 device, ensure that you have taken the necessary Prevention of Electrostatic Discharge precautions to prevent electrostatic discharge (ESD) damage (see...
Page 159 The fan modules are designed so that they can only be inserted into the QFX5100 product SKU that supports the same airflow type. See "Cooling System and Airflow in a QFX5100 Device" on page 66 for more information.
Page 160: Removing A Fan Module From A Qfx5100 Device
Prevention of Electrostatic Discharge precautions to prevent electrostatic discharge (ESD) damage (see Damage Ensure that you have the following parts and tools available to remove a fan module from a QFX5100 device: • ESD grounding strap • Antistatic bag or an antistatic mat...
Page 161 Figure 76: Removing a Fan Module from a 1 U QFX5100 Device Figure 77: Removing a Fan Module from a 2 U QFX5100-96S Device NOTE: When a fan module is removed, the CLI message Fan/Blower is Absent is logged in the system log, and the system raises a minor alarm.
Page 162: Install And Remove Qfx5100 Power Supplies
Removing a Power Supply from a QFX5100 Device | 155 Installing a Power Supply in a QFX5100 Device • Before you install a power supply in a QFX5100 device, ensure that you have taken the necessary Prevention of Electrostatic precautions to prevent electrostatic discharge (ESD) damage (see Discharge Damage •...
Page 163 Figure 79: Installing a Power Supply in a QFX5100-96S Device NOTE: Each power supply must be connected to a dedicated power source outlet. NOTE: If you have a Juniper Care service contract, register any addition, change, or upgrade of hardware components at https:/ /www.juniper.net/customers/support/tools/updateinstallbase/...
Page 164: Removing A Power Supply From A Qfx5100 Device
Prevention of Electrostatic Discharge precautions to prevent electrostatic discharge (ESD) damage (see Damage Ensure that you have the following parts and tools available to remove a power supply from a QFX5100 device: • ESD grounding strap • Antistatic bag or an antistatic mat •...
Page 165 8. Place the power supply in the antistatic bag or on the antistatic mat placed on a flat, stable surface. Figure 80: Removing a Power Supply from a 1 U QFX5100 Device...
Page 166: Install And Remove Expansion Modules In A Qfx5100-Device
Figure 81: Removing a Power Supply from a QFX5100-96S Device RELATED DOCUMENTATION QFX5100 Power System | 53 Connect the QFX5100 to Power | 132 Field-Replaceable Units in a QFX5100 Device | 17 QFX5100 Management Panel | 43 Install and Remove Expansion Modules in a...
Page 167: Installing An Expansion Module In A Qfx5100 Device
Step 1 of the following procedure. • Phillips (+) screwdriver, number 2 The QFX5100-24Q device allows up to two expansion modules to be added to the port panel to increase port density. The QFX5100-24Q device holds two bays of expansion modules that can be mixed and matched as desired.
Page 168 Figure 83: EX4600-EM-8F Expansion Module The QFX5100-24Q device is configured for the QFX-EM-4Q by default, but any combination of the two modules is supported. Expansion modules can be hot-inserted or hot-removed. However, when an EX4600-EM-8F is inserted instead of the default QFX-EM-4Q, the new configuration causes the PFE to reboot and all of the interfaces to go down temporarily, causing a short disruption in traffic.
Page 169 6. Raise the handle and tighten the captive screws by using your fingers or the screwdriver. For the QFX5100-24Q-AA, retract the ejector handles and tighten the captive screws by using your fingers or the screwdriver (see Figure 86 on page 161).
Page 170: Removing An Expansion Module From A Qfx5100 Device
NOTE: When you install the QFX-PFA-4Q expansion module in a QFX5100-24Q-AA switch and reboot the switch, the two NIC ports in the NIC inside the QFX5100-24Q-AA switch are enabled automatically. When you install other expansion modules (QFX-EM-4Q or EX4600-EM-8F), the NIC ports are enabled only when an EX4600-EM-8F is installed in slot 2 (QIC1), that is, the expansion module slot located on your right as you face the QFX5100-24Q-AA.
Page 171 3. Hold the handle and gently pull the expansion module toward you and out of the module slot. For a QFX5100-24Q-AA switch, unscrew the captive screws of the ejector handles and pull the expansion module toward you and out of the module slot (see Figure 88 on page 164).
Page 172 QFX-EM-4Q expansion module from the port panel of a QFX5100-24Q device. Figure 87: Removing a QFX-EM-4Q Expansion Module from a QFX5100-24Q Device Figure 88 on page 164 shows removing a QFX-PFA-4Q expansion module from the port panel of a QFX5100-24Q-AA switch.
Page 173: Install And Remove Transceivers And Fiber Optic Cables On Qfx5100 Devices
Figure 88: Removing a QFX-PFA-4Q Expansion Module from a QFX5100-24Q-AA Device RELATED DOCUMENTATION QFX5100 System Overview | 2 Port Panel of a QFX5100-24Q Device | 20 Install and Remove Transceivers and Fiber Optic Cables on QFX5100 Devices IN THIS SECTION...
Page 174: Install A Transceiver
Juniper Networks. If you face a problem running a Juniper device that uses third-party optical modules or cables, JTAC may help you diagnose host-related issues if the observed issue is not, in the opinion of JTAC, related to the use of the third-party optical modules or cables.
Page 175 CAUTION: To prevent electrostatic discharge (ESD) damage to the transceiver, do not touch the connector pins at the end of the transceiver. 1. Wrap and fasten one end of the ESD wrist strap around your bare wrist, and connect the other end of the strap to the ESD point on the switch.
Page 176: Remove A Transceiver
CAUTION: Do not leave a fiber-optic transceiver uncovered except when inserting or removing cable. The safety cap keeps the port clean and protects your eyes from accidental exposure to laser light. 8. If there is a cable management system, arrange the cable in the cable management system to prevent the cable from dislodging or developing stress points.
Page 177 • Rubber safety caps to cover the transceiver and fiber-optic cable connector • A dust cover to cover the port or a replacement transceiver The transceivers for Juniper Networks devices are hot-removable and hot-insertable field-replaceable units (FRUs). You can remove and replace them without powering off the device or disrupting device functions.
Page 178 Disconnect a Fiber-Optic Cable 4. Remove the cable connected to the transceiver (see ). Cover the transceiver and the end of each fiber-optic cable connector with a rubber safety cap immediately after disconnecting the fiber-optic cables. 5. If there is a cable management system, arrange the cable in the cable management system to prevent it from dislodging or developing stress points.
Page 179: Connect A Fiber-Optic Cable
a. Using your fingers, loosen the screws on the transceiver. b. Grasp the screws on the transceiver and gently slide the transceiver approximately 0.5 in. (1.3 cm) straight out of the port. CAUTION: To prevent ESD damage to the transceiver, do not touch the connector pins at the end of the transceiver.
Page 180: Disconnect A Fiber-Optic Cable
• A rubber safety cap to cover the transceiver • A rubber safety cap to cover the fiber-optic cable connector Juniper Networks devices have optical transceivers to which you can connect fiber-optic cables. To disconnect a fiber-optic cable from an optical transceiver installed in the device: 1.
Page 181: How To Handle Fiber-Optic Cables
4. Cover the fiber-optic cable connector with the rubber safety cap. How to Handle Fiber-Optic Cables Fiber-optic cables connect to optical transceivers that are installed in Juniper Networks devices. Follow these guidelines when handling fiber-optic cables: • When you unplug a fiber-optic cable from a transceiver, place rubber safety caps over the transceiver and on the end of the cable.
Page 182: Power Off A Qfx5100 Device
• Ensure that you do not need to forward traffic through the switch. NOTE: Use the following procedure to turn off power on a QFX5100 device that is in standalone mode, a member in a QFX Virtual Chassis, or either a spine device or a leaf device in a Virtual Chassis Fabric.
Page 183 You see the following output (or something similar, depending on the hardware being shut down) after entering the command: System going down IMMEDIATELY Terminated Poweroff for hypervisor to respawn Aug 26 16:49:04 init: event-processing (PID 1325) exited with status=1 Aug 26 16:49:04 init: packet-forwarding-engine (PID 1809) exited with status=8 Waiting (max 60 seconds) for system process `vnlru_mem' to stop...done Waiting (max 60 seconds) for system process `vnlru' to stop...done Waiting (max 60 seconds) for system process `bufdaemon' to stop...done...
Page 184: Remove A Qfx5100 Device
Replace the screws on the terminals and tighten them. 6. Uncable the switch before removing it from the rack or cabinet. RELATED DOCUMENTATION Connect the QFX5100 to Power | 132 Remove a QFX5100 Device IN THIS SECTION Installing and Removing QFX5100 Device Hardware Components | 176...
Page 185: Installing And Removing Qfx5100 Device Hardware Components
Removing a Transceiver from a QFX Series Device follow the instructions in To connect a fiber-optic cable to an SFP+ or QSFP+ transceiver in a QFX5100 device, follow the Connecting a Fiber-Optic Cable to a QFX Series Device instructions in .
Page 186: Powering Off An Existing Qfabric Node Device
Powering Off an Existing QFabric Node Device Use this procedure to gracefully shut down an existing device in a server Node group, redundant server Node group, or network Node group. This orderly process reduces traffic loss on server Node devices and prevents traffic loss on redundant server Node devices and network member devices.
Page 187 Director group 0281022011000011 Connected 0281032012000018 Connected The Node device must show as connected and configured to have an orderly shutdown. 3. Start the orderly shutdown of the Node device by issuing the request fabric power-off node-device operational mode command from the QFabric default partition CLI. This command systematically takes the node offline and gracefully shuts down the device while preserving system state information.
Page 188: Removing A Qfx5100 Device From A Rack Or Cabinet
• A Phillips (+) screwdriver, number 2 or number 3, depending on the size of your rack mounting screws, for mounting the QFX5100 device on the rack. If you need to relocate an installed QFX5100 device, use the procedure described in this topic. (The remainder of this topic uses “rack” to mean “rack or cabinet.” ) NOTE: When you remove multiple devices from a rack, remove the device in the top of the rack first and proceed to remove the rest of the devices from top to bottom.
Page 189 • Use the appropriate power off sequence for your configuration to safely powered off the device. • If the QFX5100 device is being used as a standalone switch, a member in a QFX Virtual Chassis, or either a spine device or a leaf device in a Virtual Chassis Fabric (VCF), see "Power Off a...
Page 190: Troubleshooting Hardware
C HAPTER Troubleshooting Hardware Troubleshoot the QFX5100 Device | 182...
Page 191: Troubleshoot The Qfx5100 Device
Troubleshoot the QFX5100 Device IN THIS SECTION Alarm Types and Severity Levels | 182 Interface Alarm Messages | 184 Chassis Alarm Messages | 184 Creating an Emergency Boot Device for QFX Series Switches | 189 Recovering the Installation Using an Emergency Boot Device | 190 Alarm Types and Severity Levels The QFX Series switches support different alarm types and severity levels.
Page 192 (Continued) Table 36: Alarm Terms and Definitions Term Definition Alarm severity levels Seriousness of the alarm. The level of severity can be either major (red) or minor (yellow). • Major (red)—Indicates a critical situation on the device that has resulted from one of the following conditions. A red alarm condition requires immediate action.
Page 193: Interface Alarm Messages
NOTE: Fibre Channel alarms are valid only on QFX3500 devices. NOTE: When red alarms or major alarms are issued on QFX5100 or EX4600 switches, the alarm LED glows amber instead of red.
Page 194 Table 37: Chassis Alarm Messages Component Alarm Type CLI Message Recommended Action Fans Major (red) Fan Failure Replace the fan module and report the failure to customer support. Fan I2C Failure Check the system log for one of the following error messages and report the message to customer support: •...
Page 195 (Continued) Table 37: Chassis Alarm Messages Component Alarm Type CLI Message Recommended Action pem-number I2C Failure Check the system log for one of the following error messages and report the message to customer support: • I2C Read failed for device number number , where...
Page 196 (Continued) Table 37: Chassis Alarm Messages Component Alarm Type CLI Message Recommended Action pem-number Removed Replace the removed power supply or reboot the switch. The switch can continue to operate with a single power supply. sensor-location Temp Sensor Fail Temperature Major (red) Check the system log for the sensors...
Page 197 However, the alarm has no service impact. If you are unable to resolve the problem, open a support case by using the Case Manager link at https:/ /www.juniper.net/support/ call 1-888-314-5822 (tollfree, US or 1-408-745-9500 (from outside the United States).
Page 198: Creating An Emergency Boot Device For Qfx Series Switches
Junos OS. Use the following procedure to create an emergency boot device. NOTE: You can create the emergency boot device on another Juniper Networks switch or router, or any laptop or desktop PC that supports Linux. The steps you take to create the emergency boot device vary, depending on the device.
Page 199: Recovering The Installation Using An Emergency Boot Device
2. Copy the existing configuration in the file /config/juniper.conf.gz from the device to a remote system, such as a server, or to an emergency boot device. For extra safety, you can also copy the n , where n is a number from 0 through 9) backup configurations (the files named /config/juniper.conf.
Page 200 Juniper Linux Installer - (c) Juniper Networks 2014 Reboot Install Juniper Linux Platform Boot to host shell [debug] Select Install Juniper Linux Platform to install the Junos OS software from the emergency boot device.
Page 201 5. Create a new configuration as you did when the device was shipped from the factory, or restore the previously saved configuration file to the device. 6. Remove the emergency boot device. RELATED DOCUMENTATION Configure a QFX5100 Device | 143 QFX5100 Chassis Description and Port Panels | 19...
Page 202: Contacting Customer Support And Returning The Chassis Or Components
C HAPTER Contacting Customer Support and Returning the Chassis or Components Contact Customer Support to Obtain a Return Material Authorization | 194 Return the QFX5100 Chassis or Components | 195...
Page 203: Contact Customer Support To Obtain A Return Material Authorization
Contact Customer Support to Obtain a Return Material Authorization If you need to return a device or hardware component to Juniper Networks for repair or replacement, obtain a Return Material Authorization (RMA) number from Juniper Networks Technical Assistance Center (JTAC). You must obtain an RMA number before you attempt to return the component.
Page 204: Return The Qfx5100 Chassis Or Components
If you are returning a switch or component to Juniper Networks for repair or replacement, you must locate the serial number of the switch or component. You must provide the serial number to the Juniper Networks Technical Assistance Center (JTAC) when you contact them to obtain a Return Materials Authorization (RMA).
Page 205: Listing The Chassis And Component Details Using The Cli
To list the QFX5100 switch and components and their serial numbers, use the show chassis hardware CLI operational mode command. If you are using the QFX5100 switch as a Node device in a QFabric system, you must first log in to the switch using the request component login CLI operational mode command.
Page 206 ID. On the QFX5100-24Q, the serial number ID label is located next to the left expansion port on the port panel. See Figure 95 on page 198. Figure 92: Location of the Serial Number ID Label on a QFX5100-96S Switch...
Page 207: Locating The Serial Number Id Labels On Fru Components
Figure 94: Location of the Serial Number ID Label on QFX5100-48T and QFX5100-48TH Switches Figure 95: Location of the Serial Number ID Label on a QFX5100-24Q Switch Locating the Serial Number ID Labels on FRU Components The power supplies, fan module, and expansion modules installed in QFX5100 switches are field- replaceable units (FRUs).
Page 208: How To Return A Hardware Component To Juniper Networks, Inc
NOTE: Do not return any component to Juniper Networks, Inc. unless you have first obtained an RMA number. Juniper Networks, Inc. reserves the right to refuse shipments that do not have an RMA.
Page 209: Guidelines For Packing Hardware Components For Shipment
• Use the original shipping materials if they are available. • Place individual components in antistatic bags. • Write the RMA number on the exterior of the box to ensure proper tracking. CAUTION: Do not stack any of the hardware components. RELATED DOCUMENTATION Remove a QFX5100 Device | 175...
Page 210: Safety And Compliance Information
C HAPTER Safety and Compliance Information General Safety Guidelines and Warnings | 203 Definitions of Safety Warning Levels | 204 Qualified Personnel Warning | 206 Warning Statement for Norway and Sweden | 206 Fire Safety Requirements | 207 Installation Instructions Warning | 208 Chassis and Component Lifting Guidelines | 209 Restricted Access Warning | 209 Ramp Warning | 211...
Page 211 DC Power Copper Conductors Warning | 232 DC Power Disconnection Warning | 233 DC Power Grounding Requirements and Warning | 234 DC Power Wiring Sequence Warning | 235 DC Power Wiring Terminations Warning | 236 Multiple Power Supplies Disconnection Warning | 238 Agency Approvals for the QFX Series | 239 Compliance Statements for EMC Requirements for the QFX Series | 240 TN Power Warning | 245...
Page 212: General Safety Guidelines And Warnings
General Safety Guidelines and Warnings The following guidelines help ensure your safety and protect the device from damage. The list of guidelines might not address all potentially hazardous situations in your working environment, so be alert and exercise good judgment at all times. •...
Page 213: Definitions Of Safety Warning Levels
• Some parts of the chassis, including AC and DC power supply surfaces, power supply unit handles, SFB card handles, and fan tray handles might become hot. The following label provides the warning for hot surfaces on the chassis: • Always ensure that all modules, power supplies, and cover panels are fully inserted and that the installation screws are fully tightened.
Page 214 Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Varoitus Tämä...
Page 215: Qualified Personnel Warning
Qualified Personnel Warning WARNING: Only trained and qualified personnel should install or replace the device. Waarschuwing Installatie en reparaties mogen uitsluitend door getraind en bevoegd personeel uitgevoerd worden. Varoitus Ainoastaan koulutettu ja pätevä henkilökunta saa asentaa tai vaihtaa tämän laitteen. Avertissement Tout installation ou remplacement de l'appareil doit être réalisé...
Page 216: Fire Safety Requirements
In addition, you should establish procedures to protect your equipment in the event of a fire emergency. Juniper Networks products should be installed in an environment suitable for electronic equipment. We recommend that fire suppression equipment be available in the event of a fire in the vicinity of the equipment and that all local fire, safety, and electrical codes and ordinances be observed when you install and operate your equipment.
Page 217: Installation Instructions Warning
NOTE: To keep warranties effective, do not use a dry chemical fire extinguisher to control a fire at or near a Juniper Networks device. If a dry chemical fire extinguisher is used, the unit is no longer eligible for coverage under a service agreement.
Page 218: Chassis And Component Lifting Guidelines
Chassis and Component Lifting Guidelines • Before moving the device to a site, ensure that the site meets the power, environmental, and clearance requirements. • Before lifting or moving the device, disconnect all external cables and wires. • As when lifting any heavy object, ensure that your legs bear most of the weight rather than your back.
Page 219 Avertissement Cet appareil est à installer dans des zones d'accès réservé. Ces dernières sont des zones auxquelles seul le personnel de service peut accéder en utilisant un outil spécial, un mécanisme de verrouillage et une clé, ou tout autre moyen de sécurité. L'accès aux zones de sécurité...
Page 220: Ramp Warning
Ramp Warning WARNING: When installing the device, do not use a ramp inclined at more than 10 degrees. Waarschuwing Gebruik een oprijplaat niet onder een hoek van meer dan 10 graden. Varoitus Älä käytä sellaista kaltevaa pintaa, jonka kaltevuus ylittää 10 astetta. Avertissement Ne pas utiliser une rampe dont l'inclinaison est supérieure à...
Page 221 Les directives ci-dessous sont destinées à assurer la protection du personnel: • Le rack sur lequel est monté le Juniper Networks switch doit être fixé à la structure du bâtiment.
Page 222 Le seguenti direttive vengono fornite per garantire la sicurezza personale: • Il Juniper Networks switch deve essere installato in un telaio, il quale deve essere fissato alla struttura dell'edificio. • Questa unità deve venire montata sul fondo del supporto, se si tratta dell'unica unità...
Page 223 Para garantizar su seguridad, proceda según las siguientes instrucciones: • El Juniper Networks switch debe instalarse en un bastidor fijado a la estructura del edificio. • Colocar el equipo en la parte inferior del bastidor, cuando sea la única unidad en el...
Page 224: Grounded Equipment Warning
Följande riktlinjer ges för att trygga din säkerhet: • Juniper Networks switch måste installeras i en ställning som är förankrad i byggnadens struktur. • Om denna enhet är den enda enheten på ställningen skall den installeras längst ned på...
Page 225: Laser And Led Safety Guidelines And Warnings
Class 1 LED Product Warning | 218 Laser Beam Warning | 218 Juniper Networks devices are equipped with laser transmitters, which are considered a Class 1 Laser Product by the U.S. Food and Drug Administration and are evaluated as a Class 1 Laser Product per IEC/EN 60825-1 requirements.
Page 226 General Laser Safety Guidelines When working around ports that support optical transceivers, observe the following safety guidelines to prevent eye injury: • Do not look into unterminated ports or at fibers that connect to unknown sources. • Do not examine unterminated optical ports with optical instruments. •...
Page 227 Class 1 LED Product Warning LASER WARNING: Class 1 LED product. Waarschuwing Klasse 1 LED-product. Varoitus Luokan 1 valodiodituote. Avertissement Alarme de produit LED Class I. Warnung Class 1 LED-Produktwarnung. Avvertenza Avvertenza prodotto LED di Classe 1. Advarsel LED-produkt i klasse 1. Aviso Produto de classe 1 com LED.
Page 228: Radiation From Open Port Apertures Warning
Aviso Não olhe fixamente para o raio, nem olhe para ele directamente com instrumentos ópticos. ¡Atención! No mirar fijamente el haz ni observarlo directamente con instrumentos ópticos. Varning! Rikta inte blicken in mot strålen och titta inte direkt på den genom optiska instrument.
Page 229: Maintenance And Operational Safety Guidelines And Warnings
EXposição à radiação e não deverá olhar fixamente para orifícios que se encontrarem a descoberto. ¡Atención! Debido a que la apertura del puerto puede emitir radiación invisible cuando no existe un cable de fibra conectado, evite mirar directamente a las aperturas para no exponerse a la radiación.
Page 230 Waarschuwing Er is ontploffingsgevaar als de batterij verkeerd vervangen wordt. Vervang de batterij slechts met hetzelfde of een equivalent type dat door de fabrikant aanbevolen is. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften weggeworpen te worden. Varoitus Räjähdyksen vaara, jos akku on vaihdettu väärään akkuun. Käytä vaihtamiseen ainoastaan saman- tai vastaavantyyppistä...
Page 231 Jewelry Removal Warning WARNING: Before working on equipment that is connected to power lines, remove jewelry, including rings, necklaces, and watches. Metal objects heat up when connected to power and ground and can cause serious burns or can be welded to the terminals. Waarschuwing Alvorens aan apparatuur te werken die met elektrische leidingen is verbonden, sieraden (inclusief ringen, kettingen en horloges) verwijderen.
Page 232 ¡Atención! Antes de operar sobre equipos conectados a líneas de alimentación, quitarse las joyas (incluidos anillos, collares y relojes). Los objetos de metal se calientan cuando se conectan a la alimentación y a tierra, lo que puede ocasionar quemaduras graves o que los objetos metálicos queden soldados a los bornes.
Page 233 6 in. (15.2 cm) of clearance around the ventilation openings. Waarschuwing Om te voorkomen dat welke switch van de Juniper Networks router dan ook oververhit raakt, dient u deze niet te bedienen op een plaats waar de maximale aanbevolen omgevingstemperatuur van 40°...
Page 234 ¡Atención! Para impedir que un encaminador de la serie Juniper Networks switch se recaliente, no lo haga funcionar en un área en la que se supere la temperatura ambiente máxima recomendada de 40° C. Para impedir la restricción de la entrada de aire, deje un espacio mínimo de 15,2 cm alrededor de las aperturas para ventilación.
Page 235: General Electrical Safety Guidelines And Warnings
General Electrical Safety Guidelines and Warnings WARNING: Certain ports on the device are designed for use as intrabuilding (within- GR-1089-CORE ) the-building) interfaces only (Type 2 or Type 4 ports as described in and require isolation from the exposed outside plant (OSP) cabling. To comply with NEBS (Network Equipment-Building System) requirements and protect against lightning must not be surges and commercial power disturbances, the intrabuilding ports...
Page 236: Action To Take After An Electrical Accident
• Canada—Canadian Electrical Code, Part 1, CSA C22.1. • Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75. Peut être installé dans des salles de matériel de traitement de l’information conformément à l’article 645 du National Electrical Code et à...
Page 237: Prevention Of Electrostatic Discharge Damage
Prevention of Electrostatic Discharge Damage Device components that are shipped in antistatic bags are sensitive to damage from static electricity. Some components can be impaired by voltages as low as 30 V. You can easily generate potentially damaging static voltages whenever you handle plastic or foam packing material or if you move components across plastic or carpets.
Page 238: Ac Power Electrical Safety Guidelines
Figure 96: Placing a Component into an Antistatic Bag CAUTION: ANSI/TIA/EIA-568 cables such as Category 5e and Category 6 can get electrostatically charged. To dissipate this charge, always ground the cables to a suitable and safe earth ground before connecting them to the system. Attention Les câbles ANSI/TIA/EIA-568, par exemple Cat 5e et Cat 6, peuvent emmagasiner des charges électrostatiques.
Page 239: Ac Power Disconnection Warning
• AC-powered devices are shipped with a three-wire electrical cord with a grounding-type plug that fits only a grounding-type power outlet. Do not circumvent this safety feature. Equipment grounding must comply with local and national electrical codes. • You must provide an external certified circuit breaker (2-pole circuit breaker or 4-pole circuit breaker based on your device) rated minimum 20 A in the building installation.
Page 240: Dc Power Electrical Safety Guidelines
Warnung Bevor Sie an einem Chassis oder in der Nähe von Netzgeräten arbeiten, ziehen Sie bei Wechselstromeinheiten das Netzkabel ab bzw. Avvertenza Prima di lavorare su un telaio o intorno ad alimentatori, scollegare il cavo di alimentazione sulle unità CA. Advarsel Før det utføres arbeid på...
Page 241: Dc Power Copper Conductors Warning
NOTE: Primary overcurrent protection is provided by the building circuit breaker. This breaker must protect against excess currents, short circuits, and earth grounding faults in accordance with NEC ANSI/NFPA 70. • Ensure that the polarity of the DC input wiring is correct. Under certain conditions, connections with reversed polarity might trip the primary circuit breaker or damage the equipment.
Page 242: Dc Power Disconnection Warning
DC Power Disconnection Warning WARNING: Before performing any of the DC power procedures, ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the device handle of the circuit breaker in the OFF position.
Page 243: Dc Power Grounding Requirements And Warning
Aviso Antes de executar um dos seguintes procedimentos, certifique-se que desligou a fonte de alimentação de energia do circuito de corrente contínua. Para se assegurar que toda a corrente foi DESLIGADA, localize o disjuntor no painel que serve o circuito de corrente contínua e coloque-o na posição OFF (Desligado), segurando nessa posição a manivela do interruptor do disjuntor com fita isoladora.
Page 244: Dc Power Wiring Sequence Warning
Avvertenza In fase di installazione dell'unità, eseguire sempre per primo il collegamento a massa e disconnetterlo per ultimo. Advarsel Når enheten installeres, må jordledningen alltid tilkobles først og frakobles sist. Aviso Ao instalar a unidade, a ligação à terra deverá ser sempre a primeira a ser ligada, e a última a ser desligada.
Page 245: Dc Power Wiring Terminations Warning
Stromversorgung ist -48V zu -48V, +RTN zu +RTN und dann Erdanschluss zu Erdanschluss. Es ist zu beachten dass der Erdanschluss immer zuerst angeschlossen und als letztes abgetrennt wird. Avvertenza Mostra la morsettiera dell alimentatore CC. Cablare l'alimentatore CC usando i connettori adatti all'estremità del cablaggio, come illustrato. La corretta sequenza di cablaggio è...
Page 246 Waarschuwing Wanneer geslagen bedrading vereist is, dient u bedrading te gebruiken die voorzien is van goedgekeurde aansluitingspunten, zoals het gesloten-lus type of het grijperschop type waarbij de aansluitpunten omhoog wijzen. Deze aansluitpunten dienen de juiste maat voor de draden te hebben en dienen zowel de isolatie als de geleider vast te klemmen.
Page 247: Multiple Power Supplies Disconnection Warning
Varning! När flertrådiga ledningar krävs måste godkända ledningskontakter användas, t.ex. kabelsko av sluten eller öppen typ med uppåtvänd tapp. Storleken på dessa kontakter måste vara avpassad till ledningarna och måste kunna hålla både isoleringen och ledaren fastklämda. Multiple Power Supplies Disconnection Warning WARNING: The network device has more than one power supply connection.
Page 248: Agency Approvals For The Qfx Series
Agency Approvals for the QFX Series IN THIS SECTION Compliance Statement for Argentina | 240 The QFX Series complies with the following standards: • Safety • CAN/CSA-C22.2 No. 60950-1 Safety of Information Technology Equipment • UL 62368-1 Audio/Video, Information and Communication Technology Equipment- Safety •...
Page 249: Compliance Statements For Emc Requirements For The Qfx Series
• EN 55022 Class A (2010) European Radiated Emissions • VCCI Class A:(2010) Japanese Emissions • BSMI CNS 13438 and NCC C6357 Class A Taiwan Radiated Emissions • AS/NZS CISPR 22:2009: Class A, Australian/New Zealand Radiated Emissions • Immunity • EN 55024: 1998/A1:2001/A2:2003 Information Technology Equipment Immunity Characteristics •...
Page 250 European Community | 242 Israel | 242 Japan | 242 Korea | 243 Taiwan | 243 United States | 243 Nonregulatory Environmental Standards | 244 This topic describes the EMC requirements for the QFX Series. Canada This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à...
Page 251 Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. European Community This is a Class A product.
Page 252 Korea The preceding translates as follows: This equipment is Industrial (Class A) electromagnetic wave suitability equipment and seller or user should take notice of it, and this equipment is to be used in the places except for home. Taiwan The preceding translates as follows: This is Class A product.
Page 253 Nonregulatory Environmental Standards These QFX Series product SKUs are Network Equipment Building System (NEBS) compliant: • QFX3008-I • QFX3600-I • QFX3600 • QFX3500 • QFX5100 • QFX5110 • QFX5200-32C • QFX10002-36Q and QFX10002-72Q • QFX10008 • QFX10016 Those device product SKUs meet the following NEBS compliance standards: •...
Page 254: Tn Power Warning
RELATED DOCUMENTATION Agency Approvals for the QFX Series TN Power Warning WARNING: The device is designed to work with a TN power system. Waarschuwing Het apparaat is ontworpen om te functioneren met TN energiesystemen. Varoitus Koje on suunniteltu toimimaan TN-sähkövoimajärjestelmien yhteydessä. Avertissement Ce dispositif a été...

This manual is also suitable for:

Qfx5110 Qfx5110-32q Qfx5110-48s

Juniper QFX5100 Hardware Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Juniper QFX5100

Summary of Contents for Juniper QFX5100

This manual is also suitable for:

Table of Contents
