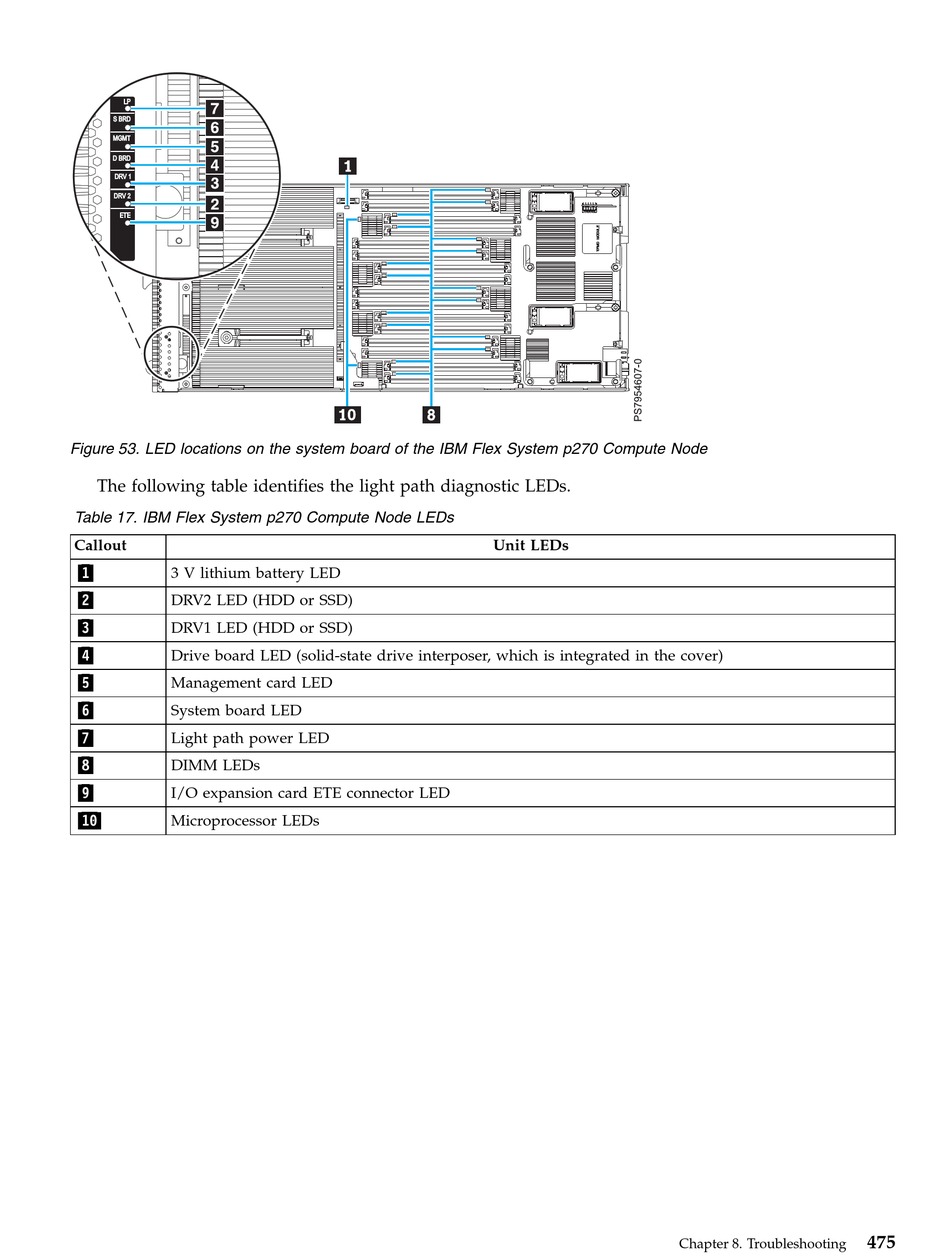

Figure 53. LED locations on the system board of the IBM Flex System p270 Compute Node
The following table identifies the light path diagnostic LEDs.
Table 17. IBM Flex System p270 Compute Node LEDs
Callout
1
3 V lithium battery LED
2
DRV2 LED (HDD or SSD)
3
DRV1 LED (HDD or SSD)
4
Drive board LED (solid-state drive interposer, which is integrated in the cover)
5
Management card LED
6
System board LED
7
Light path power LED
8
DIMM LEDs
9
I/O expansion card ETE connector LED
10
Microprocessor LEDs
Unit LEDs
