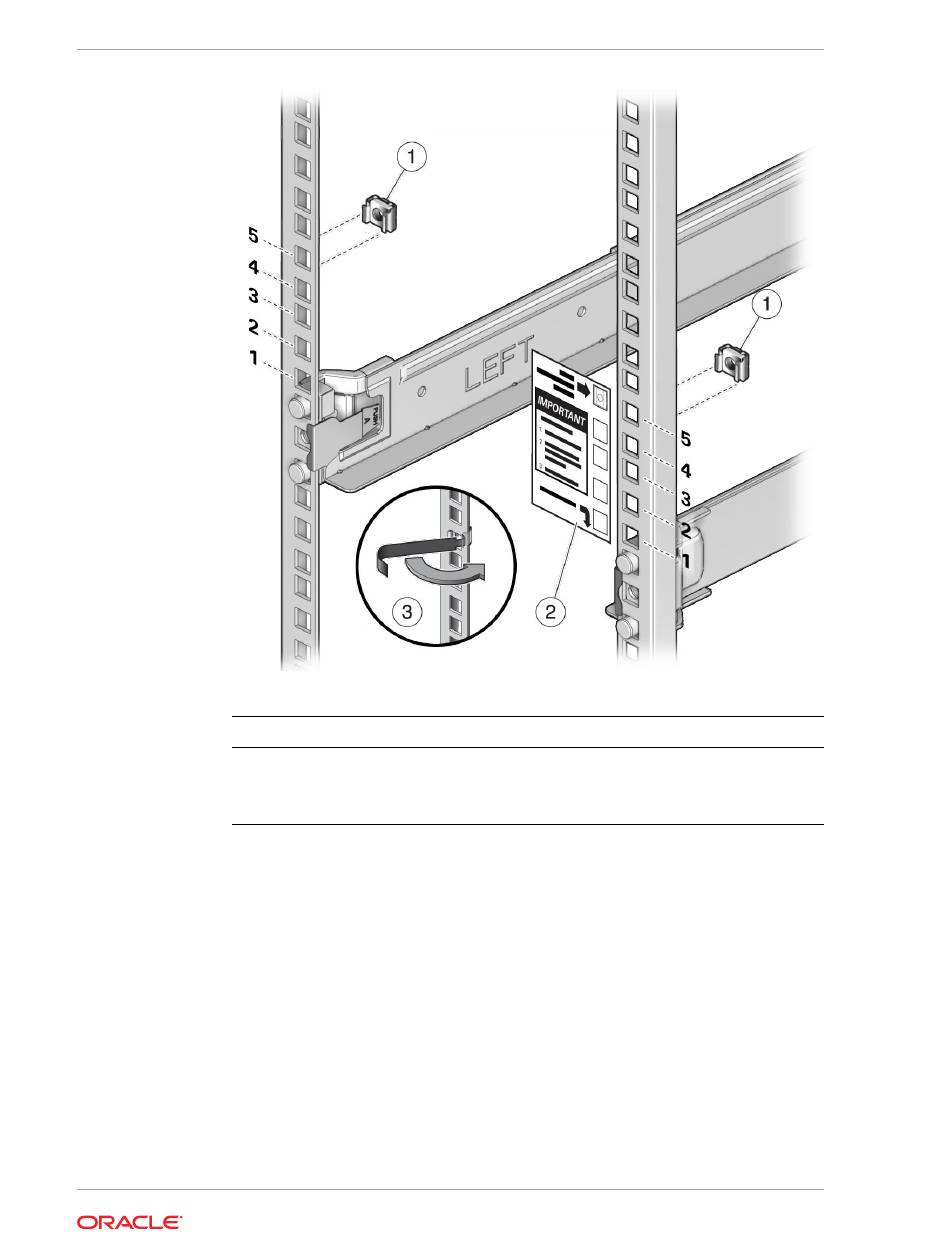

Callout
1
2
3
Use the template [2] to determine cage nut placement.
a.
Retrieve a cage nut and hook one lip of the nut into the appropriate rail hole
b.
[1].
Insert the tip of the cage nut insertion tool through the rail hole [3] and hook
c.
the other lip of the cage nut. Pull the cage nut through the hole until the lip
snaps into place.
Repeat through steps 5a through 5c for the second cage nut.
d.
Using a mechanical lift or three people, one at each side of the storage shelf and
6.
one in front, carefully lift and rest the shelf on the bottom ledge of the left and right
rails. Do not lift using the power supply handles.
The following figure shows how to install the storage shelf into the rack:
Installing the System Into a Rack
Description
Cage nuts
Cage nut installation template
Cage nut tool
