Server Node Front Panel Features - Oracle X9-2 Owner's Manual

Server Node Front Panel Features

See an illustration and listing of Oracle Database Appliance X9-2-HA server node front
panel features.

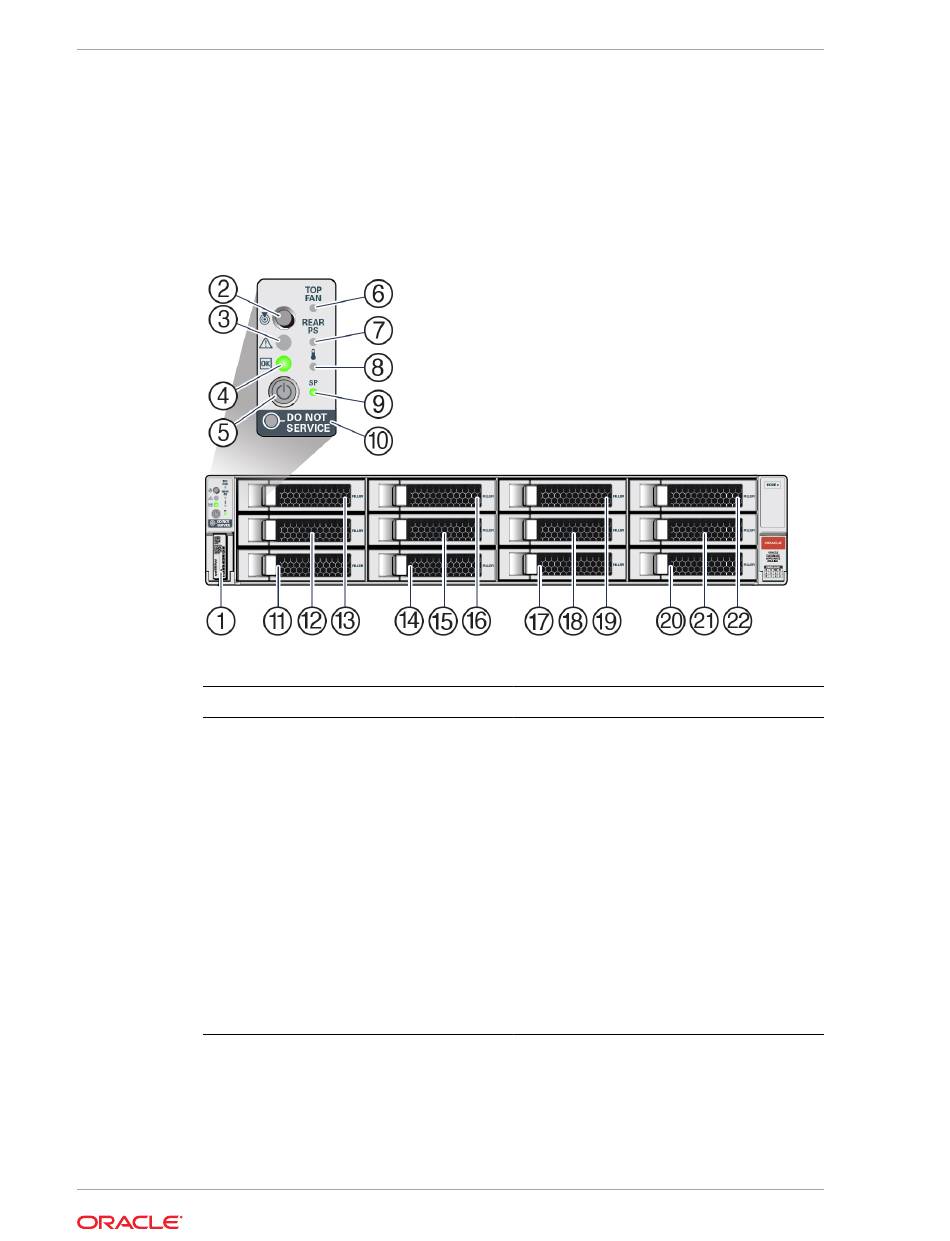

The following figure shows the components on the front panel of an Oracle Database
Appliance X9-2-HA server node.
Callout
1
2
3
4
5
6
7
8
9
10
11 - 22
Oracle Database Appliance X9-2-HA Front and Back Panels
Description
Product Serial Number (PSN) label and Radio
Frequency Identification (RFID) tag
Locate LED/button: white
Service Required LED: amber
Power/OK LED: green
Power button
Fan Fault LED: amber
Power Supply (PS) Fault LED: amber
System Over Temperature Warning LED:
amber
SP OK LED: green
DO NOT SERVICE
Front mounted drive slots 0 - 11 (filler panels)
