Callout
10
11 - 22

Oracle Database Appliance X9-2S/X9-2L Back Panel

See an illustration and description of Oracle Database Appliance X9-2S/X9-2L back
panel features.

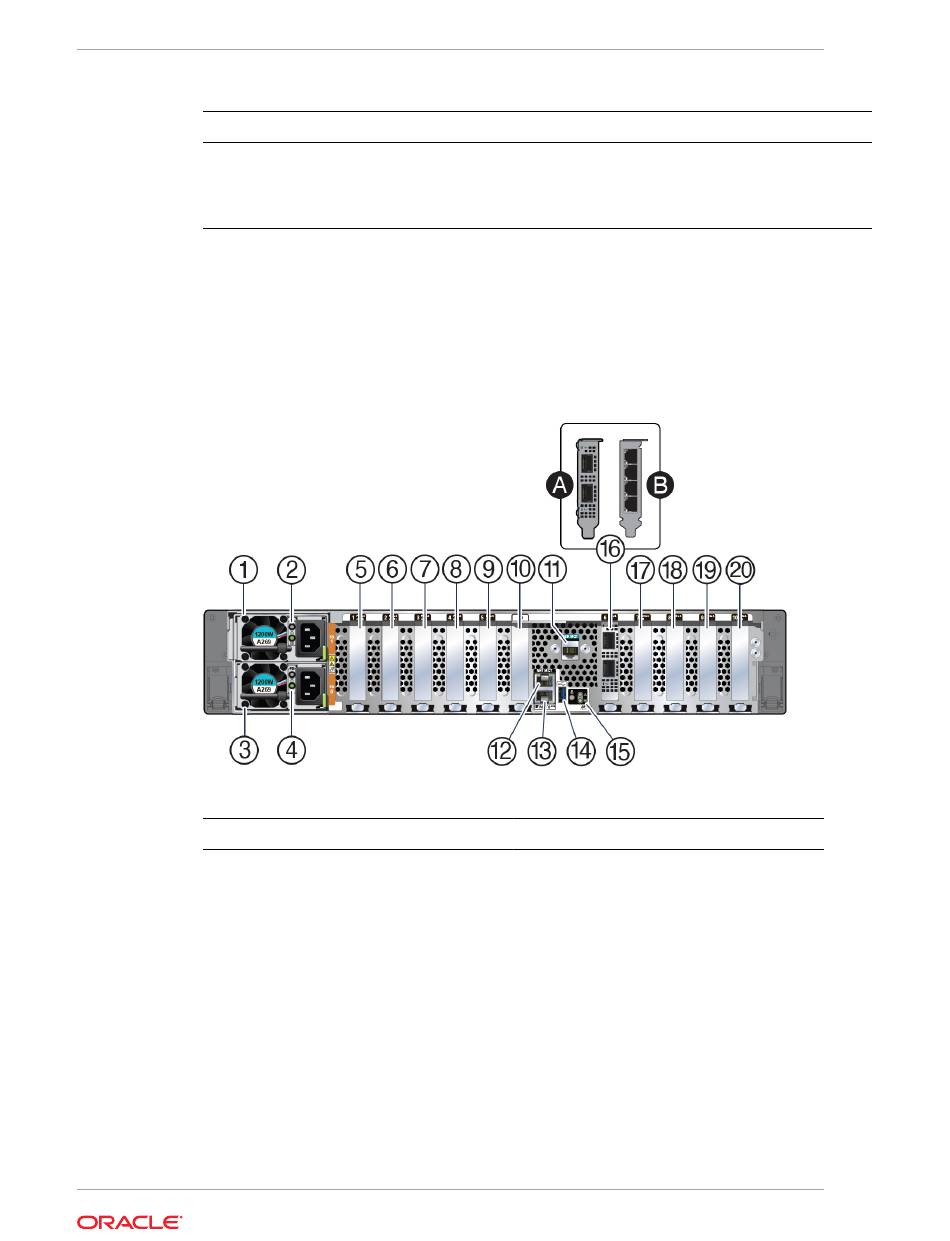

The following figure shows the components on the back panel of an Oracle Database
Appliance X9-2S/X9-2L.
Callout
1
2
3
4
5
6
7
Oracle Database Appliance X9-2S/X9-2L Front and Back Panels
Description
DO NOT SERVICE
Front mounted drive slots: NVMe0 in slot 0 (callout
11), NVMe1 in slot 1 (callout 14), filler panels in
slots 2 - 11 (callouts 12, 13 and 15 - 22)
Description
Power Supply (PS) 1 with fan module
Power Supply (PS) 1 status indicators: Service
Required LED: amber, AC OK LED: green
Power Supply (PS) 0 with fan module
Power Supply (PS) 0 status indicators: Service
Required LED: amber, AC OK LED: green
PCIe card slot 1: filler panel
PCIe card slot 2: filler panel
PCIe card slot 3: filler panel
