Oracle Database Appliance X9-2S/X9-2L Front Panel
See an illustration and description of Oracle Database Appliance X9-2S/X9-2L front panel
features.
Oracle Database Appliance X9-2S and Oracle Database Appliance X9-2L servers each
occupy 2RU.

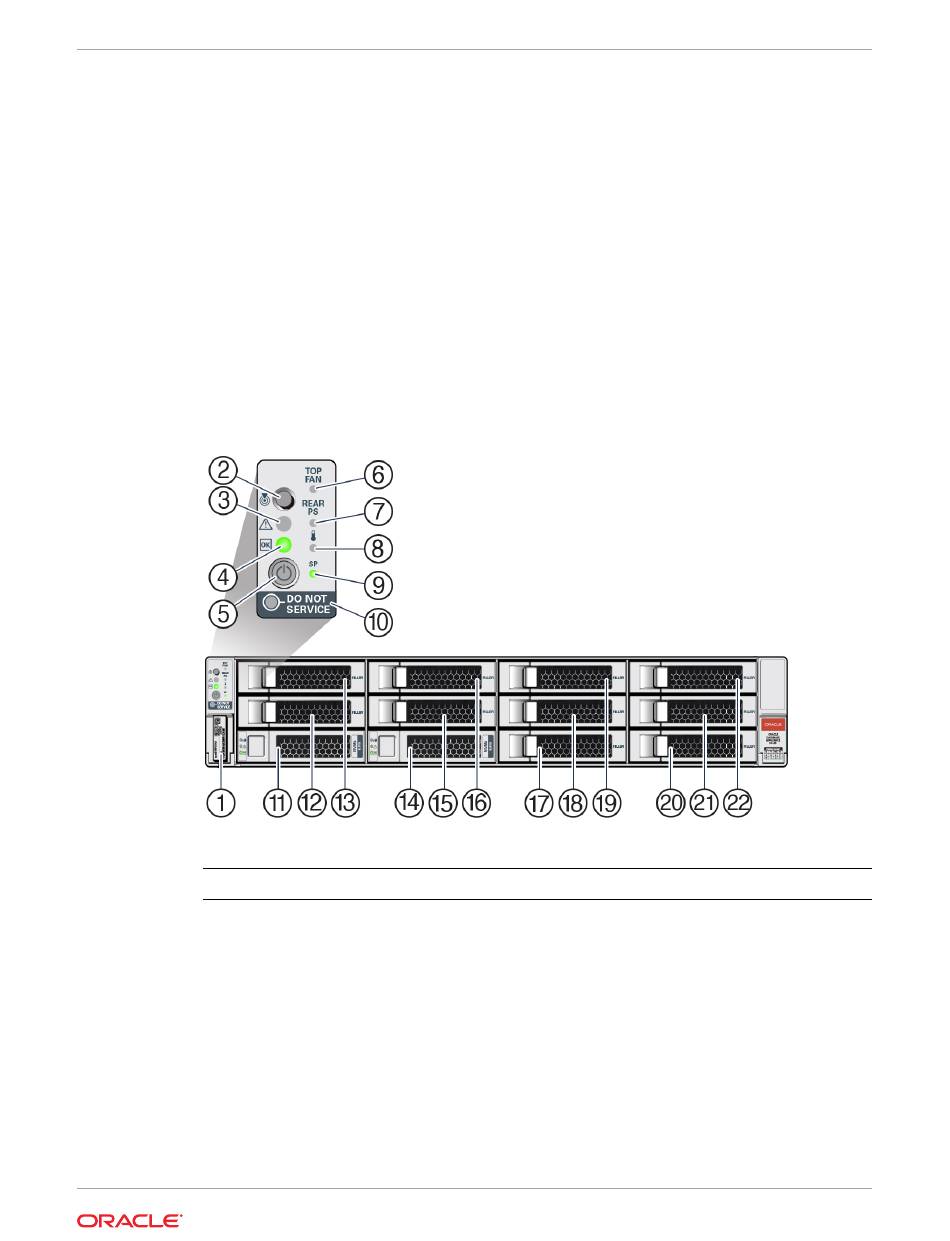

The following figure shows the components on the front panel of a standard configuration
Oracle Database Appliance X9-2S/X9-2L.
Callout
1
2
3
4
5
6
7
8
9
Oracle Database Appliance X9-2S/X9-2L Front and Back Panels
Description
Product Serial Number (PSN) label and Radio
Frequency Identification (RFID) tag
Locate LED/button: white
Service Required LED: amber
Power/OK LED: green
Power button
Fan Fault LED: amber
Power Supply (PS) Fault LED: amber
System Over Temperature Warning LED: amber
SP OK LED: green
