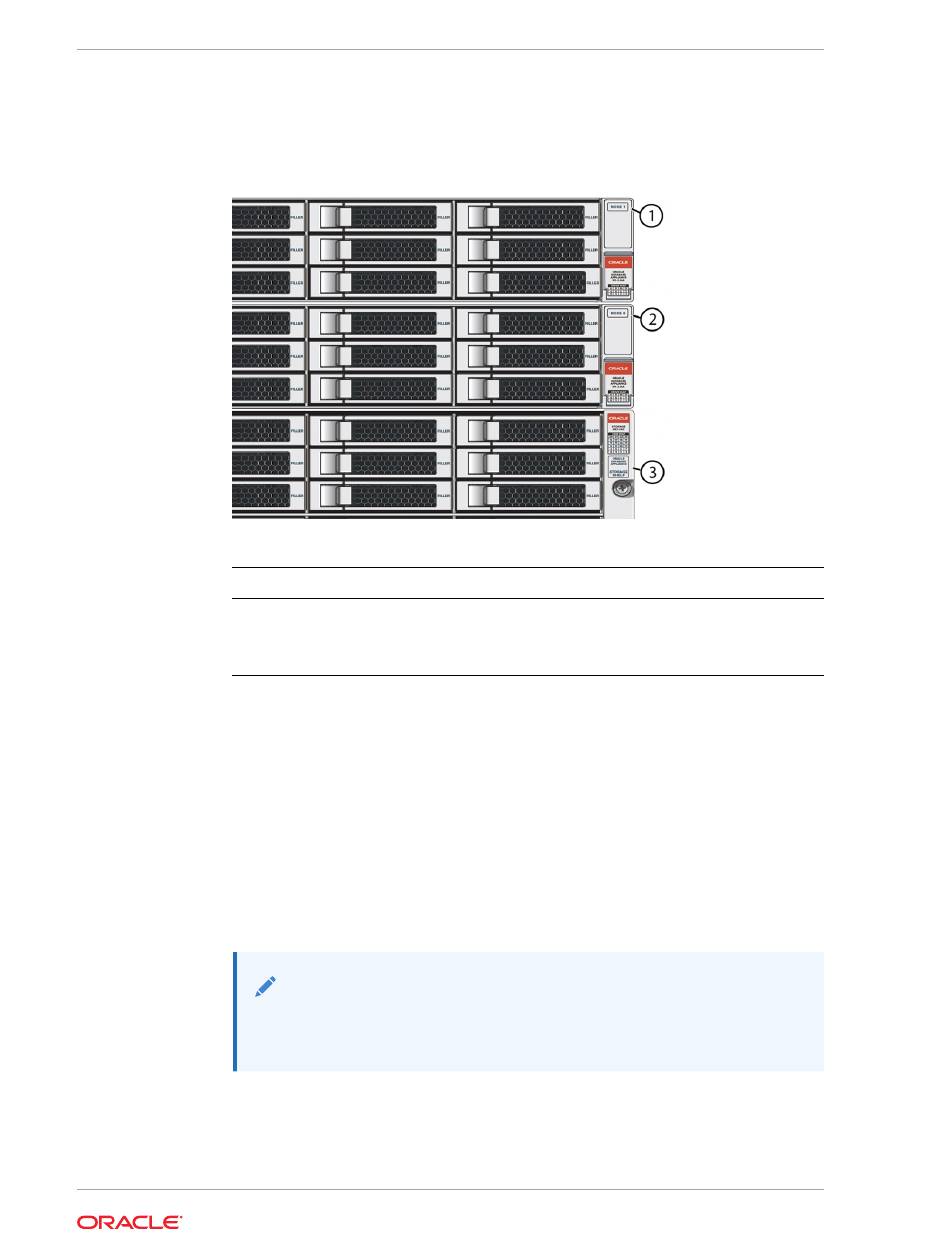

The following figure shows the locations where labels should be applied:
Callout
1
2
3

Install the Storage Shelf Into a Rack

Describes how to install an Oracle Database Appliance X9-2-HA storage shelf into a
rack.
The Oracle Database Appliance X9-2-HA uses the Oracle Storage Drive Enclosure
DE3-24C as its storage shelf. The storage shelf requires four standard mounting units
(4RU) of vertical space in the cabinet.
• Ensure that your site meets the requirements in
Specifications
• Ensure that the rack meets the requirements in
• Observe all precautions in
Starting at the bottom of the cabinet, locate the appropriate rack unit (RU) height.
1.
Server Node 1: Apply this label to the top server node [1].
Server Node 0: Apply this label to the lower server node [2].
Note:
The rail kit included with the shelf can only be used with EIA compliant
9.5 mm square hole racks or 7.0 mm diameter round hole racks.
Safety Precautions When Rackmounting
Installing the System Into a Rack
Description
Server node 1
Server node 0
Storage shelf
Oracle Database Appliance
Rack Compatibility Requirements
