Power - GE Concord 4 Installation Manual

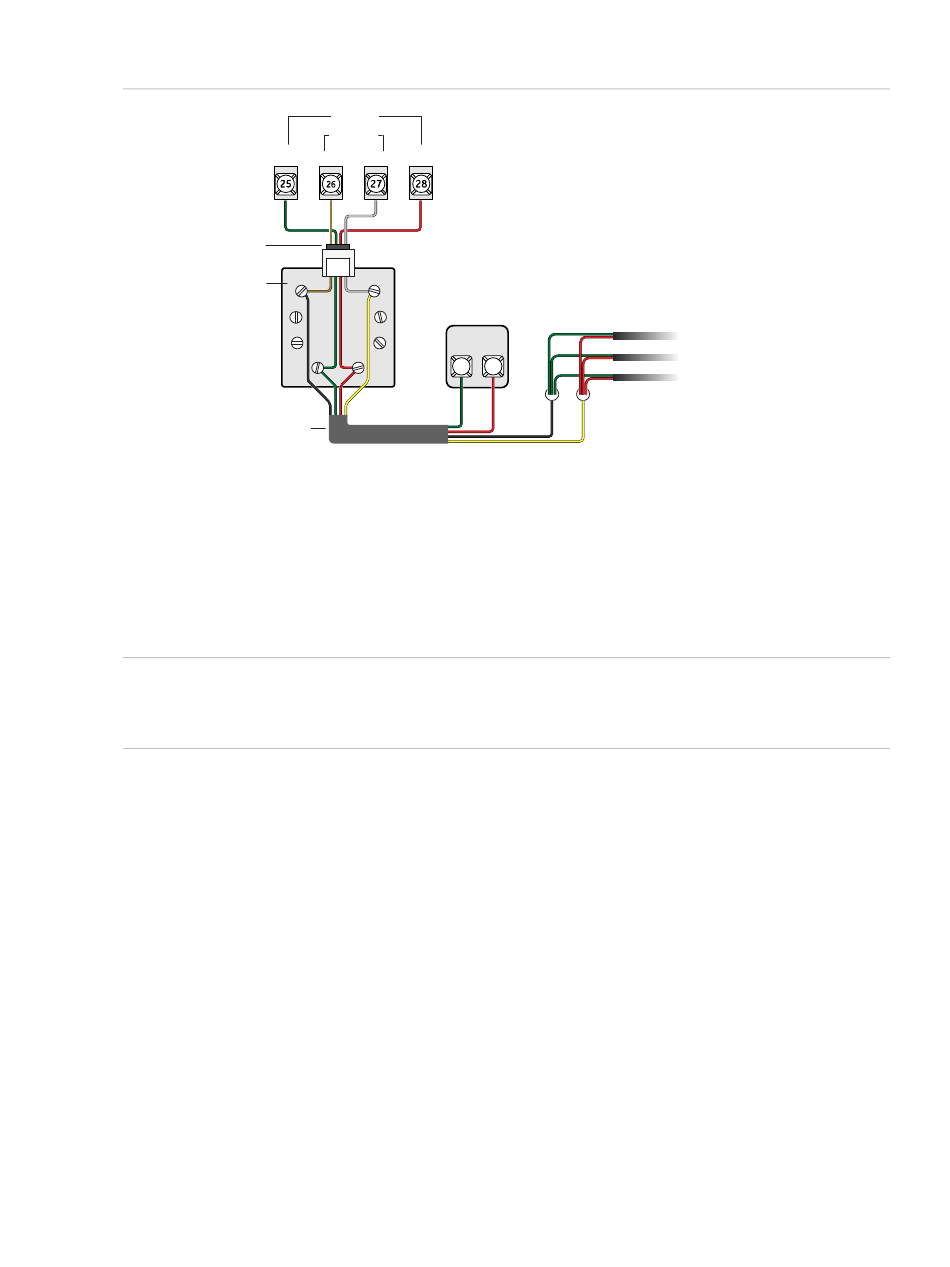

Figure 25: Wiring an RJ31X jack and DB-8 cord
GRN
25
DB-8 cord
BRN
RJ31X jack
GRN
Dealer cable

Power

After connecting and wiring all devices to the panel, you are ready to apply AC and
backup battery power to the panel.
Caution: Do not plug in the power transformer or connect the backup battery at this
time. The panel must be powered up using the sequence of steps described in "Power
up" on page 30.
AC power transformer
The panel must be powered by a plug-in, step-down transformer that supplies 16.5
VAC, 40 VA (600-1023 or 600-1023-CN).
Note: Do not short the transformer terminals together. The transformer contains an
internal fuse that permanentaly disables the output if the terminals are shorted.
For systems that include X10 lamp modules, the panel must be powered with the line
carrier power transformer that supplies 16.5 VAC, 40 VA (600-1024 or 600-1024-CN).
Connect the power transformer to the panel as shown in Figure 26 on page 30.
Backup battery
Use the 60-681 (12 VDC, 4.5 or 5 Ah) or 60-680 (12 VDC, 7Ah) backup battery. The
battery is automatically tested every 24 hours. Without AC power, the panel will shut
Concord 4 Installation Manual
Telco
House
BRN G RY RED
27 28
26
GRY
Telco protector
block
TIP RING
(-)
(+)
RED
