Chapter 2: Installation
SuperBus 2000 8Z input and 4-relay output modules
Connect the modules to the panel as shown in Figure 22 below. Connect all
necessary input and output wiring using the module documentation.

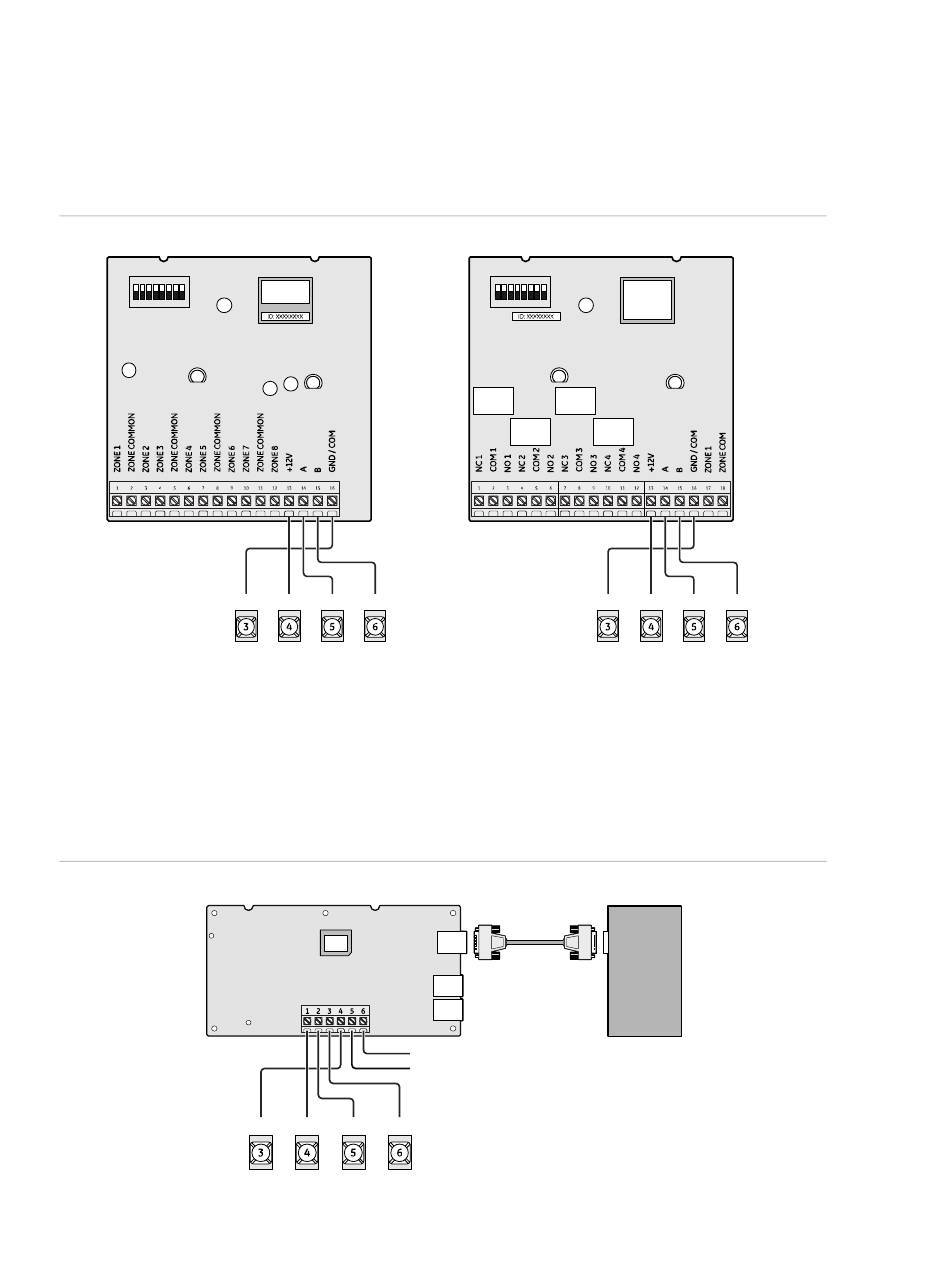

Figure 22: Wiring input and output modules
Input module
GND +12V
SuperBus 2000 automation module
Connect the SuperBus 2000 automation module to the panel as shown in Figure 23
below.
Figure 23: Connecting an automation device
Automation module circuit board
26
A BUS B
Zone Com
Zone 1
GND
A Bus B
+12V
Panel terminals
Output module
GND +12V
Automation device
DB-9 serial cable
Concord 4 Installation Manual
A BUS B
