GE Concord 4 Installation Manual page 31

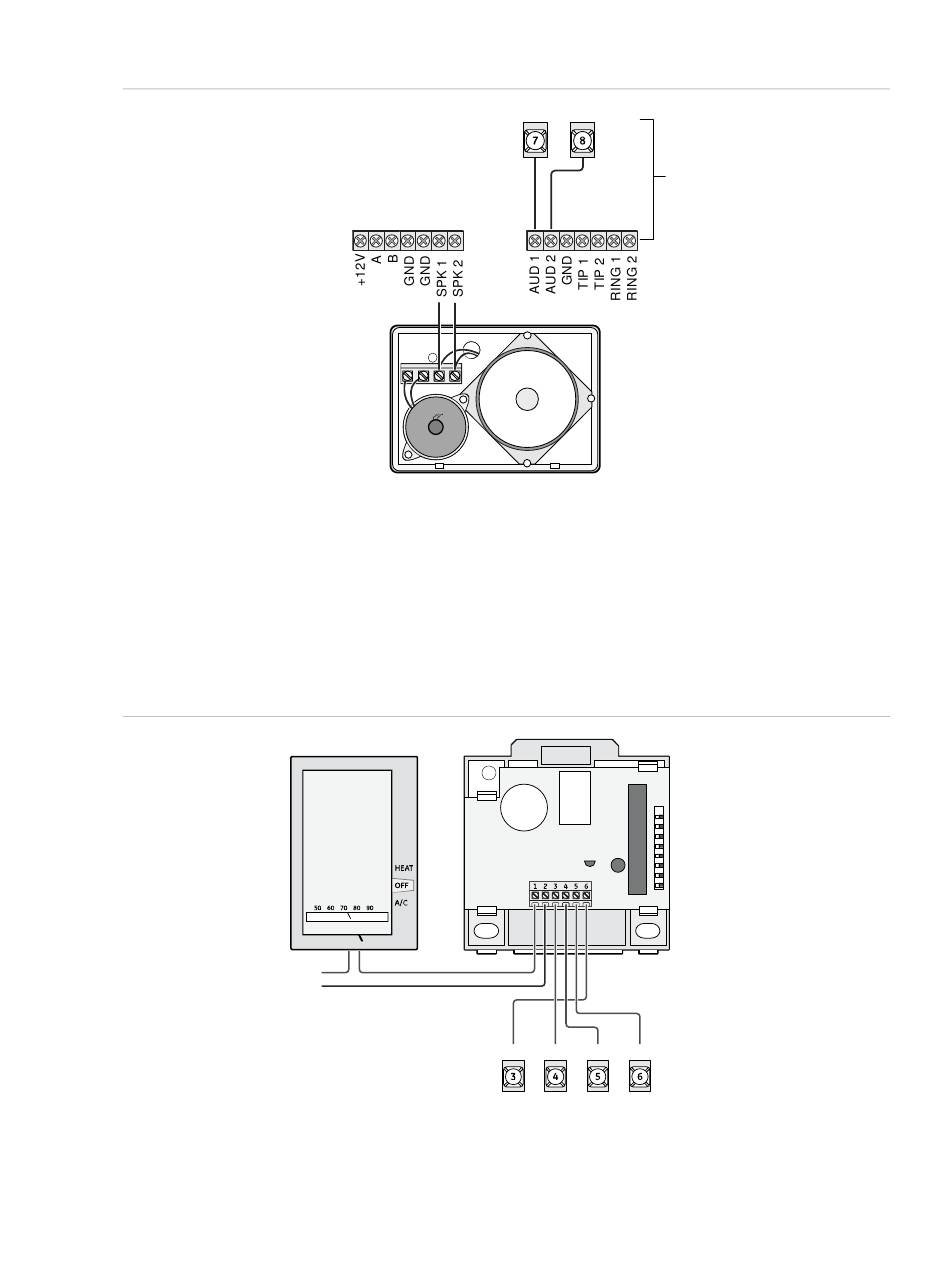

Figure 20: Wiring for status and alarm (or status only) messages
Module terminals
Hardwired interior
speaker (60-528)
SuperBus 2000 energy saver module
Connect the energy saver module to the panel and premises thermostat as shown in
Figure 21 below. Refer to the energy saver module documentation for thermostat
wiring details.
Figure 21: Wiring the thermostat and energy saver module
Thermostat
HVAC
HVAC
Concord 4 Installation Manual
SPKR SPKR
Panel terminals
7 8
GND +12V
Chapter 2: Installation
For alarm messages
(for status only messages,
do not connect these
panel terminals)
Energy saver module
A BUS B
Panel terminals
25
