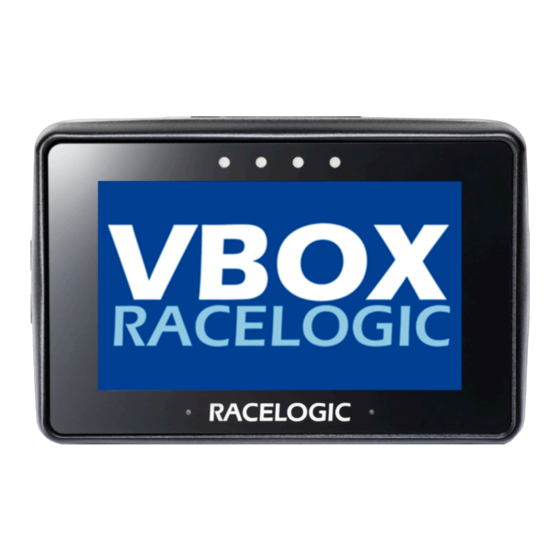

Racelogic Touch V2 Quick Start Manual

Lap timing mode performance box
Hide thumbs Also See for Touch V2:
Table of Contents

Advertisement

Quick Links

Download this manual

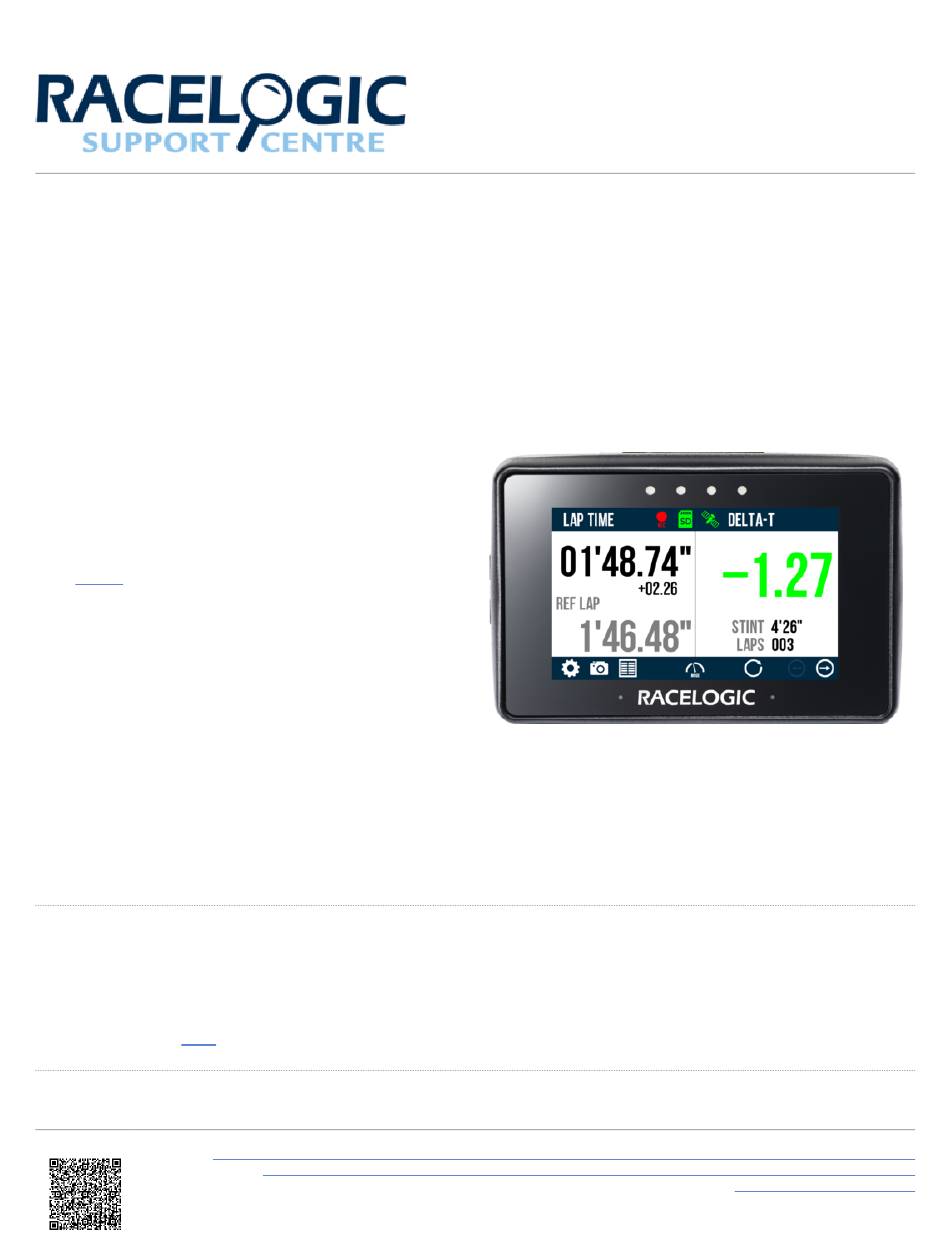

Quick Start Guide: Lap Timing Mode - Performance Box Touch V2
The Performance Box Touch provides you with a wealth
of information combined with easy installation and
use. Performance Box Touch V2 contains an
integrated high-performance, 25 Hz GNSS engine and
antenna, as well as a port for an external antenna.
Performance Box Touch has 4 modes
available; Accel, Decel, Lap Timing and Speed.
They allow you to conduct a range of performance tests
and functions and can be changed by pressing
the
Mode
button at the bottom of the screen. When
using Lap Timing Mode you get:
• A sophisticated lap timer with a built-in database of
over 800 circuits, real-time Delta-time, Delta-speed
(shown via LEDs), Best Lap Time, Current Lap
Time, Total Session Time and Lap Count.
• Virtual Start/Finish Lines. When using GPS, there is
no need for an external beacon or transmitter as
timing will start with vehicle movement. Separate
start and finish lines can be set for sprint or hill
climbing.
Registration
Please register your Performance Box Touch so that Racelogic can continue to inform you about the latest software
releases and firmware upgrades and offer technical support.
Register your unit here.
What is in the box?
https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/
Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_-
_Performance_Box_Touch_V2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touch V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Racelogic Touch V2

Summary of Contents for Racelogic Touch V2

  • Page 1 Registration Please register your Performance Box Touch so that Racelogic can continue to inform you about the latest software releases and firmware upgrades and offer technical support. Register your unit here.
  • Page 2 Cigar Plug USB Adapter (RLACS184) and the vehicle's 12 V cigar power socket to power the Performance Box Touch. You can also power the Performance Box Touch with the optional battery (RLACS290 – available from Racelogic). You can find more information on the battery below.
  • Page 3 The battery will provide at least 6 hours of battery life. However, you can increase the battery life to a maximum of 9 hours by using the minimum brightness settings. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 4: Auto Power Off

    Before it powers off, it will display a warning screen. If you do not want it to power off, you can cancel the process by pressing anywhere on the screen within the 10 second time limit. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 5 However, this does mean that if you are wearing gloves, they will need to be capacitive touch compatible to allow for interaction with the touch screen. There are many types of capacitive touch compatible gloves available for purchase. If you are unsure which gloves you need, please do not hesitate to contact Racelogic. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 6: Installation

    Performance Box Touch comes supplied with a Suction Cup Windscreen Mount (ACS318MOUNT) so you can mount it on the vehicle's windscreen. It attaches to the Richter mounting system on the back of the unit, or at the back of the Battery if this is connected to the unit. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 7 Windscreen Mount (RLACS331) Insert the prongs from the mount into the back of the unit or the battery and push upwards to secure. Attach the suction cup to a suitable location on your windscreen and adjust as necessary. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 8: Satellite Reception

    10 cm in diameter. If this is not possible, you can use copper or aluminium foil to create a shaped ground plane underneath the antenna. For example, on a fibreglass roof, mount the antenna on top of the roof, and place some adhesive-backed metal foil underneath, on the inside of the roof. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 9: Gps Coldstart

    If Performance Box Touch is struggling to acquire a satellite lock, you may need to perform a GPS coldstart. This may be necessary when the unit hasn’t been used for several days or has moved location significantly since it was last used. To perform a coldstart, press the COLDSTART button in the Diagnostics Settings menu. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 10 You can access the Settings menu on Performance Box Touch by selecting the Settings button on the bottom left of the screen Settings options: Mode settings, General Settings, Time settings Diagnostic settings. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 11 The mode-specific settings option presented in the Settings screen depends on the Display Mode you have selected. In the Lap Timing Settings, the settings are covered on 2 pages and this is where you choose the lap timing parameters. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 12: General Settings

    The Diagnostics menu displays basic information about the GNSS receiver and the VBOX unit and its battery. Performance Box Touch V2 – Lap Timing Mode In Lap Timing Mode you can view Lap Timing information in relation to a set Start/Finish line. Available information includes: live reference lap speed comparison (Delta-V), live reference lap time comparison (Delta-T), current reference lap time, last lap time, last lap time's difference to best lap time, session time and completed lap count.
  • Page 13 This is the default lap timing screen and it displays live Lap Timing information in relation to a set Start/Finish Line, Separate Start and Finish Lines or a Standing Start and Separate Finish Line, and a Reference Lap. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_-...
  • Page 14 • If the current lap is the same speed as the reference lap, the LEDs will be off. The main lap timing screen can be reset by pressing the Reset button at the bottom of the screen or by pressing and https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 15 5 seconds after a lap has been completed if a rolling lap time is being shown. If the start/finish line has yet to be crossed or a lap hasn't been completed, it will not be shown. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_-...
  • Page 16 • To set a Start/Finish line, the vehicle must be moving >0.8 km/h and the Performance Box Touch must have a satellite lock. • If the setting of the start/finish line is cancelled, any live lap prediction for the current lap will be lost and unavailable for use. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 17 Box Touch will automatically begin to create a reference lap once the Start/Finish line is crossed or it detects movement in Standing Start mode, and will complete it when the Start/Finish line is crossed again or when the separate Finish Line is crossed. Requirements for creating a reference lap: https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 18 2 pages and this is where you choose the lap timing parameters. You can access the different pages by selecting the Forward and Back arrows at the bottom right of the screen or by swiping left or right. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 19: Select A Track

    Cancel button at the bottom left of the screen. Note: If you press the Select button when you are not in the vicinity of a known track, the unit will display a NO LIST AVAILABLE message. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 20 You must set a separate finish line if you are using Standing Start Mode. Note: The vehicle must be moving >0.8 km/h and the unit have a satellite lock to set a Finish Line. Clear Finish Gate (Only selectable if a Finish gate has been set) https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 21 If the unit detects an SD card and a saved .tdb or .bdb track database file located in the root directory of the SD card (not in the media or any other folder), the unit will load the file, which will update the tracks list but not overwrite any https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_-...
  • Page 22 If a gate file (named gates.spl already exists on the SD card, Performance Box Touch will display an overwrite cancel screen. This screen gives you 5 seconds to cancel the overwrite by pressing anywhere on the screen. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 23 5 seconds before it reverts to display the current live lap time. When it is disabled, it will only display the previous lap time. Note: This feature is enabled by default. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 24: Standing Start

    Once it detects vehicle movement (>0.5 km/h), the Performance Box Touch will assign the Start gate at 90° to the detected heading. Lap Timing will only complete once a defined separate Finish Gate is crossed. Standing start armed notification screen. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 25 The current lap is the same speed as the reference LEDs will show dull red The current lap is 2.5 km/h slower than the reference The current lap is >5 km/h slower than the reference LEDs will show bright red https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 26: Reset Data

    This gives you 5 seconds to press anywhere on the screen to cancel the process. After 5 seconds, the LEDs will briefly flash green twice and the unit will emit an audible notification to confirm that the data has been reset. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 27 Disabled. You will see a cancel timeout screen. You can also unfix the reference lap by triple-tapping on the Main Lap Timing Screen. If you triple-tap, You will see a cancel timeout screen that gives you 5 seconds to cancel the unfixing by pressing on the screen. Reference Lap https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 28 Button at the bottom left of the screen to return to the Settings screen without saving. The default setting is 60 seconds and the value range is 10 to 86400 seconds. The selected value will be remembered after each power cycle. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_-...
  • Page 29 Lap History You can view a history of the lap results by selecting the Results Button at the bottom of the screen. The lap results will display until you press the Reset Button. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 30: Save Results

    When you have selected Reset, you will see a cancel timeout screen that gives you 5 seconds to cancel the reset by pressing on the screen. After 5 seconds, the LEDs will briefly flash green twice and the unit will emit an audible confirmation notification. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 31 Performance Box Touch may start recording even if the car is stationary. Always check the Record Icon to make sure the unit is not recording before you eject the SD card. IMPORTANT https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...

  • Page 32: Sd Card Format

    SD Card Format Performance Box Touch V2 is supplied with an 8 GB SDHC card in a FAT32 file format, which is the only file format it supports. If you are looking to purchase a new SD card, we recommend that any card you use has a write speed of above 7 MB/s (4 MB/s is the absolute minimum) and a speed class of 10 (4 is the absolute minimum).
  • Page 33 SD card organisation. SD Card Format Performance Box Touch V2 is supplied with an 8 GB SDHC card in a FAT32 file format, which is the only file format it supports. If you are looking to purchase a new SD card, we recommend that any card you use has a write speed of above 7 MB/s (4 MB/s is the absolute minimum) and a speed class of 10 (4 is the absolute minimum).

  • Page 34: Led Behaviour

    • Battery (if installed): If the battery has run out of charge, the LEDs will flash red five times before the unit turns off. Battery The separate battery has its own LED next to the Power button. This will provide constant battery status information. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
  • Page 35 Description Green (flashing when charging, unless >20% charge charge ≥90%) Orange (flashing when charging) 10–20% charged (flashing when charging) 0–10% charge 5 red flashes before turning off 0% charge https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Lap_Timing_Mode_- _Performance_Box_Touch_V2...
