Performance Box Touch V1 – Speed Display Mode
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/
Performance_Box_Touch_V1/User_Guide_%E2%80%93_Performance_Box_Touch_V1/
04_Display_Modes_%E2%80%93_Performance_Box_Touch_V1/
Performance_Box_Touch_V1_%E2%80%93_Speed_Display_Mode

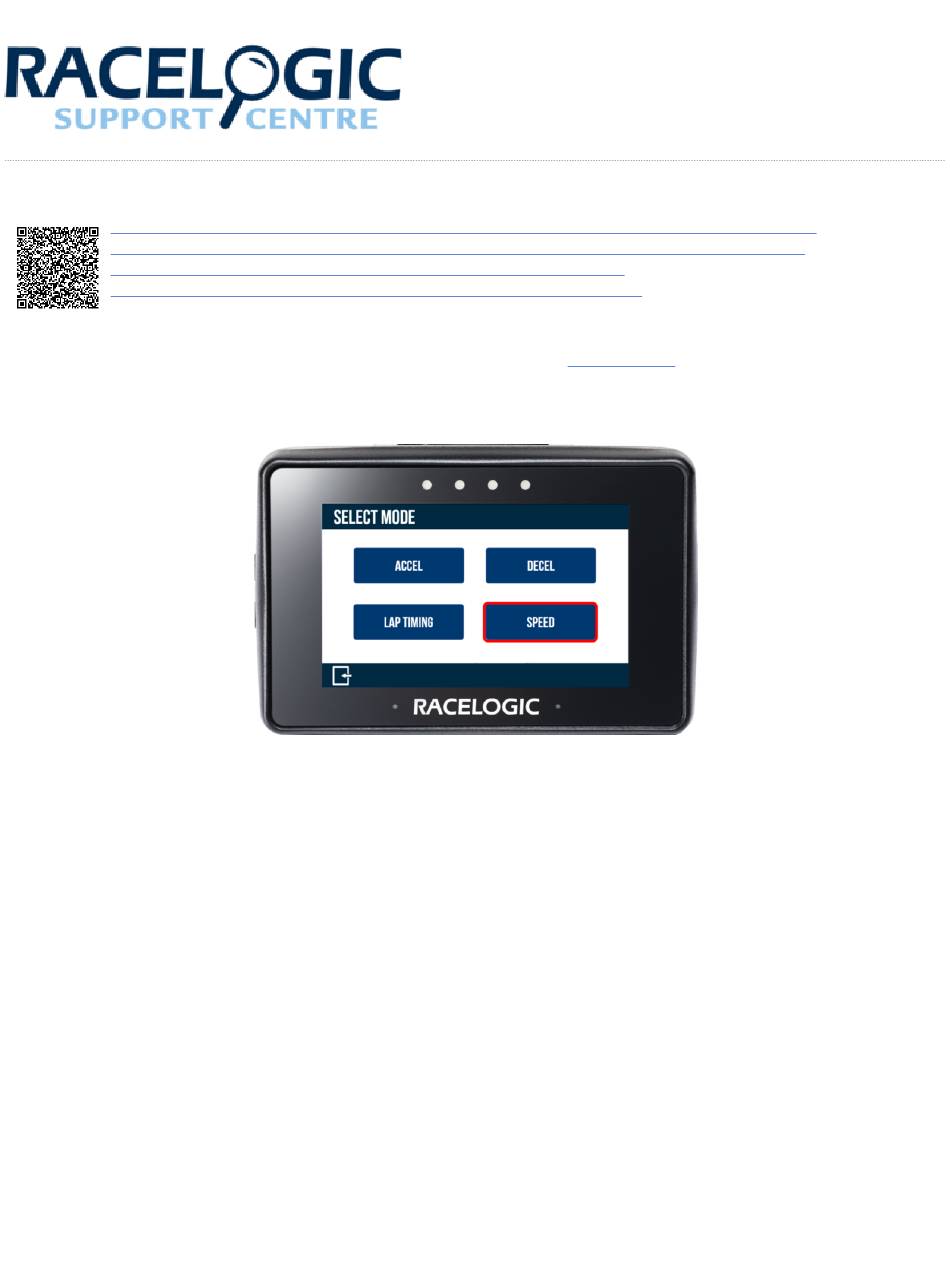

In Speed Display Mode, you can view live speed data,. You have 3 screens options available; Speed,
VMAX and Average Speed. You can access this mode by pressing the
selecting Speed.
The unit will display the last used Speed Display Mode after each power cycle.
Mode Button
at the bottom of the screen and
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performance Box Touch V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Racelogic Performance Box Touch V1

Summary of Contents for Racelogic Performance Box Touch V1

  • Page 1 Performance Box Touch V1 – Speed Display Mode https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/ Performance_Box_Touch_V1/User_Guide_%E2%80%93_Performance_Box_Touch_V1/ 04_Display_Modes_%E2%80%93_Performance_Box_Touch_V1/ Performance_Box_Touch_V1_%E2%80%93_Speed_Display_Mode In Speed Display Mode, you can view live speed data,. You have 3 screens options available; Speed, VMAX and Average Speed. You can access this mode by pressing the...
  • Page 2 Speed Display Mode Overview There are 3 different Speed Display screens and you can access them by using the Forward and Back arrows at the bottom right of the screen or by swiping left or right on the screen. Speed Display - Speed Screen This is the default speed screen and it displays Live Speed data.
  • Page 3 Speed Display - VMAX Screen This screen displays the Absolute Top Speed reached until the Reset Button is pressed at the bottom of the screen. If a Target Speed is selected within the Speed Settings, it will be displayed in grey underneath the VMAX. Speed Display - Average Speed Screen Formatted in two halves, the Average Speed screen displays both the Average Speed (since last boot up or power cycle) and Distance Travelled (since last boot up or power cycle) on the same screen any time that movement is...
  • Page 4 To return to the main screen, select the Exit Button on the bottom left. Decimal Places You can adjust the number of decimal places displayed for speed values across all Speed displays, between 0, 1 (default) and 2 decimal places. Tap the button to cycle through the options. Speed Display Smoothing If required, live speed values displayed can be smoothed.
  • Page 5 V Avg Mode You can change whether the average speed on the Average Speed Screen is calculated as Continuous or Moving. • Continuous: Average speed will start to calculate as soon as an SD card is inserted and initialised. • Moving: Average speed will start to calculate as soon as a speed over 0.8 km/h is detected. calculations will stop when the speed is less than 0.8 km/h.
  • Page 6 Target Speed Keypad Example To save the value inputted, press the Confirm button at the bottom right of the screen, or press the Cancel button at the bottom left of the screen to return to the Settings screen without saving. The value will be remembered after each power cycle.
