Quick Start Guide: Decel Mode - Performance Box Touch V2

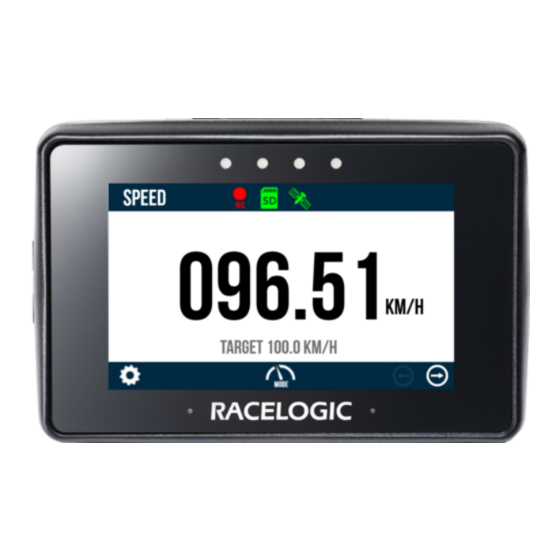

The Performance Box Touch provides you with a wealth
of information combined with easy installation and
use. Performance Box Touch V2 contains an
integrated high-performance, 25 Hz GNSS engine and
antenna, as well as a port for an external antenna.
Performance Box Touch has 4 modes
available; Accel, Decel, Lap Timing and Speed.
They allow you to conduct a range of performance tests
and functions and can be changed by pressing
the
Mode
button at the bottom of the screen. When you
use Performance Box Touch in Decel Mode, you get:
• Deceleration tests, including: 0–60, 0–100, 200–0,
300–0 km/h or mph.
• Custom test that allows you to define your own
configurable settings.
• A screen displaying time, run number, distance,
Peak G and altitude difference. The units of
measurement for speed or distance can be
displayed in metric or imperial and they are easy to
swap between.
Registration
Please register your Performance Box Touch so that Racelogic can continue to inform you about the latest software
releases and firmware upgrades and offer technical support.
Register your unit here.
https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/
Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_-
_Performance_Box_Touch_V2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performance Box Touch V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Racelogic Performance Box Touch V2

Summary of Contents for Racelogic Performance Box Touch V2

  • Page 1 Registration Please register your Performance Box Touch so that Racelogic can continue to inform you about the latest software releases and firmware upgrades and offer technical support. Register your unit here.

  • Page 2: What Is In The Box

    Cigar Plug USB Adapter (RLACS184) and the vehicle's 12 V cigar power socket to power the Performance Box Touch. You can also power the Performance Box Touch with the optional battery (RLACS290 – available from Racelogic). You can find more information on the battery below.
  • Page 3 The battery will provide at least 6 hours of battery life. However, you can increase the battery life to a maximum of 9 hours by using the minimum brightness https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 4: Auto Power Off

    Before it powers off, it will display a warning screen. If you do not want it to power off, you can cancel the process by pressing anywhere on the screen within the 10 second time limit. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...
  • Page 5 However, this does mean that if you are wearing gloves, they will need to be capacitive touch compatible to allow for interaction with the touch screen. There are many types of capacitive touch compatible gloves available for purchase. If you are unsure which gloves you need, please do not hesitate to contact Racelogic. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 6: Installation

    Performance Box Touch comes supplied with a Suction Cup Windscreen Mount (ACS318MOUNT) so you can mount it on the vehicle's windscreen. It attaches to the Richter mounting system on the back of the unit, or at the back of the Battery if this is connected to the unit. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...
  • Page 7 Windscreen Mount (ACS318MOUNT) Insert the prongs from the mount into the back of the unit or the battery and push upwards to secure. Attach the suction cup to a suitable location on your windscreen and adjust as necessary. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 8: Satellite Reception

    For best results, use the antenna in the centre of a metal roof at least 5 cm away from any roof bars or radio antennas. Do not mount the antenna close to the edge of the roof as reflections from the ground may interfere with https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_-...

  • Page 9: Gps Coldstart

    If Performance Box Touch is struggling to acquire a satellite lock, you may need to perform a GPS coldstart. This may be necessary when the unit hasn’t been used for several days or has moved location significantly since it was last used. To perform a coldstart, press the COLDSTART button in the Diagnostics Settings menu. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...
  • Page 10 You can access the Settings menu on Performance Box Touch by selecting the Settings button on the bottom left of the screen when in a mode. You will see a Select Settings Screen with 4 Settings options: Mode settings, General Settings, Time settings Diagnostic settings. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 11: General Settings

    The mode-specific settings option presented in the Settings screen depends on the Display Mode you have selected. In the Decel mode settings, you can set the test parameters and select other test options. General Settings This menu has settings for units, logging mode, format for saving and the screen and LED brightness. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 12: Time Settings

    The Diagnostics menu displays basic information about the GNSS receiver and the VBOX unit and its battery. Performance Box Touch V2 – Decel Mode Deceleration Mode is where you can perform deceleration tests using either pre-defined configurations or your own specified values.

  • Page 13: Selecting A Test

    Selecting a Test You can choose a Decel Test by pressing the Settings button on the bottom left of the screen. Preset and custom test options are then available on the right-hand side of the displayed screen. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...
  • Page 14 • 300 – 0 (km/h or mph) • 400 – 0 (km/h or mph) When you select a test, the name of the test will be displayed at the top right corner of the Decel Mode screen. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 15: Custom Test

    You can choose your own start and end conditions by pressing the Custom Test button at the bottom right of the test area. You can then define the start and end speed conditions by pressing the corresponding blue value buttons. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...
  • Page 16 Preset Test or another mode. Decel Settings You can access the Decel Mode settings screen by selecting the Settings button at the bottom left of the screen. This is where you can set the test parameters and select other test options. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 17: Test History

    0.5 s. Tap the corresponding blue button to toggle between Disabled and Enabled. Test History You can view a history of the test results by selecting the Results button at the bottom of the screen. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...
  • Page 18 Each new session will have a separate header, displaying the time and date for the first completed test in that session. Information includes: • Test type • Time of first completed run in session • Date of first completed run in session • Test run number https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 19: Save Results

    Along with the test history information described above, the results file also includes average acceleration information, as well as the latitude and longitude position (in degrees and decimal degrees format) added to the session header. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...
  • Page 20 Record Icon flashes red as it may cause you to lose data. Note: If the SD card is removed while the box is still recording, you may need to repair it on a PC before you can use it again. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...

  • Page 21: Sd Card Format

    SD Card Format Performance Box Touch V2 is supplied with an 8 GB SDHC card in a FAT32 file format, which is the only file format it supports. If you are looking to purchase a new SD card, we recommend that any card you use has a write speed of above 7 MB/s (4 MB/s is the absolute minimum) and a speed class of 10 (4 is the absolute minimum).
  • Page 22 If you have an SD card that is formatted in the exFAT or NTFS file formats, you will have to reformat it to a FAT32 file system before it will work with a Performance Box Touch V2 unit. SDHC cards (2 GB to 32 GB) Supplied or purchased SDHC cards are formatted in the FAT32 file format.

  • Page 23: Led Behaviour

    The separate battery has its own LED next to the Power button. This will provide constant battery status information. Description Green (flashing when charging, unless >20% charge charge ≥90%) Orange (flashing when charging) 10–20% charged (flashing when charging) 0–10% charge 5 red flashes before turning off 0% charge https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ Quick_Start_Guide_%E2%80%93_Performance_Box_Touch_V2/Quick_Start_Guide%3A_Decel_Mode_- _Performance_Box_Touch_V2...
