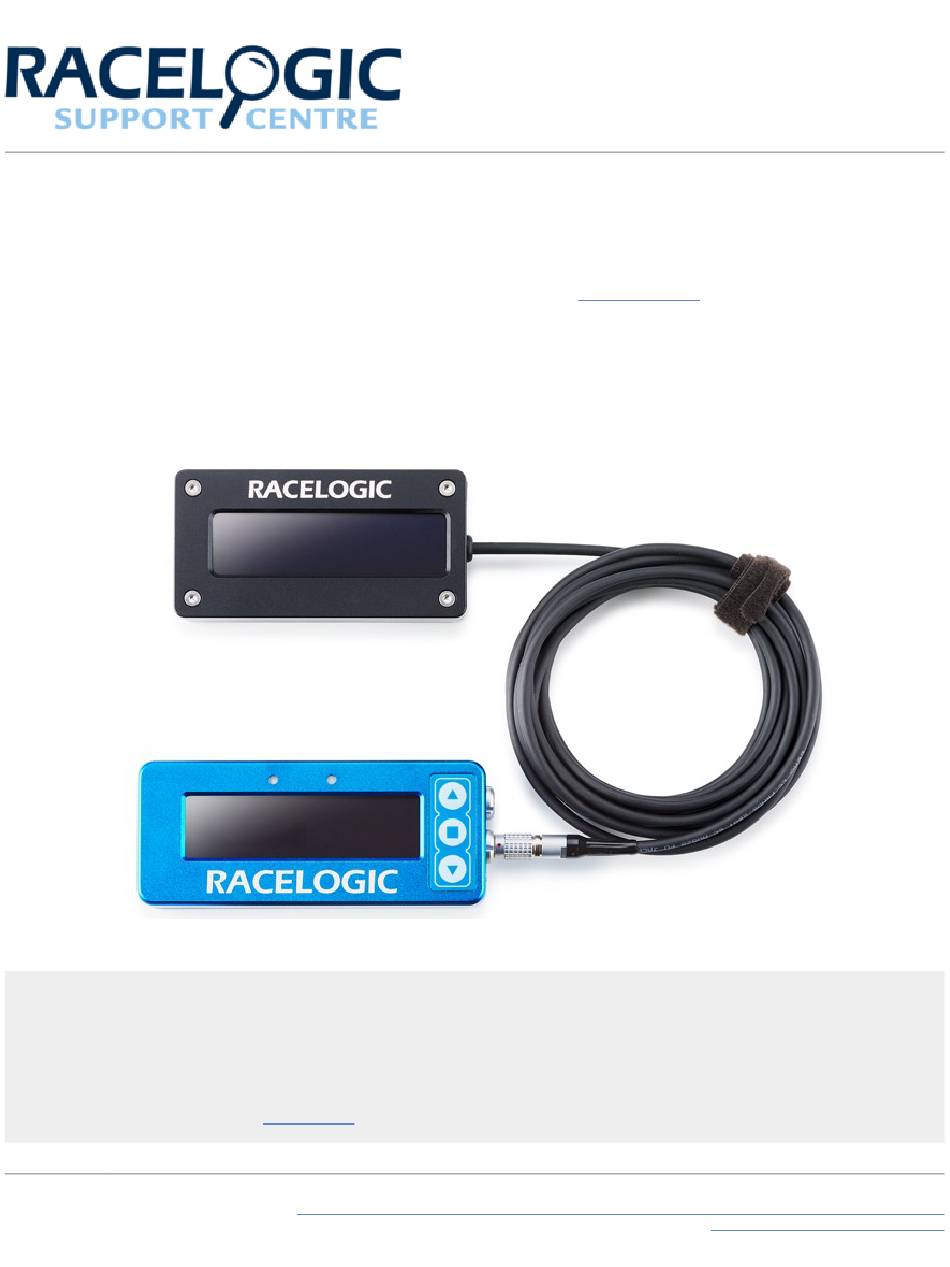

User Guide - OLED Pit Display (VBPITDSP-V1)

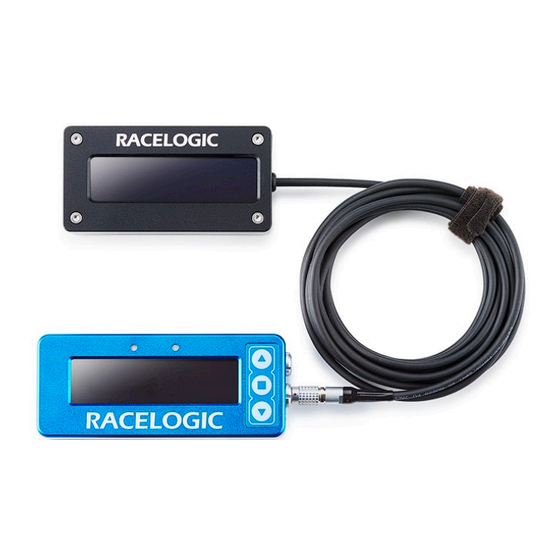

An OLED Pit Display (RLVBPITDSP) can be used in conjunction with the
countdown time. This is particularly useful within endurance racing where it is the job of the pit crew to safely release the
car. It can be secured to the dash or one of the windows, facing outwards towards the pit crew. This will keep the team
informed of how much time they have left in the pit lane and know exactly when to release the car with minimal time
loss.
To use an OLED Pit Display (RLVBPITDSP), Pit Lane Timer firmware version 1.1.22 or later is required. A
standard OLED display (RLVBDSP05) cannot be used instead of an OLED Pit Display. Instructions on how to
upgrade the firmware can be
IMPORTANT
found
here.
https://en.racelogic.support//Product_Info/Displays/OLED_Pit_Displays/RLVBPITDSP-V1/User_Guide_-
Pit Lane Timer
to mirror the stationary
_OLED_Pit_Display_(VBPITDSP-V1)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VBPITDSP-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Racelogic VBPITDSP-V1

Summary of Contents for Racelogic VBPITDSP-V1

  • Page 1 User Guide - OLED Pit Display (VBPITDSP-V1) An OLED Pit Display (RLVBPITDSP) can be used in conjunction with the Pit Lane Timer to mirror the stationary countdown time. This is particularly useful within endurance racing where it is the job of the pit crew to safely release the car.

  • Page 2: Display Menu

    For the OLED Pit Display to work correctly with a Pit Lane Timer, you must make sure that the CAN baud rate is the same on both the Pit Lane Timer and the OLED Pit Display. Display Menu https://en.racelogic.support//Product_Info/Displays/OLED_Pit_Displays/RLVBPITDSP-V1/User_Guide_- _OLED_Pit_Display_(VBPITDSP-V1)
  • Page 3 This setting will cause all text to be shown as an outline font, rather than the default block colour. If desired, this can be combined with the inverted screen colour. Pressing the square button when this option is highlighted will change the setting. Orientation To adjust the orientation of the display, press the square button when this option is highlighted. https://en.racelogic.support//Product_Info/Displays/OLED_Pit_Displays/RLVBPITDSP-V1/User_Guide_- _OLED_Pit_Display_(VBPITDSP-V1)

  • Page 4: Can Baud Rate

    250 kbit/s, 500 kbit/s and 1000 kbit/s. Select the BACK option to save the option and return to the menu. About Menu This section simply lists the firmware version and serial number of the OLED Pit Display. https://en.racelogic.support//Product_Info/Displays/OLED_Pit_Displays/RLVBPITDSP-V1/User_Guide_- _OLED_Pit_Display_(VBPITDSP-V1)

  • Page 5: Operation

    If there is a problem with the baud rate configuration between the two units, the OLED Pit Display will display a 'Waiting for CAN data Connect to Pit Lane Timer' message. https://en.racelogic.support//Product_Info/Displays/OLED_Pit_Displays/RLVBPITDSP-V1/User_Guide_- _OLED_Pit_Display_(VBPITDSP-V1)
