03 Screen Layout – Performance Box Touch V2

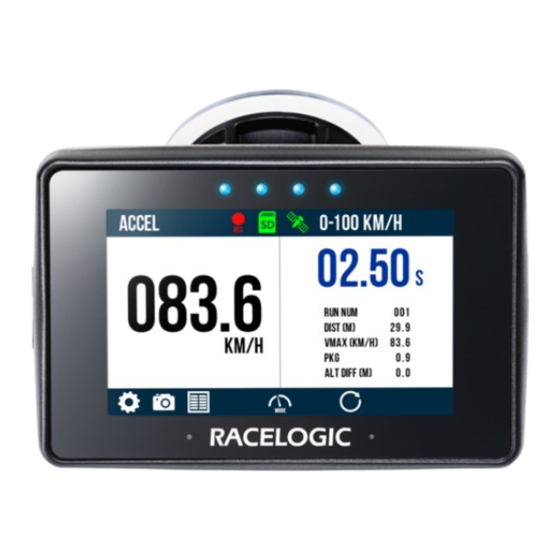

As the name suggests, you can control Performance Box Touch by using its capacitive touch screen.
Generally, the different areas of the screen contain the following:
• Top of the screen – indicative status information
• Centre of the screen – mode and settings information (navigate by pressing the forward and back arrows or by
swiping left or right)
• Bottom of the screen – function buttons
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/Performance_Box_Touch_V2/
User_Guide_%E2%80%93_Performance_Box_Touch_V2/03_Screen_Layout_%E2%80%93_Performance_Box_Touch_V2
1
Advertisement
Table of Contents
Related Manuals for Racelogic Performance Box Touch V2
Summary of Contents for Racelogic Performance Box Touch V2
- Page 1 03 Screen Layout – Performance Box Touch V2 As the name suggests, you can control Performance Box Touch by using its capacitive touch screen. Generally, the different areas of the screen contain the following: • Top of the screen – indicative status information •...
- Page 2 You can learn more about the behaviour of the LEDs on Performance Box Touch here. Logging Status The red Record Icon will show when the unit is logging data to the SD card. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/03_Screen_Layout_%E2%80%93_Performance_Box_Touch_V2...
- Page 3 The Satellite Icon illustrates whether the unit has a valid satellite lock. When a lock is acquired, this icon will be solid green. If there is no satellite lock, the icon will flash red. Display Mode This header shows which Display Mode is currently selected. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/03_Screen_Layout_%E2%80%93_Performance_Box_Touch_V2...
- Page 4 If the screenshot could not be saved, for example, no SD card is inserted or the card is full, the SD Card Icon at the top of the screen will flash 3 times and Performance Box Touch will emit an audible error notification. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/03_Screen_Layout_%E2%80%93_Performance_Box_Touch_V2...
- Page 5 Forward/Back Arrow Buttons You can use the Forward and Back arrow buttons to navigate through the Display Mode and Settings screens. Alternatively, you can also swipe left or right on the screen when these buttons are visible. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/03_Screen_Layout_%E2%80%93_Performance_Box_Touch_V2...
- Page 6 Exit Button You can use the Exit button to return to the previous menu or page. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/03_Screen_Layout_%E2%80%93_Performance_Box_Touch_V2...
