02 Installing your Performance Box Touch V2 in the Vehicle

Installation

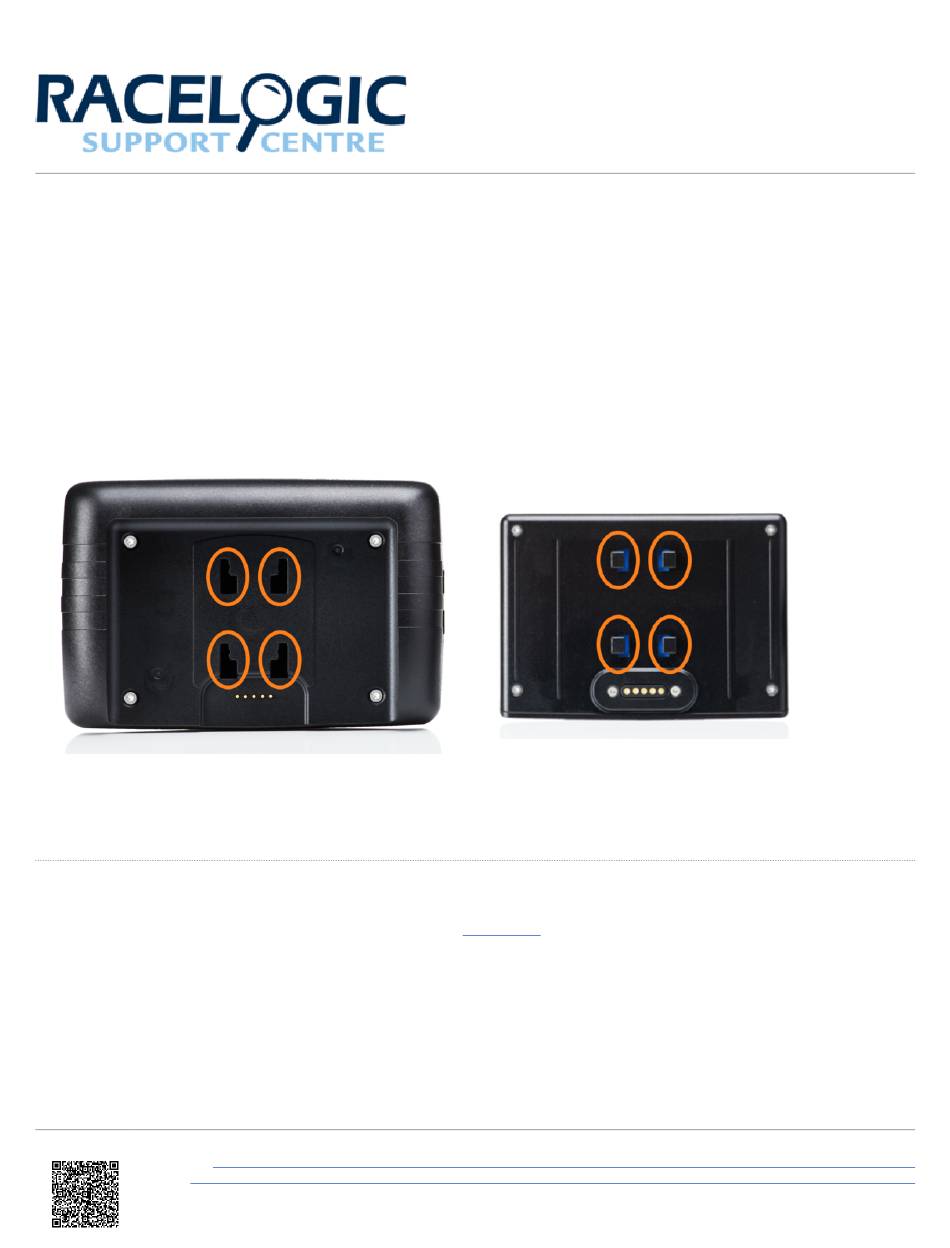

The battery is connected to Performance Box Touch with a Richter mounting system on the rear of the unit. Insert
the prongs from the back of the battery into the rear of the Performance Box Touch unit and push upwards to
secure.
Richter mounting system on the back of
Performance Box Touch

Connectors

You can find more detailed connector information on the
https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/
User_Guide_%E2%80%93_Performance_Box_Touch_V2/02_Installing_your_Performance_Box_Touch_V2_in_the_Vehicle
Richter mounting system on the rear of battery
PIN OUTS
page.
(RLACS290)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performance Box Touch V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Racelogic Performance Box Touch V2

Summary of Contents for Racelogic Performance Box Touch V2

  • Page 1 02 Installing your Performance Box Touch V2 in the Vehicle Installation The battery is connected to Performance Box Touch with a Richter mounting system on the rear of the unit. Insert the prongs from the back of the battery into the rear of the Performance Box Touch unit and push upwards to secure.
  • Page 2 Performance Box Touch comes supplied with a Suction Cup Windscreen Mount (ACS318MOUNT) so you can mount it on the vehicle's windscreen. It attaches to the Richter mounting system on the back of the unit, or at the back of the Battery if this is connected to the unit. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/02_Installing_your_Performance_Box_Touch_V2_in_the_Vehicle...
  • Page 3 Windscreen Mount (RLACS331) Insert the prongs from the mount into the back of the unit or the battery and push upwards to secure. Attach the suction cup to a suitable location on your windscreen and adjust as necessary. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/02_Installing_your_Performance_Box_Touch_V2_in_the_Vehicle...
  • Page 4 10 cm in diameter. If this is not possible, you can use copper or aluminium foil to create a shaped ground plane underneath the antenna. For example, on a fibreglass roof, mount the antenna on top of the roof, and place some adhesive-backed metal foil underneath, on the inside of the roof. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/02_Installing_your_Performance_Box_Touch_V2_in_the_Vehicle...
  • Page 5 If Performance Box Touch is struggling to acquire a satellite lock, you may need to perform a GPS coldstart. This may be necessary when the unit hasn’t been used for several days or has moved location significantly since it was last used. To perform a coldstart, press the COLDSTART button in the Diagnostics Settings menu. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/02_Installing_your_Performance_Box_Touch_V2_in_the_Vehicle...
  • Page 6 3. Until the satellite lock has been acquired, the number of satellites will be displayed as '00' and the GPS status will show ‘SEARCHING FOR SATELLITES’. It will take approximately 25 to 30 seconds for the unit to reacquire the satellite lock. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/02_Installing_your_Performance_Box_Touch_V2_in_the_Vehicle...
