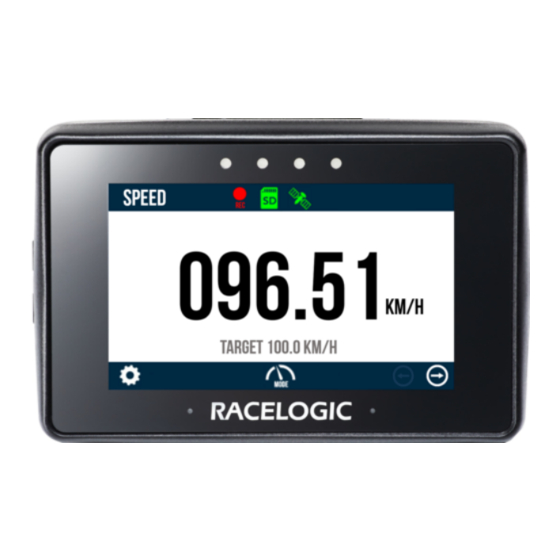

Performance Box Touch V2 – Speed Display Mode
In Speed Display Mode, you can view live speed data,. You have 3 screen options available; Speed, VMAX and
Average Speed. You can access this mode by pressing the
Mode
button at the bottom of the screen and
selecting Speed.
The unit will display the previously used Speed Display Mode after each power cycle.
https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/
User_Guide_%E2%80%93_Performance_Box_Touch_V2/04_Display_Modes_%E2%80%93_Performance_Box_Touch_V2/
Performance_Box_Touch_V2_%E2%80%93_Speed_Display_Mode
1

Advertisement

loading

Related Manuals for Racelogic Performance Box Touch V2

Summary of Contents for Racelogic Performance Box Touch V2

  • Page 1 Performance Box Touch V2 – Speed Display Mode In Speed Display Mode, you can view live speed data,. You have 3 screen options available; Speed, VMAX and Average Speed. You can access this mode by pressing the Mode button at the bottom of the screen and selecting Speed.
  • Page 2 Live Speed. If the vehicle speed is slower than 0.5 km/h or if the unit has lost its satellite lock (less than 4 satellites), the value will display as 000.0. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/04_Display_Modes_%E2%80%93_Performance_Box_Touch_V2/ Performance_Box_Touch_V2_%E2%80%93_Speed_Display_Mode...
  • Page 3 You can reset the screen at any time by pressing the Reset Button at the bottom of the screen. If you have selected a Target Speed in the Speed Settings, it will be displayed in grey underneath the Average Speed. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/04_Display_Modes_%E2%80%93_Performance_Box_Touch_V2/ Performance_Box_Touch_V2_%E2%80%93_Speed_Display_Mode...
  • Page 4 Speed Display Settings You can access the Speed Display settings screen by selecting the Settings button at the bottom left of the screen to configure the speed display options. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/04_Display_Modes_%E2%80%93_Performance_Box_Touch_V2/ Performance_Box_Touch_V2_%E2%80%93_Speed_Display_Mode...

  • Page 5: Decimal Places

    You can adjust the number of decimal places displayed for speed values across all Speed displays. Choose between 0, 1 (default) and 2 decimal places. Tap the corresponding blue button to cycle through the options. Speed Display Smoothing https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/04_Display_Modes_%E2%80%93_Performance_Box_Touch_V2/ Performance_Box_Touch_V2_%E2%80%93_Speed_Display_Mode...

  • Page 6: Avg Mode

    Distance screen. The Distance Display setting will toggle between Feet/Miles (if the Distance unit is set to feet in the General Settings) or will toggle between Metres/Kilometres (if the Distance unit is set to metres in the General Settings). https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/04_Display_Modes_%E2%80%93_Performance_Box_Touch_V2/ Performance_Box_Touch_V2_%E2%80%93_Speed_Display_Mode...
  • Page 7 Enabling one, or both, of the alerts will set the target speed and give you access to the sub-menu where you can define the target speed condition by pressing the corresponding blue button and using the presented keypad. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/04_Display_Modes_%E2%80%93_Performance_Box_Touch_V2/...
  • Page 8 Note: You can enter speed with up to 1 decimal place. Reset Selecting the Reset Button on the bottom right of the screen will reset all results shown on the current screen. When you press the Reset button, the LEDs will briefly flash green twice. https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V2/ User_Guide_%E2%80%93_Performance_Box_Touch_V2/04_Display_Modes_%E2%80%93_Performance_Box_Touch_V2/ Performance_Box_Touch_V2_%E2%80%93_Speed_Display_Mode...
