Removing the Create® 3 Integration Plate and Shell
The Create® 3 Integration Plate and Shell can be removed with the rest of the assembly on or
off. To remove the Create® 3 Integration Plate, first open and remove the rear Create® 3 tray.
Then disconnect the USB C cable and the power harness from the Create® 3 base. Feed these
cables through the slot at the back of the Create® 3. Using the tabs on the Create® 3, twist the
plate counter-clockwise until it snaps to unlock it and remove the plate.

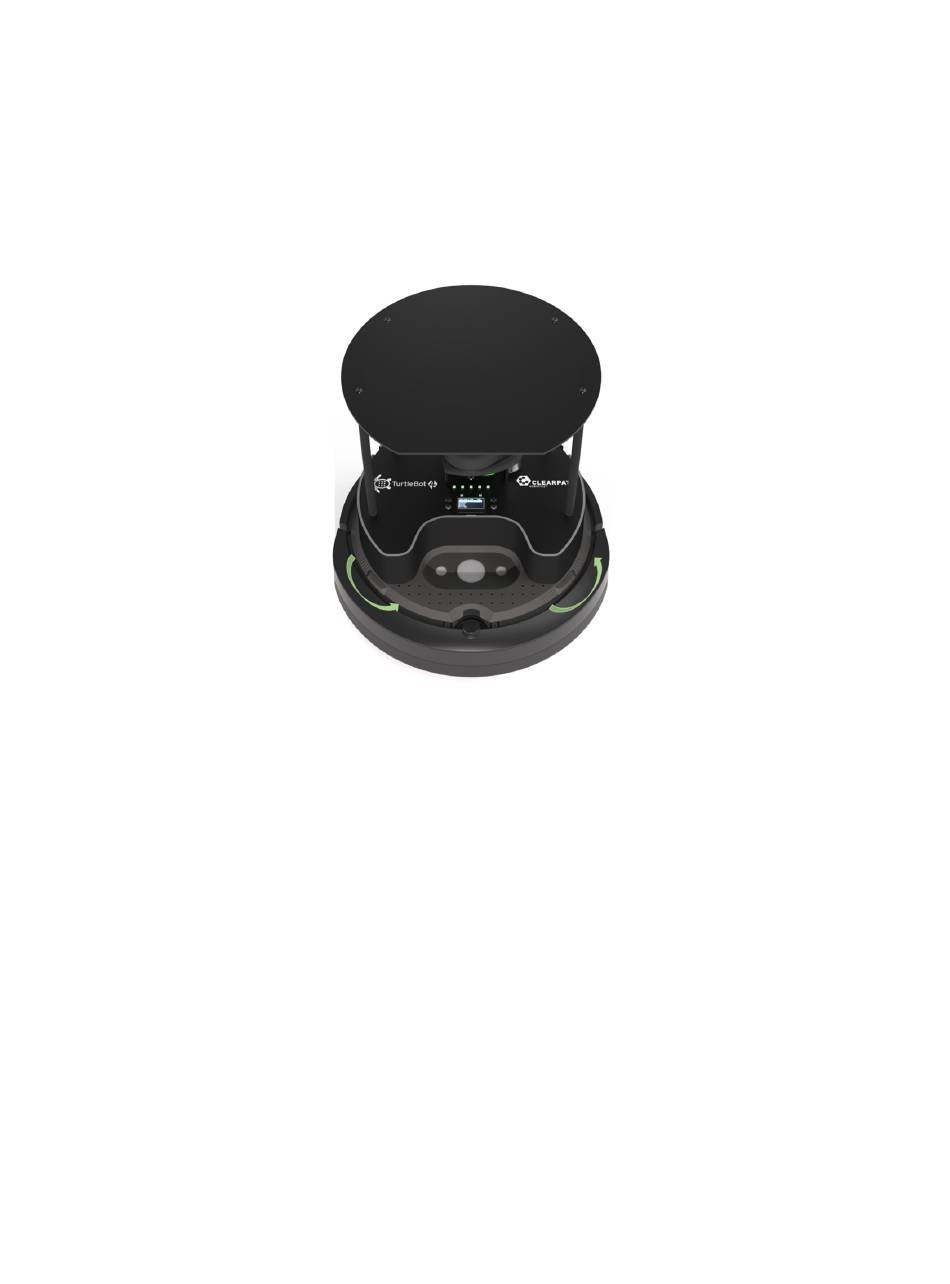

Create® 3 Integration Plate Removal
To reattach the plate, place the plate slightly angled such that the posts fit into the tabs. Then,
twist the plate clockwise until it snaps back into place.
