Checking an OAF

Tip: For a complete list of options and their details, visit the
JNS website.
You can check the status of your JNSGyro-4T boards' options, and load new
OAFs, using the RS232 cable, a computer, and PCView. Refer to the PCView
Software Manual for a more complete description of the PCView software.
1.
2.
3.
The Options Manager screen displays (Figure 4-9 on page 4-14) and contains
the following information:
• Option name – a name/description of the option.
• Current – the current status of the option.
• Purchased – if the option is purchased or not.
• Leased – if the option is leased or not.
• Expiration date – the date the option will be disabled, if applicable.
Since Options can be both purchased and leased, the "Current" status of the
option displays the currently effective value. Option values can be:
• -1 or "-----" – the firmware version does not support this option.
• 0 – the receiver option is disabled.
• positive integer – the option is enabled.
www.javad.com
Connect the JNSGyro-4T board (Master or Slaves) and computer. See
"Connecting the JNSGyro-4T and a Computer" on page 2-3 for this
procedure.
Start PCView.
Click Tools->Receiver Options (Figure 4-8).

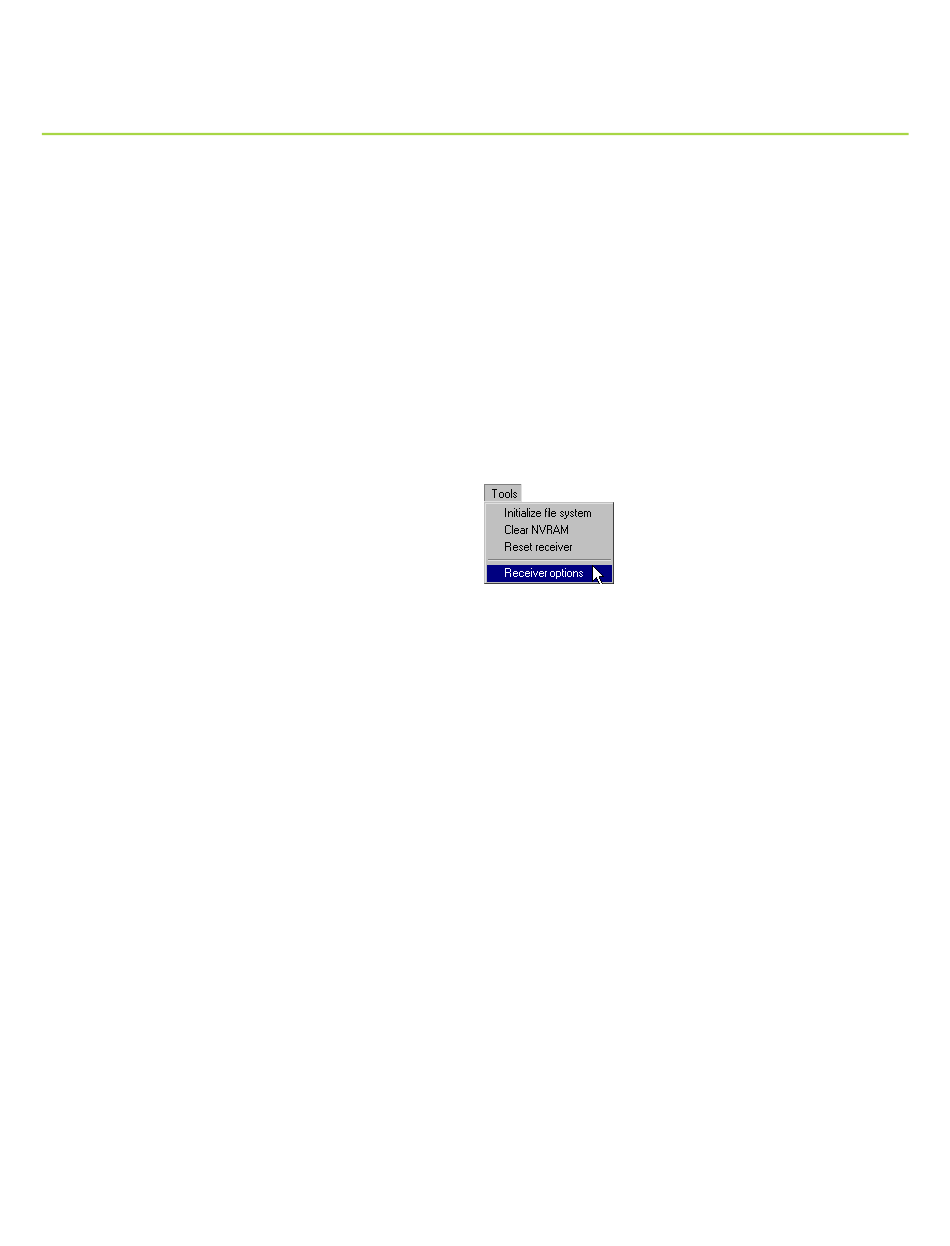

Figure 4-8. Tools->Receiver Options
O P E R A T I O N

Checking an OAF

JNSGyro-4T Operator's Manual 4-13
