Powering The Jnsgyro-4T; Turning On/Off The Jnsgyro-4T; Jnsgyro-4T - Javad JNSGyro-4T Operator's Manual

C O N F I G U R A T I O N
2

Powering the JNSGyro-4T

Powering the JNSGyro-4T

You can power your JNSGyro-4T with an external power source. The
appropriate external power source must provide +6 to +32 V DC to operate the
system and must be able to supply sufficient current (3.0 Amp) to operate the
JNSGyro-4T system.
On the back panel of the JNSGyro-4T, there is the power connector, marked
PWR. Connect an appropriate cable to this connector to power your unit.
Warning: Before connecting the external power source and the
JNSGyro-4T, make sure that the power source
matches the unit's voltage and current requirements.

Turning On/Off the JNSGyro-4T

To turn ON, push on the ON/OFF button. To turn OFF, press and hold the
ON/OFF button for more than one second and less than 1.5 second (until
LEDs are off). This delay (about 1 second) prevents the unit from being
turned off by a mistake.
2-2 JNSGyro-4T Operator's Manual

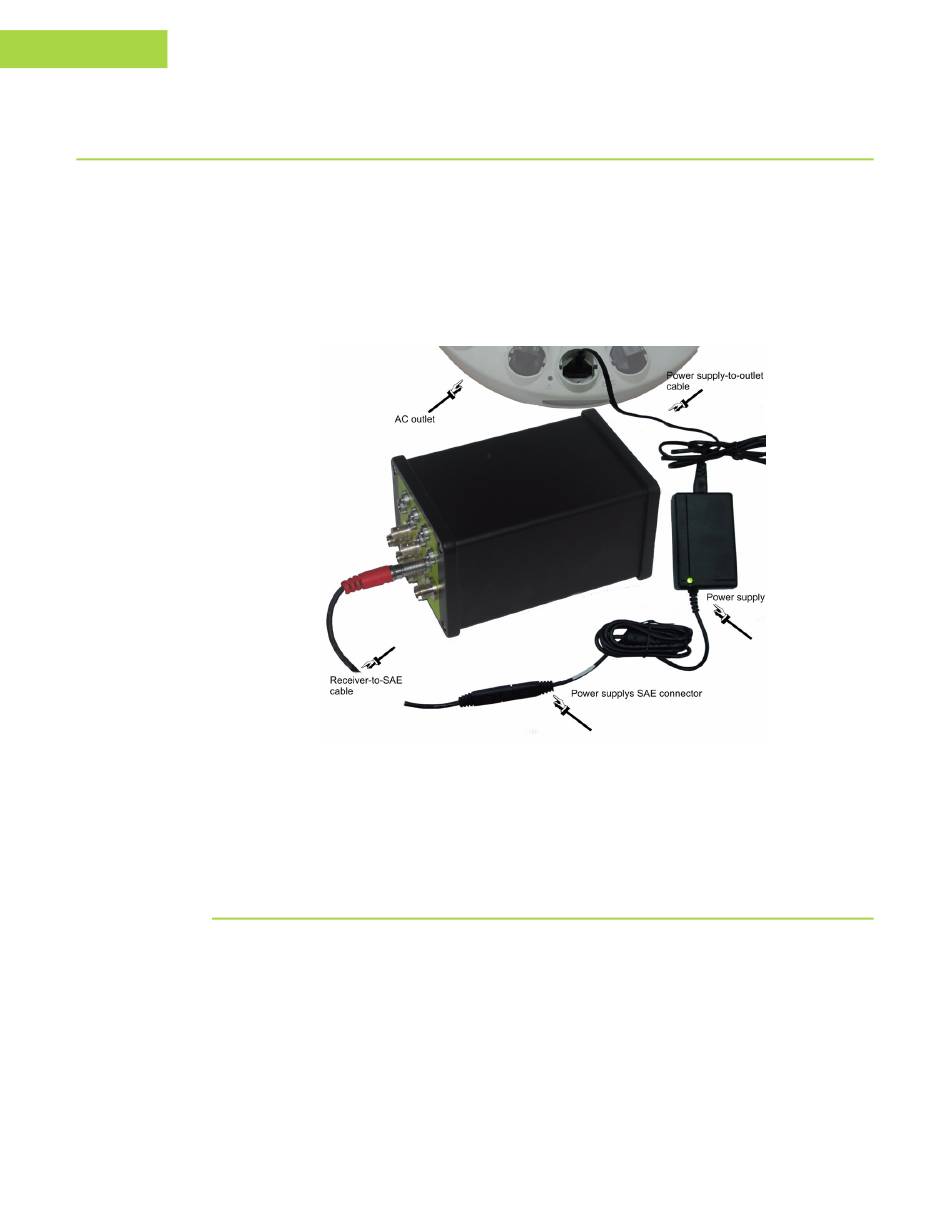

Figure 2-1. Powering JNSGyro-4T
