Javad JNSGyro-4T Operator's Manual page 80

O P E R A T I O N
4
Loading New Firmware
Select the Program tab and set the Capture Method to Soft Break
8.
Capture (recommended) (Figure 4-16).
Browse for and select the receiver board's RAM file and Flash file
9.
(Figure 4-16).
Click Load and wait until 100% of the files load into your board.
10.
Notice: If you selected an incorrect RAM or Flash file, an error
message displays at the bottom of the dialog box.
Reselect the correct file.
Click File->Exit.
11.
Clear the board's NVRAM (see "Clearing the NVRAM" on page 4-16) and
12.
update the almanac after loading new firmware.
Repeat all these steps with every JNSGyro-4T boards.
13.
4-22 JNSGyro-4T Operator's Manual

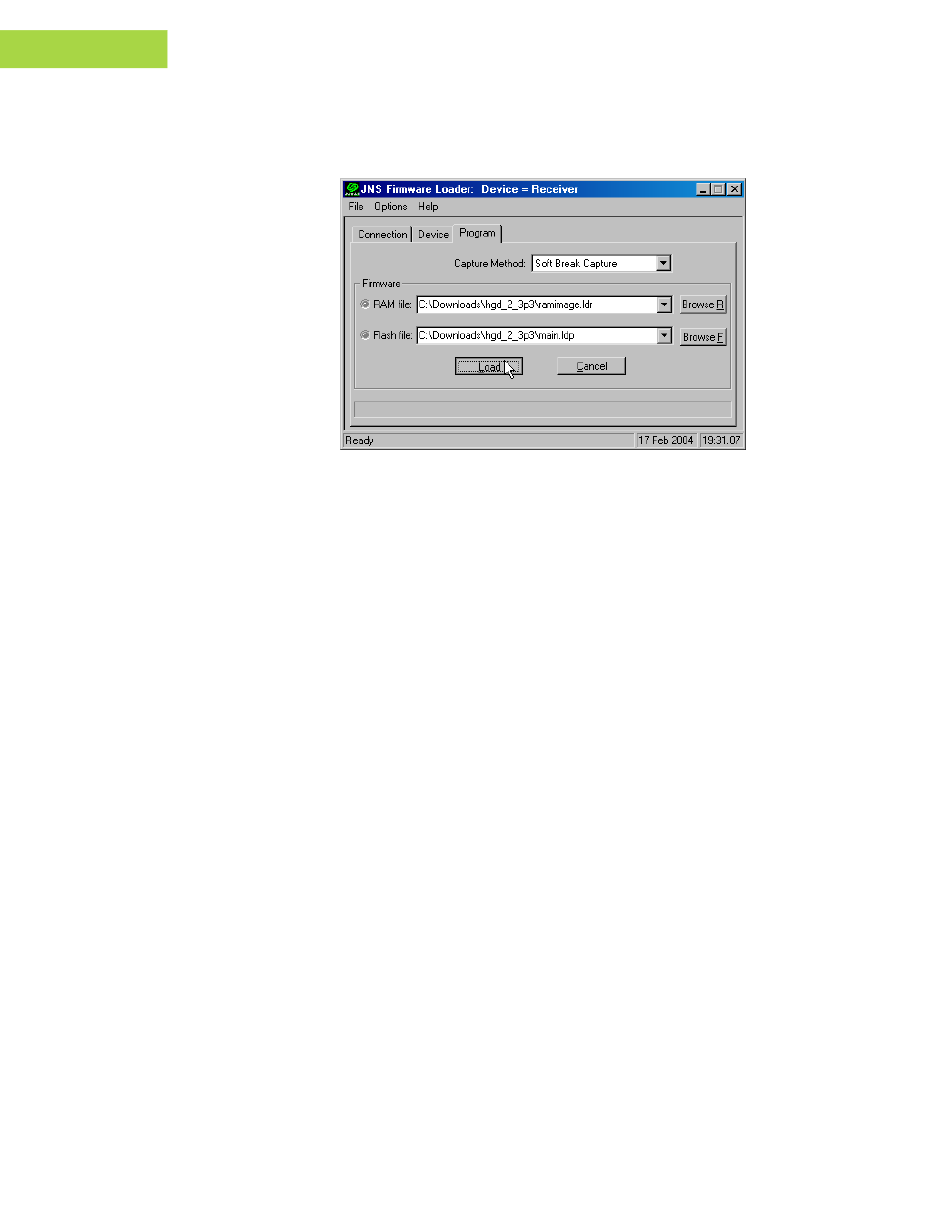

Figure 4-16. Program Tab Settings
