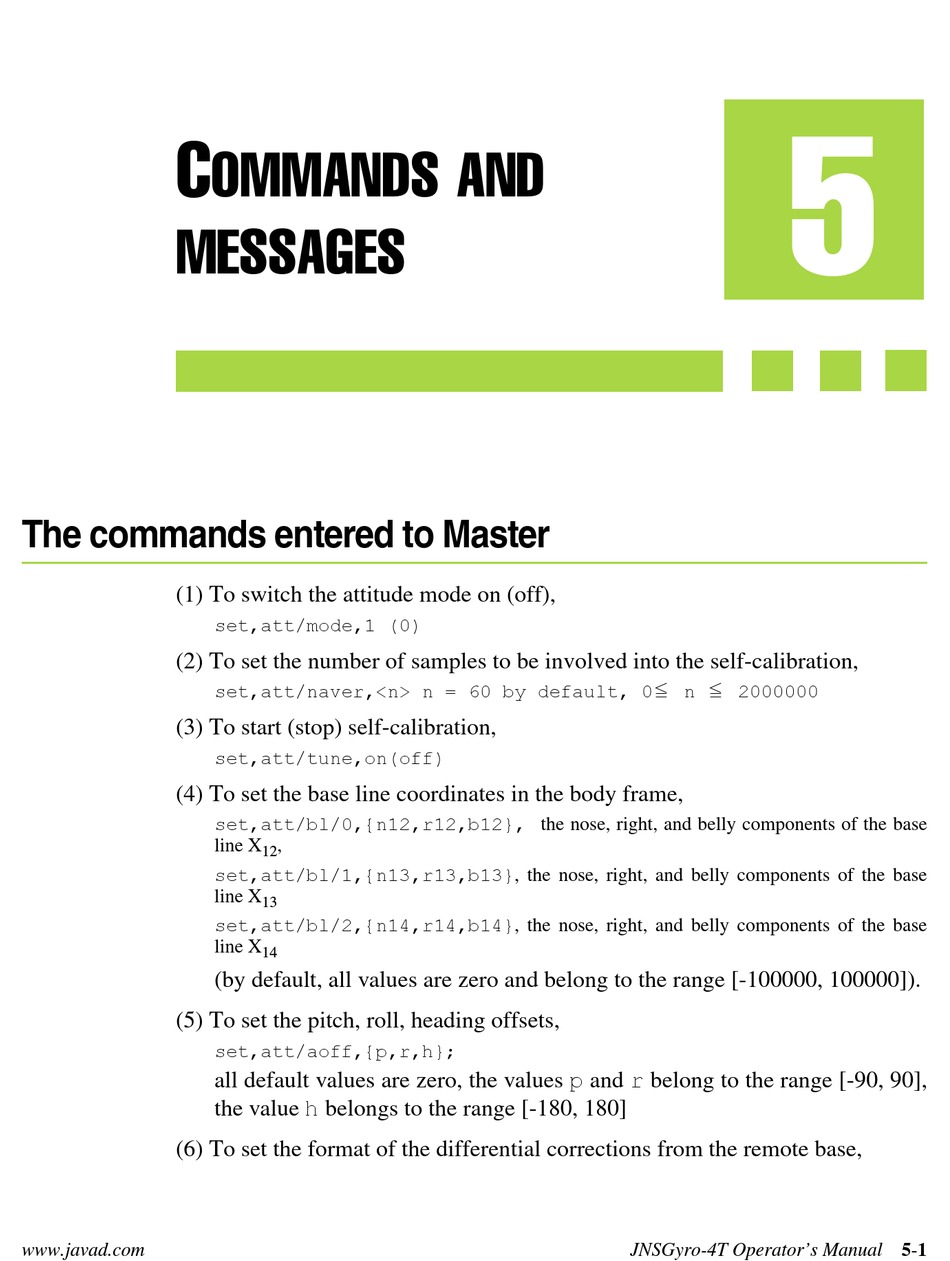

MESSAGES

The commands entered to Master

(1) To switch the attitude mode on (off),
(2) To set the number of samples to be involved into the self-calibration,
(3) To start (stop) self-calibration,
(4) To set the base line coordinates in the body frame,
(5) To set the pitch, roll, heading offsets,
(6) To set the format of the differential corrections from the remote base,
www.javad.com
OMMANDS AND
set,att/mode,1 (0)
set,att/naver,<n> n = 60 by default, 0O n O 2000000
set,att/tune,on(off)
set,att/bl/0,{n12,r12,b12}, the nose, right, and belly components of the base
line X ,
12
set,att/bl/1,{n13,r13,b13}, the nose, right, and belly components of the base
line X
13
set,att/bl/2,{n14,r14,b14}, the nose, right, and belly components of the base
line X
14
(by default, all values are zero and belong to the range [-100000, 100000]).
set,att/aoff,{p,r,h};
all default values are zero, the values p and r belong to the range [-90, 90],
the value h belongs to the range [-180, 180]
5
