AX7102 User Manual

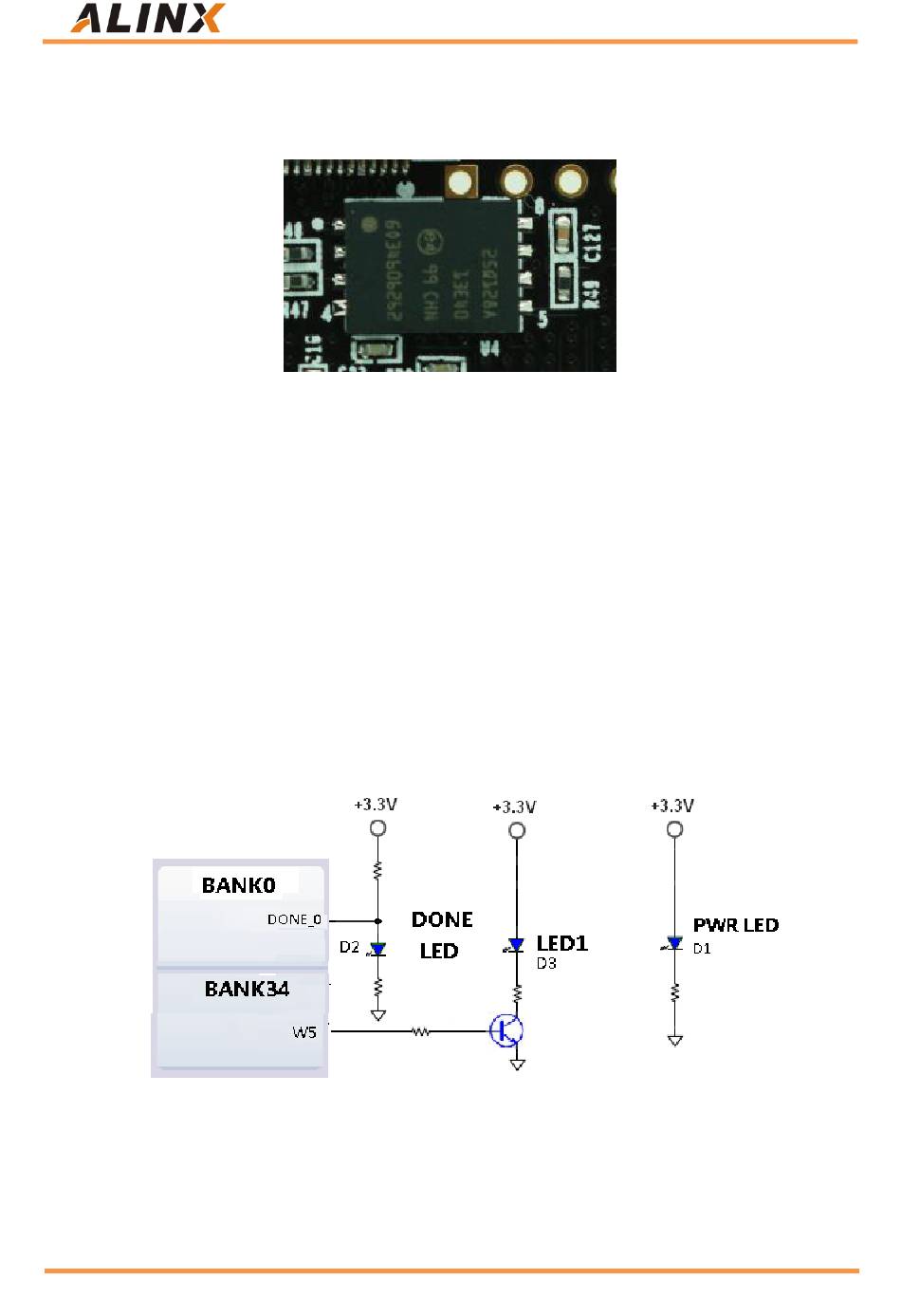

Figure 2-5-2 shows onboard QSPI FLASH.
Figure 2-5-2 QSPI FLASH Onboard
(六) LEDs
There are three RED LEDs on the FPGA, it includes power indicator LED, done
indicator LED and user LED. When the core board is power on, the power
indicator LED turns on. when the FPGA configuration is configured, the done
LED will be on. The user LED is driven directly by a pin of FPGA, driving its
associated pin to a high logic level turns the LED on, and driving the pin low
turns it off.
The schematic diagram of the hardware connection of the LED is shown in
Figure 2-6-1:
Figure 2-6-1 Connections between the LEDs and FPGA
Figure 2-6-2 is the LEDs on AC7100 board.
