Semiconductor. The temperature accuracy of the LM75 chip is 0.5 degrees.
The EEPROM and temperature sensor are mounted on the Bank500 MIO
of ZYNQ UltraScale+ through the I2C bus. Figure 3-18-1 is the schematic
diagram of EEPROM and temperature sensor
U1
ZYNQ
Ultra
Scale+

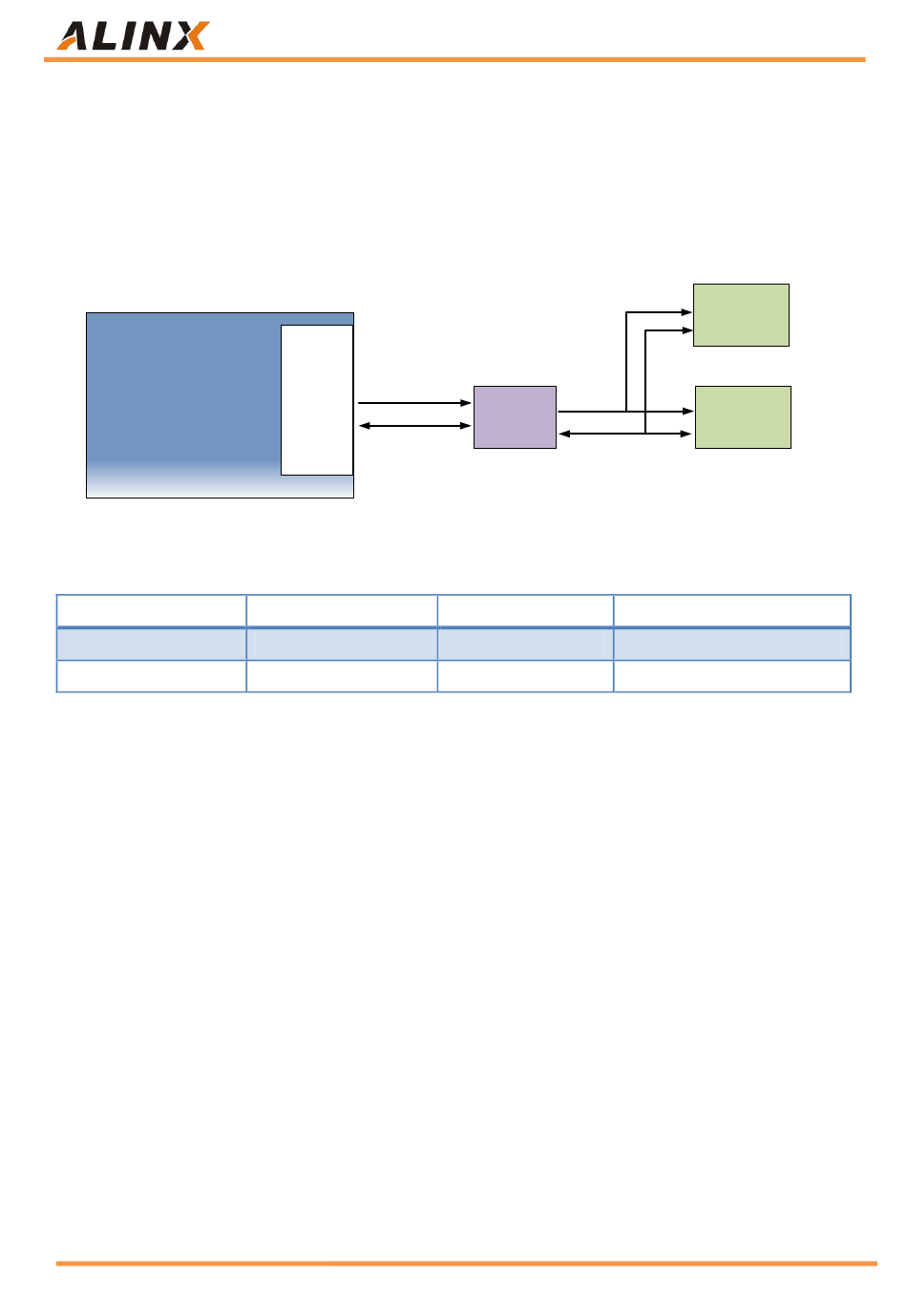

Figure 3-18-1: EEPROM and Sensor connection diagram
EEPROM pin assignment:
Signal Name
PS_IIC1_SCL
PS_IIC1_SDA

Part 3.19: User LEDs

There are 3 LEDs on the AXU4EV-P Carrier board. including 1 power
indicator light, 1 User LED Controlled by PS side, and 1 User LED Controlled
by PL side. The user can control the user LED on and off through the program.
When the IO voltage of the connected user LED light is low, the user LED light
is off, and when the connected IO voltage is high, the user LED will be lit. The
schematic diagram of the user's LED light hardware connection is shown in
Figure 3-19-1:
61 / 66
ZYNQ Ultrascale + FPGA Board AXU4EV-P User Manual
BANK
PS_IIC1_SCL
500
PS_IIC1_SDA
ZYNQ Pin Name
PS_MIO24
PS_MIO25
U26
电平转
PS_IIC_B_SCL
换
PS_IIC_B_SDA
ZYNQ Pin Number
AB19
AB21
U27
LM75
U25
EEPROM
Description
I2C Clock Signal
I2C Data Signal
