AX7102 User Manual
This 200Mhz system clock can produce different frequency clock to drive the
user logic thought PLLs and DCMs inside FPGA.

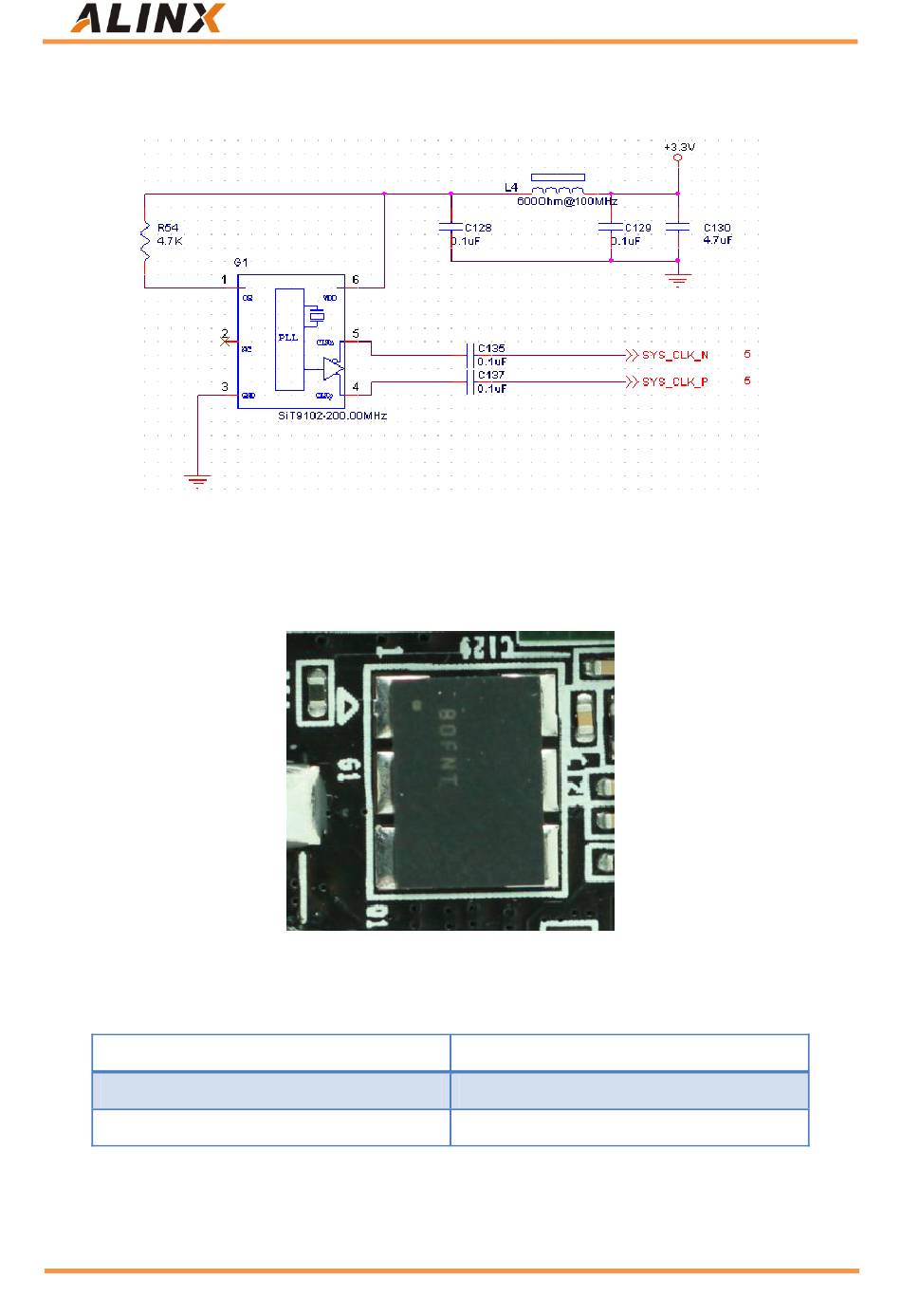

Figure 2-3-1 200Mhz System Clock
Figure 2-3-2 shows the onboard 200Mhz differential crystal oscillator
Figure 2-3-2 Onboard 200Mhz Crystal Oscillator
Clock Pin Assignment.
Net Name FPGA PIN
SYS_CLK_P R4
SYS_CLK_N T4
