AX7102 User Manual
The AX7102 development Kit presents a robust hardware design platform built
around the XILINX Artix-7 FPGA, which optimized for lowest cost and power
with small form-factor packaging for the highest volume applications. The
AX7102 development board is equipped with high-speed DDR3 memory, SFP
networking, and USB2.0 capabilities, Ethernet networking, and much more
other resource that promise many exciting applications.
This ARTIX-7 FPGA development platform includes core board and expansion
board, so that users can reuse the core board in their own projects conveniently.
The kit contains complete reference designs and source code for each part on
board. it is a good choice for students or FPGA engineers to learn Artix-7 FPGA
and do evaluation base on it. This document provides users key information
about the kit. Figure1-1 shows a photograph of the whole board.

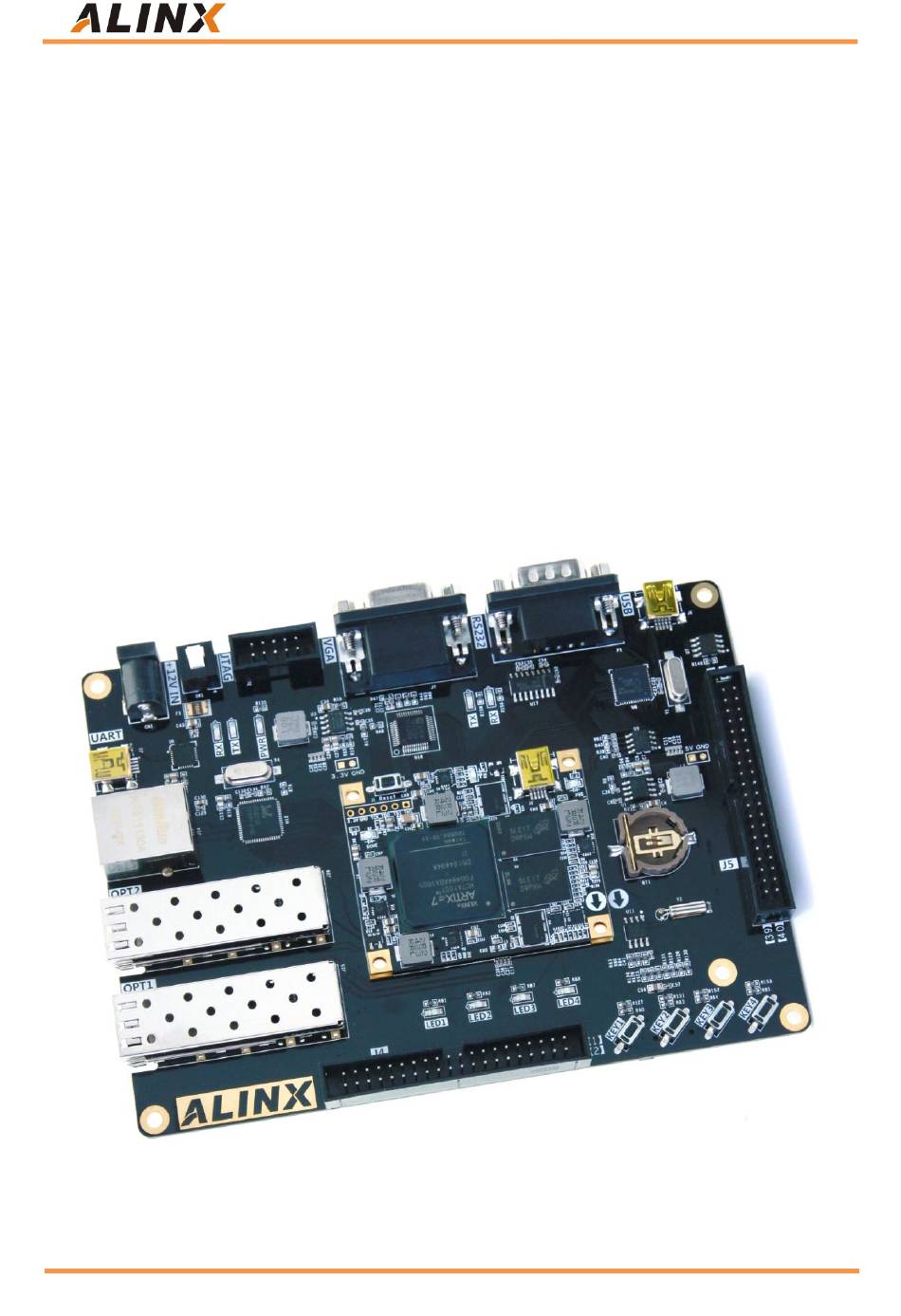

Figure1-1 AX7102 Overview
