U1
FPGA

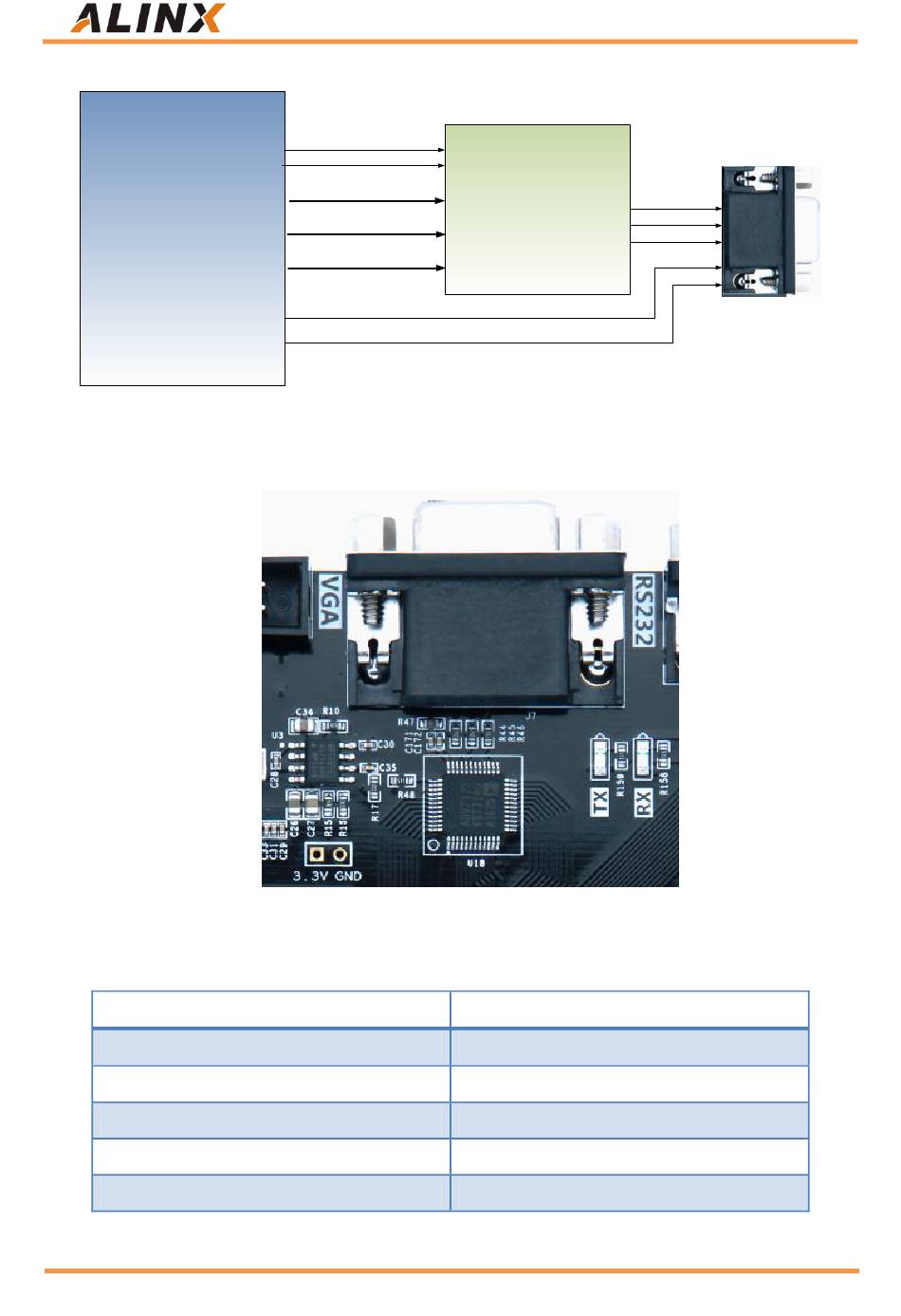

Figure 3-4-1 Connections Between FPGA and VGA
Figure 3-4-2 shows the VGA circuit in AX7102 board.
Pin Assignment of VGA Interface.
Net Name
VGA_CLK
VGA_EN
VGA_HS
VGA_VS
VGA_R7
41 / 59
VGA_CLK
CLK
VGA_EN
/BLANK
VGA_R[7:0]
R
VGA_G[7:0]
G
VGA_B[7:0]
B
VGA_HS
VGA_VS
Figure 3-4-2 VGA Circuit Onboard
AX7102 User Manual
U18
ADV7123
FPGA PIN
U21
AB20
AA11
AA10
W15
Http://www.alinx.com.cn
R
G
B
