AX7102 User Manual

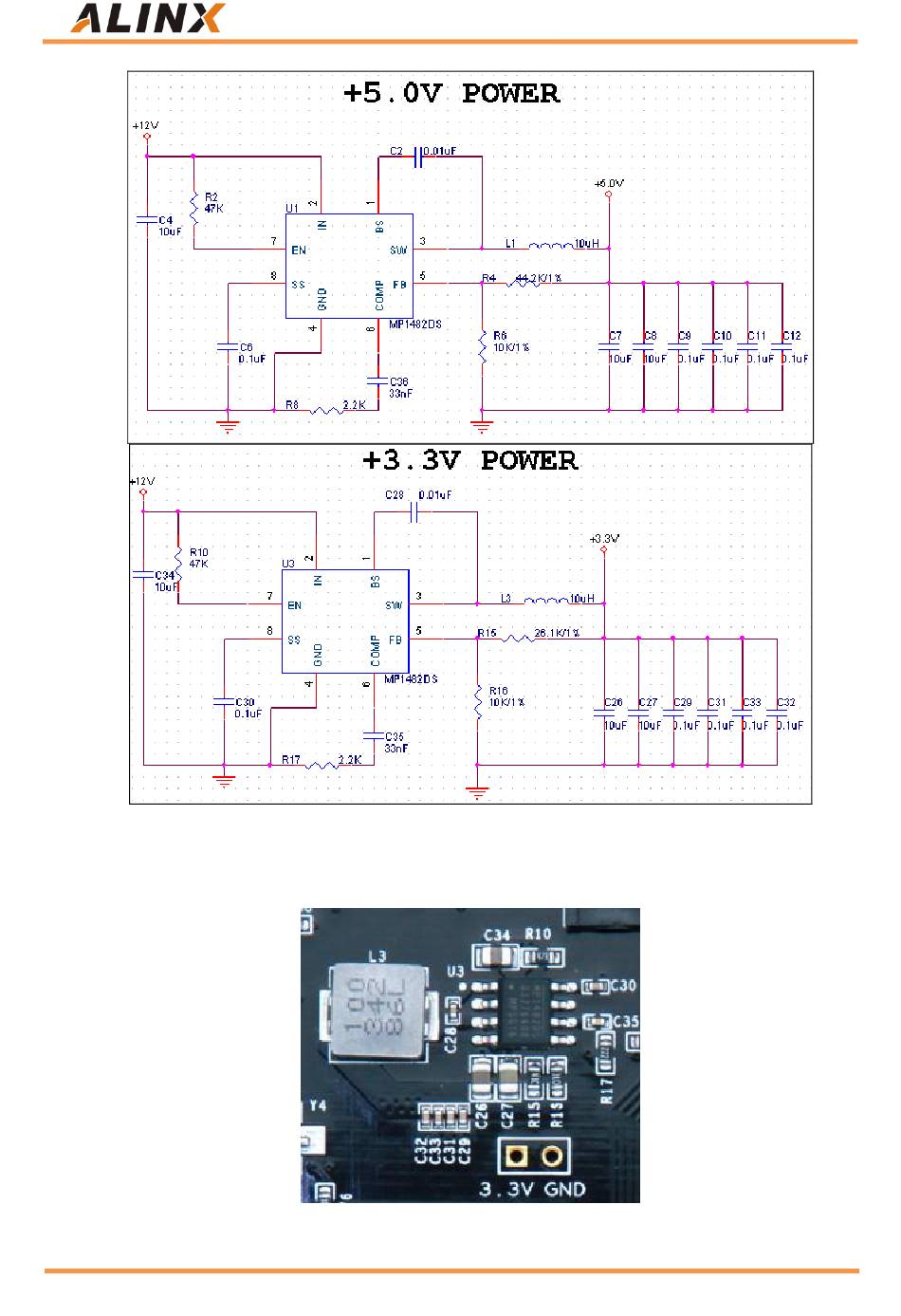

Figure 3-15-1 Power Design of AX7102
Figure 3-15-2 and Figure 3-15-3 is the DC/DC circuit on board.
Http://www.alinx.com.cn
58 / 59
