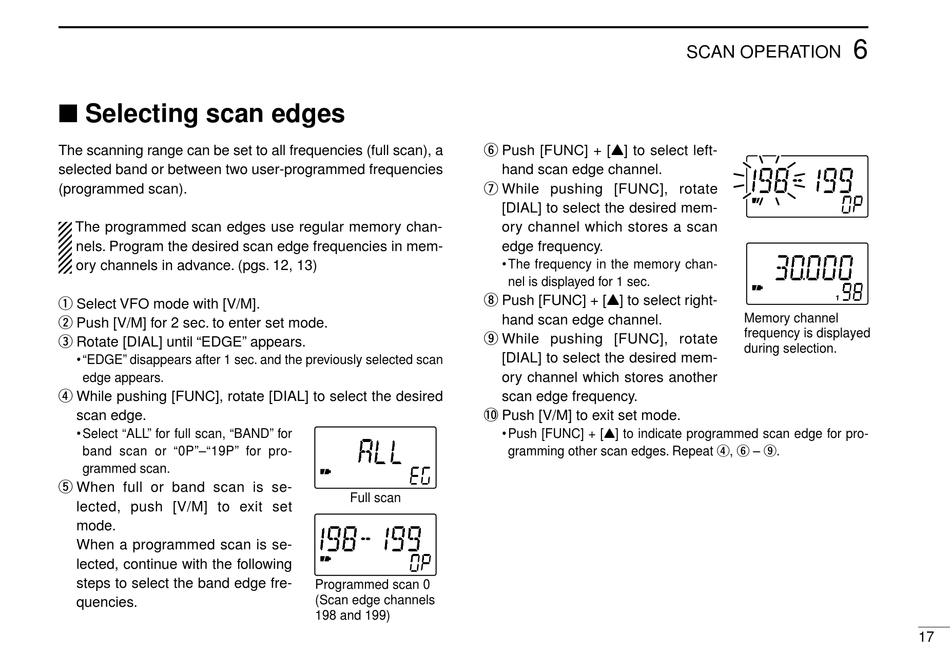

Selecting scan edges

The scanning range can be set to all frequencies (full scan), a
selected band or between two user-programmed frequencies
(programmed scan).
The programmed scan edges use regular memory chan-
nels. Program the desired scan edge frequencies in mem-
ory channels in advance. (pgs. 12, 13)
q Select VFO mode with [V/M].
w Push [V/M] for 2 sec. to enter set mode.
e Rotate [DIAL] until "EDGE" appears.
• "EDGE" disappears after 1 sec. and the previously selected scan
edge appears.
r While pushing [FUNC], rotate [DIAL] to select the desired
scan edge.
• Select "ALL" for full scan, "BAND" for
band scan or "0P"–"19P" for pro-
grammed scan.
t When full or band scan is se-
lected, push [V/M] to exit set
mode.
When a programmed scan is se-
lected, continue with the following
steps to select the band edge fre-
quencies.
y Push [FUNC] + [Y] to select left-
u While pushing [FUNC], rotate
i Push [FUNC] + [Y] to select right-
o While pushing [FUNC], rotate
!0 Push [V/M] to exit set mode.
Full scan
Programmed scan 0
(Scan edge channels
198 and 199)
hand scan edge channel.
[DIAL] to select the desired mem-
ory channel which stores a scan
edge frequency.
• The frequency in the memory chan-
nel is displayed for 1 sec.
hand scan edge channel.
[DIAL] to select the desired mem-
ory channel which stores another
scan edge frequency.
• Push [FUNC] + [Y] to indicate programmed scan edge for pro-
gramming other scan edges. Repeat r, y – o.
6
SCAN OPERATION
Memory channel
frequency is displayed
during selection.
