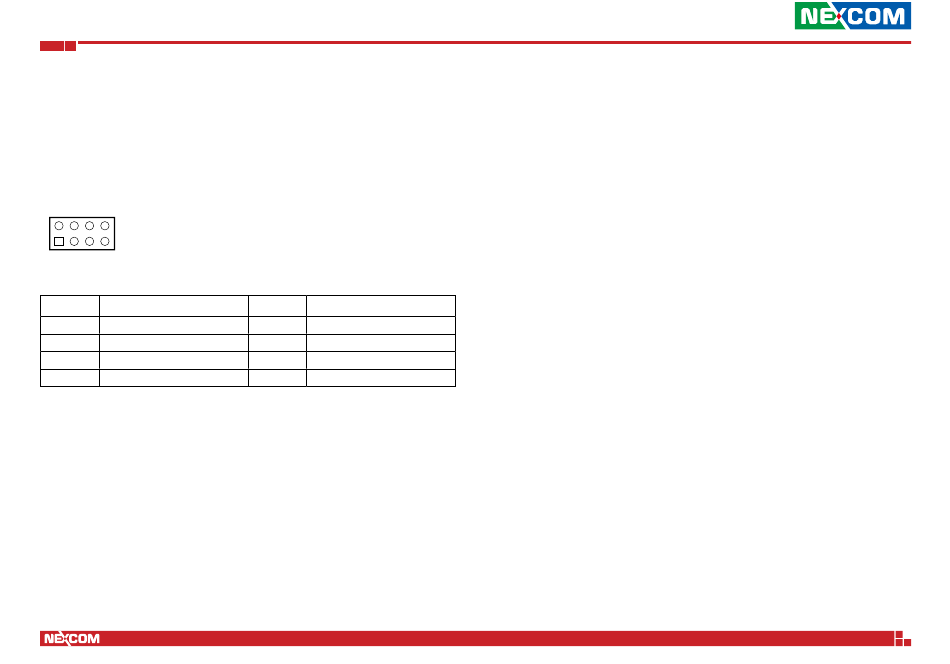

Chapter 2: Jumpers and Connectors
Jumpers
Clear CMOS Function
Connector type: 2x4 8-pin header
Connector location: JP1
2
8
1
7
Pin
Definition
1
NC
3
RTCRST_N
5
GND
7
GND
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
3.3V
4
AT_ATX_SEL
6
GND
8
FP_PWR_BTN_N
8
NSA 3190A User Manual
