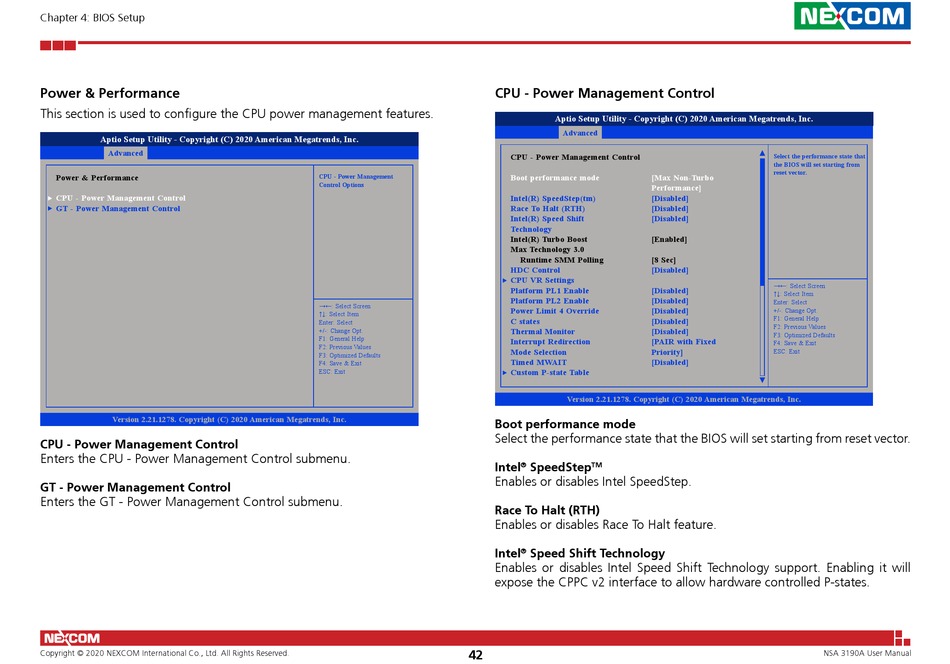

Chapter 4: BIOS Setup
Power & Performance
This section is used to configure the CPU power management features.
Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc.
Advanced
Power & Performance
CPU - Power Management Control

GT - Power Management Control

Version 2.21.1278. Copyright (C) 2020 American Megatrends, Inc.
CPU - Power Management Control
Enters the CPU - Power Management Control submenu.
GT - Power Management Control
Enters the GT - Power Management Control submenu.
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
CPU - Power Management Control
CPU - Power Management
Control Options
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Boot performance mode
Select the performance state that the BIOS will set starting from reset vector.
Intel
Enables or disables Intel SpeedStep.
Race To Halt (RTH)
Enables or disables Race To Halt feature.
Intel
Enables or disables Intel Speed Shift Technology support. Enabling it will
expose the CPPC v2 interface to allow hardware controlled P-states.
42
Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc.
Advanced
CPU - Power Management Control
Boot performance mode [Max Non-Turbo
Performance]
Intel(R) SpeedStep(tm) [Disabled]
Race To Halt (RTH) [Disabled]
Intel(R) Speed Shift [Disabled]
Technology
Intel(R) Turbo Boost [Enabled]
Max Technology 3.0
Runtime SMM Polling [8 Sec]
HDC Control [Disabled]
CPU VR Settings

Platform PL1 Enable [Disabled]
Platform PL2 Enable [Disabled]
Power Limit 4 Override [Disabled]
C states [Disabled]
Thermal Monitor [Disabled]
Interrupt Redirection [PAIR with Fixed
Mode Selection Priority]
Timed MWAIT [Disabled]
Custom P-state Table

Version 2.21.1278. Copyright (C) 2020 American Megatrends, Inc.
SpeedStep
® TM
Speed Shift Technology
®
▲
Select the performance state that
the BIOS will set starting from
reset vector.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
▼
