Chapter 1: Product Introduction

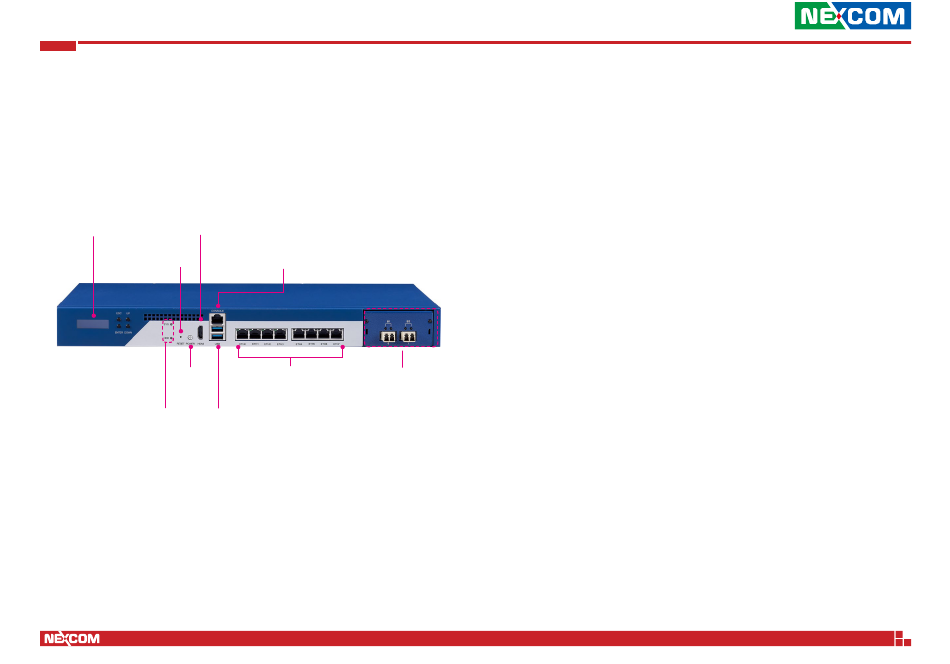

Knowing Your NSA 3190A
Front Panel
HDMI
LCD
Reset Button
Power
Button
GPIO/HDD LEDs
USB 3.0
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
RJ45 Type
Console Port
2.5 GbE RJ45 LAN
LAN Module
Ports
Bay
LCD
128x32 characters LCD module.
GPIO/HDD LED Indicators
LED indicators for hard drive activity of the system, as well as one LED
reserved for GPIO (user programmable).
Reset Button
Press to restart the system.
Power Button
Press to power-on or power-off the system.
HDMI
Used to connect a high-definition display.
RJ45 Type Console Serial Port
Used to connect console devices with RJ45 type connection.
USB 3.0 Ports
Used to connect USB 3.0/2.0/1.1 devices.
2.5 GbE RJ45 LAN Ports
8 LAN ports used to connect network devices.
LAN Module Bay
LAN module bay used to install add-on network modules.
