Chapter 3: System Setup

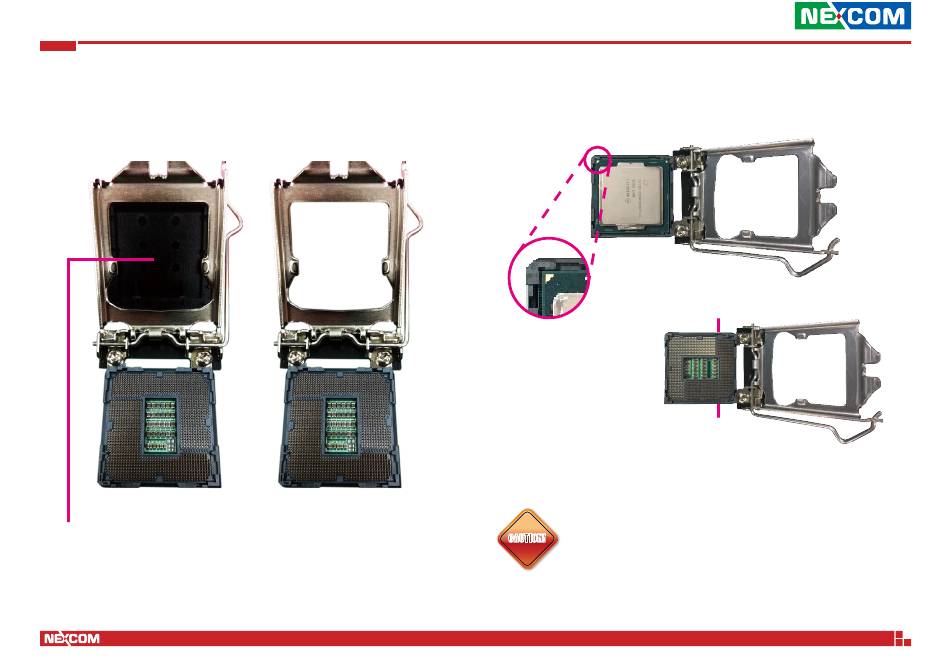

5. Remove the protective cap from the CPU socket. The cap is used to
protect the CPU socket against dust and harmful particles. Remove the
protective cap only when you are about to install the CPU.
Protective Cap
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
6. Insert the CPU into the socket. The triangular edge on the CPU must
align with the corner of the CPU socket shown on the photo.
The CPU's notch will at
the same time fit into the
socket's alignment key.
▪ Handle the CPU by its edges and avoid touching the pins.
▪ The CPU will fit in only one orientation and can easily be
CAUTION!
CAUTION!
CAUTION!
inserted without exerting any force.
33
Alignment Key
Alignment Key
NSA 3190A User Manual
